SF-U01
| Availability: | |
|---|---|
| Quantity: | |

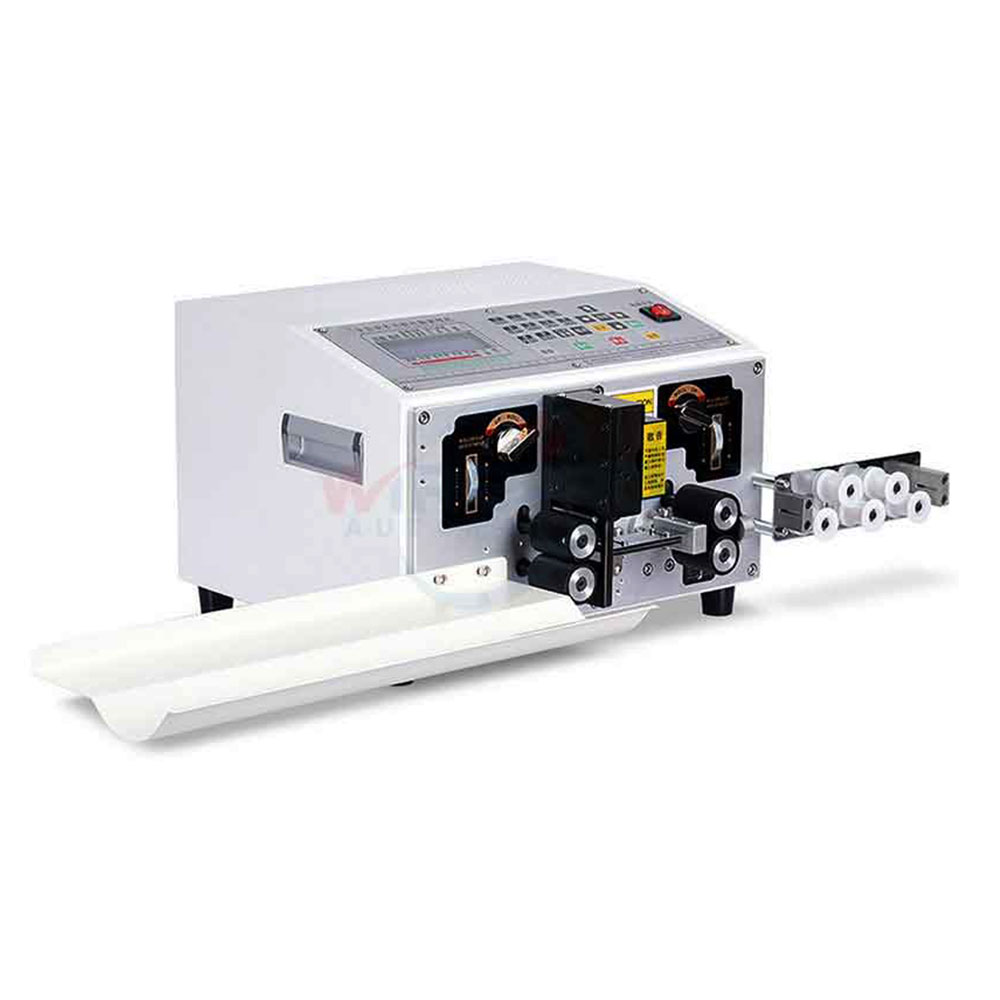

Automatic Flat Cable Stripping Machine
This series of machines is purpose-built for flat cable processing. It supports cutting and stripping and can be customized to include twisting or splitting wire systems. These machines are widely used in the wire harness processing industry, including automotive electrical systems, instrumentation, lighting, and household appliances.
Features：
1. Customizable Functions: Twisting and splitting options available to suit diverse processing needs.
2. Wide Compatibility: Designed for handling flat cables of various sizes.
3. Flexible Length Settings: Cable length adjustments can be configured across a broad range.
4. Easy Operation and Maintenance: Streamlined user experience with straightforward upkeep.
5. High Efficiency: Offers fast operation speeds, exceptional precision, and reliable performance.
A reliable solution for optimizing wire harness processing with high-quality output and enhanced efficiency.
| Model | SF-U01 | SF-T02 |
| Features | Cut & Strip | Cut & Strip & Twist |
| Available Wire Width | 8-16mm | 8-16mm |
| Cutting Length | 1-99999mm | 1-99999mm |
| Cutting Length Tolerances | ±(0.002*L)mm | ±(0.002*L)mm |
| Stripping Length | 0-20mm | 0-20mm |
| Display Screen | Chinese / English LCD Screen | Chinese / English LCD Screen |
| Drive Method | 4 wheels drive | 4 wheels drive |
| Power Supply | 110/220VAC, 50/60Hz | 110/220VAC, 50/60Hz |
| Twisting Length | ~ | 4-15mm |
| Production Rate | 2000-3500pcs/h | 2000-3500pcs/h |
| Power | 400W | 400W |
| Dimensions | 42*40*28cm | 42*40*28cm |
| Weight | 28kg | 30kg |
Application
The SF-U01 is an automatic machine designed for cutting and stripping flat cables. It is widely used in wire harness processing for automotive electrical systems, instrumentation, lighting, and household appliances, with optional twisting or splitting systems.
It processes flat cables with a width range of 8-16mm. It supports cutting lengths from 1-99999mm with a tolerance of ±(0.002*L)mm, and stripping lengths of 0-20mm, making it suitable for various flat cable applications.
The SF-U01 offers a production rate of 2000-3500 pieces per hour. It features a 4-wheel drive system with a Chinese/English LCD screen, providing fast operation and reliable performance for high-volume flat cable processing.
Key features include customizable options for twisting or splitting systems, flexible length settings across a broad range, and a 4-wheel drive system. The SF-T02 variant adds a twisting function (4-15mm twist length) for additional processing needs.
The SF-U01 requires 110/220VAC, 50/60Hz power (400W) and has dimensions of 42*40*28cm, weighing 28kg. It is a benchtop unit with a compact footprint suitable for various workspaces.
The LCD screen allows easy adjustment of cutting length, stripping length, and other parameters. The machine supports a wide range of flat cable sizes (8-16mm width), and free sample testing is offered to optimize settings for specific cable types.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
