Frequently Asked Questions

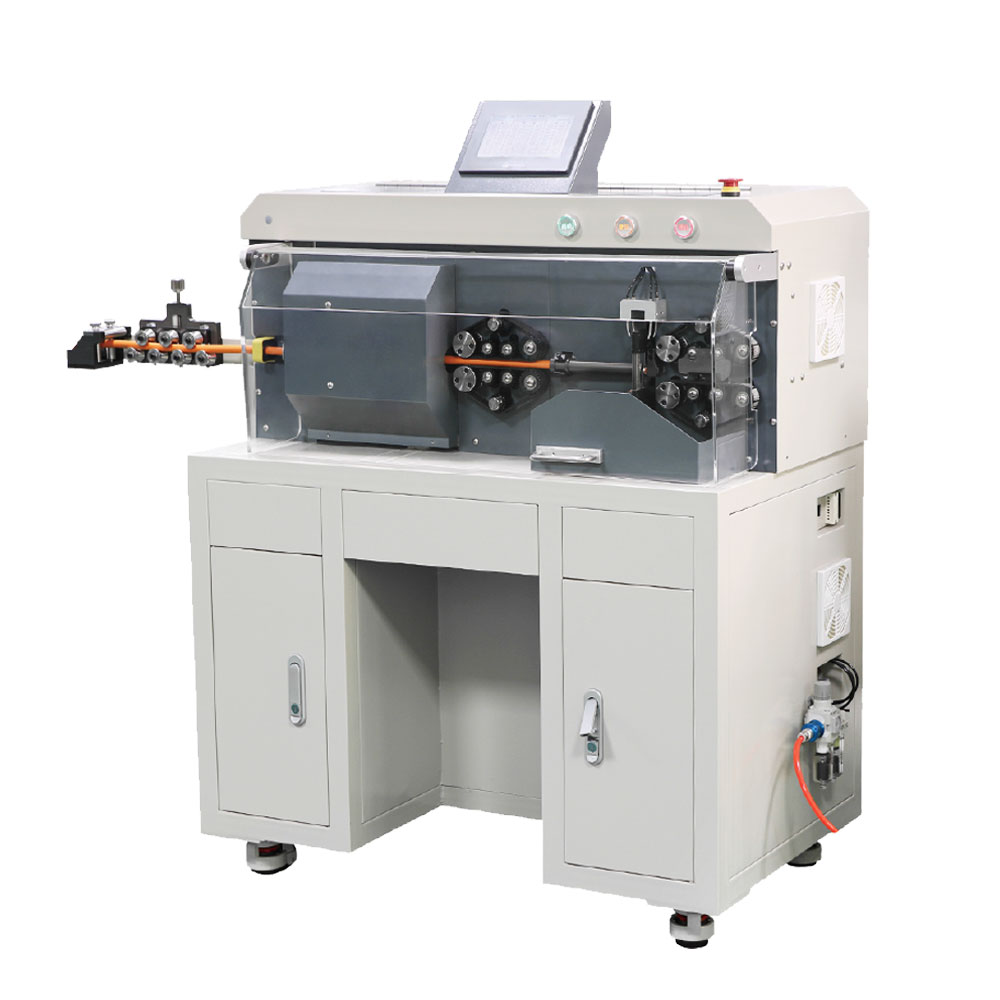

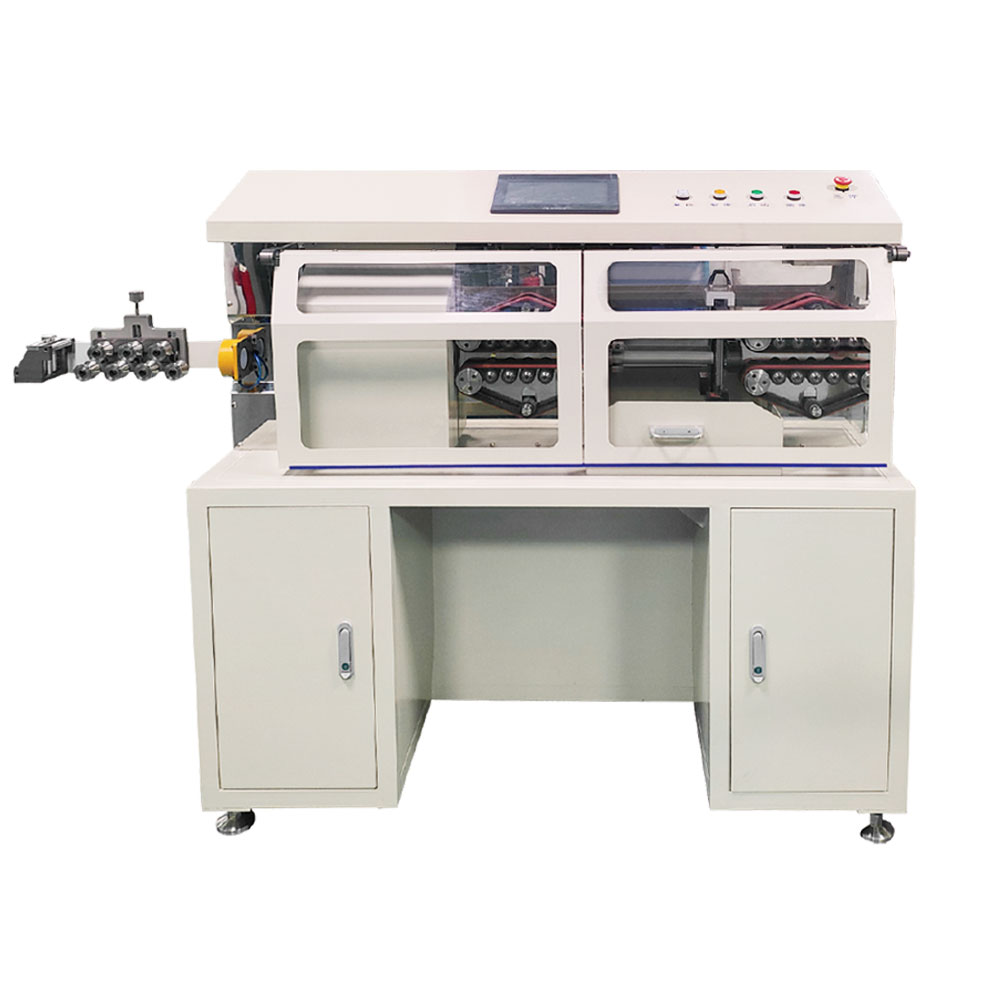

What does the SC-A15/SC-A25 fully automatic cutting and stripping machine do and what is its primary use?
The SC-A15 and SC-A25 are fully automatic cutting and stripping machines specifically engineered for larger coaxial cables. They support cable cutting, multi-segment stripping, window stripping, and glue retention processing.
What cable diameters and stripping lengths can these models handle?
SC-A15: 3-15mm diameter, left stripping ≤130mm, right stripping ≤220mm. SC-A25: 5-25mm diameter, left stripping ≤250mm, right stripping ≤200mm. Both support up to 6 stripping layers with ±0.5mm ± L*1‰ tolerance.
What are the unique features of the SC-A15/SC-A25 compared to other coaxial strippers?
Key features include a specialized central positioning device and cable feeding mechanism for superior accuracy, one-pass completion of complex coaxial cable processing, and support for multiple processing modes including window stripping and glue retention.
What is the production rate and what are the power requirements?
Production rate: 300-850 pieces per hour (based on cable). Both models operate on 220V/110V power (2500W) with motor/ball screw drive and Chinese/English display screen.
What are the space requirements for installation?
SC-A15: 100*60*135cm, 213kg. SC-A25: 140*75*130cm, 375kg. Both require dedicated floor space for installation.
What are the delivery, installation, and after-sales support terms?
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
