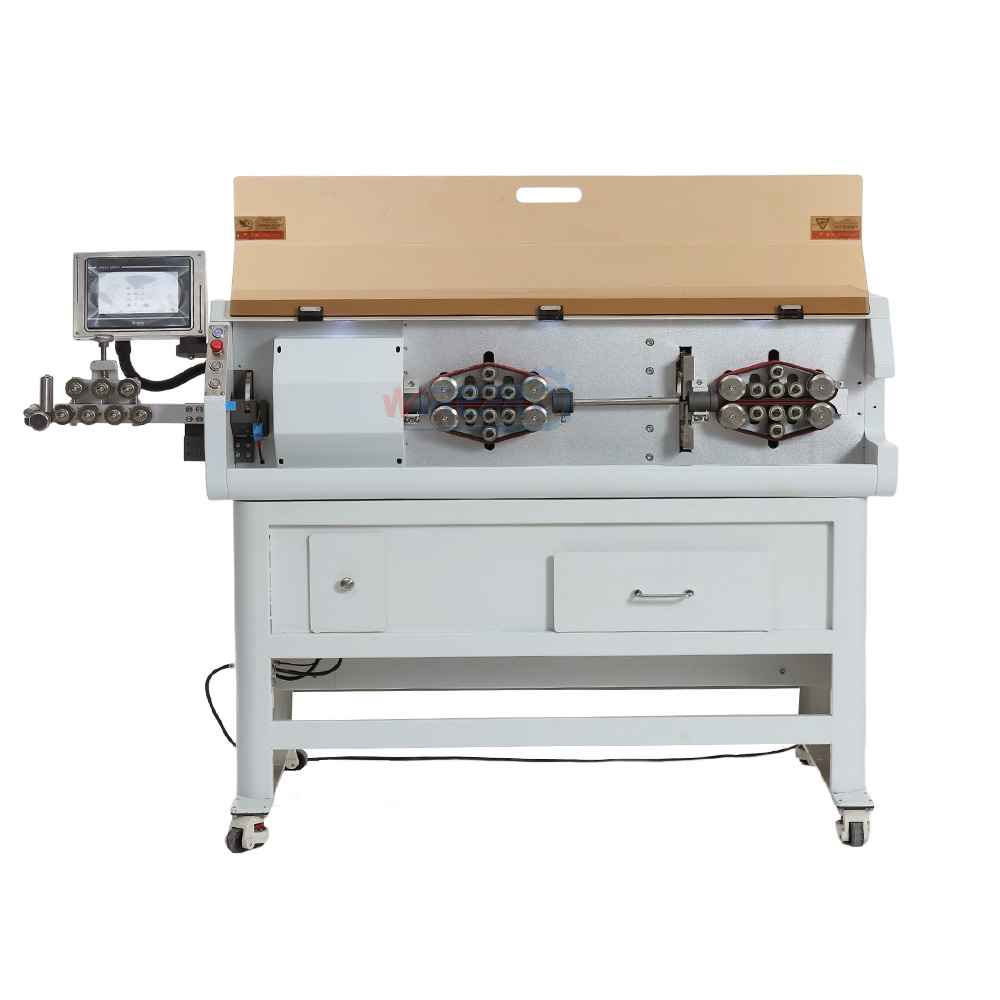

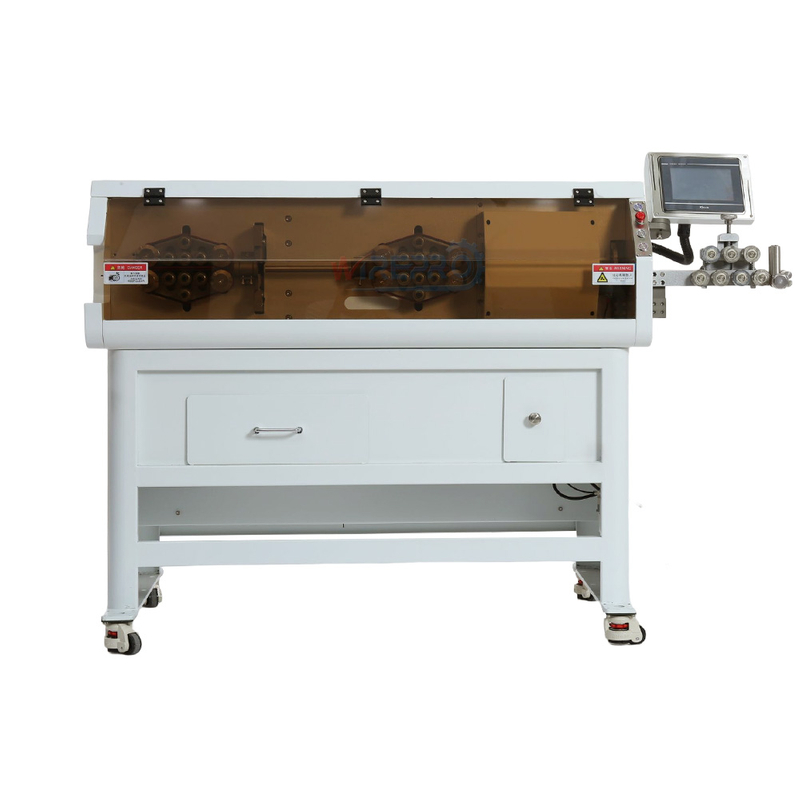

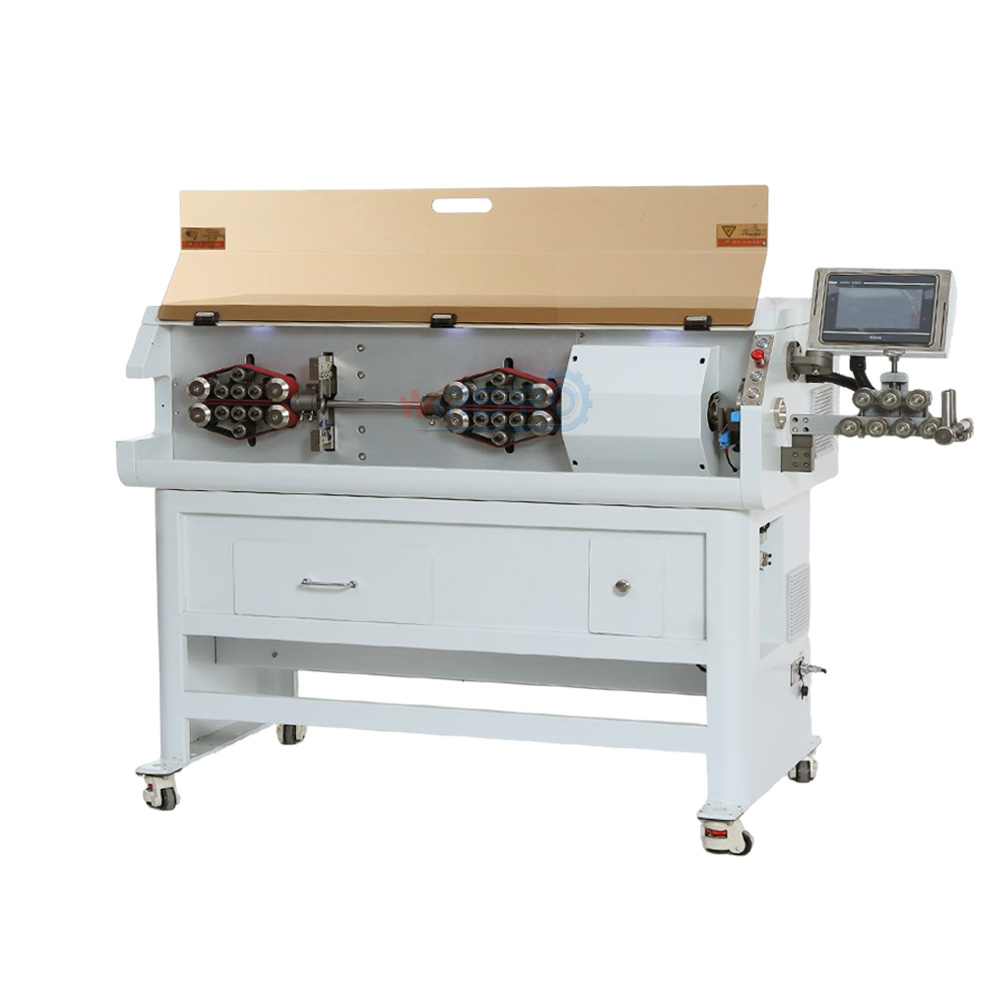

SU-300
| Availability: | |
|---|---|
| Quantity: | |
This series of machines is designed for fully automatic cutting and stripping of large-size cables, such as automotive power cables, electric control cabinet cables, battery box cables, new energy vehicle wiring harnesses, high-power supply shielding cables, and charging pile harnesses. It is also suitable for silicone wires, high-temperature wires, signal wires, and more.
1. Capable of processing cables up to 120/150 sqmm, improving work efficiency.
2. Supports longer stripping lengths compared to standard machines.
3. Belt-driven cable feeding ensures no embossing or scratches on the wire surface.
4. Automatically identifies the machining center to increase production rates.
5. Uses specific axial positioning and advanced tool holders for improved accuracy and productivity.
6. Digitally displays wire diameter settings, with high-quality pneumatic components for stable and energy-saving operation.
7. Optional auxiliary equipment includes automatic wire feeders, wire stackers, or coilers.
This series of machines is designed for fully automatic cutting and stripping of large-size cables, such as automotive power cables, electric control cabinet cables, battery box cables, new energy vehicle wiring harnesses, high-power supply shielding cables, and charging pile harnesses. It is also suitable for silicone wires, high-temperature wires, signal wires, and more.
1. Capable of processing cables up to 120/150 sqmm, improving work efficiency.
2. Supports longer stripping lengths compared to standard machines.
3. Belt-driven cable feeding ensures no embossing or scratches on the wire surface.
4. Automatically identifies the machining center to increase production rates.
5. Uses specific axial positioning and advanced tool holders for improved accuracy and productivity.
6. Digitally displays wire diameter settings, with high-quality pneumatic components for stable and energy-saving operation.
7. Optional auxiliary equipment includes automatic wire feeders, wire stackers, or coilers.
| Model | SU-300 | SU-450 |
| Available Wire Size | AWG2 – 300mm² | AWG2 – 450mm² |
| Conductor Cross-Section | 30-300mm² | 30-450mm² |
| Cutting Length | 10-99999.99mm | 10-99999.99mm |
| Cutting Length Tolerances | ≤(0.002*L) mm | ≤(0.002*L) mm |
| Stripping Length * | Head 1-1000mm; Tail 1-300mm | Head 1-1000mm; Tail 1-300mm |
| Conduit Diameter * | Φ15-50mm | Φ15-50mm |
| Production Rate | 200-800pcs/h | 200-600pcs/h |
| Display Screen | 7 inch touch screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding | Belt feeding |
| Drive Method | 32 wheels drive | 32 wheels drive |
| Power Supply | 220V/110V | 220V/110V |
| Power | 11700W | 13500W |
| Weight | 450kgs | 550kg |
| Dimensions | 210*90*145cm | 210*90*145cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
| Model | SU-300 | SU-450 |
| Available Wire Size | AWG2 – 300mm² | AWG2 – 450mm² |
| Conductor Cross-Section | 30-300mm² | 30-450mm² |
| Cutting Length | 10-99999.99mm | 10-99999.99mm |
| Cutting Length Tolerances | ≤(0.002*L) mm | ≤(0.002*L) mm |
| Stripping Length * | Head 1-1000mm; Tail 1-300mm | Head 1-1000mm; Tail 1-300mm |
| Conduit Diameter * | Φ15-50mm | Φ15-50mm |
| Production Rate | 200-800pcs/h | 200-600pcs/h |
| Display Screen | 7 inch touch screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding | Belt feeding |
| Drive Method | 32 wheels drive | 32 wheels drive |
| Power Supply | 220V/110V | 220V/110V |
| Power | 11700W | 13500W |
| Weight | 450kgs | 550kg |
| Dimensions | 210*90*145cm | 210*90*145cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
The series machines are designed for full-automatic cut and strip big size cable.
Application
The series machines are designed for full-automatic cut and strip big size cable.
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
