SU-A06/SU-A10
| Availability: | |
|---|---|
| Quantity: | |
Description

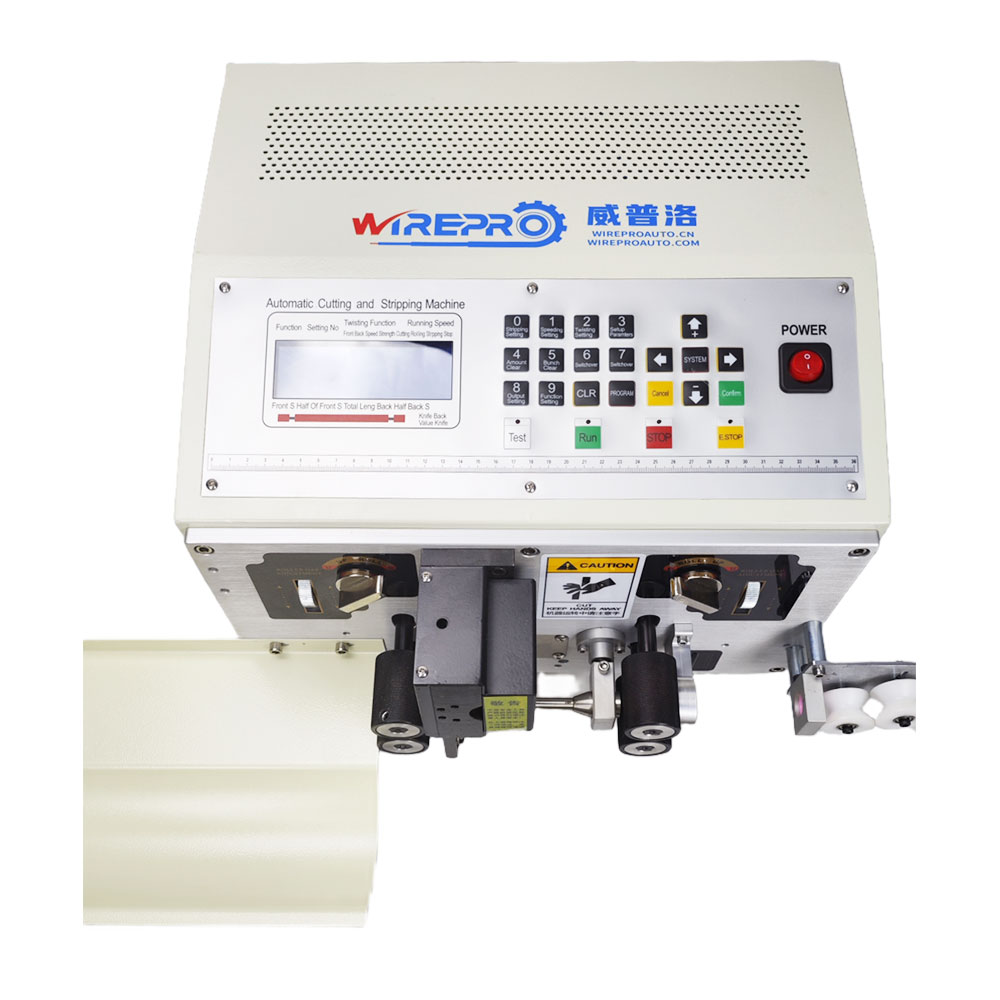

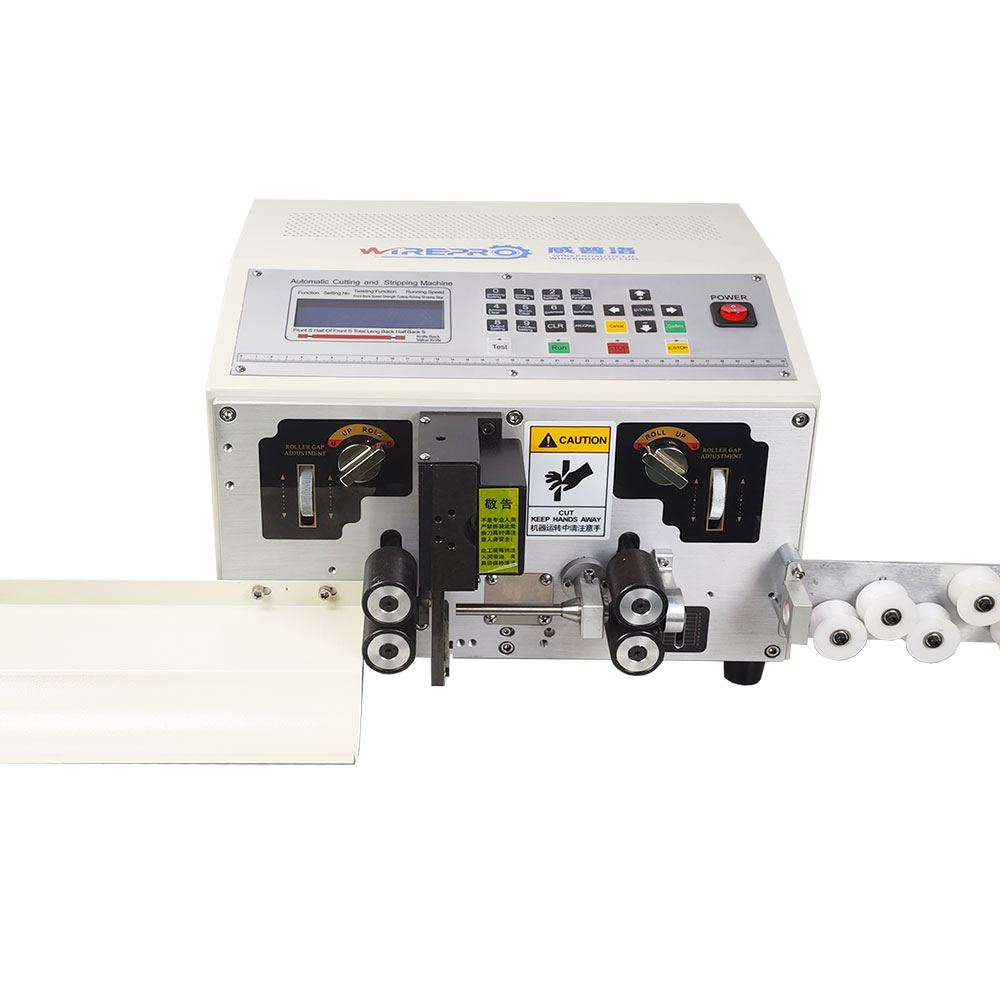

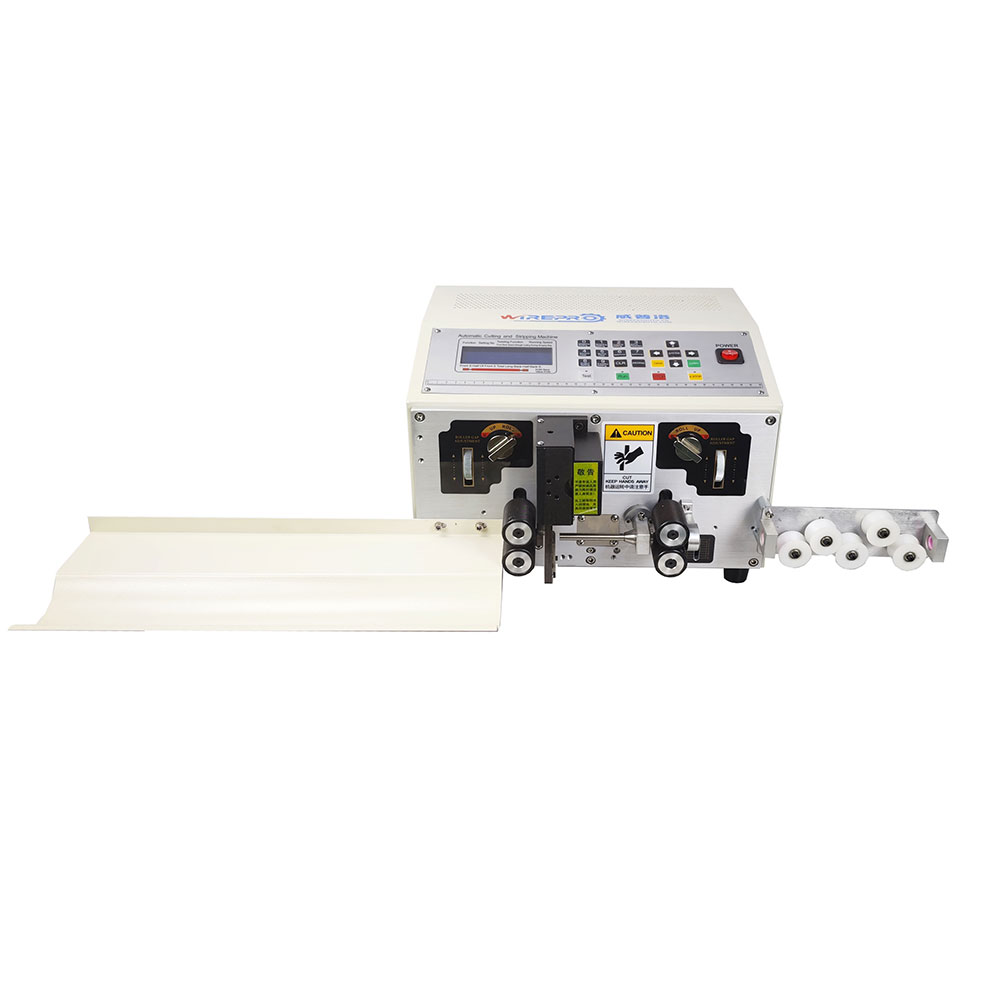

The SU-A10 is designed for fully automatic cutting and stripping of small wires from 0.1 to 10 mm². It is simple to operate, durable, and cost-effective.
The SU-A10 offers multiple processing modes suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton wire, and isolation wire. Fully automatic cutting, half stripping, full stripping, and multi-section stripping can be completed in one pass.
Key Features:
LCD Display with Bilingual Support – Supports Chinese and English. All buttons and processing programs are designed based on automatic computer programming for easy operation.

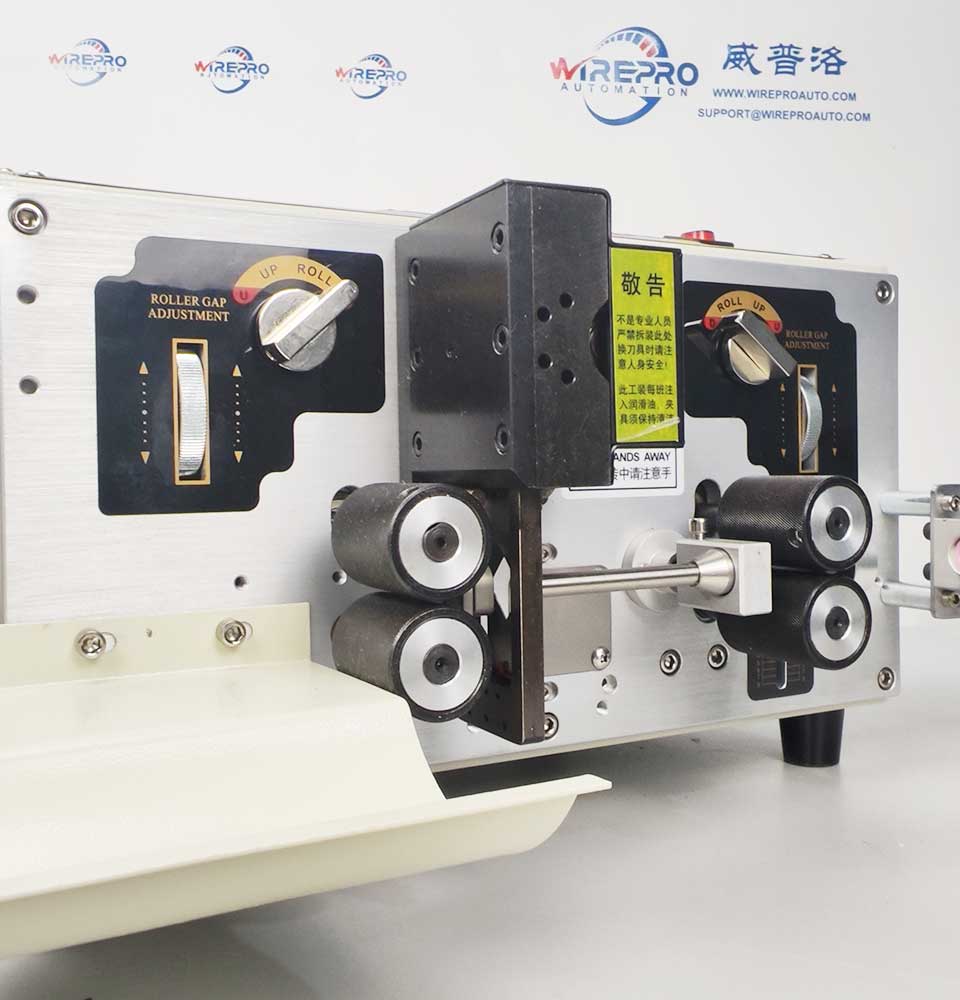

Four-Wheel Wire Feeding – Four driving wheels work together for wire feeding, with adjustable wire pressing force, high feeding accuracy, no damage to the wire, and no press marks.
High-Quality Japanese Blades – Made from raw materials imported from Japan, the cut edges are burr-free, wear-resistant, and designed for extended service life.
Adjustable Pressing Force – The pressing force of the four wire feeding wheels can be adjusted to better process various wire sizes.
Precision Stepper Motor – Equipped with a copper core stepper motor featuring high precision, low noise, precise current control, low motor heating, and longer service life.
Intelligent Control System – Uses a 32-bit CORTEX-M3 core processor with running speed up to 72M, capable of storing hundreds of parameter settings.
| Model | SU-A06 | SU-A10 |
| Available Wire Size | 0.1-6mm² | 0.2-10mm² |
| Conductor Cross-Section | AWG10-AWG32 | AWG8-AWG24 |
| Stripping Length | Head 0-35mm, Tail 0-80mm | 0-40mm |
| Cutting Length | 1-9999.9mm | |
| Cutting Length Tolerances | ±(0.002*L)mm | |
| Intermediate Stripping | Max 15 sections | |
| Conduit Diameter * | Φ6mm | Φ10mm |
| Production Rate | 2000-5000pcs/h | 1500-4000pcs/h |
| Wire Feed Method | Roller feeding | |
| Drive Method | 4 wheels drive | |
| Display Screen | Chinese / English LCD Screen | |
| Air Connection | 0.45 – 0.6 Mpa | |
| Power Supply | 220V/110V | |
| Power | 420W | 450W |
| Weight | 28kg | 30kgs |
| Dimensions | 42*40*28cm | 42*42*28cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Electronic wire cutting and stripping
Silicone wire and PTFE wire processing
Glass fiber cotton and isolation wire stripping
Multi-section stripping for complex harness requirements
The SU-A10 is an automatic cutting and stripping machine for small wires from 0.2-10mm², supporting full stripping, half stripping, and multi-section stripping for electronic wire, silicone wire, PTFE wire, and glass fiber cotton.
Available wire size: 0.2-10mm² (AWG8-AWG24). Stripping length: 0-40mm. Cutting length: 1-9999.9mm with tolerance ±(0.002*L)mm. Intermediate stripping: max 15 sections. Conduit diameter: Φ10mm. Production rate: 1500-4000pcs/h. Power: 220V/110V, 450W. Dimensions: 42*42*28cm, weight: 30kg.
Key features include 4-wheel drive feeding with adjustable pressing force, Japanese-imported blades for burr-free cutting, copper core stepper motor for high precision and low noise, and a 32-bit CORTEX-M3 processor storing hundreds of parameter settings.
The SU-A10 requires 220V/110V power (450W) and 0.45-0.6MPa air connection. Dimensions: 42*42*28cm, weight: 30kg. It is a compact benchtop unit requiring minimal workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
