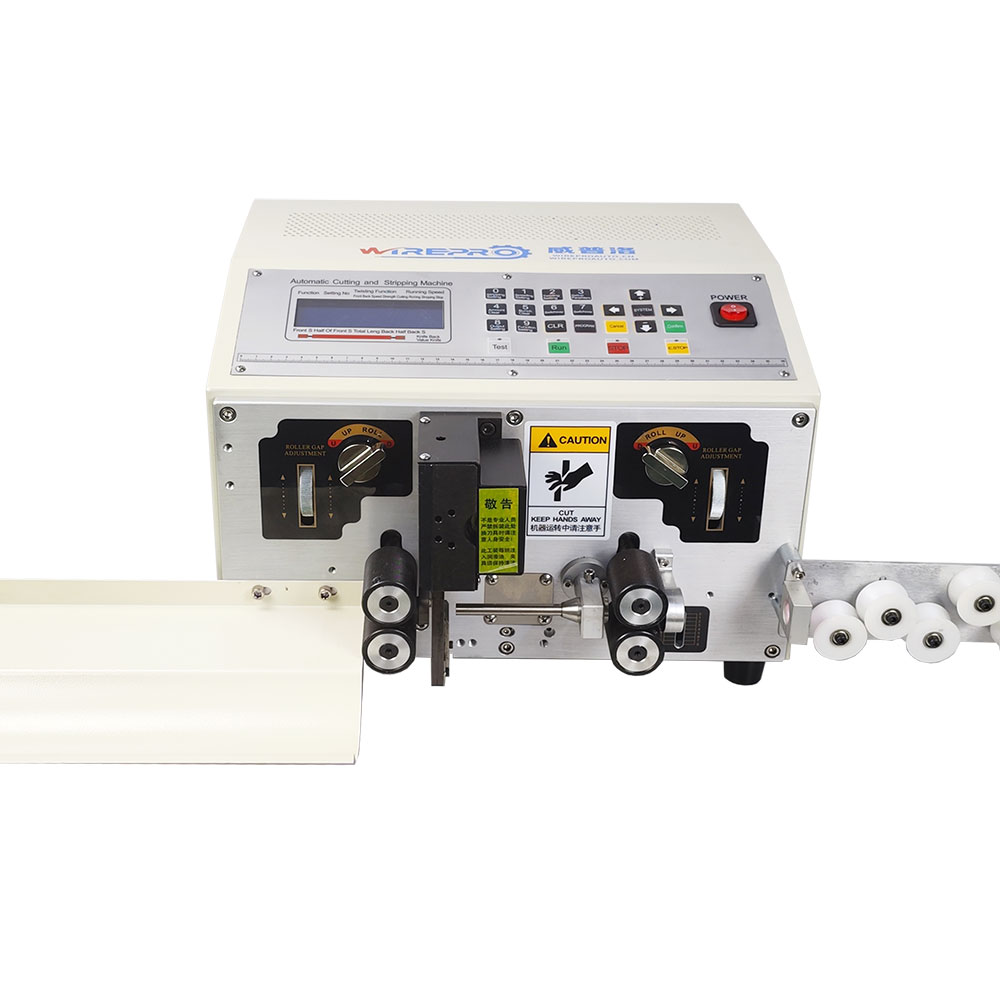

SU-A10
| Availability: | |
|---|---|
| Quantity: | |
The SU-A10 features multiple processing modes, making it suitable for electronic wires, silicone wires, PTFE wires, glass fiber cotton, and isolation wires. It supports fully automatic cutting, half stripping, full stripping, and multi-section stripping in a single operation.
1. LCD display with Chinese and English support; all buttons and processing programs are designed based on automatic computer programming, ensuring easy operation.
2. Four driving wheels for wire feeding with adjustable wire pressing force, providing high wire feeding accuracy without damaging wires or leaving press marks.
3. High-quality blades made from raw materials imported from Japan, ensuring burr-free cutting edges, wear 4. resistance, and extended service life.
4. Adjustable pressing force of the four-wire feeding wheels to better process wires of various sizes.
5. Equipped with a copper-core stepper motor that delivers high precision, low noise, precise current control, minimal motor heating, and a longer service life.
6. Intelligent control system with a 32-bit CORTEX-M3 core processor, running at speeds up to 72M, capable of storing hundreds of parameter settings.
| Model | SU-A06 | SU-A10 |
| Available Wire Size | 0.1-6mm² | 0.2-10mm² |
| Conductor Cross-Section | AWG10-AWG32 | AWG8-AWG24 |
| Stripping Length | Head 0-35mm, Tail 0-80mm | 0-40mm |
| Cutting Length | 1-9999.9mm | 1-9999.9mm |
| Cutting Length Tolerances | ±(0.002*L)mm | ±(0.002*L)mm |
| Intermediate Stripping | Max 15 sections | Max 15 sections |
| Conduit Diameter * | Φ6mm | Φ10mm |
| Production Rate | 2000-5000pcs/h | 1500-4000pcs/h |
| Wire Feed Method | Roller feeding | Roller feeding |
| Drive Method | 4 wheels drive | 4 wheels drive |
| Display Screen | Chinese / English LCD Screen | Chinese / English LCD Screen |
| Power Supply | 220V/110V | 220V/110V |
| Power | 420W | 450W |
| Weight | 28kg | 30kgs |
| Dimensions | 42*40*28cm | 42*42*28cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
For wire cutting stripping
The SU-A10 is an automatic wire cutting and stripping machine for electronic wires, silicone wires, PTFE wires, and glass fiber cotton. It supports fully automatic cutting, half stripping, full stripping, and multi-section stripping in a single operation.
It processes conductor cross-sections from 0.2-10mm² (AWG8-AWG24) with a maximum conduit diameter of Φ10mm. It supports stripping lengths of 0-40mm, cutting lengths from 1-9999.9mm, and intermediate stripping up to 15 sections.
The SU-A10 offers a production rate of 1500-4000 pieces per hour. It achieves a cutting length tolerance of ±(0.002*L)mm, ensuring high precision for repetitive cutting and stripping tasks.
Key features include a 4-wheel drive with adjustable pressing force to avoid wire damage, Japanese-imported steel blades for burr-free cutting, and a 32-bit CORTEX-M3 core processor that stores hundreds of parameter settings on the LCD screen.
The SU-A10 requires 220V/110V power (450W) and has dimensions of 42*42*28cm, weighing 30kg. It is a benchtop unit with a Chinese/English LCD screen for easy operation.
The LCD screen and intelligent control system allow easy adjustment of cutting, stripping, and other parameters. The adjustable pressing force on the feeding wheels accommodates various wire sizes, and free sample testing is offered.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
