SM-R70
| Availability: | |
|---|---|
| Quantity: | |

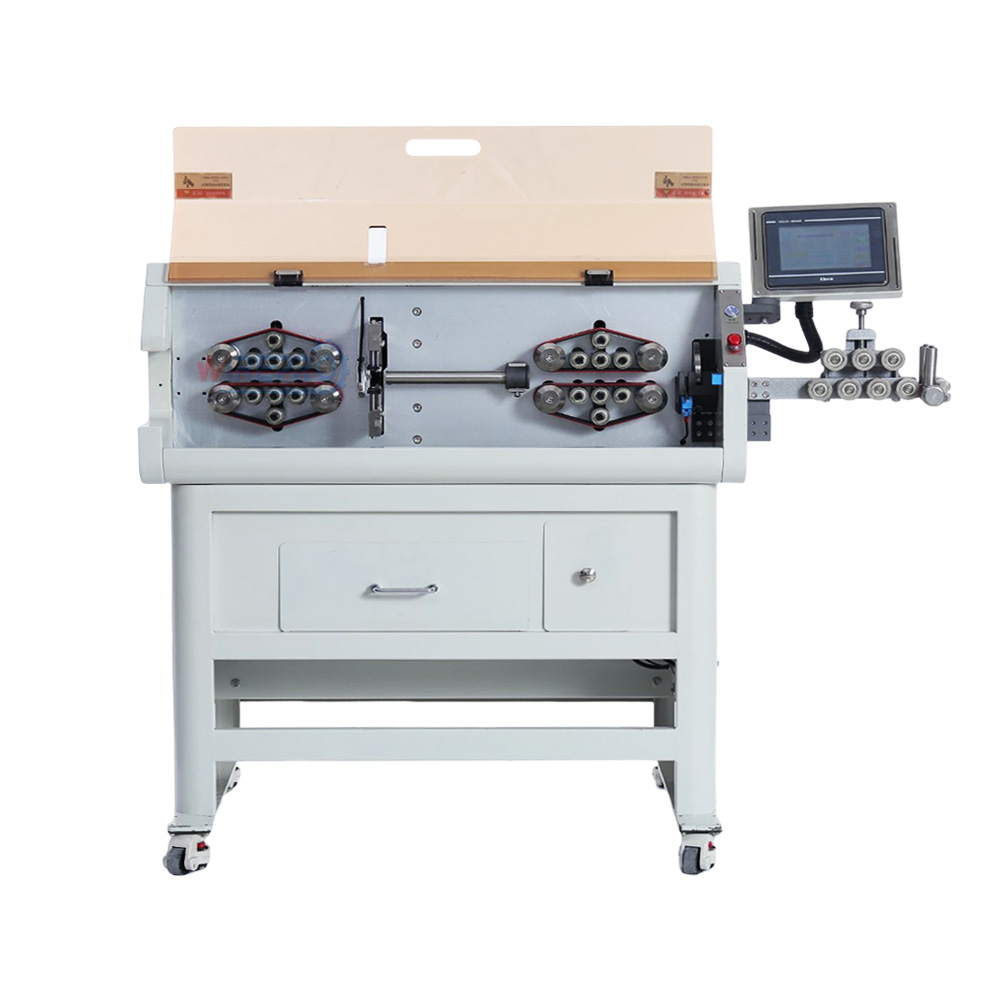

The SM-R70 is designed for the automatic processing of large-size multi-core cables, including cutting and stripping both the outer jacket and inner cores. It supports up to 5-core sheathed cables with a maximum capacity of 70 sqmm, offering exceptional efficiency and precision for heavy-duty applications.
Features:
1. Powerful Processing Capability:
Designed with strong power to handle large cables efficiently.
2. Multi-Core Stripping:
Supports the stripping of both outer jackets and inner cores for cables with 1-5 cores.
3. Belt Feeding System:
Ensures smooth wire handling with no press marks or scratches.
4. Precision Control:
Equipped with a 32-wheel drive system, silent hybrid stepper motor, and servo-controlled tool holder for high precision and stable operation.
The SM-R70 is the ideal solution for industries requiring robust, reliable, and high-capacity cable processing.
The SM-R70 is designed for the automatic processing of large-size multi-core cables, including cutting and stripping both the outer jacket and inner cores. It supports up to 5-core sheathed cables with a maximum capacity of 70 sqmm, offering exceptional efficiency and precision for heavy-duty applications.
Features:
1. Powerful Processing Capability:
Designed with strong power to handle large cables efficiently.
2. Multi-Core Stripping:
Supports the stripping of both outer jackets and inner cores for cables with 1-5 cores.
3. Belt Feeding System:
Ensures smooth wire handling with no press marks or scratches.
4. Precision Control:
Equipped with a 32-wheel drive system, silent hybrid stepper motor, and servo-controlled tool holder for high precision and stable operation.
The SM-R70 is the ideal solution for industries requiring robust, reliable, and high-capacity cable processing.
| Model | SM-R70 |
| Available Wire | Round sheathed cable |
| Conductor Cross-Section * | 1-70mm² |
| Cutting Length | 200-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Jacket Stripping Length * | Head 10-200mm; Tail 10-150mm |
| Inner Core Stripping Length * | Head 1-50mm; Tail 1-50mm |
| Conduit Diameter * | Φ25mm |
| Production Rate | One cores wire, 1800pcs/h ; Multi cores cable, 800pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 32 wheels drive |
| Power Supply | 220V/110V |
| Power | 1500W |
| Weight | 240kg |
| Dimensions | 120*72*146cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
| Model | SM-R70 |
| Available Wire | Round sheathed cable |
| Conductor Cross-Section * | 1-70mm² |
| Cutting Length | 200-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Jacket Stripping Length * | Head 10-200mm; Tail 10-150mm |
| Inner Core Stripping Length * | Head 1-50mm; Tail 1-50mm |
| Conduit Diameter * | Φ25mm |
| Production Rate | One cores wire, 1800pcs/h ; Multi cores cable, 800pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 32 wheels drive |
| Power Supply | 220V/110V |
| Power | 1500W |
| Weight | 240kg |
| Dimensions | 120*72*146cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
Application
Multi-cores cable full-automatic cutting and jacket and inner cores stripping.
Application
Multi-cores cable full-automatic cutting and jacket and inner cores stripping.
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
