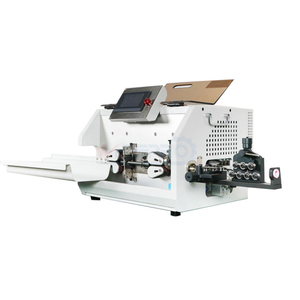

SM-R30
| Availability: | |
|---|---|
| Quantity: | |
The SM-R30 is a highly efficient and versatile machine designed for the automatic processing of multi-core sheathed cables. It is capable of cutting and stripping both the outer jacket and the inner cores, supporting up to 7-core cables for diverse industrial applications.
Features：
1. Wide Compatibility: Suitable for processing different wire sizes with a single machine.
2. Long Stripping Length: Supports stripping lengths of up to 200mm.
3. Gentle Handling: Belt feeding system ensures wires are processed without press marks or scratches.
4. Stable Performance: Equipped with a 16-wheel drive system, silent hybrid stepper motor, and servo-controlled tool holder for reliable operation.
Options：
SM-R30: Compact desk-type model.
SM-R30-F: Floor-type model, ideal for integration with wire coilers for extended automation.
This machine is an ideal solution for high-precision, high-efficiency cable processing, meeting the demands of modern manufacturing environments.
The SM-R30 is a highly efficient and versatile machine designed for the automatic processing of multi-core sheathed cables. It is capable of cutting and stripping both the outer jacket and the inner cores, supporting up to 7-core cables for diverse industrial applications.
Features：
1. Wide Compatibility: Suitable for processing different wire sizes with a single machine.
2. Long Stripping Length: Supports stripping lengths of up to 200mm.
3. Gentle Handling: Belt feeding system ensures wires are processed without press marks or scratches.
4. Stable Performance: Equipped with a 16-wheel drive system, silent hybrid stepper motor, and servo-controlled tool holder for reliable operation.
Options：
SM-R30: Compact desk-type model.
SM-R30-F: Floor-type model, ideal for integration with wire coilers for extended automation.
This machine is an ideal solution for high-precision, high-efficiency cable processing, meeting the demands of modern manufacturing environments.
| Model | SM-R30 |
| Available Wire | Round sheathed cable |
| Conductor Cross-Section * | 1-30mm² |
| Cutting Length | 1-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Jacket Stripping Length * | Head 10-120mm; Tail 10-80mm |
| Inner Core Stripping Length * | Head 1-50mm; Tail 1-50mm |
| Conduit Diameter * | Φ16mm |
| Production Rate | One cores wire, 2300pcs/h; Multi cores cable, 800pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 16 wheels drive |
| Power Supply | 220V/110V |
| Power | 1200W |
| Weight | 95kg |
| Dimensions | 60*50*62cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
| Model | SM-R30 |
| Available Wire | Round sheathed cable |
| Conductor Cross-Section * | 1-30mm² |
| Cutting Length | 1-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Jacket Stripping Length * | Head 10-120mm; Tail 10-80mm |
| Inner Core Stripping Length * | Head 1-50mm; Tail 1-50mm |
| Conduit Diameter * | Φ16mm |
| Production Rate | One cores wire, 2300pcs/h; Multi cores cable, 800pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 16 wheels drive |
| Power Supply | 220V/110V |
| Power | 1200W |
| Weight | 95kg |
| Dimensions | 60*50*62cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
Application
Multi cores sheathed cable full-automatic cutting and jacket and inner cores stripping.
Application
Multi cores sheathed cable full-automatic cutting and jacket and inner cores stripping.
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
