SU-A41
| Availability: | |
|---|---|
| Quantity: | |

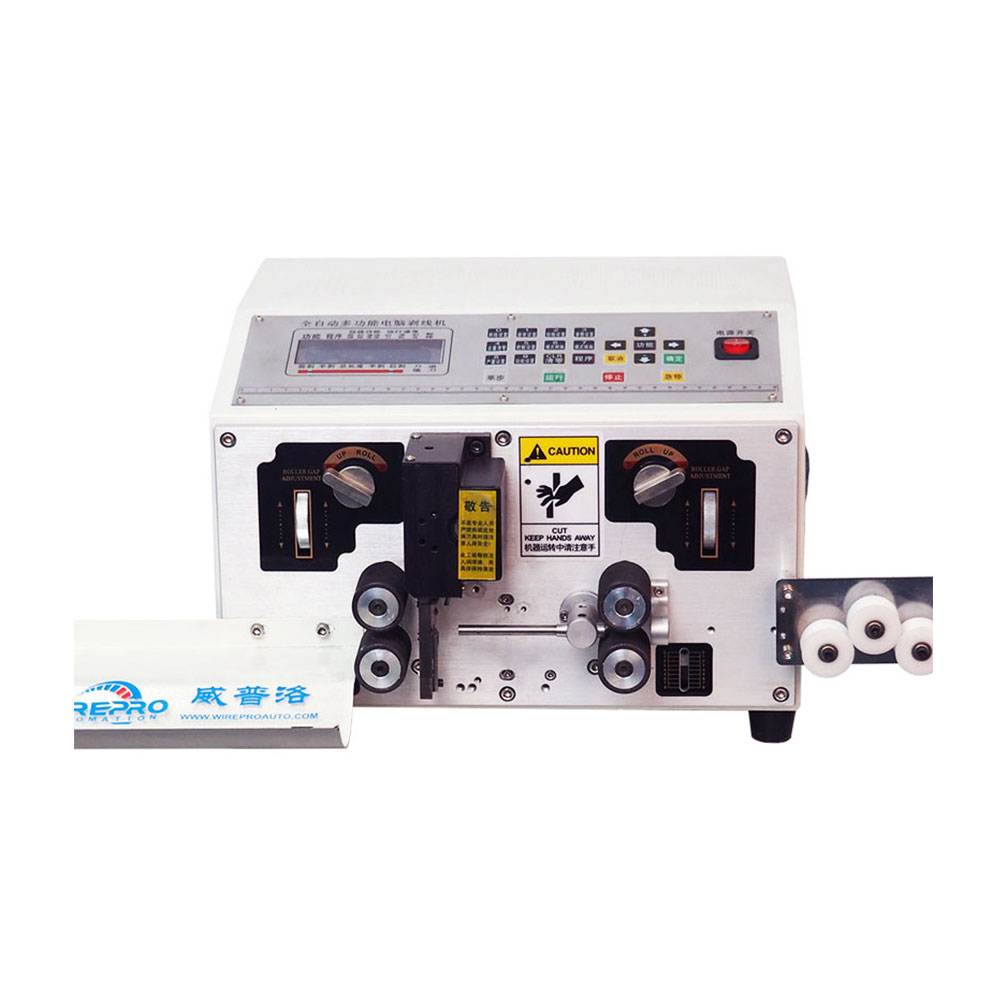

The SU-A41 is a versatile wire cutting and stripping machine designed to process various wire types, including electronic wire, silicone wire, PTFE wire, glass fiber cotton, and isolation wire. It supports fully automatic cutting, half stripping, full stripping, and multi-section stripping, completing all processes in one operation. Additionally, the SU-A41 can add a twisting function for flexible wires, thin wires, and multiple copper wires, preventing loosening, loss, or bending. Twisting enhances the penetration of wires into terminals and provides a better tinning effect. For more details, please check the SU-T41 videos.
Features：
1. LCD display supporting both Chinese and English; all buttons and processing programs are designed based on 2. automatic computer programming for ease of operation.
2. Four driving wheels for wire feeding, with adjustable wire pressing force, ensuring high wire feeding accuracy without damaging the wire or leaving press marks.
3. High-quality blades made from raw materials imported from Japan, ensuring burr-free, wear-resistant cutting edges for a longer service life.
4. Adjustable pressing force on the four-wire feeding wheels, enabling better processing of various wire sizes.
5. Equipped with a copper-core stepper motor for high precision, low noise, precise current control, low motor heating, and extended service life.
6. Intelligent control system using a 32-bit CORTEX-M3 core processor, with a running speed of up to 72M, capable of storing hundreds of parameter settings.
The SU-A41 offers flexibility, high precision, and efficiency, making it suitable for a wide range of wire processing applications.
| Model | SU-A41 |
| Features | One wire stripping |
| Conductor Cross-Section * | 0.3-4.5mm² |
| Stripping Length | 0-35mm |
| Cutting Length | 1-9999.9mm |
| Cutting Length Tolerances | ±(0.002*L)mm |
| Intermediate Stripping | Max 15 sections |
| Display Screen | Chinese / English LCD Screen |
| Wire Feed Method | Roller feeding |
| Drive Method | 4 wheels drive |
| Power Supply | 220V/110V |
| Conduit Dia * | Φ5mm |
| Production Rate | 3000-6000pcs/h |
| Power | 400W |
| Weight | 28kg |
| Dimensions | 42*40*28cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
Application
For wire cutting stripping
The SU-A41 is a versatile automatic wire cutting and stripping machine for electronic wire, silicone wire, PTFE wire, and glass fiber cotton. It supports fully automatic cutting, half stripping, full stripping, and multi-section stripping, all in one operation.
It processes conductor cross-sections from 0.3-4.5mm² with a maximum conduit diameter of Φ5mm. It supports stripping lengths of 0-35mm, cutting lengths from 1-9999.9mm, and intermediate stripping up to 15 sections.
The SU-A41 offers a production rate of 3000-6000 pieces per hour. It achieves a cutting length tolerance of ±(0.002*L)mm, ensuring high precision for repetitive cutting and stripping tasks.
Key features include an optional twisting function for flexible wires to prevent loosening, a 4-wheel drive with adjustable pressing force to avoid wire damage, and Japanese-imported steel blades for burr-free cutting. A 32-bit CORTEX-M3 core processor stores hundreds of parameter settings.
The SU-A41 requires 220V/110V power (400W) and has dimensions of 42*40*28cm, weighing 28kg. It is a benchtop unit with a Chinese/English LCD screen for easy operation.
The LCD screen and intelligent control system allow easy adjustment of cutting, stripping, and twisting parameters. The adjustable pressing force on the feeding wheels accommodates various wire sizes, and free sample testing is offered.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
