SU-A16
| Availability: | |
|---|---|
| Quantity: | |

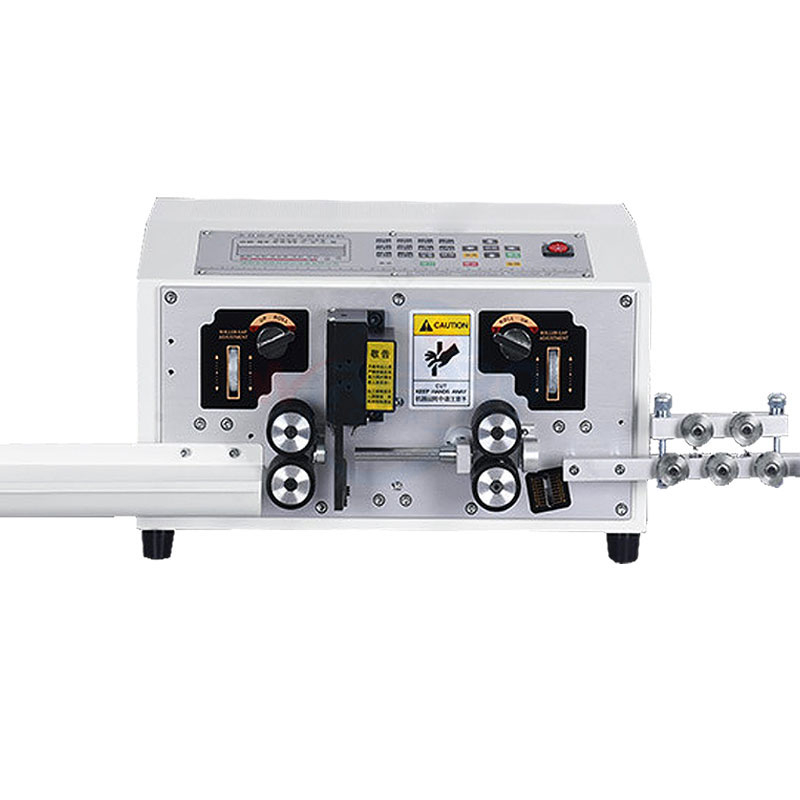

The SU-A16 is designed for cutting and stripping wires up to a maximum of 16 mm². This versatile machine supports multiple processing modes, including fully automatic cutting, half stripping, full stripping, and multi-section stripping, making it suitable for a variety of wires, including electronic wire, silicone wire, PTFE wire, glass fiber cotton, and isolation wire.
1. LCD display with Chinese and English support; all buttons and processing programs are based on automatic computer programming, ensuring ease of use.
2. Four driving wheels for wire feeding with adjustable pressing force, ensuring high feeding accuracy without damaging the wire or leaving press marks.
3. High-quality blades made from raw materials imported from Japan, delivering burr-free, wear-resistant cutting edges for longer service life.
4. Adjustable pressing force of the four feeding wheels, allowing better processing of various wire sizes.
5. Equipped with a copper-core stepper motor for high precision, low noise, precise current control, low motor heating, and extended service life.
6. Intelligent control system with a 32-bit CORTEX-M3 core processor, running at speeds up to 72M, and capable of storing hundreds of parameter settings.
7. The SU-A16 is designed to handle complete material processing in a single operation, offering flexibility and efficiency in various wire applications.
| Model | SU-A16 |
| Conductor Cross-Section | 0.75-16mm2 |
| Available Wire Size | AWG18-AWG5 |
| Stripping Length | 0-45mm |
| Cutting Length | 1-9999.9mm |
| Cutting Length Tolerances | ±(0.002*L)mm |
| Intermediate Stripping | Max 15 sections |
| Conduit Diameter * | Φ6-14mm |
| Production Rate | 1000-3000pcs/h |
| Wire Feed Method | Roller feeding |
| Drive Method | 4 wheels drive |
| Display Screen | Chinese / English LCD Screen |
| Power Supply | 220V/110V |
| Power | 600W |
| Weight | 48kgs |
| Dimensions | 49*45*29cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |
Application
For wire cutting stripping
The SU-A16 is an automatic cutting and stripping machine for wires up to 16mm². It processes electronic wire, silicone wire, PTFE wire, and glass fiber cotton, supporting fully automatic cutting, half stripping, full stripping, and multi-section stripping in one operation.
It processes conductor cross-sections from 0.75-16mm² (AWG18-AWG5) with a conduit diameter range of Φ6-14mm. It supports stripping lengths of 0-45mm, cutting lengths from 1-9999.9mm, and intermediate stripping up to 15 sections.
The SU-A16 offers a production rate of 1000-3000 pieces per hour. It achieves a cutting length tolerance of ±(0.002*L)mm, ensuring high precision for a wide range of wire processing tasks.
Key features include a 4-wheel drive with adjustable pressing force to avoid wire damage, Japanese-imported steel blades for burr-free cutting, and a 32-bit CORTEX-M3 core processor that stores hundreds of parameter settings on the LCD screen.
The SU-A16 requires 220V/110V power (600W) and has dimensions of 49*45*29cm, weighing 48kg. It is a benchtop unit with a Chinese/English LCD screen for easy operation.
The LCD screen and intelligent control system allow easy adjustment of cutting, stripping, and other parameters. The adjustable pressing force on the feeding wheels accommodates various wire sizes (Φ6-14mm), and free sample testing is offered.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
