SC-A01 / SC-A02
| Availability: | |
|---|---|
| Quantity: | |
Description

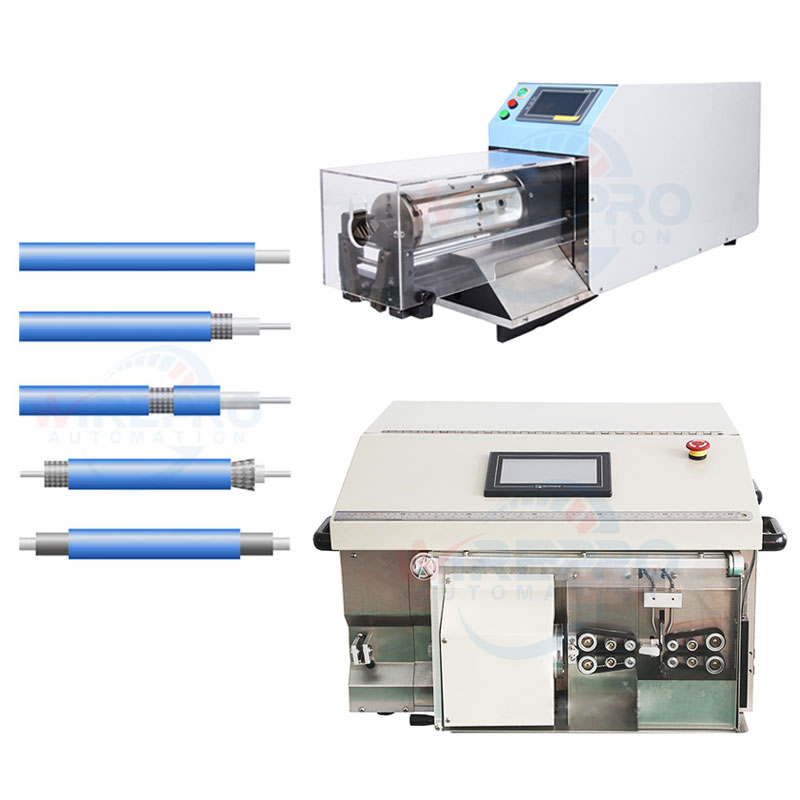

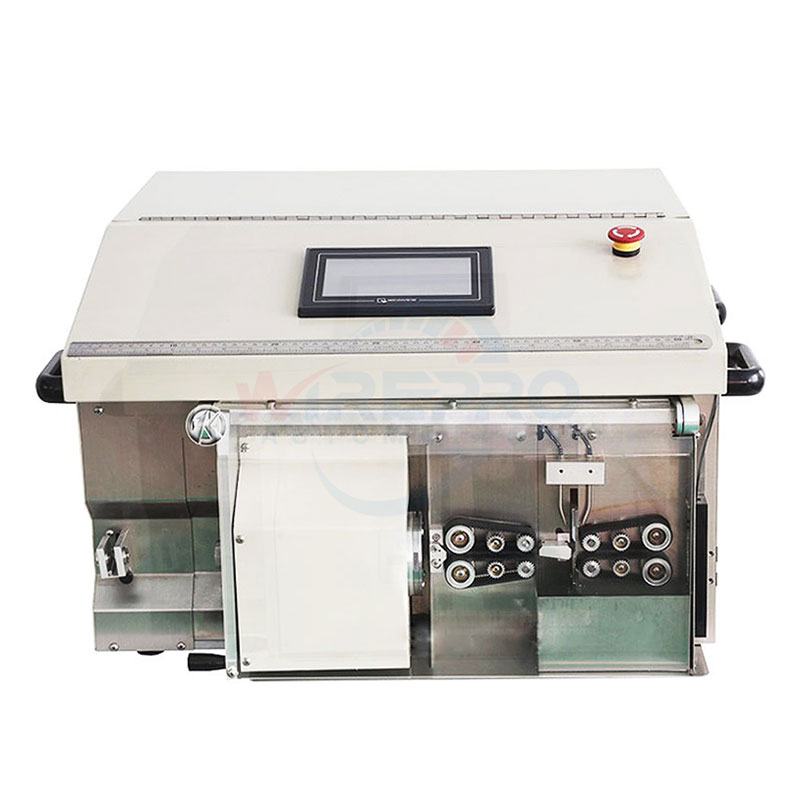

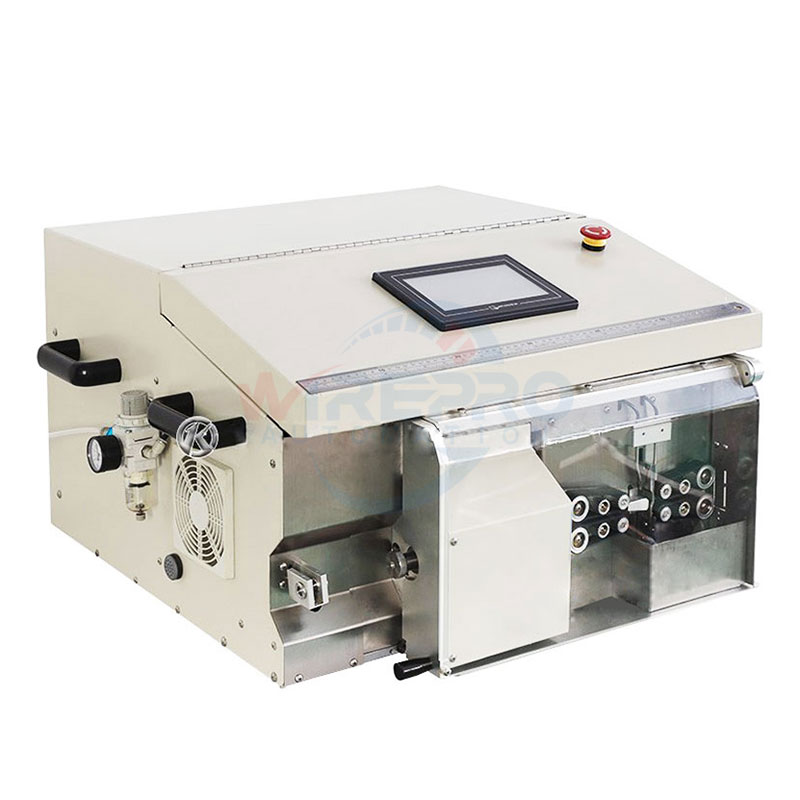

The SC-A01 and SC-A02 are full automatic coaxial cable cutting and stripping machines designed for processing a wide range of flexible and semi-flexible coaxial cables. The SC-A01 is particularly suited for precision machining of various flexible thin coaxial cables in the communication and RF industries.
Key Features:
Broad Cable Compatibility – Can process many kinds of special cables, adapting to diverse production requirements.
One-Pass Completion – Complex coaxial cable processing is completed in a single cycle, delivering high efficiency.
Multiple Processing Modes – Supports cable cutting, multi-segment stripping, middle opening (window stripping), and stripping with glue retention.
Enhanced Precision – Equipped with a special central positioning device and cable feeding device for higher processing accuracy.
| Model | SC-A01 | SC-A02 |
| Available Wire Dia | 0.65-4mm | 1.0-5.5mm (custom max 8.5mm) |
| Cutting Length | 22-999mm | |
| Striping Length | Left max 45mm; Right max 200mm | Left max 45mm; Right max 100mm |
| Cutting Length Tolerance | ±0.2mm | |
| Striping Layers | Max 6 layers | |
| Production Rate | 300-850pcs/h(based on cable) | |
| Drive Method | Motor / ball screw drive | |
| Display Screen | Chinese / English display screen | |
| Air Connection | 0.5 – 0.65 Mpa | |
| Power Supply | 220V/110V | |
| Power | 700W | 800W |
| Dimensions | 60*70*40cm | 79*73*40cm |
| Weight | 100kg | 120kg |
All-wiring heat shrinkable tube processing
Wire harness heat shrinking for any length
Continuous inline heat shrink production
The SC-A01 and SC-A02 are fully automatic coaxial cable cutting and stripping machines designed for flexible and semi-flexible coaxial cables, with the SC-A01 suitable for precision processing of thin coaxial cables in communication and RF industries.
SC-A01: 0.65-4mm diameter, 700W, 60*70*40cm, 100kg. SC-A02: 1.0-5.5mm (custom max 8.5mm), 800W, 79*73*40cm, 120kg. Both: cutting length 22-999mm, tolerance ±0.2mm, max 6 stripping layers, production 300-850pcs/h.
Key features include processing many kinds of special cables, complex coaxial cable process finished in one cycle, support for cable cutting, multi-segment stripping, middle opening, and stripping with glue retention, and special central positioning device for higher processing accuracy.
Both models operate on 220V/110V power with 0.5-0.65MPa air connection. SC-A01: 700W, 60*70*40cm, 100kg. SC-A02: 800W, 79*73*40cm, 120kg. They are benchtop units requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
