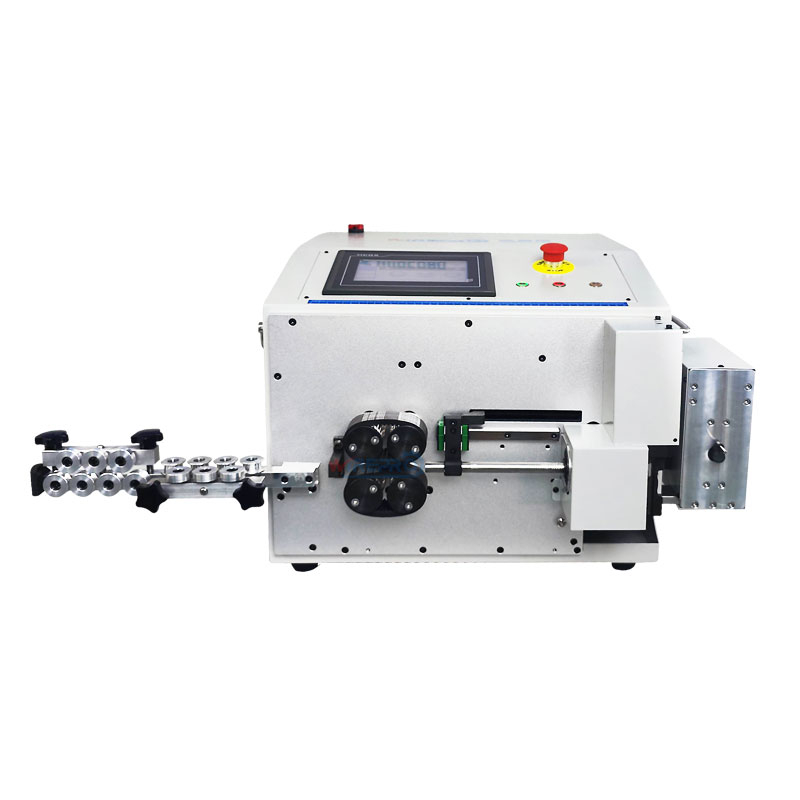

SU-BA6
| Availability: | |
|---|---|
| Quantity: | |
Description
The SU-BA6 is designed for 3D fully automatic cutting, stripping, and bending of hard wires. The machine supports 3D wire forming and can be customized based on your wire size.
It is suitable for jumper wires in electric control cabinets, bending wires for meter boxes, forward and reverse jumper wires for contactors, table boxes, watch cabinets, and other hard wires that require bending and stripping.
Key Features:
Flexible Angle and Length Adjustment – Supports almost arbitrarily adjusted angles and bending lengths to meet diverse forming requirements.
Excellent Bending Consistency – Delivers highly consistent bending results, eliminating manual operation errors.
Automatic Stripping & Bending – Combines stripping and bending functions in one machine, improving work efficiency.

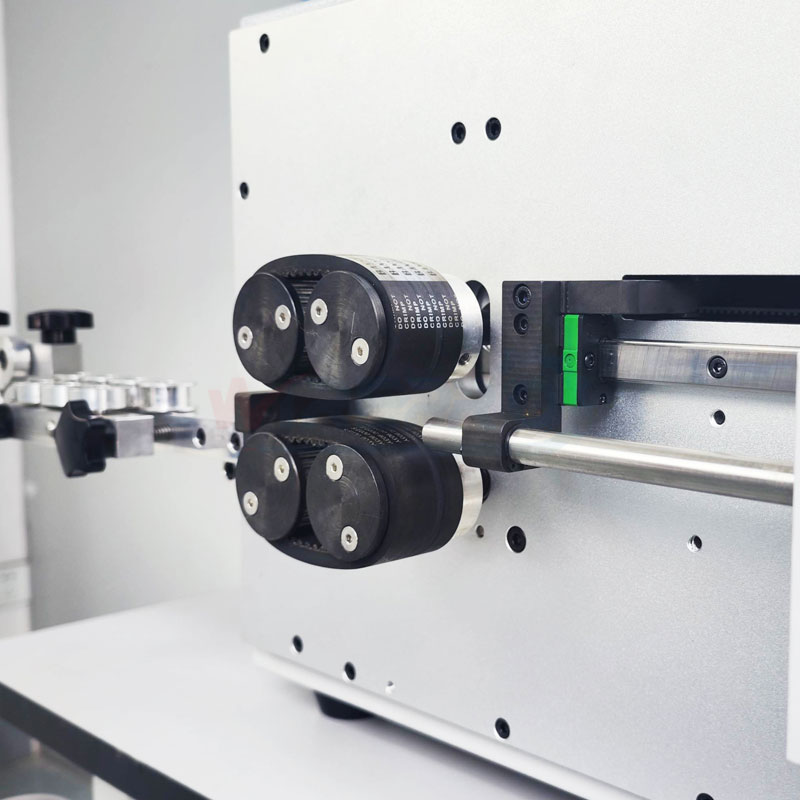

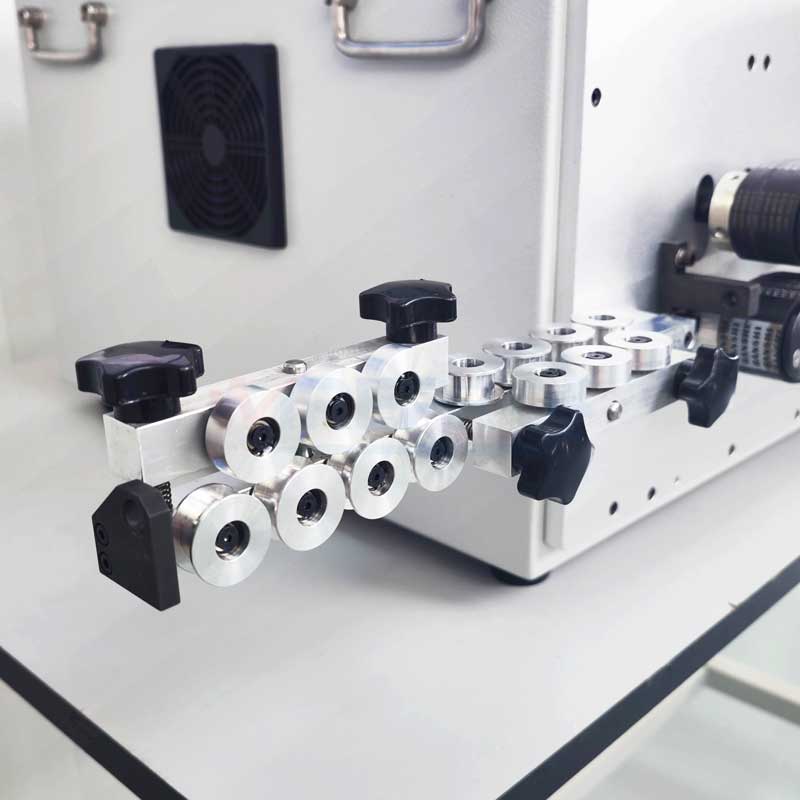

Precision Components – Equipped with Shangyin linear slides and precision pneumatic pressure rollers for greater accuracy and more complete functionality.
| Model | SU-BA6 |
| Conductor Cross-Section | 1 – 6 sqmm |
| Stripping Length | Head ≤ 30mm; Tail ≤ 30mm |
| Cutting Length | 0.1-99999.9mm |
| Tolerances | Cutting Length ±2mm, Bending angle ±2° |
| Bend Shape/Angle | 3D, any angle (if the wire does not interfere). Max 10 sections. |
| Conduit Diameter | Φ6mm (custom Φ8mm) |
| Drive Method | 4-wheel drive, using closed-loop high-speed DC motor |
| Display Screen | Chinese / English touchscreen |
| Program Storage | Max 500 |
| Production Rate | 50-300 pcs/h, based on the final shape |

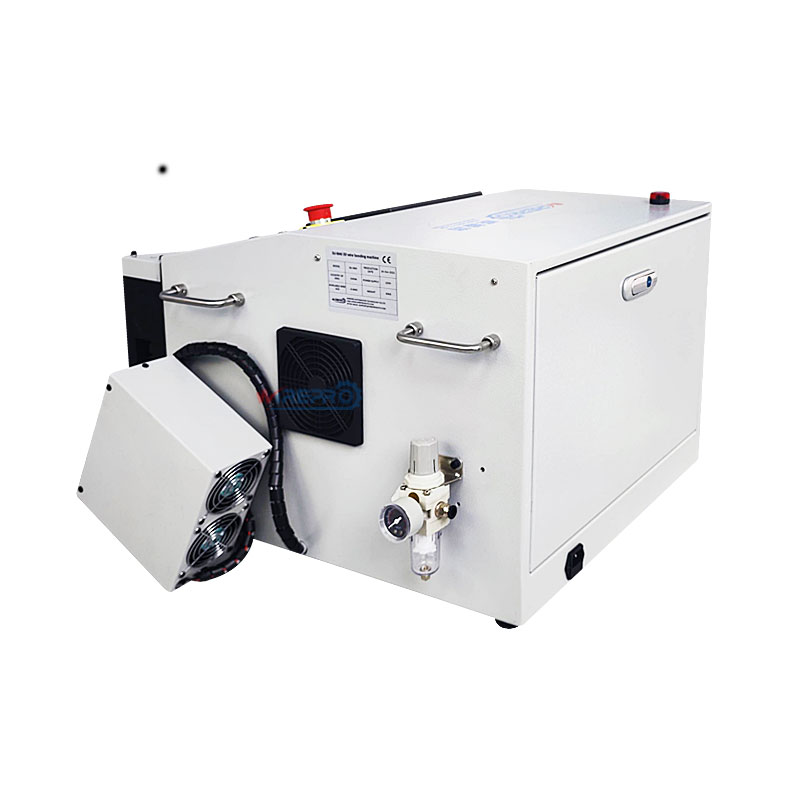

| Air Connection | 0.45 – 0.6 Mpa |
| Power Supply | 110/220VAC, 50/60Hz |
| Power | 300W |
| Dimensions | 63*56*43cm |
| Weight | 65kgs |
Jumper wires in electric control cabinets
Bending wires for meter boxes
Forward and reverse jumper wires for contactors
Table box and watch cabinet hard wire processing
Other hard wires requiring bending and stripping
The SU-BA6 is an automatic machine for cutting, stripping, and 3D bending of hard wires from 1-6mm², ideal for jumper wires in electric control cabinets, meter boxes, contactors, and other hard wire applications.
Conductor cross-section: 1-6mm². Stripping length: head/tail ≤30mm. Cutting length: 0.1-99999.9mm. Tolerances: cutting ±2mm, bending angle ±2°. 3D bending up to 10 sections. Conduit diameter: Φ6mm (custom Φ8mm). Production rate: 50-300pcs/h. Power: 110/220VAC, 300W. Dimensions: 63*56*43cm, weight: 65kg.
Key features include almost arbitrarily adjustable bending angle and length, excellent bending consistency eliminating manual errors, automatic stripping and bending for improved efficiency, and Shangyin linear slide with precision pneumatic pressure roller for accuracy. Program storage: max 500.
The SU-BA6 requires 110/220VAC, 50/60Hz power (300W) and 0.45-0.60MPa air connection. Dimensions: 63*56*43cm, weight: 65kg. It is a compact benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
