HB-LC1
| Availability: | |
|---|---|
| Quantity: | |
Description
The HB-LC Series represents a complete range of professional-grade digital length counters designed for accurate, efficient, and reliable measurement of various linear materials. Whether you are working with wire, cable, hose, tubing, rope, or textiles, our counters provide a trusted solution to eliminate guesswork, reduce material waste, and streamline production, quality control, and inventory management processes.

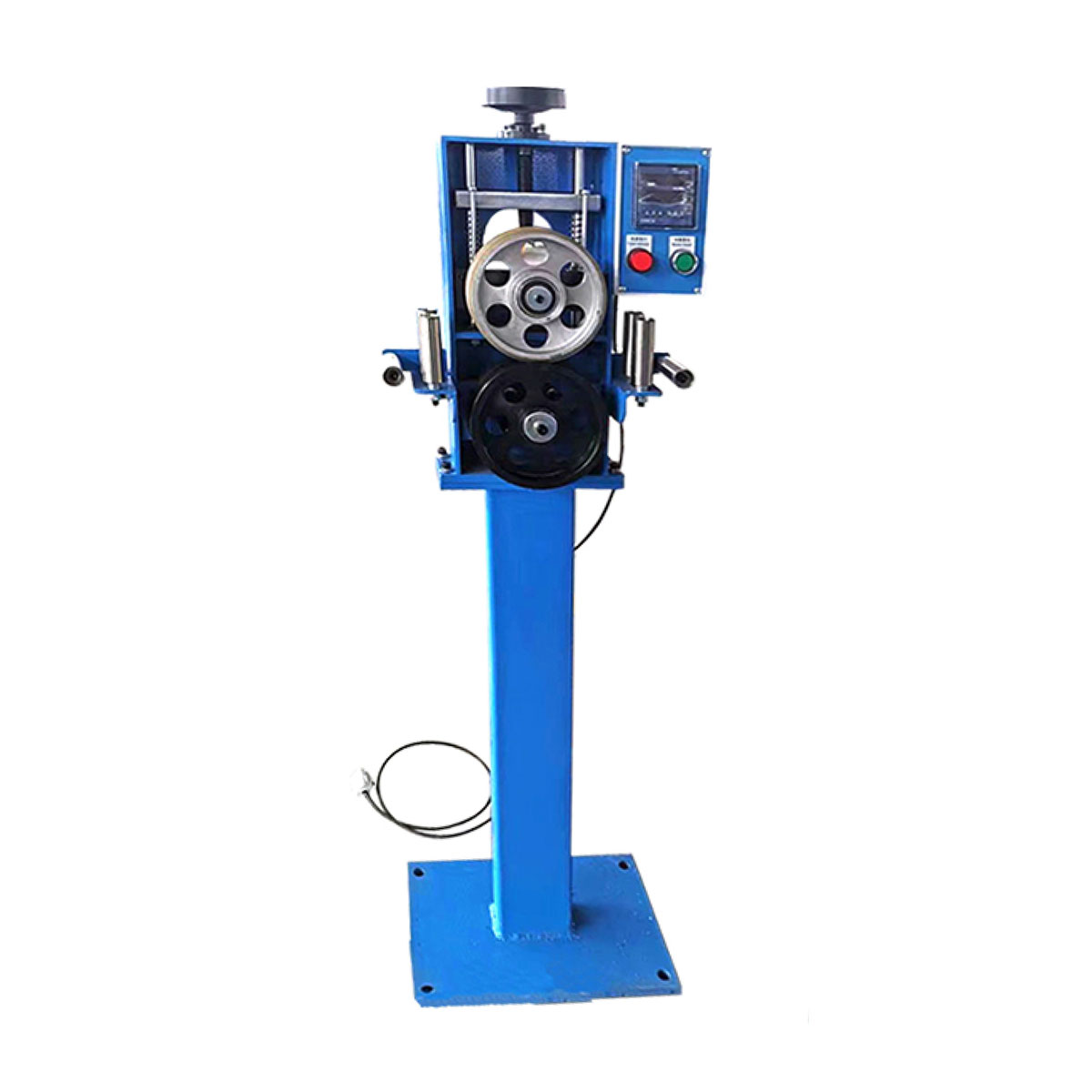

HB-LC1: Universal Roller-Type Length Counter
Design – Equipped with a precision measuring wheel and an adjustable upper press roller. The material passes between the rollers, ensuring minimal slip and maximum accuracy.
Best For – General-purpose measurement of standard round or flat materials like electrical wires, coaxial cables, plastic pipes, and mild steel wires. Its compact design allows for flexible use on the production floor or in the warehouse.
Key Benefit – Delivers reliable, slip-free measurement across a wide range of common materials in a space-saving footprint.
| Model | HB-LC1 | HB-LC2 | HB-LC3 |
| Function | Roller-Type Length Counter | Belt-type length counter | Desk-type length counter |
| Available Wire Diameter | 1-30mm | 1-12mm, 1-25mm, 1-50mm | 1-50MM, 1-80MM |
| Belt/Roller Size | OD 159.5mm | Width 80mm | OD 160mm |
| Length Accuracy | 2% | 1% | 1% |
| Display | Electronic Display | Electronic Display | Mechanical and electronic dual display |
| Available Wire | Flat Wire, round Wire | ||
| Positioning | 2roller Guides Positioning On 2 Sides | ||
| Centre Height | 700/1000mm, Customized 800-1200mm | ||
| Speed | Controlled by pull speed | ||
| Power Supply | 220/110V | ||
The HB-LC1 is a universal roller-type digital cable meter counter designed for accurate measurement of wire, cable, hose, tubing, and rope. It is used for production quality control, inventory management, and reducing material waste.
It supports wire diameters from 1-30mm with a measuring wheel OD of 159.5mm. It achieves 2% length accuracy with electronic display, suitable for flat and round wires.
Key features include a precision measuring wheel with adjustable upper press roller for minimal slip, 2-roller side positioning for stable feeding, and adjustable center height (700/1000mm, customizable 800-1200mm) for flexible installation.
The HB-LC1 operates on 220/110V power. Specific dimensions and weight are not provided on the page. The compact design allows flexible use on production floor or warehouse.
The adjustable upper press roller accommodates various material thicknesses. The 2-roller side positioning system ensures stable feeding for both flat and round wires. Speed is controlled by pull speed for flexible operation.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
