TU-N03 / TU-N04
| Availability: | |
|---|---|
| Quantity: | |
Description

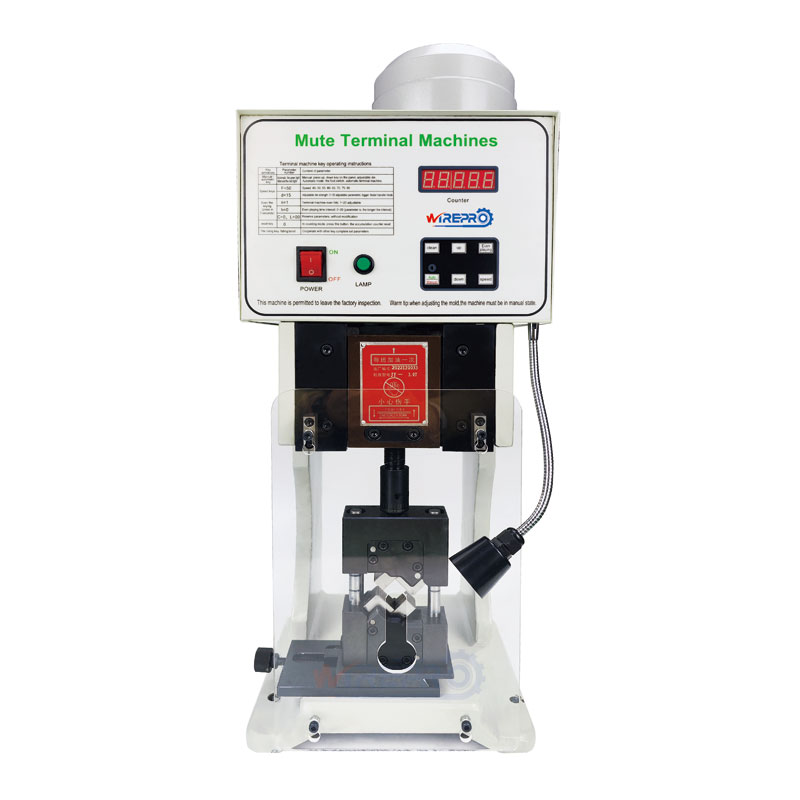

The TU-N03 and TU-N04 semi-automatic terminal crimping machines are suitable for various terminal types and feature very easy applicator changeover.

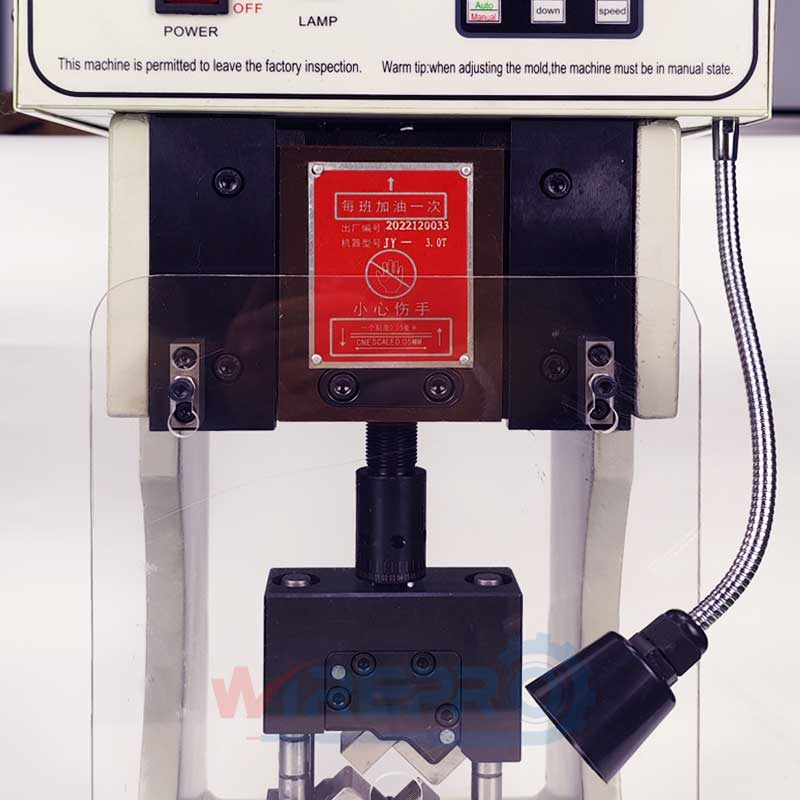

This ultra-quiet terminal machine uses high-tech frequency conversion technology with electronically accurate positioning. The motor operates with less noise than traditional terminal machines during crimping while saving power. Mold adjustment is more convenient and faster, avoiding common faults associated with traditional terminal clutches and electromagnets.
Functions:
Stable voltage and high speed.

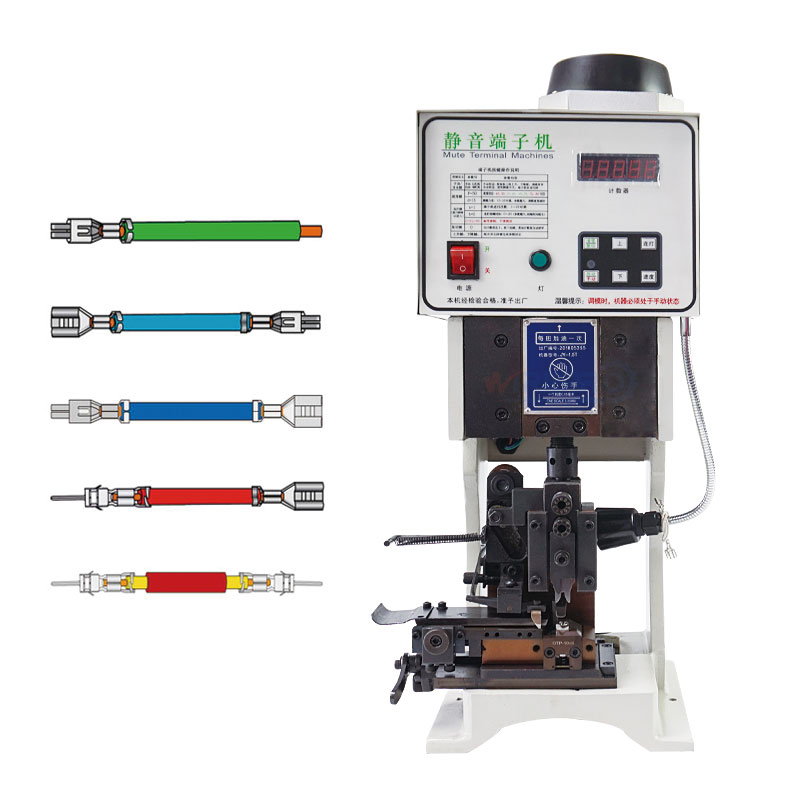

Compatible with computer terminals, DC terminals, single terminals, and with-terminal applications.
Lightweight structure — easy to move between workstations, with low operating noise.

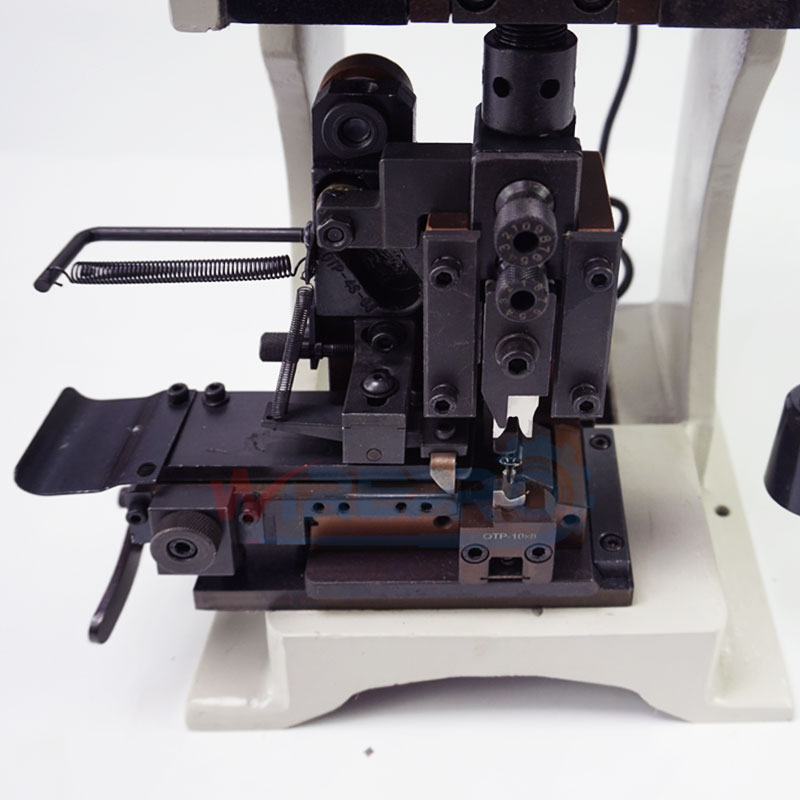

Supports OTP applicators, 2000-style applicators, and single terminal applicators.

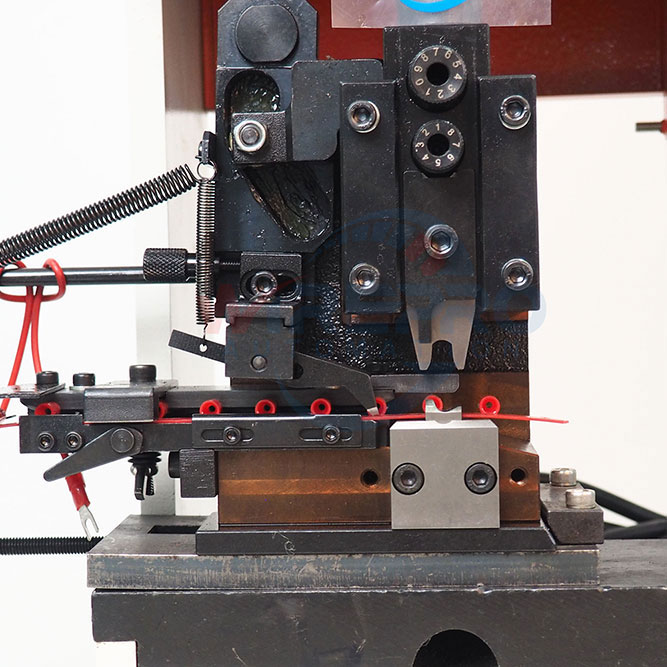

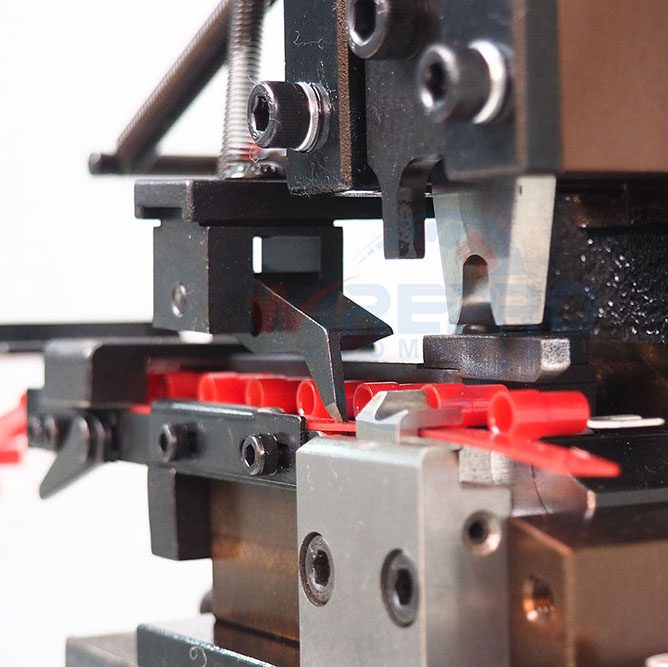

The machine is capable of fitting 3 mold types: vertical applicator, horizontal applicator, and single terminal applicator. Please specify your required mold when ordering.
| Model | TU-N03 | TU-N04 |
| Crimp Force | 3.0Ton | 4.0Ton |
| Stroke | 30mm (custom available) | |
| Power Supply | 110/220VAC, 50/60Hz | |
| Power | 1100W | 1500W |
| Weight | 59kg | 96kg |
| Dimensions | 24*27*65cm | 31*21*75cm |
Wire stripping and ferrule terminal crimping
Multi-core cable processing
Wire harness assembly with insulated ferrules
The TU-N03 and TU-N04 are semi-automatic benchtop terminal crimping machines for various terminals including computer terminals, DC terminals, and single terminals, featuring easy applicator changes and ultra-quiet operation.
TU-N03: 3.0T crimp force, 1100W, 24*27*65cm, 59kg. TU-N04: 4.0T crimp force, 1500W, 31*21*75cm, 96kg. Both: 30mm stroke (custom available), 110/220VAC, 50/60Hz power supply.
The machines support OTP applicators, 2000-style applicators, and single terminal applicators. They can fit three mold types: vertical applicator, horizontal applicator, and single terminal applicator. Please specify your desired mold type when ordering.
Key features include high-tech frequency conversion technology for ultra-quiet operation, electronic accurate positioning, power-saving design, convenient mold adjustment, and avoidance of traditional clutch/electromagnet faults. The lightweight structure allows easy movement between workstations.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
