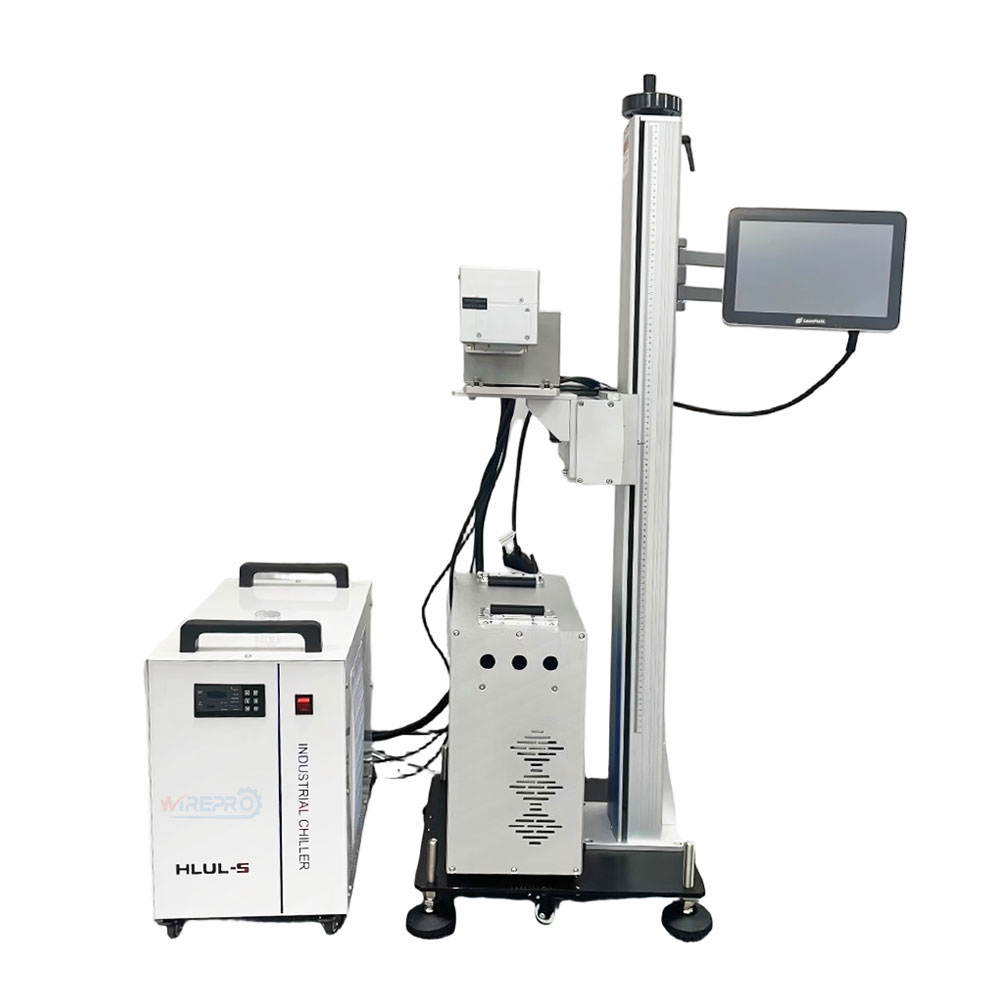

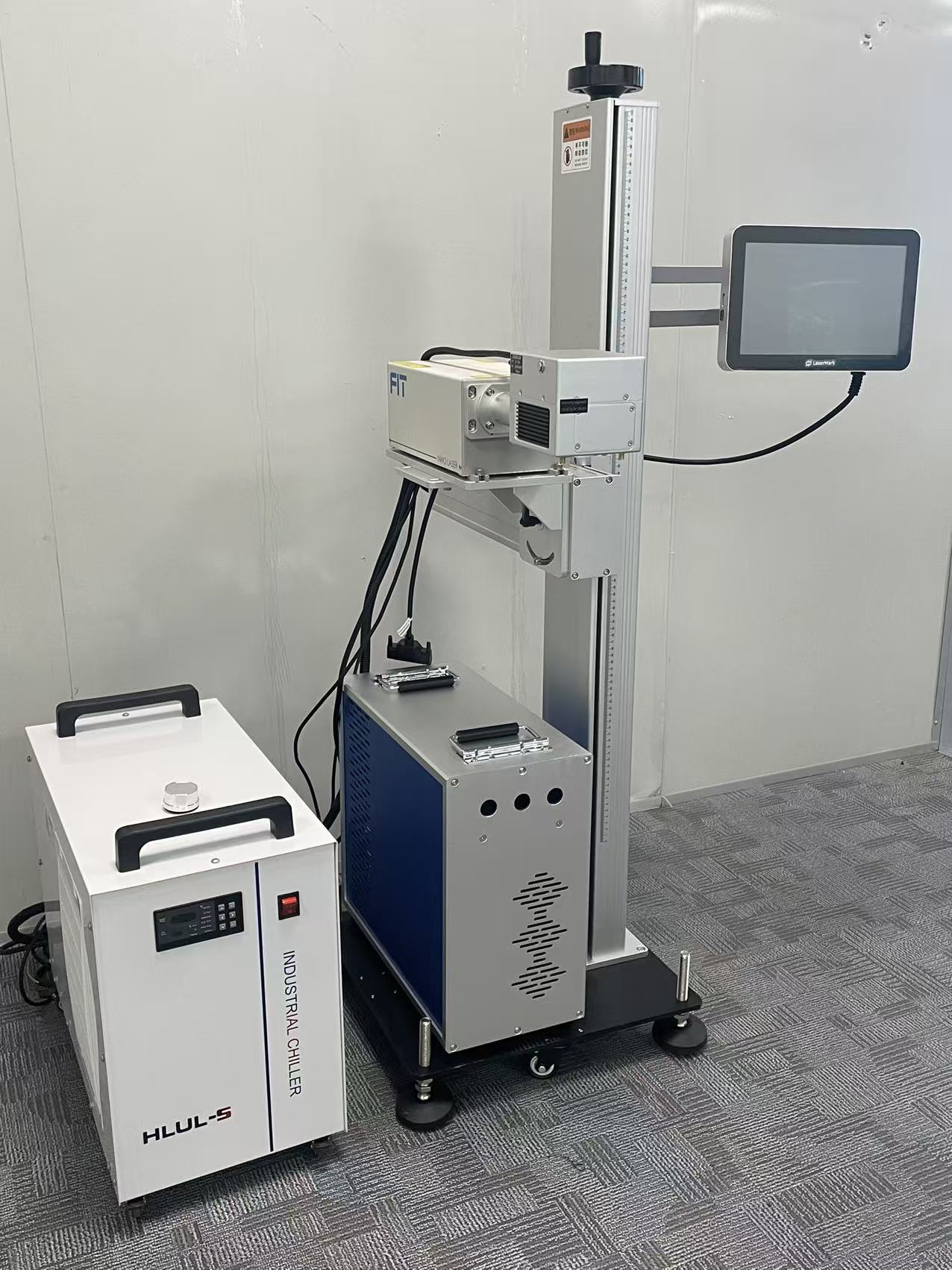

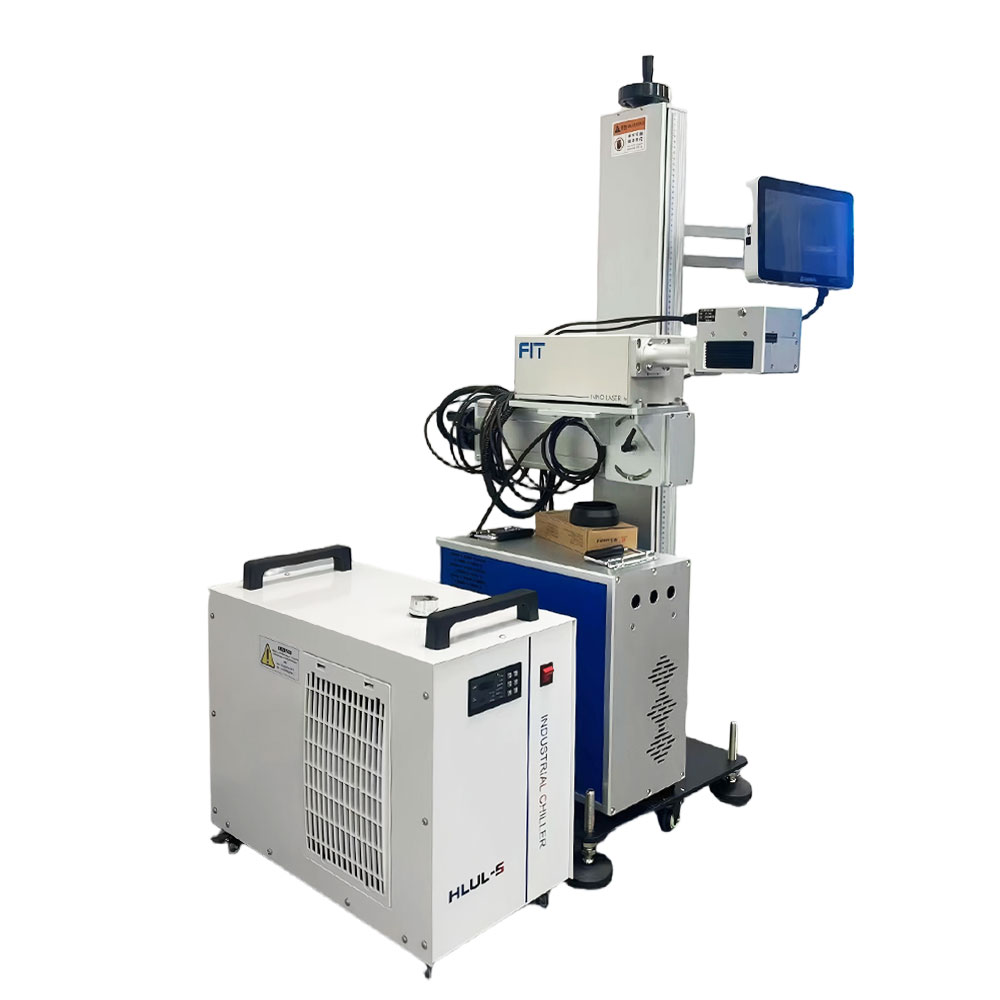

PM-LU5 / PM-LU10
| Availability: | |
|---|---|
| Quantity: | |
Description
The PM-LU5 and PM-LU10 are UV laser marking machines featuring a cold light source, engineered for ultra-fine marking on wires and cables. With low operating costs and a maintenance-free design, they offer an efficient and economical solution for wire coding and traceability applications.
The UV laser marking machine features a very small focus spot and an equally small processing heat-affected zone. This enables ultra-fine marking and special material marking, making it the preferred choice for customers with higher requirements for marking quality. The effectiveness of marking on electrical wires depends on factors such as the material and color of the wires.
Key Features:
Stable & Maintenance-Free – UV laser machine with stable performance, long service life, no consumables required, and low operating cost.
Cold Light Source Technology – The UV laser belongs to a cold light source with a small heating area and excellent beam quality, creating ultra-fine marking effects.
Imported Scanning Galvanometer – Fast marking speed with a minimum focused spot size of 15 μm.
Integrated Compact Design – Small footprint saves valuable space and simplifies transport and repositioning.
Flexible Software Compatibility – Software accepts DXF, PLT, BMF, AI, JPG, and other formats, and can automatically generate serial numbers, production dates, barcodes, and QR codes.
| Model | PM-LU3 | PM-LU5 | PM-LU10 |
| Laser wave length | 355nm | ||
| Max laser power | 3W | 5W | 10W |
| Beam quality | 7.7 | 7.7 | 7.3 |
| Mark min character | 0.1 mm | ||
| Min mark line width | 0.01mm | 0.01mm | 0.015mm |
| Max Marking speed | 400 character/s | 400 character/s | 500 character/s |
| Q-switched frequency | 0-90kHz | ||
| Repeat accuracy | ±0.01mm | ||
| Engraving range | 70x70mm~200x200mm | ||
| Voltage | 220V/50HZ/10A | ||
| Cooling method | Water cooling | ||
| Size | 656x849x1400mm | ||
The PM-LU5 and PM-LU10 are UV laser marking machines with cold light source for ultra-fine marking on wire and cable, ideal for customers with high requirements for marking effects on special materials.
Laser wavelength: 355nm. Max laser power: PM-LU5 5W, PM-LU10 10W. Min mark character: 0.1mm. Min mark line width: 0.01mm (LU5), 0.015mm (LU10). Max marking speed: 400-500 character/s. Repeat accuracy: ±0.01mm. Cooling: water. Voltage: 220V.
Key features include cold light source with small heating area for ultra-fine marking, maintenance-free operation with no consumables, imported scanning galvanometer with minimum spot of 15μm, and software supporting DXF, PLT, BMP, AI, JPG for automatic serial number, date, barcode, and QR code generation.
The machines require 220V/50Hz/10A power with water cooling method. Dimensions: 656x849x1400mm. They are floor-standing units requiring dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
