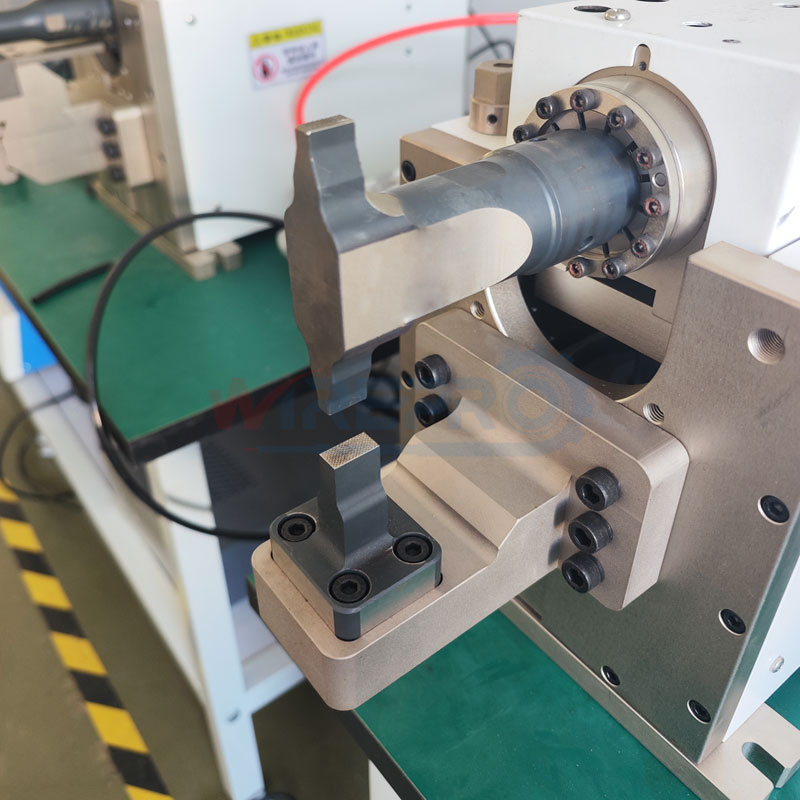

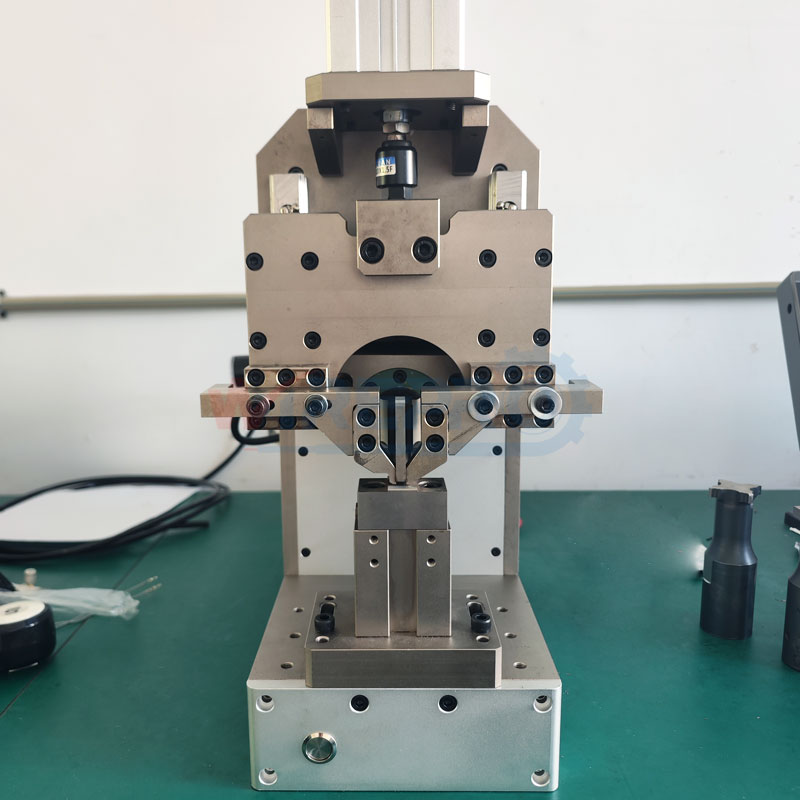

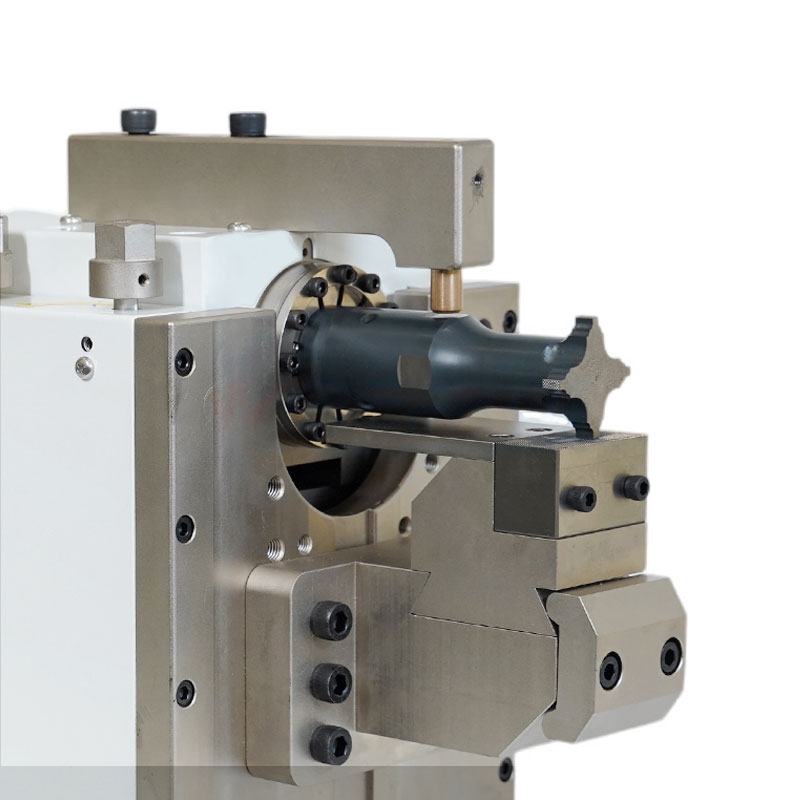

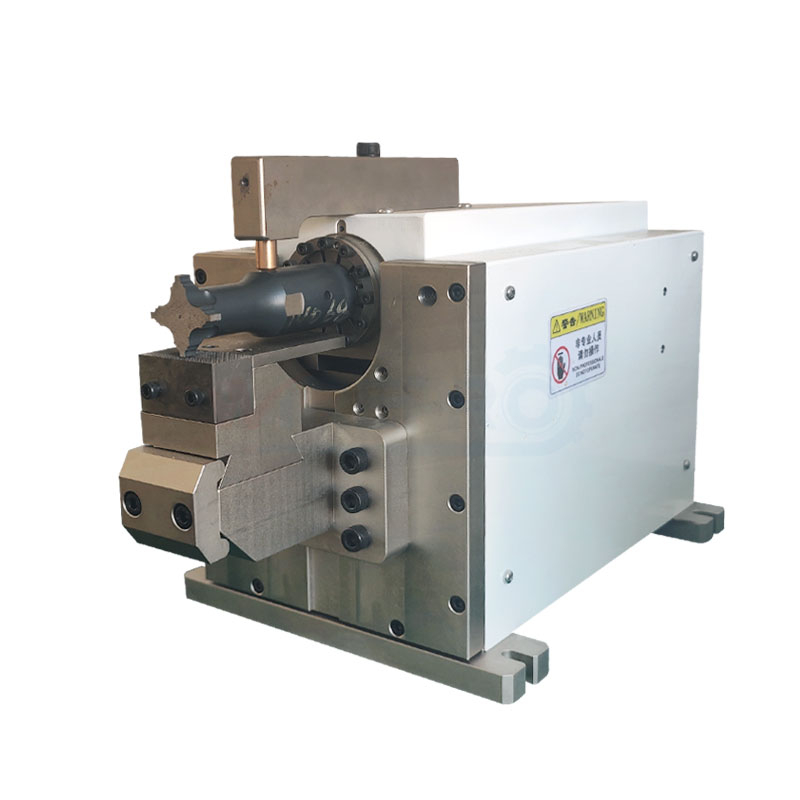

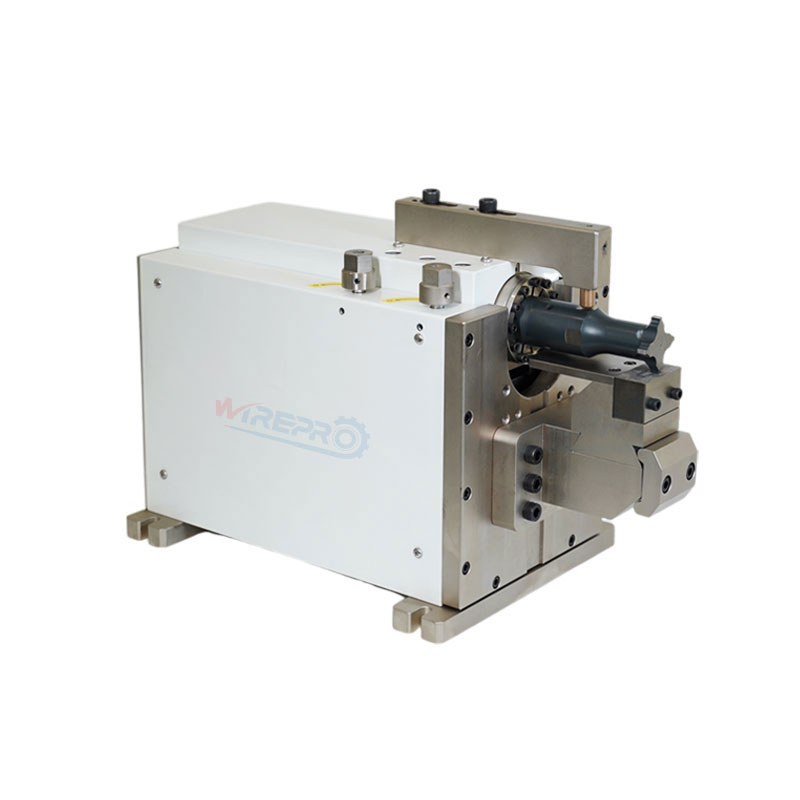

TP-T18
| Availability: | |
|---|---|
| Quantity: | |
Description
The TP-T18 uses advanced ultrasonic technology with independently researched and developed generators, horns, and welding heads, greatly improving the overall performance of the machine.
Key Features:
Four-Cylinder Double-Solenoid Valve Motion System – Easy to use and operate for consistent welding performance.
Simple Parameter Selection – Simply choose the corresponding welding parameters and use the welding head according to the standard width of the wire harness, then welding can be carried out.
Empty Welding Prevention – Effectively prevents damage to the welding head caused by empty welding operations.
Real-Time Welding Power Monitoring – Welding power can be monitored in real-time during the welding process, effectively guaranteeing yield rate.
Password Protection & Data Storage – Includes password protection, parameter storage, and welding data storage functions.
Error-Proof Function – Reduces welding maintenance costs and improves operational reliability.
Multiple Welding Modes – Supports multiple welding modes to suit different production requirements.
| Model | TP-T18 |
| Welding capacity | Wire size range: 1-18mm² |
| Production Rate | About 0.7s/pcs, based on the wires |
| Power Supply | 220VAC,50Hz |
| Power | 3000W |

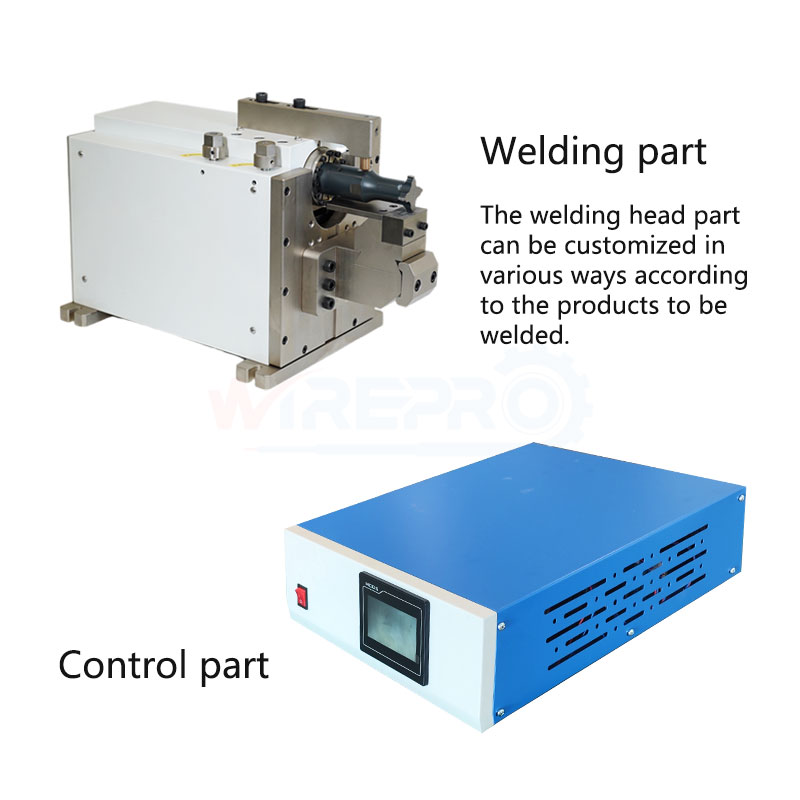

| Dimension | 23*50*53 cm + 52*28*37 cm |
| Weight | 50kgs |
The ultrasonic wire harness welding machine is widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments, and other related fields.
The TP-T18 is an ultrasonic welder for wire and metal terminal connections with wire sizes from 1-18mm², used in automotive, electronics, motors, communication, and instrumentation industries.
Welding capacity: 1-18mm². Production rate: about 0.7s/pcs. Power: 220VAC, 50Hz, 3000W. Dimensions: 23*50*53cm + 52*28*37cm, weight: 50kg.
Key features include four-cylinder double-solenoid valve motion system, empty weld prevention to protect the welding head, real-time welding power monitoring, password protection with parameter/data storage, error-proof function, and multiple welding modes.
The TP-T18 requires 220VAC, 50Hz power (3000W) and has dimensions of 23*50*53cm (main unit) + 52*28*37cm, weighing 50kg. It is a compact benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
