RD-RM12
| Availability: | |
|---|---|
| Quantity: | |
Description

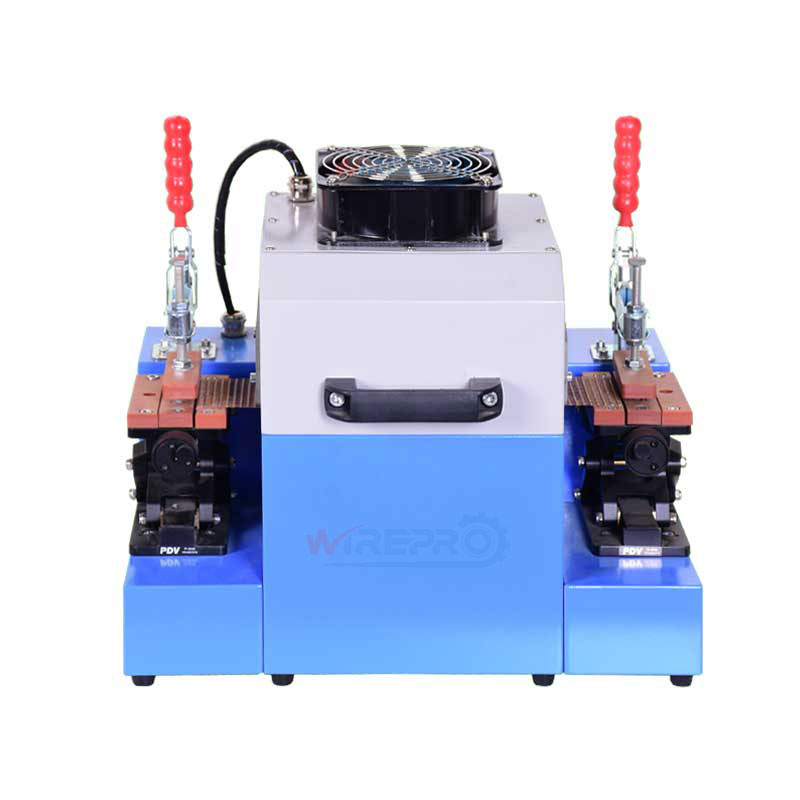

The RD-RM12 is an electric heating air machine designed for heating large-diameter heat-shrinkable tubing. It adopts 360-degree surrounding ring infrared radiation heating, delivering essentially uniform heat distribution. It is especially suited for heating shrinkable tubing on large-diameter wire harnesses, long wire harnesses, and terminal wire harnesses.

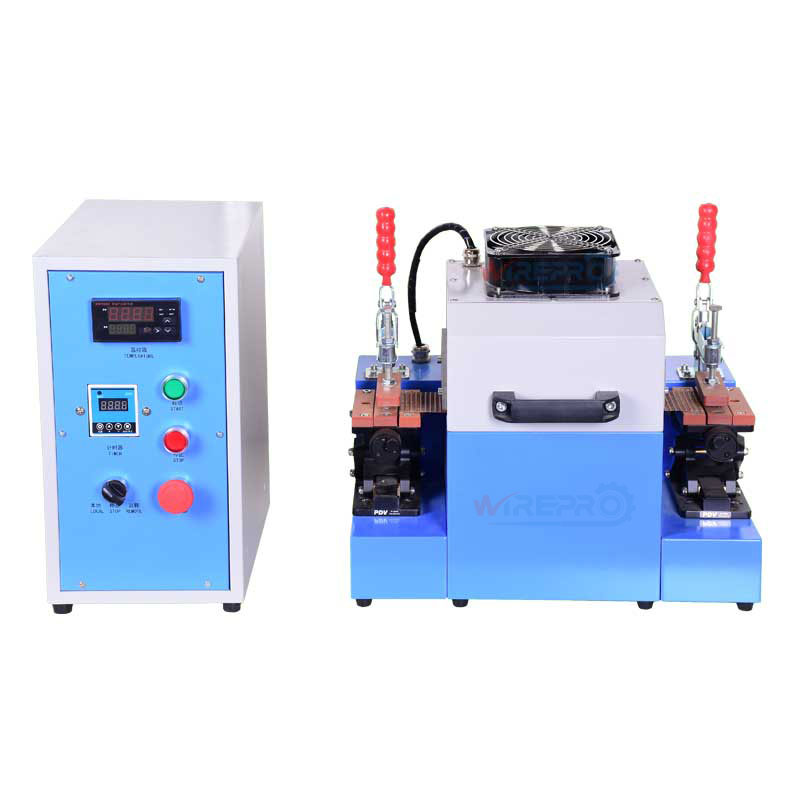

Equipment Composition: Heating System + Control System + Rack Desk
Key Features:

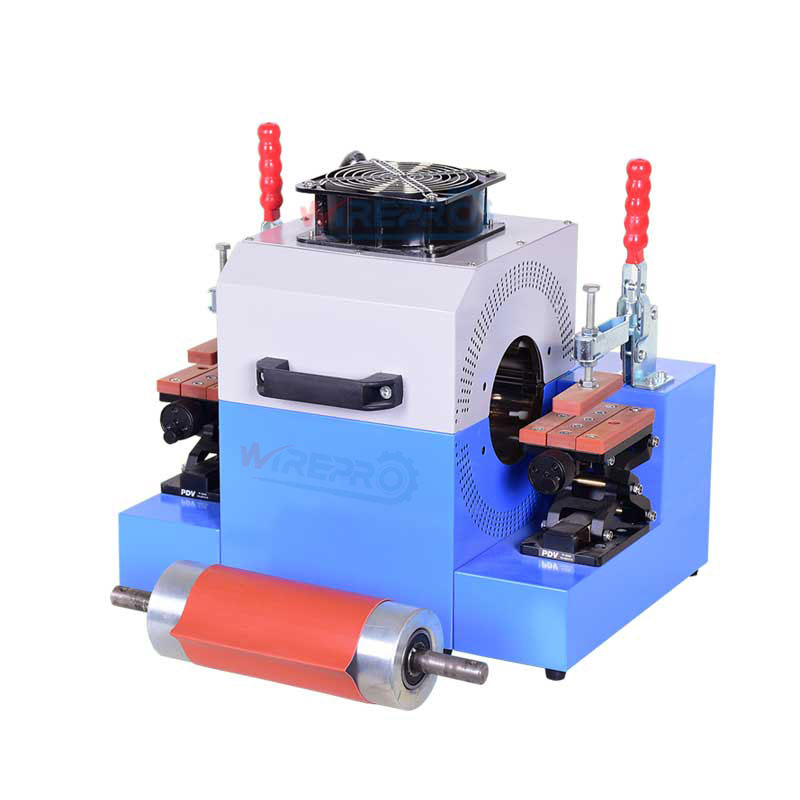

360-Degree Ring Infrared Heating – Adopts 360-degree surrounding ring infrared radiation heating for essentially uniform heat distribution across the entire tubing surface.

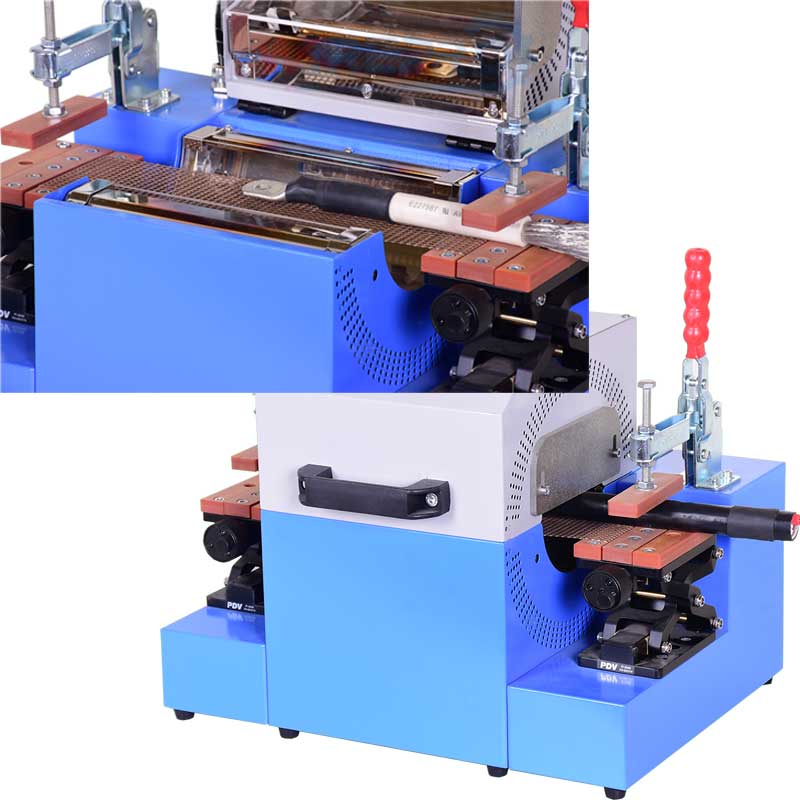

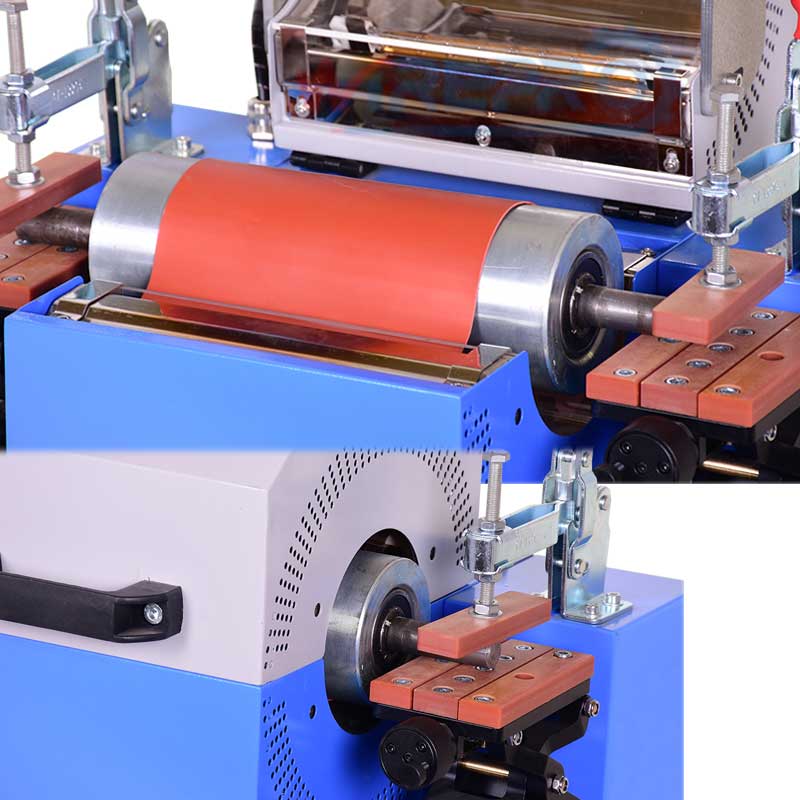

Flexible Loading for Different Positions – For heat-shrinkable tubing at one end of the harness, the operator can directly insert the tube into the heating zone. If the heat-shrinkable tube is located in the middle of the wire, the operator can open the device and place the tube into the heating zone.
Comprehensive Safety Protection – Equipped with overheat and overload protection, a power-off protection device, and an emergency stop switch. The machine produces no exhaust gas, is environmentally friendly, and can be operated for 24 hours continuously.
Shutdown & Blowing Delay Function – To protect the heating core and extend its service life, the machine features a shutdown and blowing delay function. After the machine stops working, the blower continues running for one minute to cool down before automatically shutting off.
Heat Insulation Design – The double-layer design of the heating zone shell saves energy while protecting the working environment.

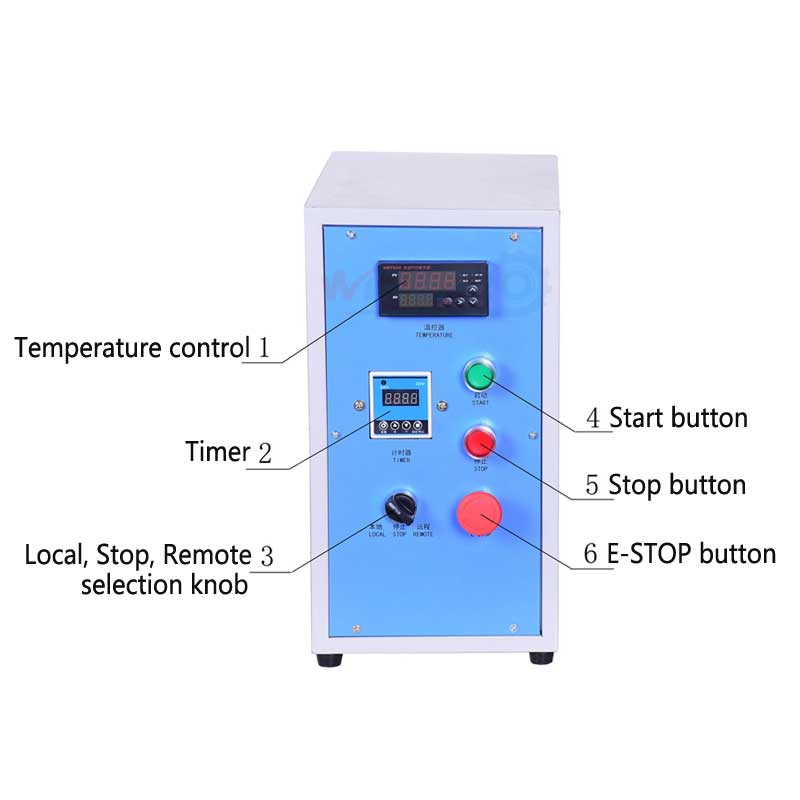

Three Heating Control Modes:
Place the product in position, and the footswitch triggers heating.
Circulating automatic start and stop heating mode.
Temperature control and normal heating mode.
| Model | RD-RM12 |
| Heating shrinkable tube diameter | < 100mm |
| Heating opening diameter | 120mm |
| Heating length | < 160mm |
| Heating tube name | Infrared radiation tube (2400W) |
| Power supply | 220V |
| Power | < 2800W |
| Weight | 60kg |
| Dimension | 140*130*60cm |
Large-diameter wire harness heat shrinking
Long wire harness heat shrinking
Terminal wire harness heat shrinking
Middle-of-wire heat shrinkable tubing heating
The RD-RM12 is a 360-degree circular heating machine for large-diameter heat shrinkable tubing, suitable for large-diameter wiring harnesses, long wiring harnesses, and terminal wiring harnesses with uniform infrared radiation heating.
Heating shrinkable tube diameter: <100mm. Heating opening diameter: 120mm. Heating length: <160mm. Infrared radiation tube: 2400W. Power: 220V, <2800W. Dimensions: 140*130*60cm, weight: 60kg.
Key features include 360-degree surrounding ring infrared radiation for uniform heating, three heating control modes (footswitch, cyclic automatic, temperature control), overheat/overload protection, emergency stop switch, shutdown/blowing delay function, and double-layer insulation design.
The RD-RM12 requires 220V power (<2800W) and has dimensions of 140*130*60cm, weighing 60kg. It requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
