RS-40AM
| Availability: | |
|---|---|
| Quantity: | |
Description

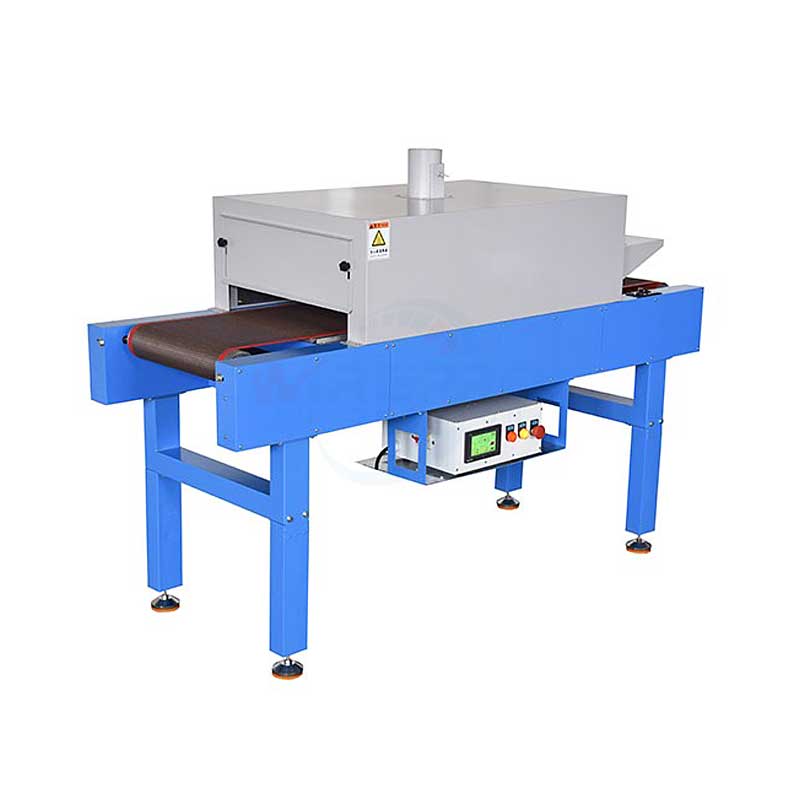

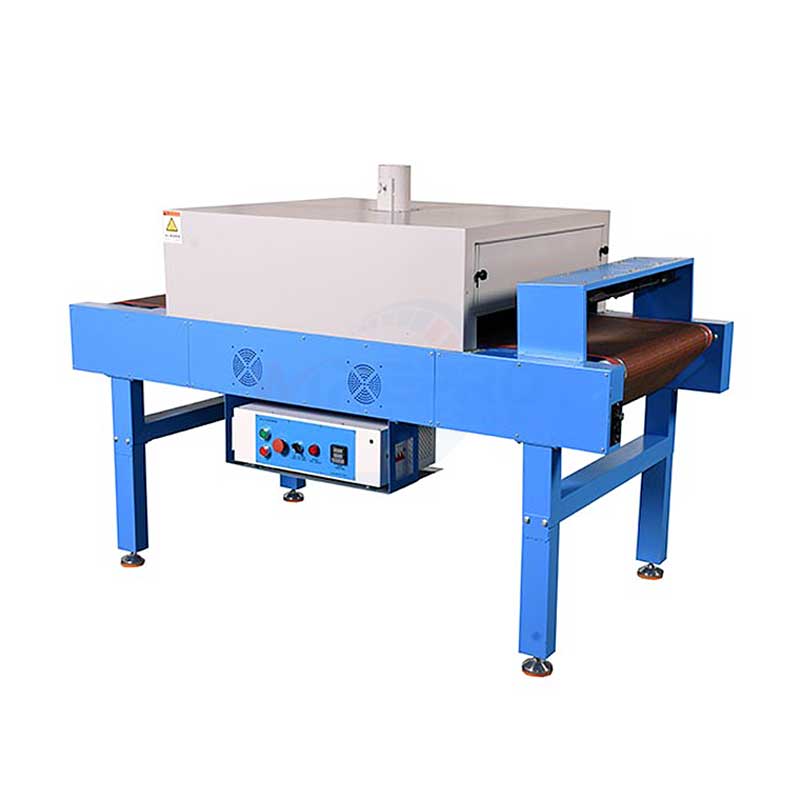

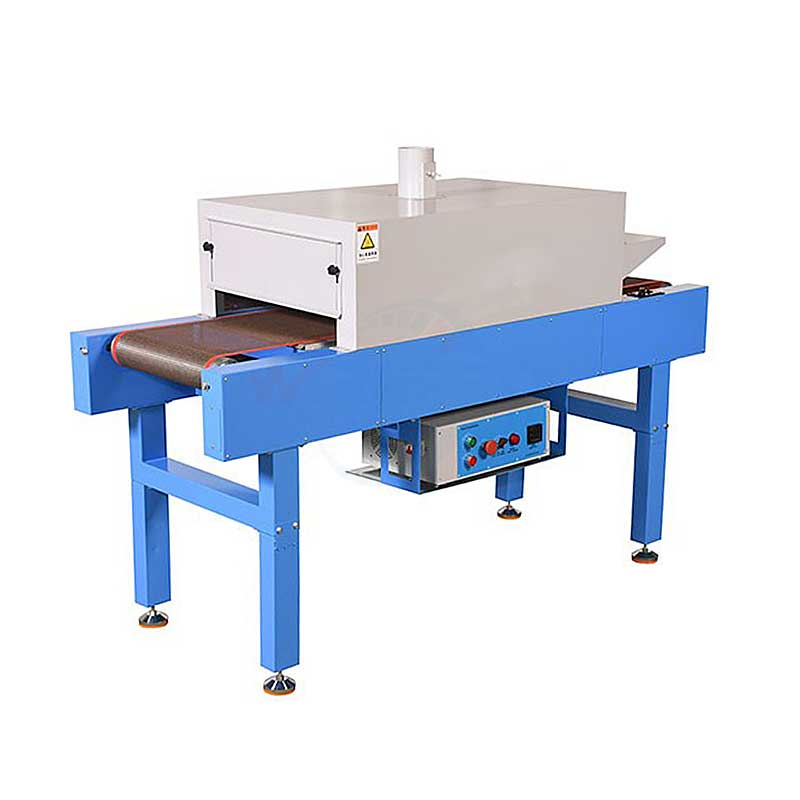

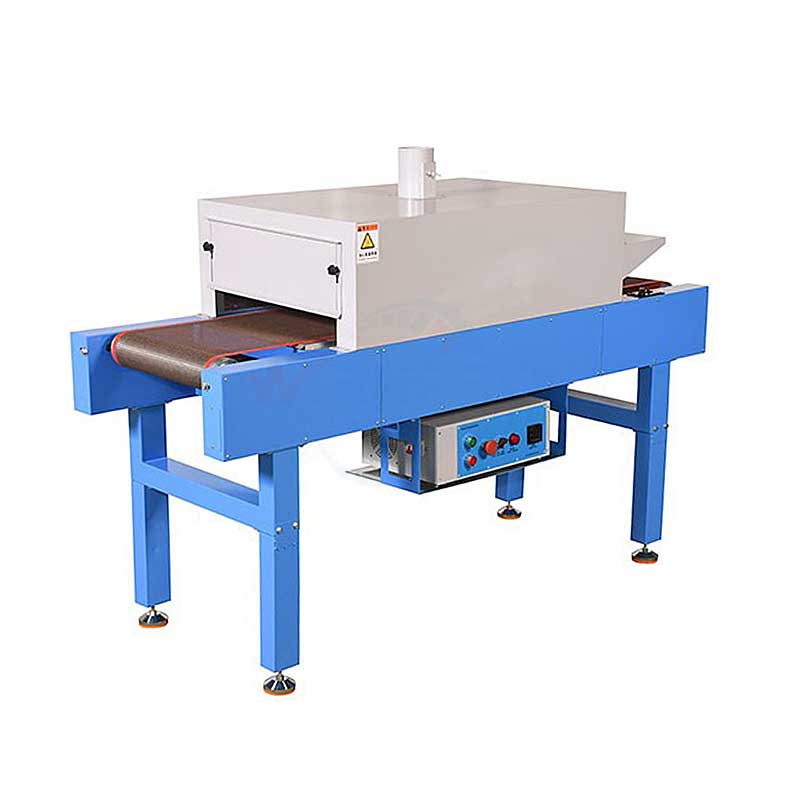

The RS-40AM is an intelligent temperature-regulating single-sided heating shrinkable tube machine. It features multi-angle heat reflection material inside the chamber, ensuring the heat-shrinkable tube is heated evenly. It is suitable for heating and shrinking heat-shrinkable tubes in wire harness processing enterprises. The temperature can be adjusted according to production process requirements, and the shrinking time is short — suitable for heat-shrinkable tubes of any length.
Equipment Composition: Equipment Support + Conveying System + Heating System + Cooling System + Control System
Key Features:
Heat Insulation Design of Heating Zone – The double-layer heating zone shell is filled with thermal insulation material to isolate internal and external temperatures, saving energy and protecting the working environment.
Multi-Angle Heat Reflection Inner Wall – Inside the heating box, a multi-angle heat reflection inner wall achieves a uniform heating effect.
Adjustable Height In and Out of Chamber – The conveyor belt heating box is completely enclosed, and the input and output ends are equipped with sliding and liftable shutters, which effectively shield the heat source from leaking, protect the working environment, and save energy.
Adjustable Infrared Heating Tube Height – The infrared heating tube can quickly adjust its height, with repeatable distance settings from the light source to the conveyor belt.
Removable Bracket – The bracket of the equipment can be freely disassembled, increasing the adaptability and mobility of the equipment.

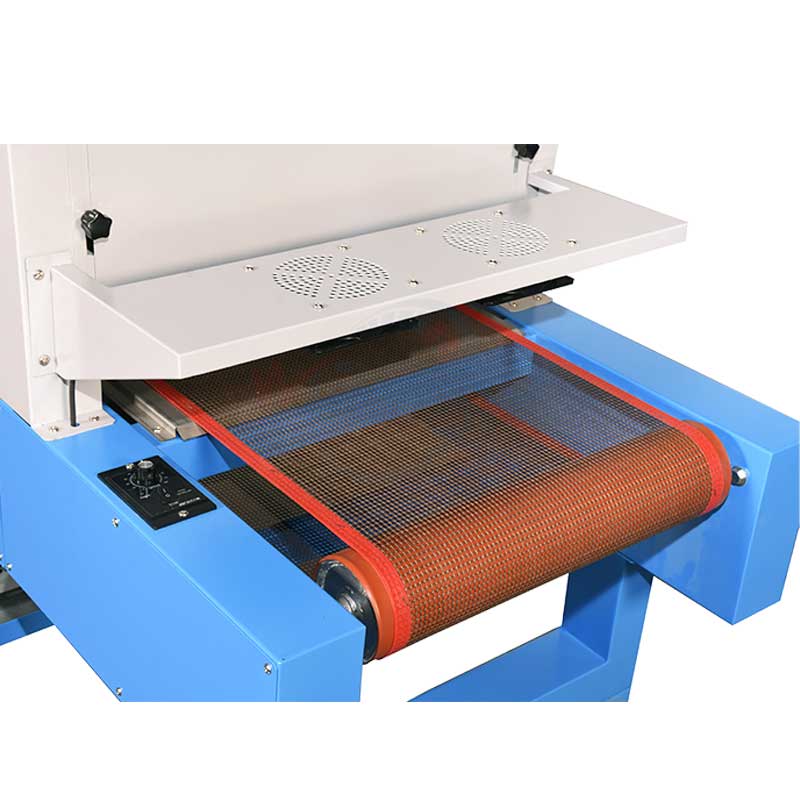

Cooling System – The outlet is equipped with a cooling fan to cool the heated heat-shrinkable tube.
| Model | RS-45AM |
| Heating area | 1000* 400mm |
| Recommend heating harness diameter | < 18mm (can custom) |
| Heating length | < 400mm |
| Transfer length | < 400mm |
| Heating tube name | Infrared radiation tube (2400W) |
| Temperature range | < 260 °C |
| Temperature tolerance | ±5 °C |
| Power supply | 220V |
| Power | < 4200W |
| Weight | 85kg |

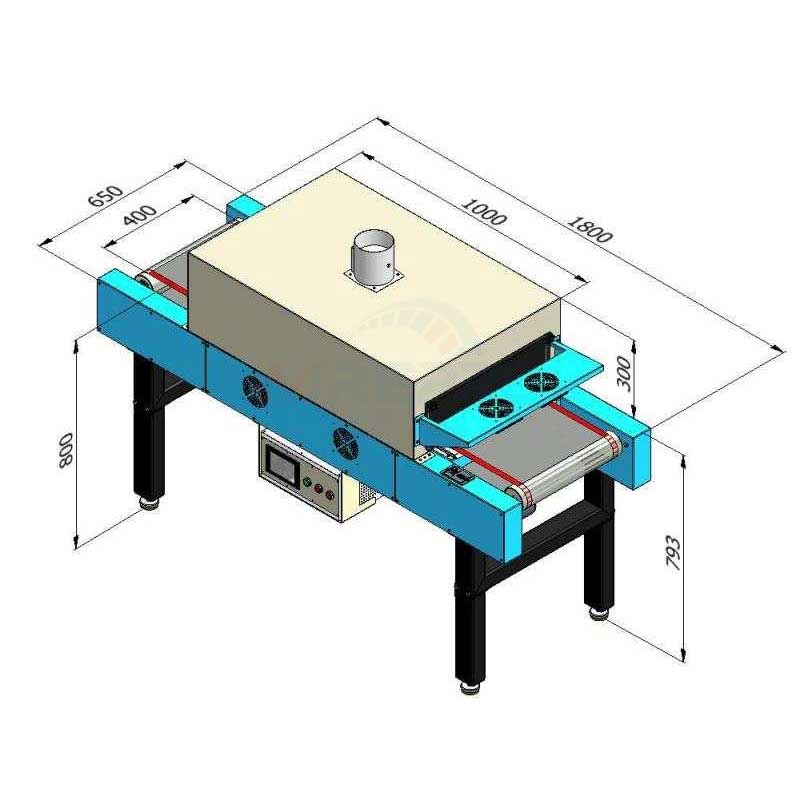

| Dimension | 180*86*107cm |
All-wiring heat shrinkable tube processing
Wire harness heat shrinking for any length
Continuous inline heat shrink production
The RS-40AM is an intelligent temperature-regulating single-sided heating machine for heat-shrinkable tubes in wire harness processing, featuring multi-angle heat reflection for even heating and short shrinking time suitable for any tube length.
Heating area: 1000*400mm. Recommended harness diameter: <18mm (customizable). Heating length: <400mm. Transfer length: <400mm. Temperature range: <260°C with ±5°C tolerance. Power: 220V, <4200W. Dimensions: 180*86*107cm, weight: 85kg.
Key features include double-layer insulated heating zone shell for energy efficiency, multi-angle heat reflection inner wall for uniform heating, fully enclosed conveyor box with sliding shutters, adjustable infrared heating tube height, removable bracket, and outlet cooling fan.
The RS-40AM requires 220V power (<4200W) and has dimensions of 180*86*107cm, weighing 85kg. It is a floor-standing unit requiring dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
