RD-A24/RD-A40
| Availability: | |
|---|---|
| Quantity: | |
Description

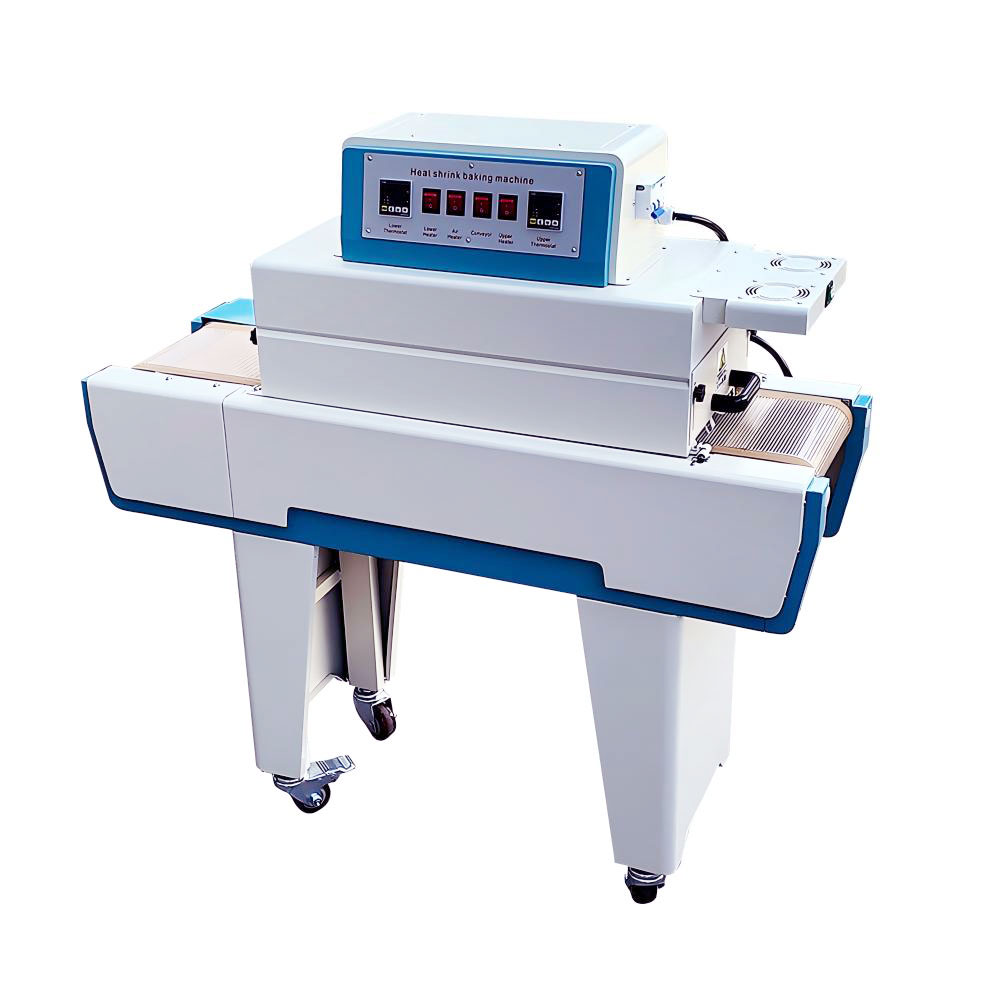

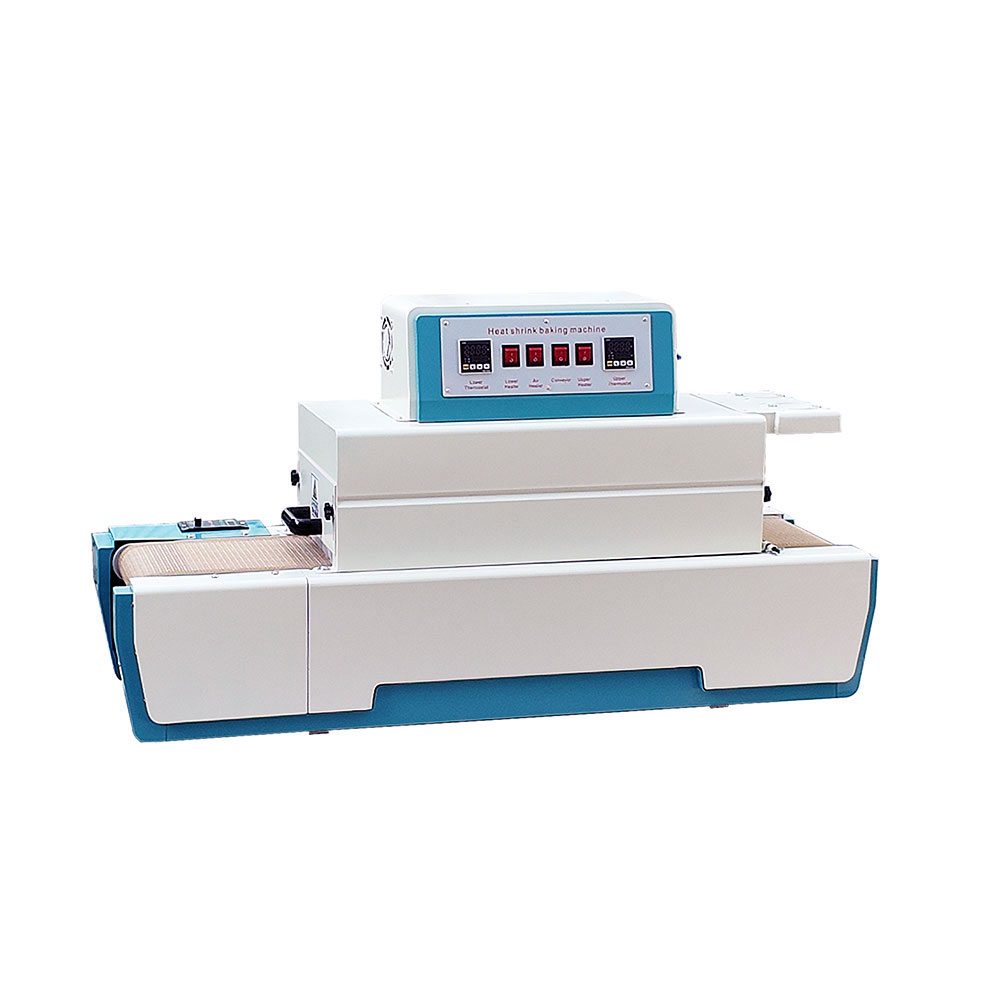

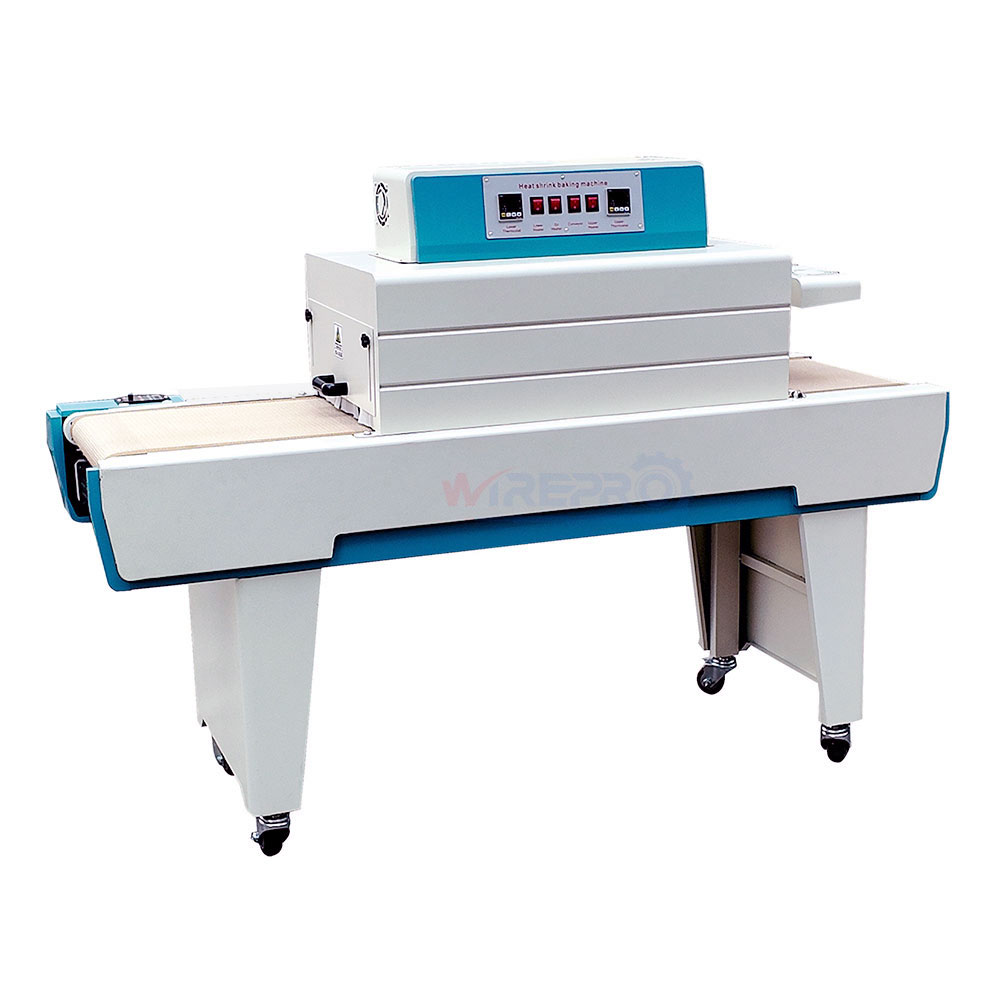

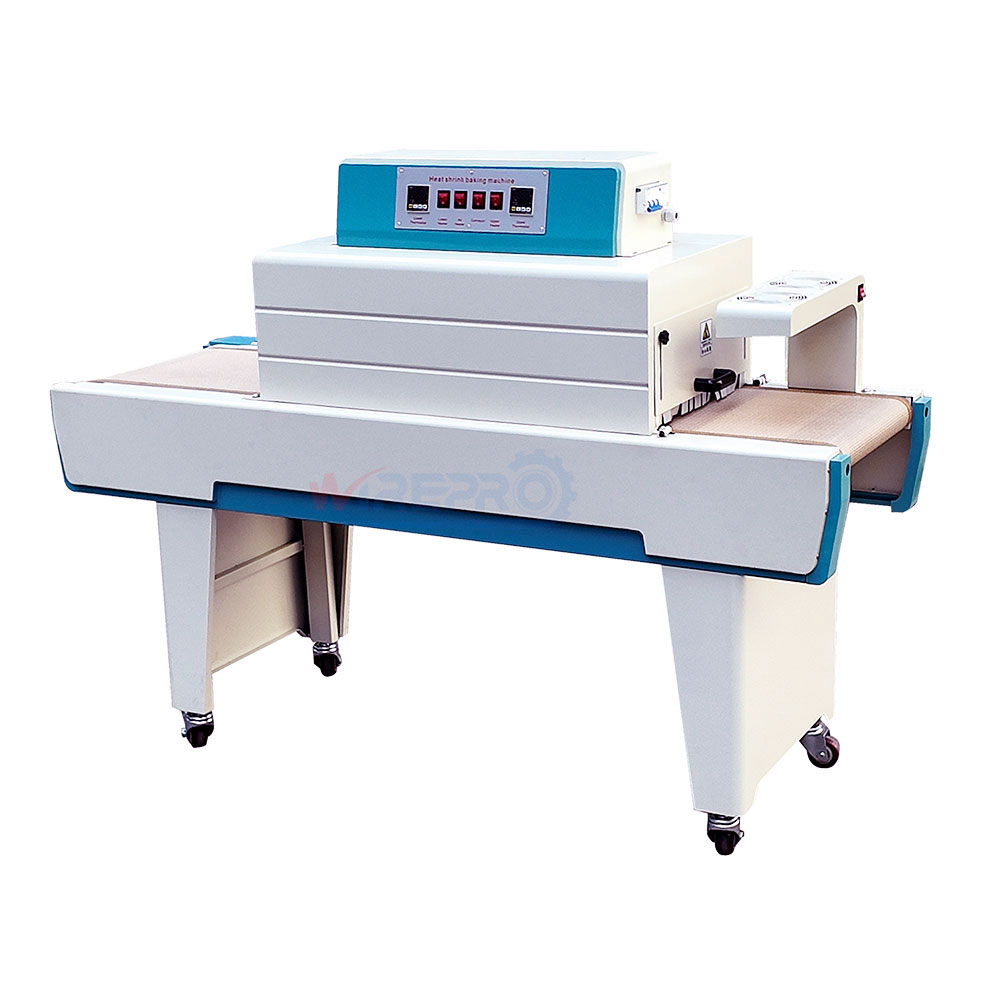

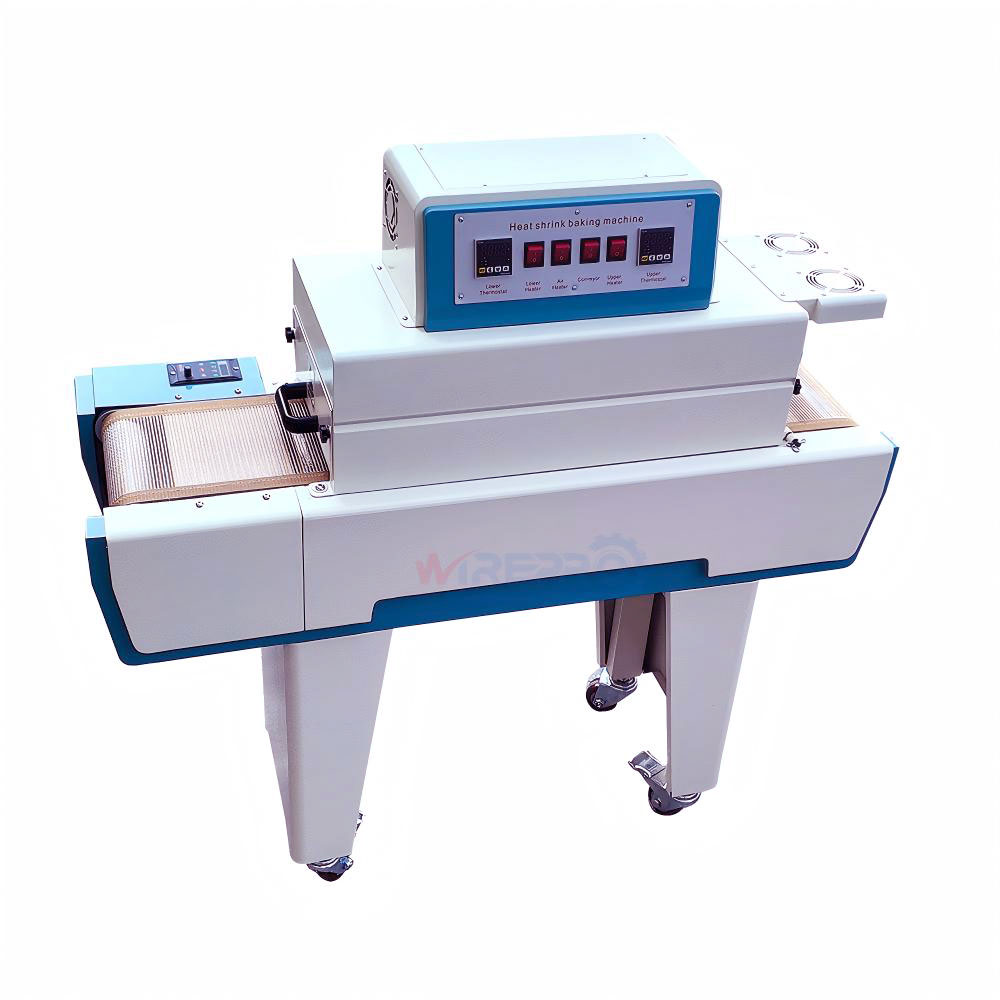

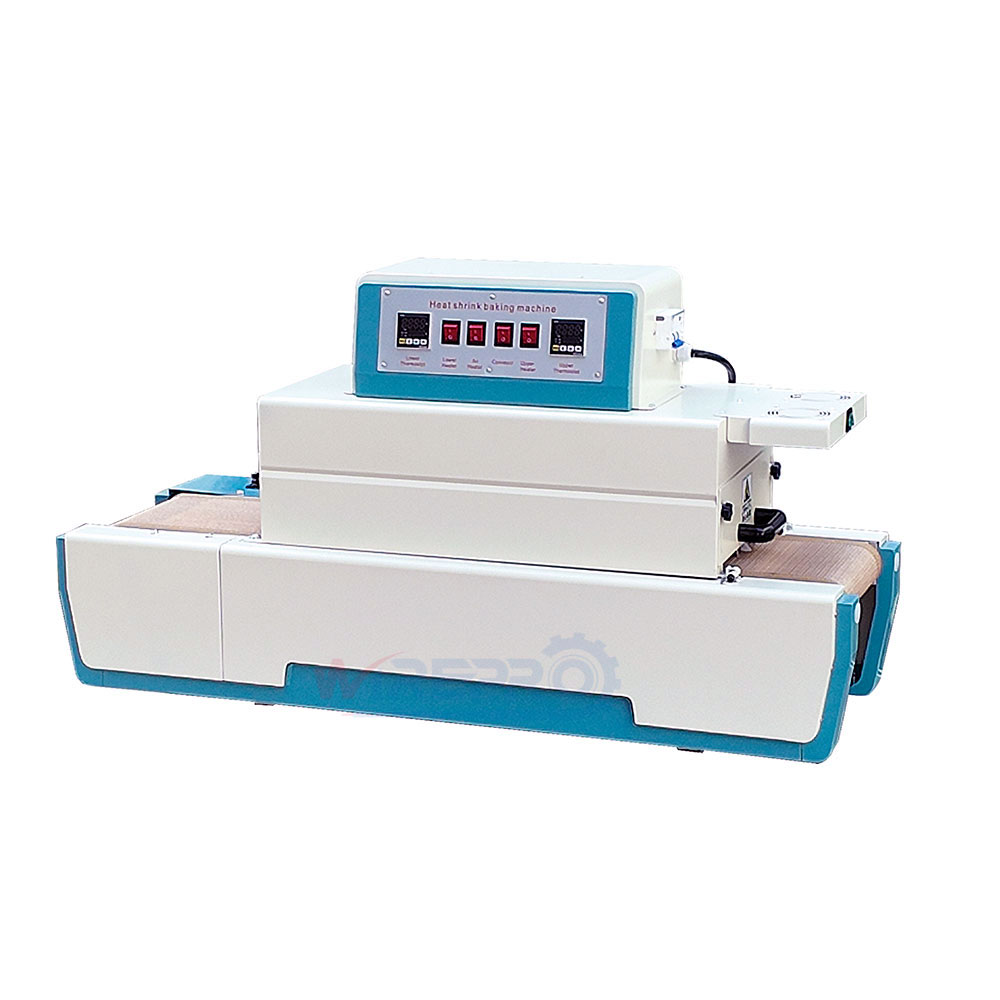

The RD-A24 is a compact desktop enclosed heat shrink tunnel oven designed for heat shrinking or baking of relatively small-sized products, including wire harness heat shrink tubing, heat shrink film packaging, PCBs, and inductor coils. It is particularly suited for small-batch production operations.
Key Features:
Even Heat Distribution for Stable Quality – Built on a welded frame with far-infrared heating tubes delivering dual-sided heating. A high-speed centrifugal fan inside the chamber evenly distributes heat to maintain a constant temperature throughout. This preserves the original characteristics of products, ensuring no deformation or discoloration after shrinking or baking — delivering consistently stable quality.
High-Temperature Teflon Mesh Belt – Equipped with a high-temperature-resistant Teflon mesh belt (0–350°C), supporting continuous inline feeding for fast and efficient baking performance.
Intelligent Control System – Heating temperature and conveyor speed are both freely adjustable, accommodating different products' temperature requirements and shrink time needs for versatile, quick changeover operation.
Safe Insulation Design – The independent control electrical box is positioned away from the high-temperature zone. The heating chamber features a double-layer design with high-temperature insulation cotton (1200°C) sandwiched in between, keeping the exterior surface cool. This creates a comfortable working environment while reducing energy waste.
Compact Desktop Design – The desktop-type structure is compact and exquisitely designed, effectively saving workspace. Particularly suitable for small-batch, small-size product applications.
| Model | RD-A24 | RD-A40 |
| Heating Type | Full heating (all products) | |
| Heating Temperature | 0 – 260 °C | |
| Accommodable Tube Diameter | Max 80 mm (heating performance based on samples) | Max 150 mm (heating performance based on samples) |
| Conveyor Load Capacity | 10 kg | 20 kg |
| Heating Chamber Size | L63 × W24 × H8 cm | L80 × W40 × H15 cm |
| Box Dimensions | L63 × W30 × H20 cm | L80 × W48 × H28 cm |
| Cooling Device | No | Yes |
| Heating Method | Dual temperature control (double-sided heating) | |
| Heating Tube | Far-infrared heating tube | |
| Hot Air Blower | Yes | |
| Conveyor Speed | 0 – 6 m/min (adjustable) | |
| Power Supply | 220V 50Hz (110V optional) | |
| Machine Power | 2.8 KW | 3.6 KW |
| Standard Configuration | Desktop model, without legs | With legs |
| Machine Dimensions | L108 × W30 × H56 cm | L160 × W48 × H120 cm |
| Machine Weight | 40 kg | 85 kg |
Wire harness heat shrink tubing
Heat shrink film packaging
PCB baking and curing
Small inductor coil shrinking
The RD-A24 and RD-A40 are desktop enclosed heat shrink tunnel ovens for heat shrinking or baking of wire harness tubing, shrink film packaging, PCBs, and inductor coils using far-infrared dual-sided heating with circulating fan.
RD-A24: max tube 80mm, conveyor load 10kg, chamber L63×W24×H8cm, 2.8KW, 40kg. RD-A40: max tube 150mm, conveyor load 20kg, chamber L80×W40×H15cm, 3.6KW, 85kg with legs and cooling device. Both: 0-260°C, 0-6 m/min, 220V.
Key features include far-infrared dual-sided heating with high-speed centrifugal fan for uniform temperature, high-temperature Teflon mesh belt (0-350°C), intelligent adjustable temperature and conveyor speed, double-layer insulated heating chamber for energy efficiency, and compact desktop design.
Both models operate on 220V, 50Hz (110V optional). RD-A24: 2.8KW, dimensions L108×W30×H56cm, 40kg (desktop without legs). RD-A40: 3.6KW, dimensions L160×W48×H120cm, 85kg (with legs and cooling device).
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
