SP-T05
| Availability: | |
|---|---|
| Quantity: | |
Description

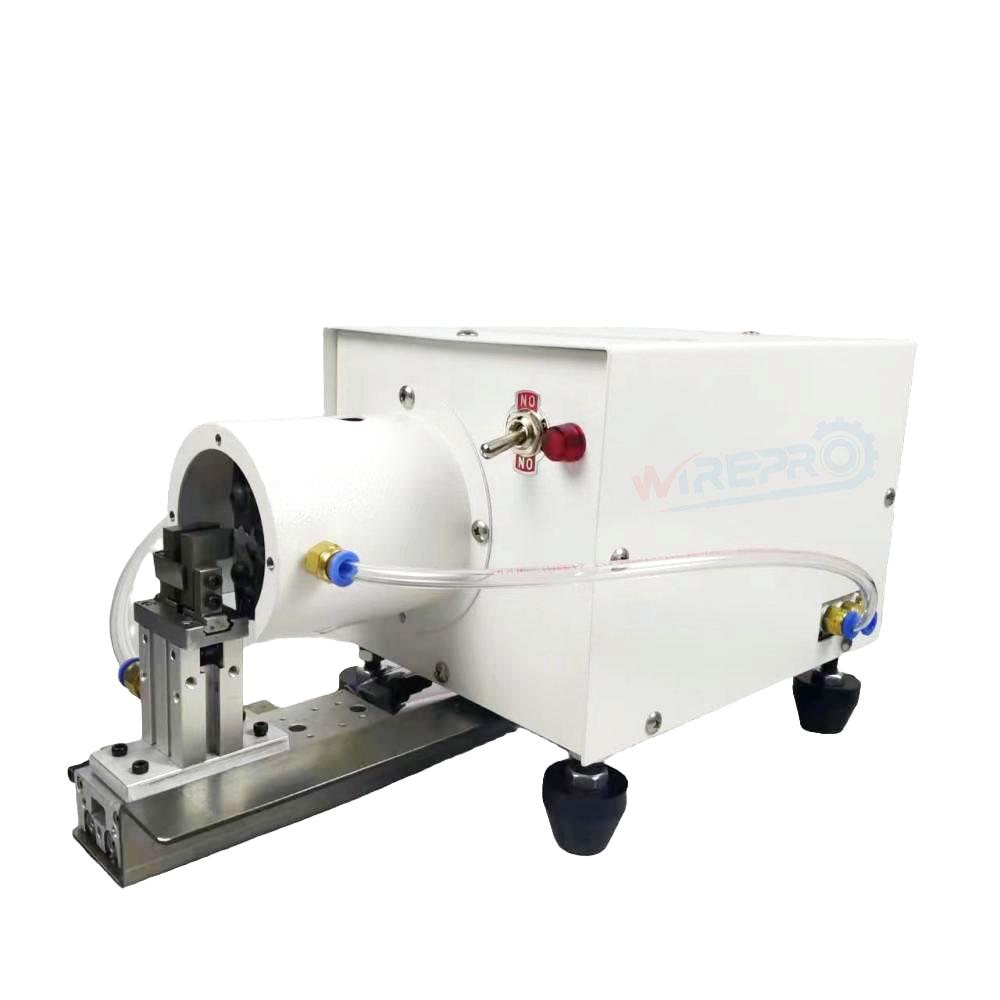

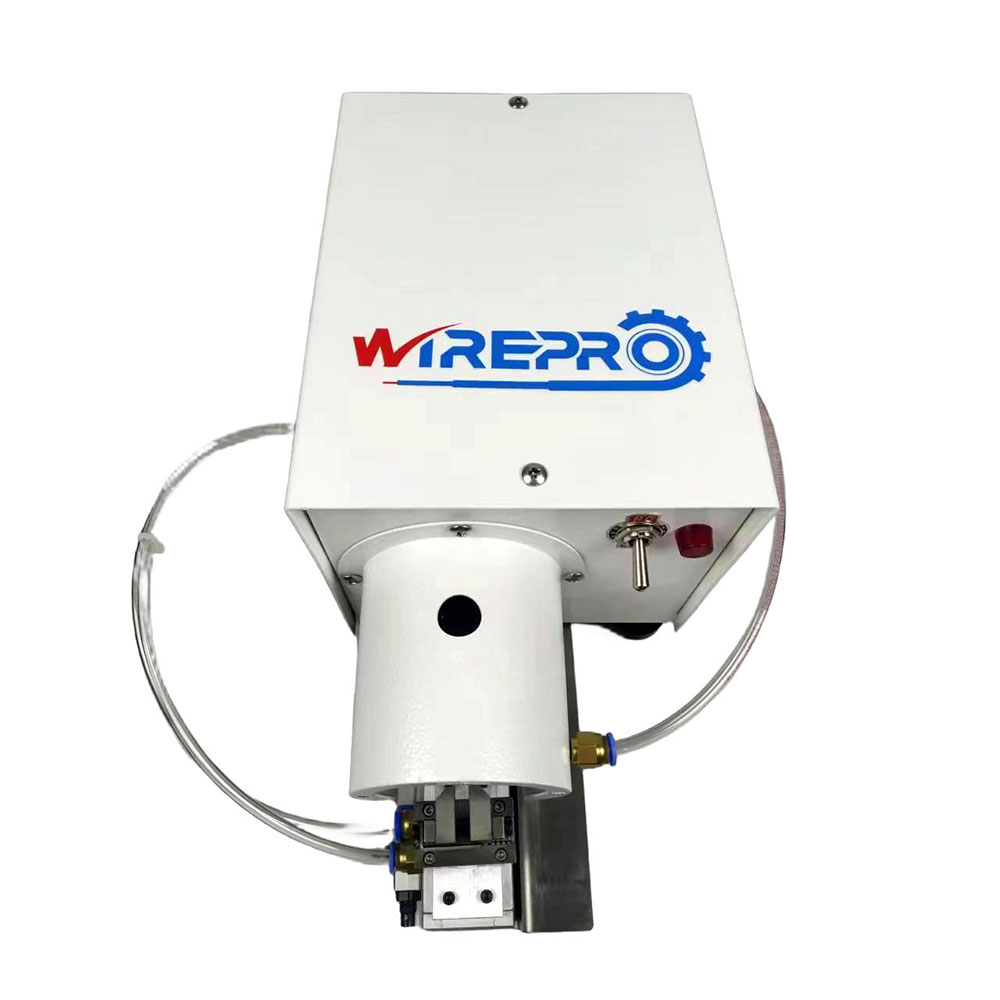

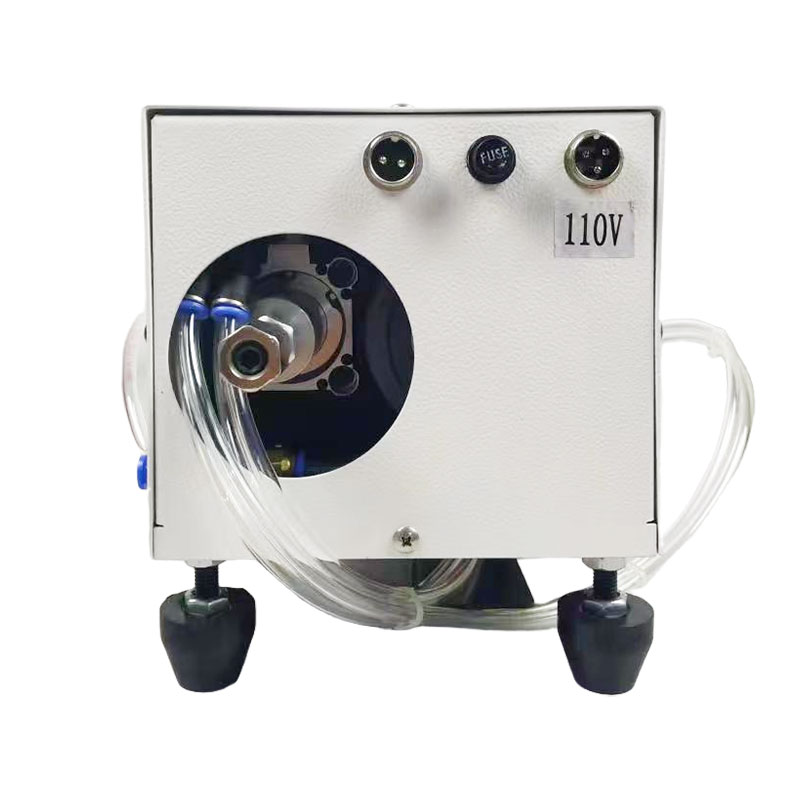

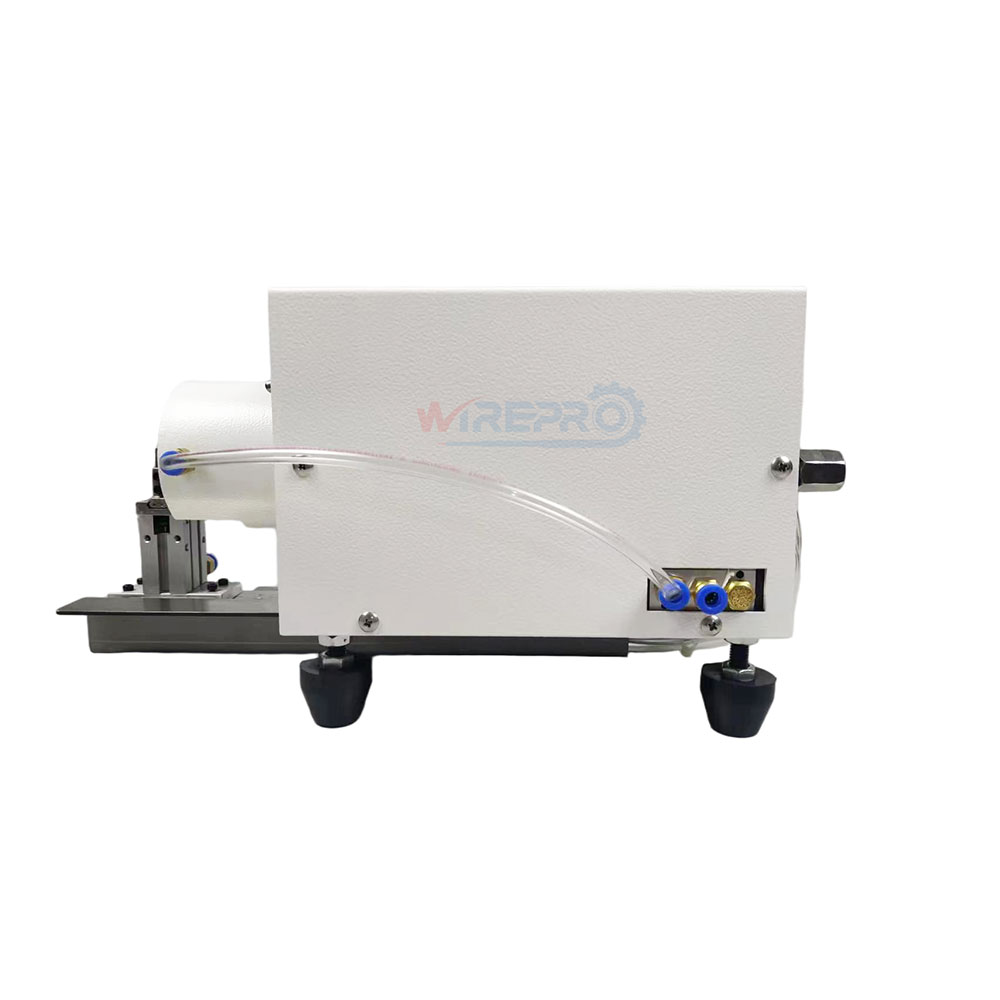

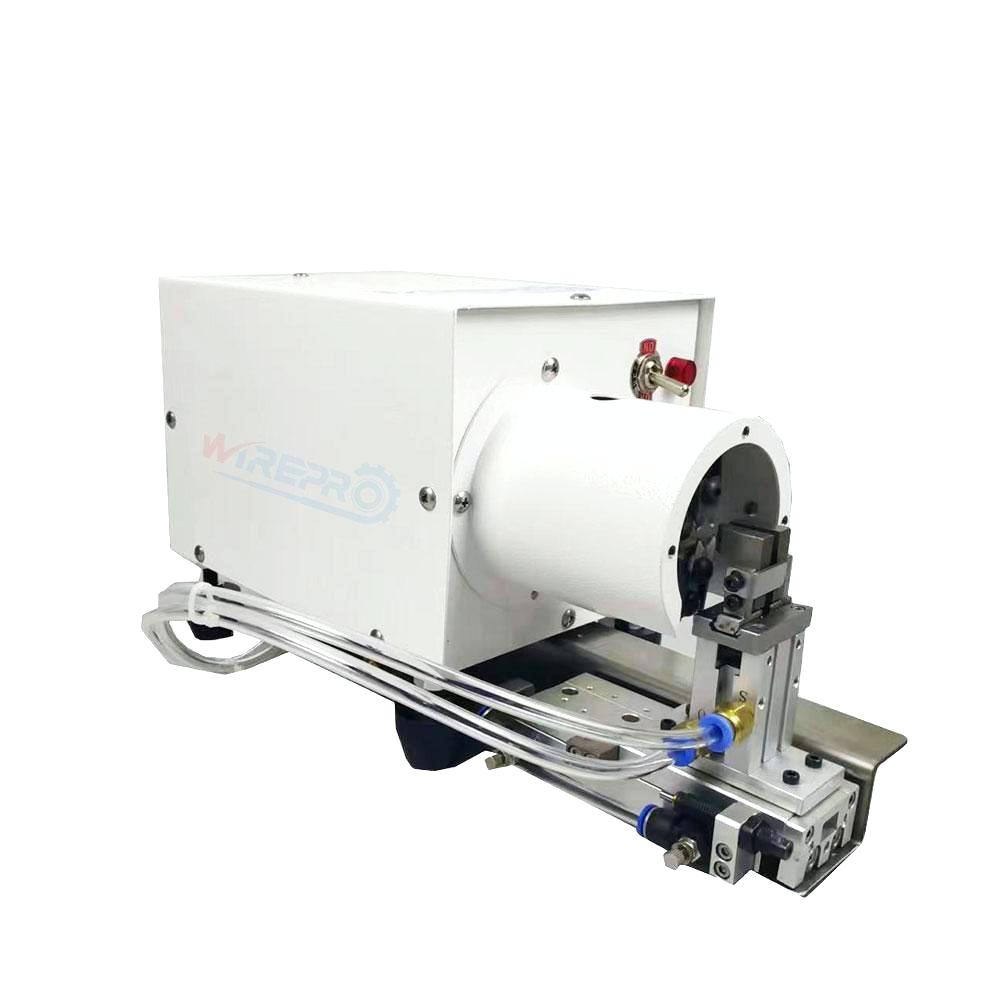

The SP-T05 is a compact semi-automatic wire stripping and twisting machine designed for stranded wires. It uses an electric footswitch instead of a heavy chain pedal, reducing operator effort and improving handling efficiency.
Key Features:
Electric Footswitch Control – Replaces the previous chain-pedal structure, providing lighter operation and reducing operator fatigue.
Double-Blade Stripping Design – Uses a standard double-blade stripping structure, reducing tooling cost and simplifying blade replacement.
Lower Power Consumption – Designed to reduce power consumption compared with the previous model.
Stripping and Twisting in One Process – Processes wire diameters up to 4 mm and produces a tight, consistent twisted end.
Short Twisting Length – Supports twisting lengths over 5 mm, depending on the wire structure and machine settings.
| Model | SP-3035 |
| Features | No blade change required for different wire diameters |
| Available Wire Size | AWG 2 – AWG 14 |
| Conductor Cross-Section | 2.5 – 35 mm² |
| Stripping Length | 2 – 30 mm |
| Air Connection | 0.5 – 0.7 MPa |
| Weight | 15 kg |
| Dimensions | 36 × 29 × 18 cm |
Stranded wire stripping and twisting
Multi-strand wire harness preparation
Wire end twisting before terminal insertion
The SP-T05 is a compact semi-automatic machine for stripping and twisting stranded wires up to 4mm diameter, combining both processes in one operation with an electric footswitch for reduced operator fatigue.
Available wire size: AWG10-AWG26. Stripping length: 3-25mm. Stroke: 50-100mm. Power: 220V, 50Hz. Air connection: 0.5-0.6MPa. Dimensions: 38×16×30cm, weight: 12kg.
Key features include electric footswitch replacing heavy chain pedal for lighter operation, double-blade stripping design for reduced tooling cost, lower power consumption, and combined stripping and twisting in one process with twisting lengths over 5mm.
The SP-T05 requires 220V, 50Hz power and 0.5-0.6MPa air connection. Dimensions: 38×16×30cm, weight: 12kg. It is a compact benchtop unit requiring minimal workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
