SP-R100
| Availability: | |
|---|---|
| Quantity: | |
Description

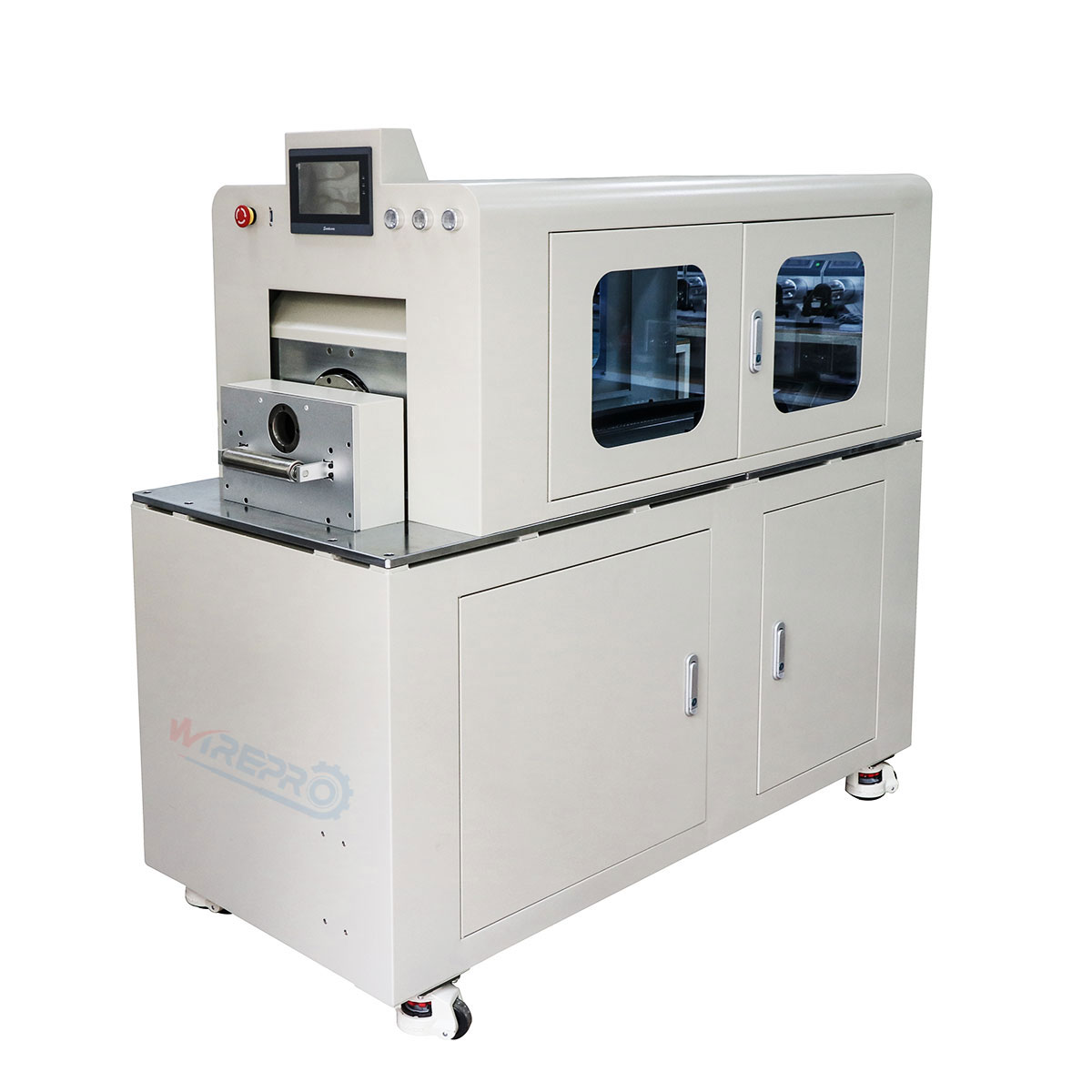

The SP-R100 is a precision rotary cable stripping machine designed for extra-thick cables used in EV charging, high-voltage, and heavy-duty wire harness applications. It processes cable outer diameters from 10 mm to 45 mm and supports a maximum stripping length of 1000 mm, with customization available for special requirements.
Applications: Suitable for EV charging gun cables, high-voltage cables, special heavy-duty wires, automotive wiring harnesses, charging equipment manufacturing, and related cable processing applications.
Key Features:
Long-Length Stripping – Supports stripping lengths up to 1000 mm, with custom configurations available for special cable processing requirements.

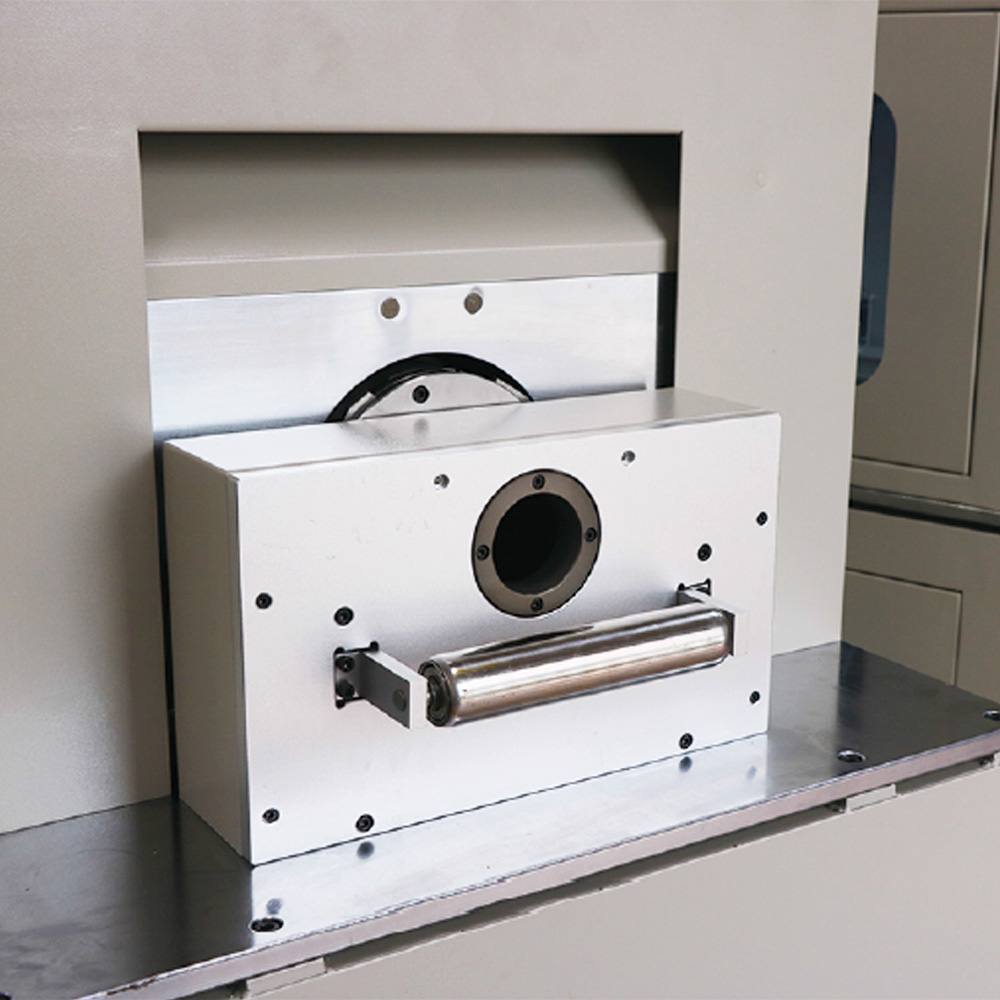

Precision Cutting – A cutting-depth resolution of 0.01 mm and synchronized four-blade rotary cutting support clean insulation removal while protecting the inner layer.
Stable Servo Operation – The servo drive system, ball screw transmission, and adjustable clamping force support consistent cable processing.
Profile Storage – Stores up to 100 cable processing profiles for quick recall and reduced setup time.
Durable Configuration – Equipped with imported high-speed steel blades and a Leisai servo system for long-term operation.
| Model | SP-R100 |
| Available Wire Dia | 10-45mm（can custom) |
| Stripping Length * | ≤1000mm |
| Stripping Layers | Max 2 layers |
| Cut/Strip Set Min Unit | 0.01mm |
| Storage Capacity | Max 100 |
| Blade Quantity | 4 pieces |
| Production Rate | 700-1200pcs/h |
| Display Screen | Chinese / English touch screen |
| Motor | Servo motor |
| Power Supply | 220V/110V |
| Power | 3000W |
| Dimensions | 168*68*130cm |
| Weight | 380kg |

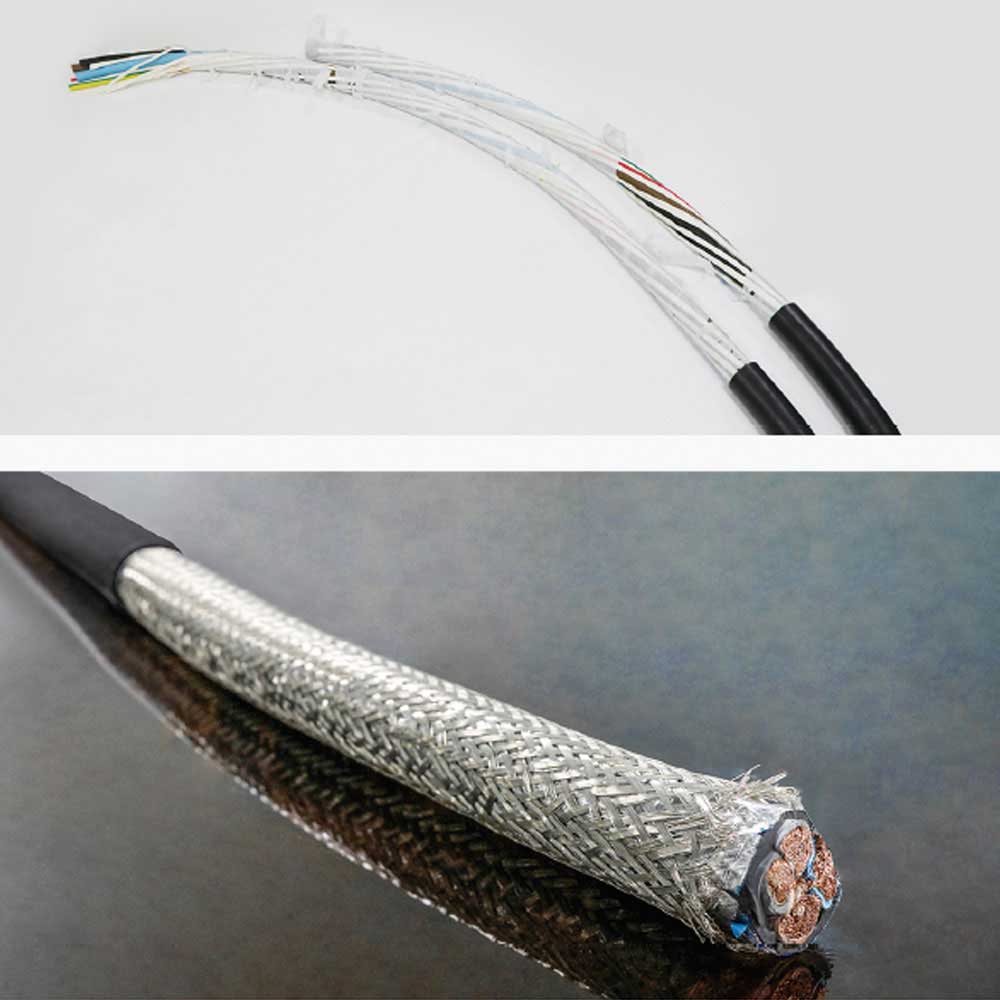

EV charging gun cables
High-voltage cables
Special heavy-duty wires
Automotive wiring harnesses
Charging equipment manufacturing
The SP-R100 is a precision rotating knife cable stripping machine for extra-thick cables in EV charging, high-voltage, and heavy-duty wire harness applications, processing cable outer diameters of 10-45mm with stripping lengths up to 1000mm.
Cable outer diameter: 10-45mm (customizable). Max stripping length: ≤1000mm. Stripping layers: max 2. Cut/strip set min unit: 0.01mm. Storage capacity: max 100. Blade quantity: 4 pieces. Production rate: 700-1200pcs/h. Power: 220V/110V, 3000W. Dimensions: 168*68*130cm, weight: 380kg.
Key features include long-length stripping up to 1000mm, synchronized four-blade rotary cutting for clean insulation removal, 0.01mm cutting-depth resolution, servo motor drive for stable operation, storage of 100 cable processing profiles, and Chinese/English touch screen display.
The SP-R100 requires 220V/110V power (3000W) and has dimensions of 168*68*130cm, weighing 380kg. It is a floor-standing unit requiring dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
