RD-L150
| Availability: | |
|---|---|
| Quantity: | |
Description

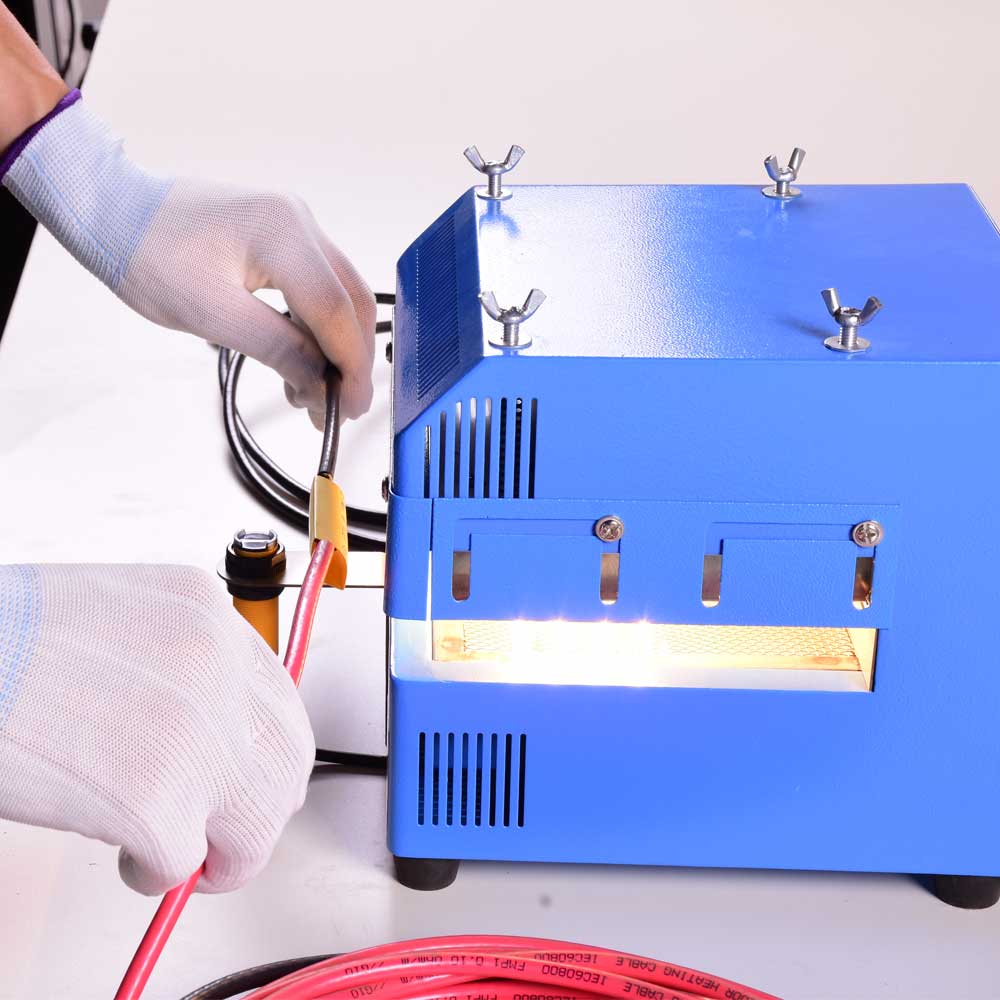

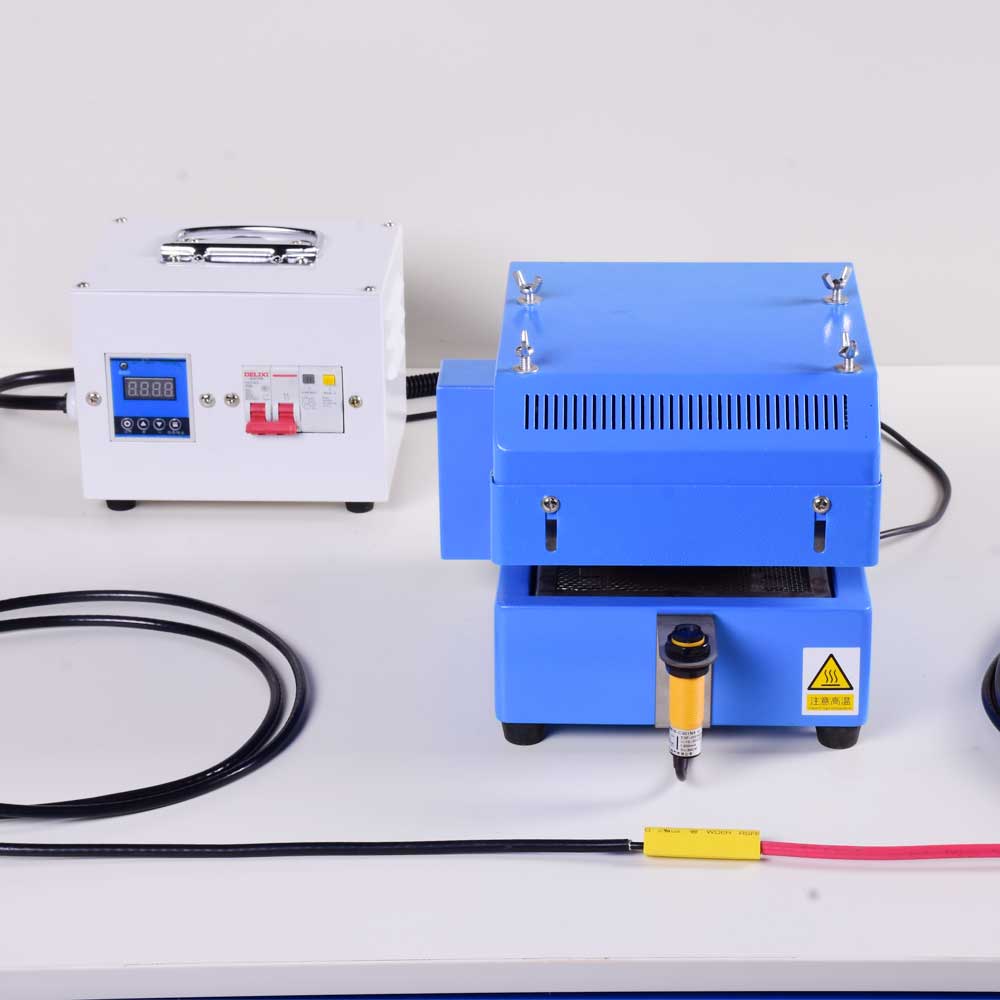

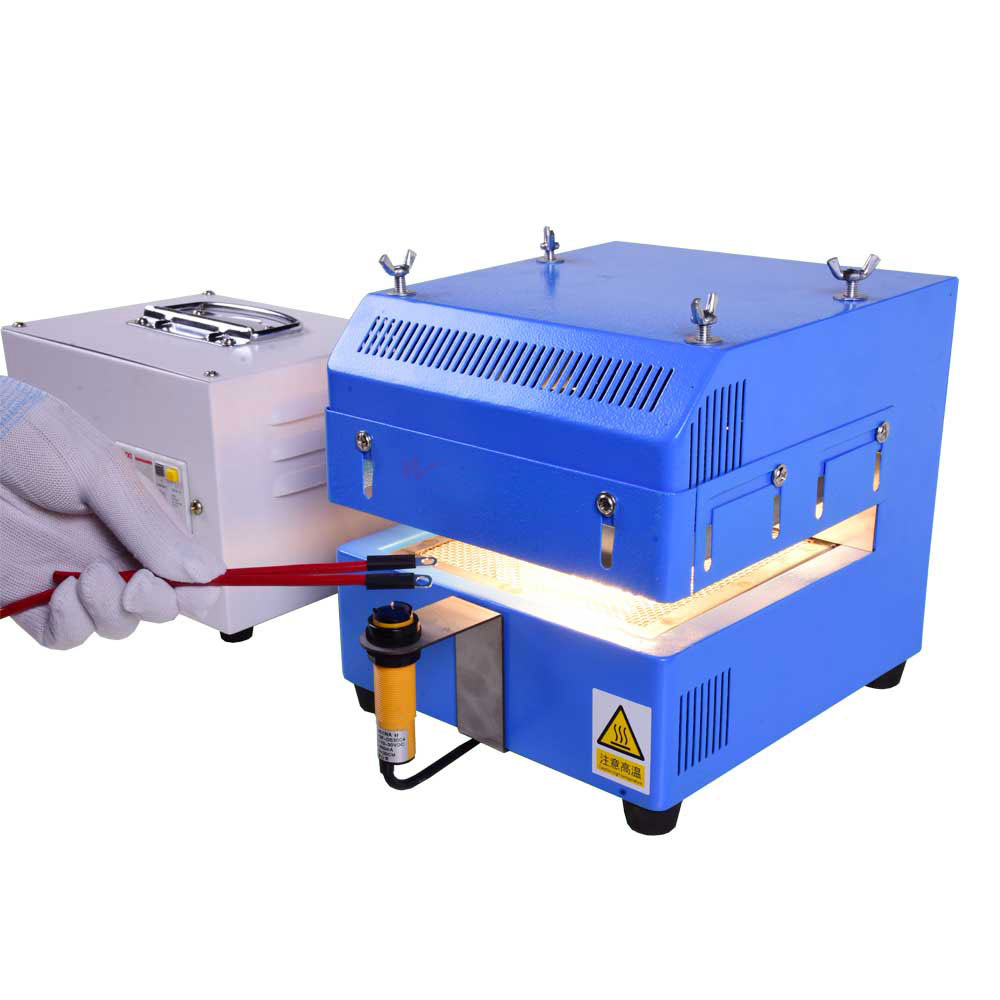

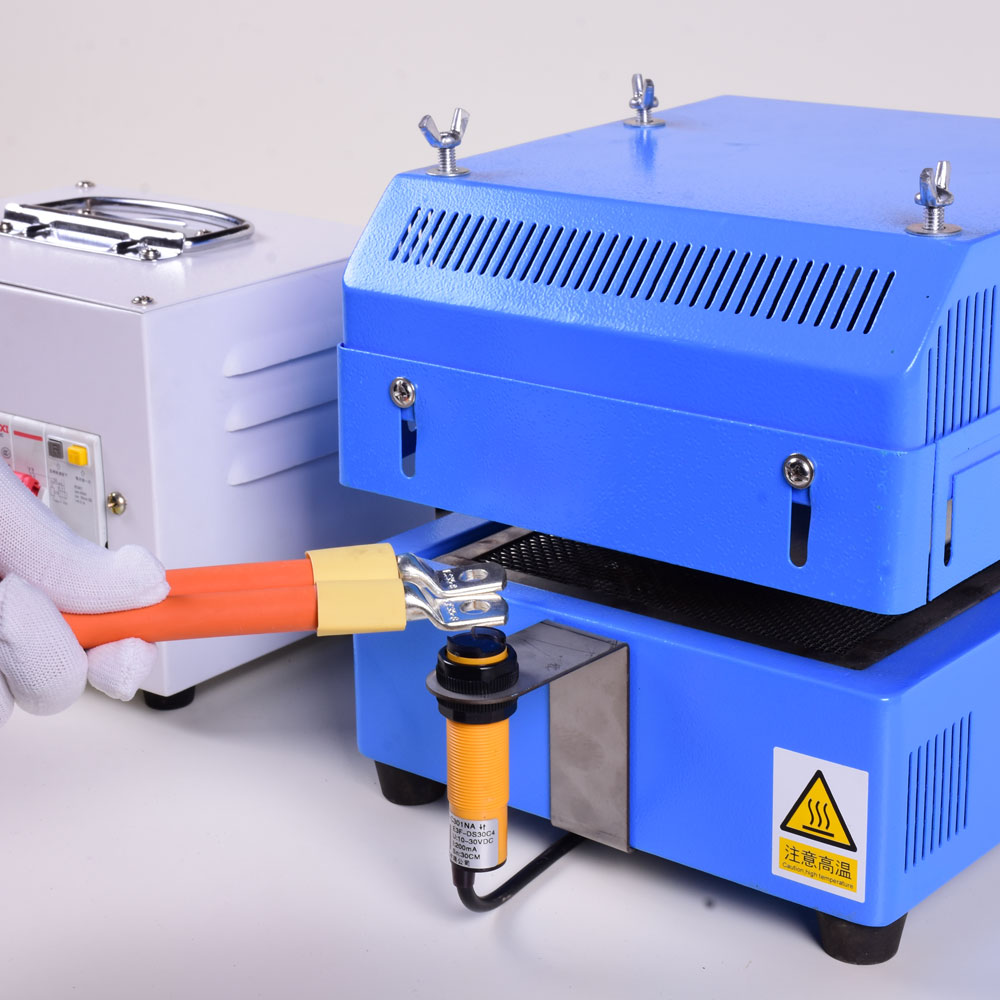

The RD-L150 is a compact and lightweight heat shrink tubing heating machine that fits easily onto a workbench. It is suitable for processing a wide range of wire harnesses, including short, large-diameter, extra-long, and terminal wire harnesses. The machine supports continuous 24-hour operation with customizable heating times, making it an ideal replacement for a traditional heat gun.
Equipment Composition: Heating System + Control System
Two Heating Control Modes:
Product proximity triggers heating.
Cyclic automatic start/stop heating mode.
Key Features:
Double-Sided Heating – The machine uses double-sided heating for even heat distribution, ensuring consistent shrinking results.
Adjustable Heating Zone Width – The heating zone width can be adjusted by the user according to the size of the heat shrink tubing, maximizing energy efficiency and minimizing damage to the wires.
Heating Zone Insulation Design – The heating zone shell features a double-layer design with internal insulation material, isolating internal and external temperatures, saving energy, and protecting the working environment.
Compact & Lightweight – Small footprint and lightweight construction allow convenient placement on any workbench.
24-Hour Continuous Operation – Designed for uninterrupted production with freely adjustable heating times.
| Model | RD-L150 |
| Heating shrinkable tube diameter | < 40mm |
| Heating Zone Size | 170×150×40mm |
| Heating length | < 80mm |
| Heating tube name | Infrared radiation tube (300W*6) |
| Power supply | 220V |
| Power | < 1800W |
| Weight | 9kg |

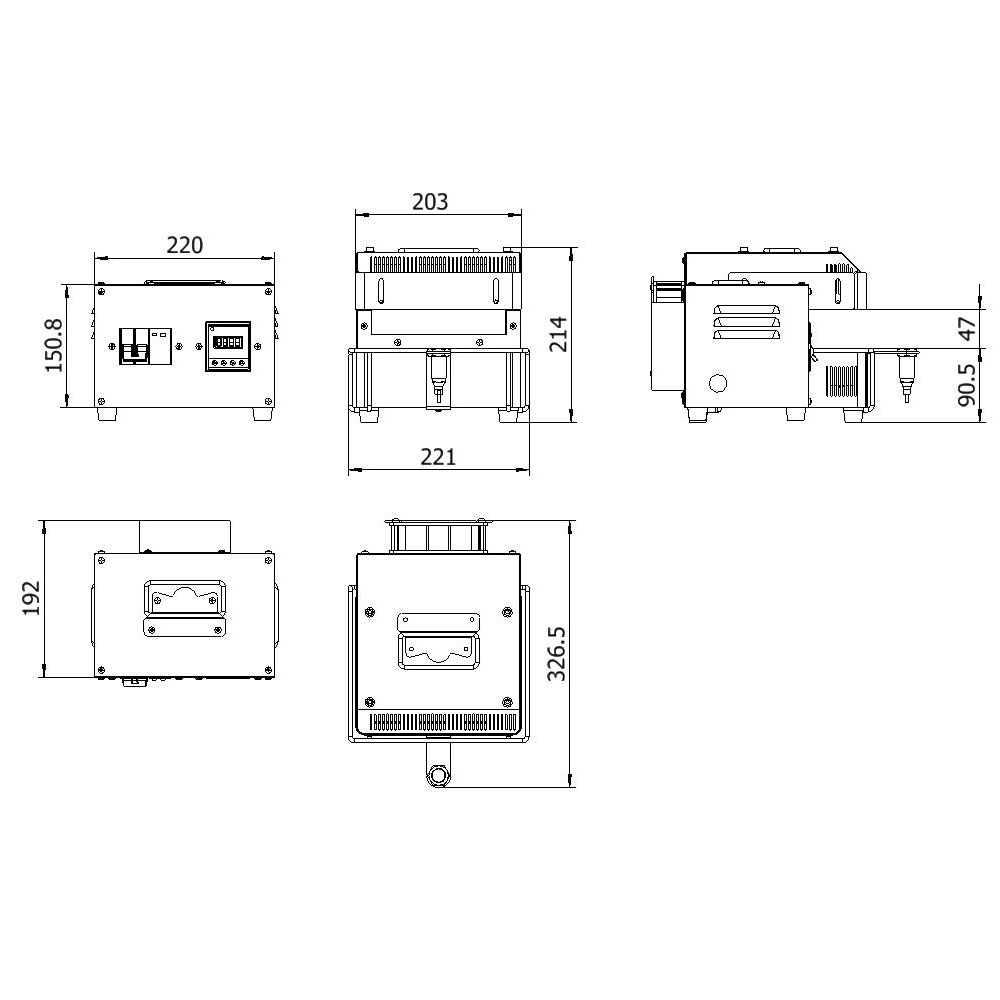

| Dimension | 20 × 26 × 18 cm |
Wire harness heat shrink tubing
Heat shrink film packaging
PCB baking and curing
Small inductor coil shrinking
The RD-L150 is a compact double-sided heating oven for heat shrinkable tube processing, suitable for short, large-diameter, extra-long, and terminal wire harnesses as an ideal replacement for a heat gun.
Heating shrinkable tube diameter: <40mm. Heating zone size: 170×150×40mm. Heating length: <80mm. Infrared radiation tube: 300W×6. Power: 220V, <1800W. Dimensions: 20×26×18cm, weight: 9kg.
Key features include two heating control modes (proximity trigger and cyclic automatic), double-sided heating for even distribution, adjustable heating zone width for energy efficiency, double-layer insulation design, and 24-hour continuous operation capability.
The RD-L150 requires 220V power (<1800W) and has dimensions of 20×26×18cm, weighing only 9kg. It is a compact benchtop unit requiring minimal workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
