RD-H06
| Availability: | |
|---|---|
| Quantity: | |
Description

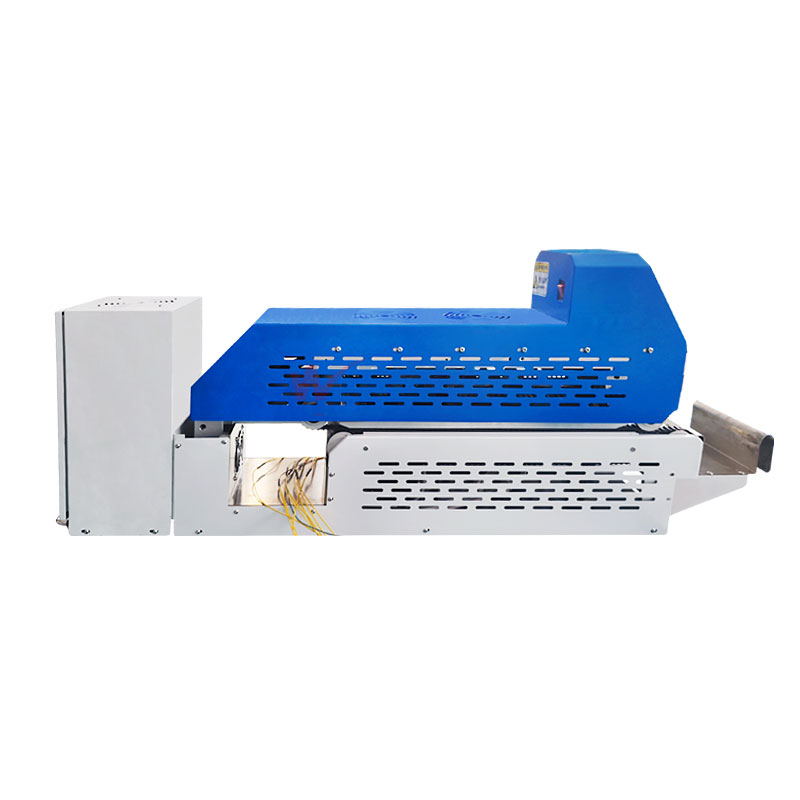

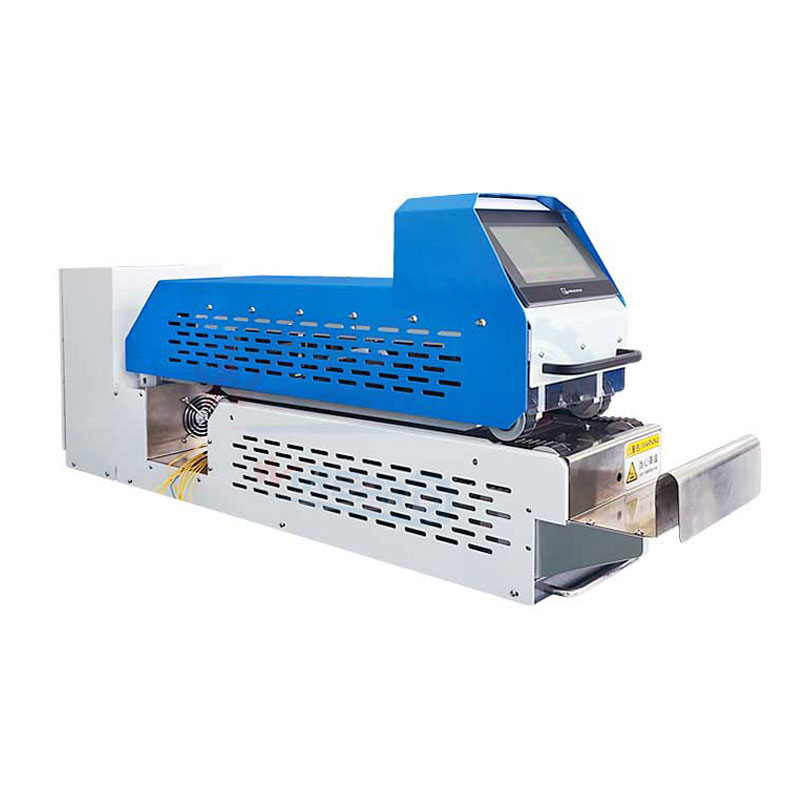

The RD-H06 is a heat shrink conveyor oven designed to shrink heat-shrinkable tubes for wire harnesses. It also supports thermal processing and curing applications, making it a versatile solution for continuous heat treatment tasks.
Key Features:
Small Tube Capability – Suitable for heat-shrinkable tubes with a diameter of less than 10 mm.
Reverse Belt Safety Design – When the equipment is turned on and before it reaches the set temperature, the belt runs in reverse to prevent personnel misoperation.

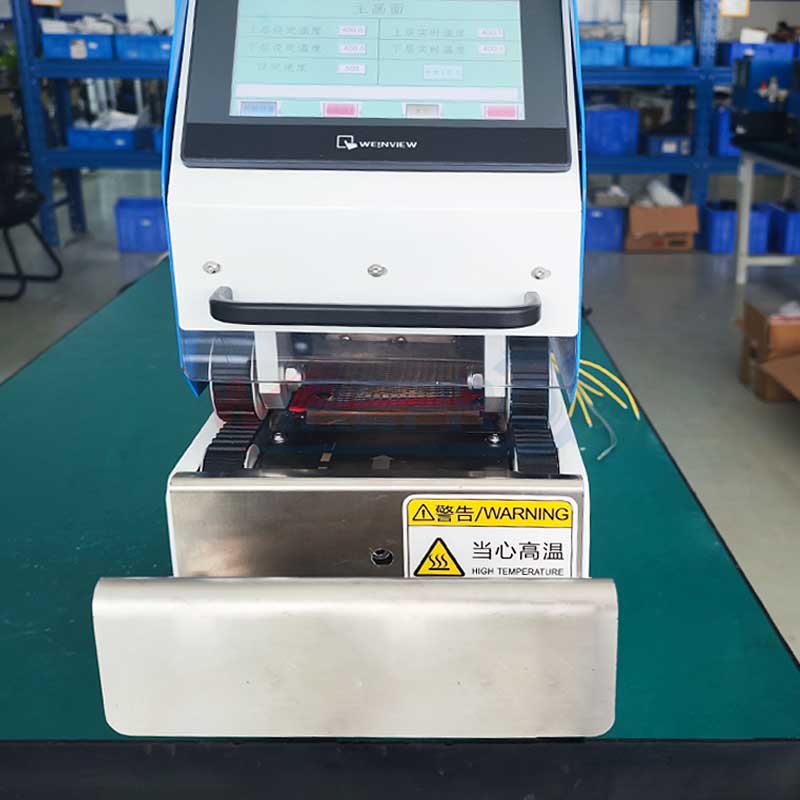

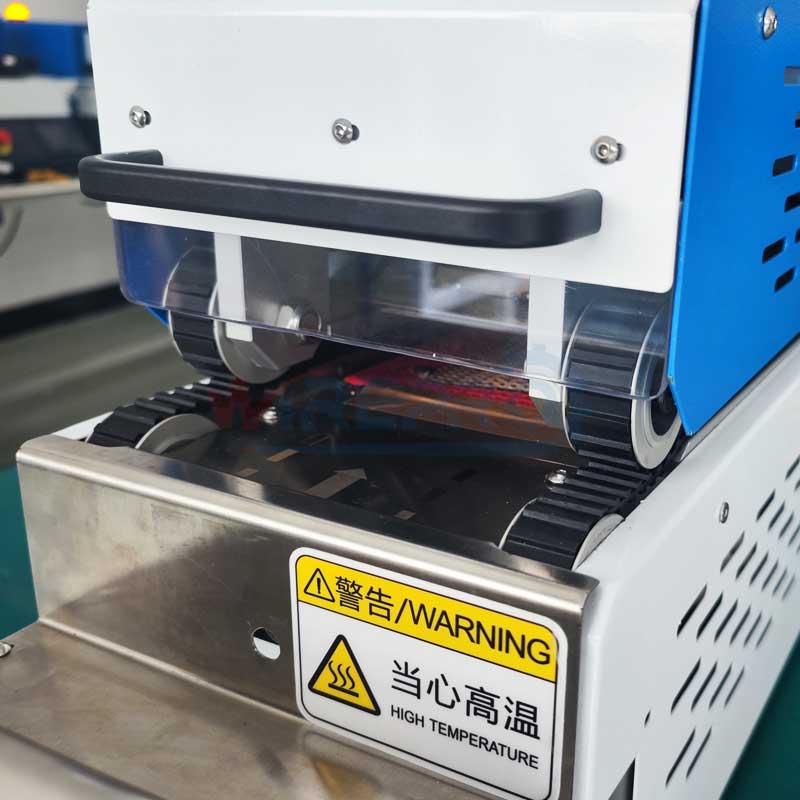

Continuous Double-Belt Feeding – The wiring harness should be clamped between the double-sided timing belts. The previous harness must have fully entered the machine before the next harness is loaded, ensuring a smooth and continuous workflow.

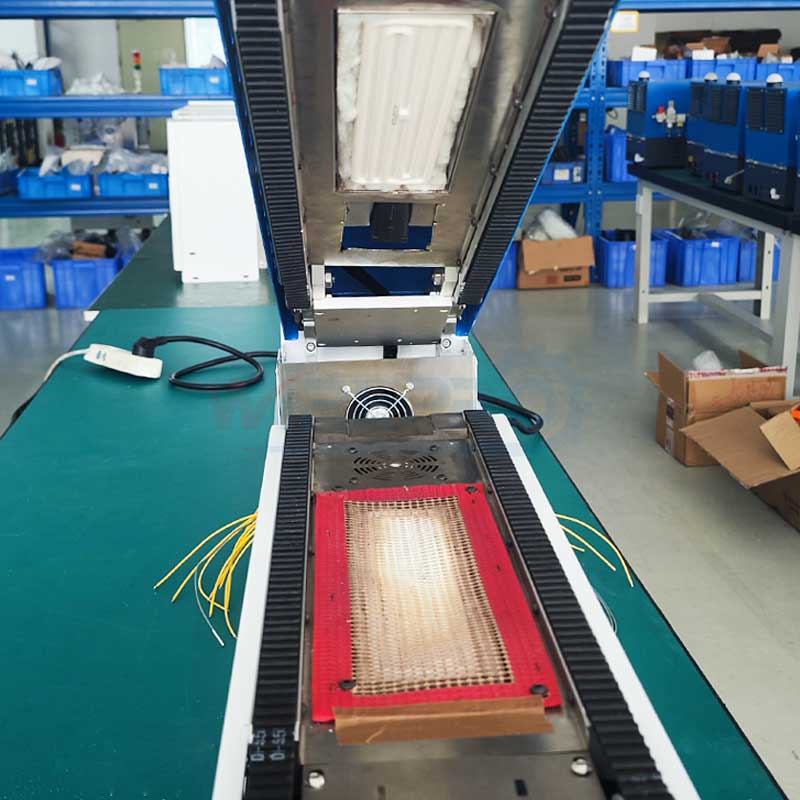

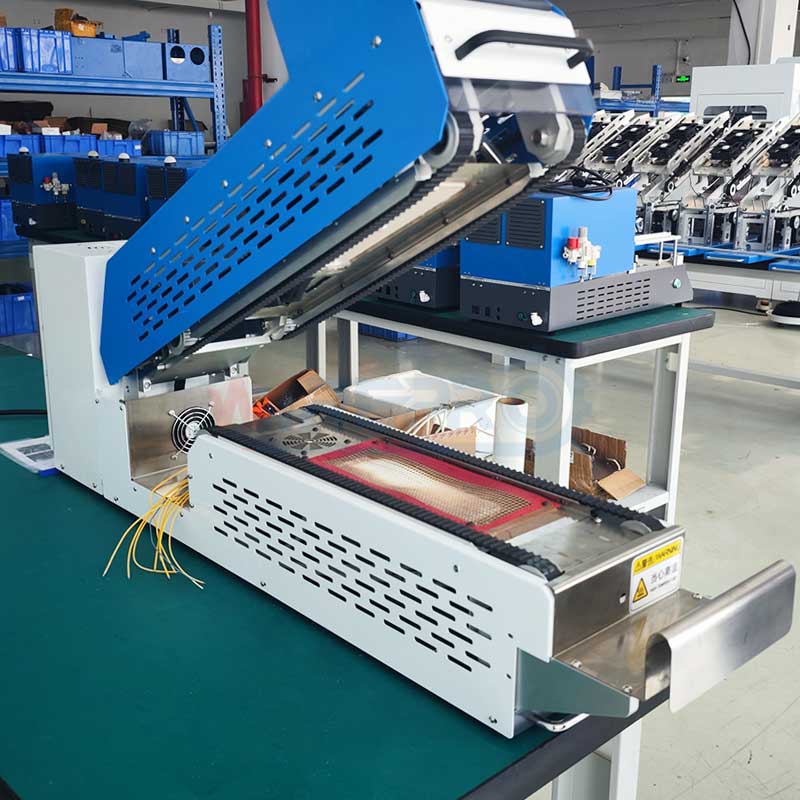

High Efficiency – The upper and lower synchronous belts clamp and transport the harness through the heating zone and cooling zone. All products are then carried to the collection area at the end of the conveyor belt. After a few seconds of cooling, all harnesses can be collected together — the whole process is nearly continuous with no time delay.
Desktop & Compact – Small, desk-type design that is easy to move and position within the workshop.
| Model | RD-H06 |
| Available Tube Diameter | ≤10 (others please check with us) |
| Available Tube Length | ≤60 mm |
| Wire Harness Length | ≥195 mm (not too heavy, please check with us) |
| Power | 220V 50Hz |
| Power Supply | 1000W * 2 |
| Dimensions | 110*23*35cm |
| Weight | 40kg |
Heat shrink tubing shrinking for wire harnesses
Thermal processing and curing
Continuous heat treatment of small-diameter sleeves
The RD-H06 is a conveyor oven that shrinks heat-shrinkable tubes on wire harnesses, using upper and lower synchronous belts to transport harnesses through heating and cooling zones for continuous processing.
Available tube diameter: ≤10mm (others consult). Available tube length: ≤60mm. Wire harness length: ≥195mm. Power: 220V, 50Hz, 1000W×2. Dimensions: 110*23*35cm, weight: 40kg.
Key features include belt reversal before reaching set temperature for safety, double-sided timing belts for clamping and transport, continuous process without time delay, and compact desk-type design for easy movement.
The RD-H06 requires 220V, 50Hz power (1000W×2) and has dimensions of 110*23*35cm, weighing 40kg. It is a compact benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
