RD-M30
| Availability: | |
|---|---|
| Quantity: | |
Description

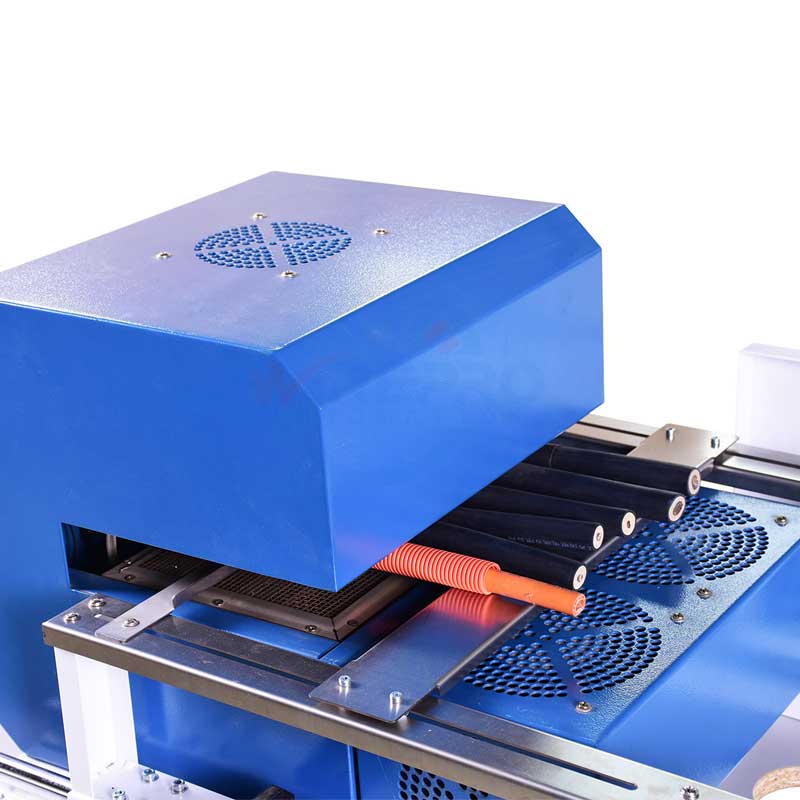

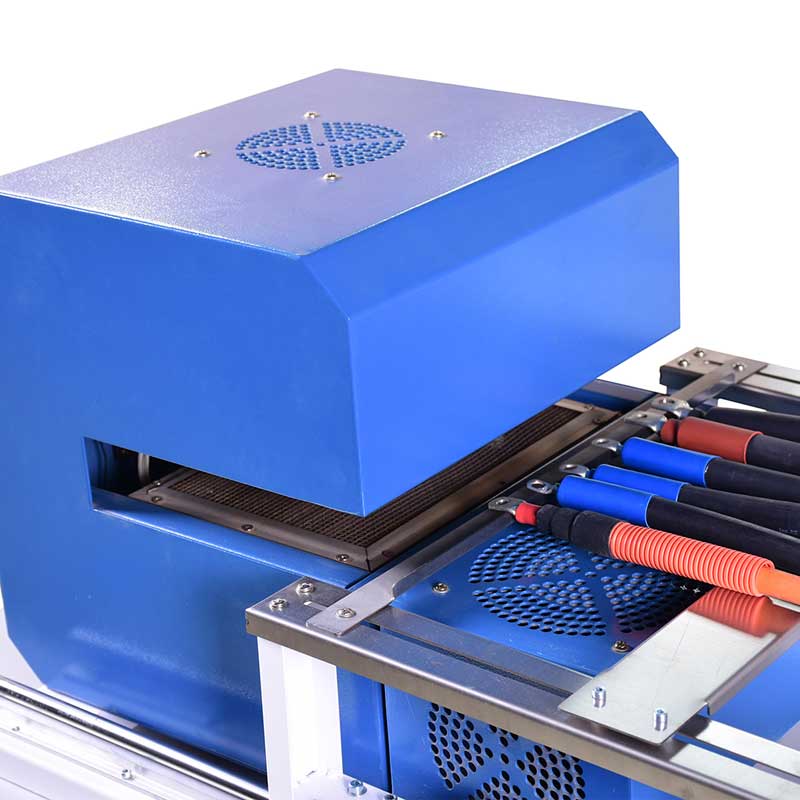

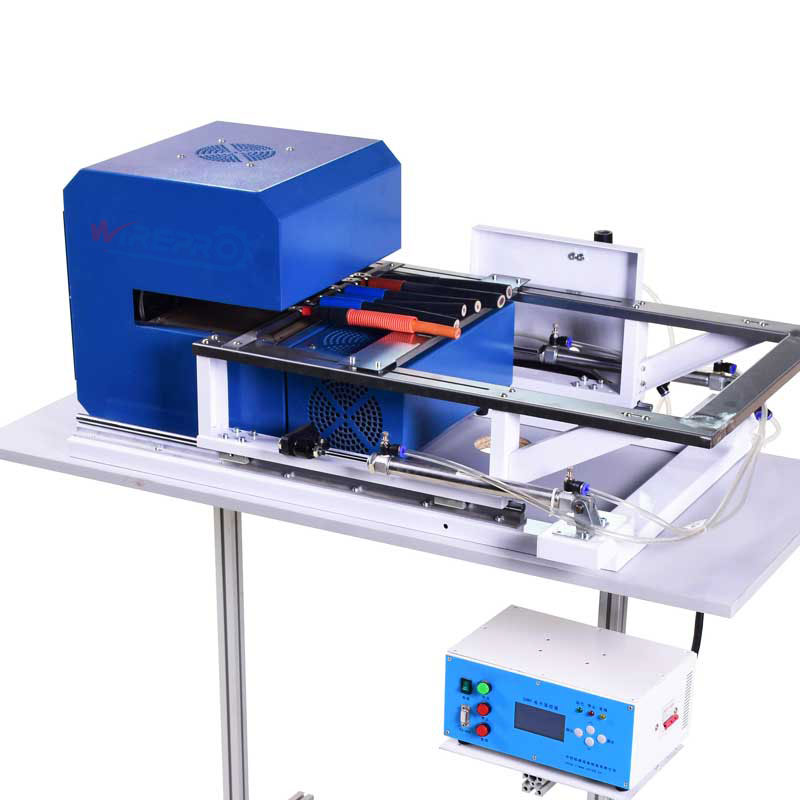

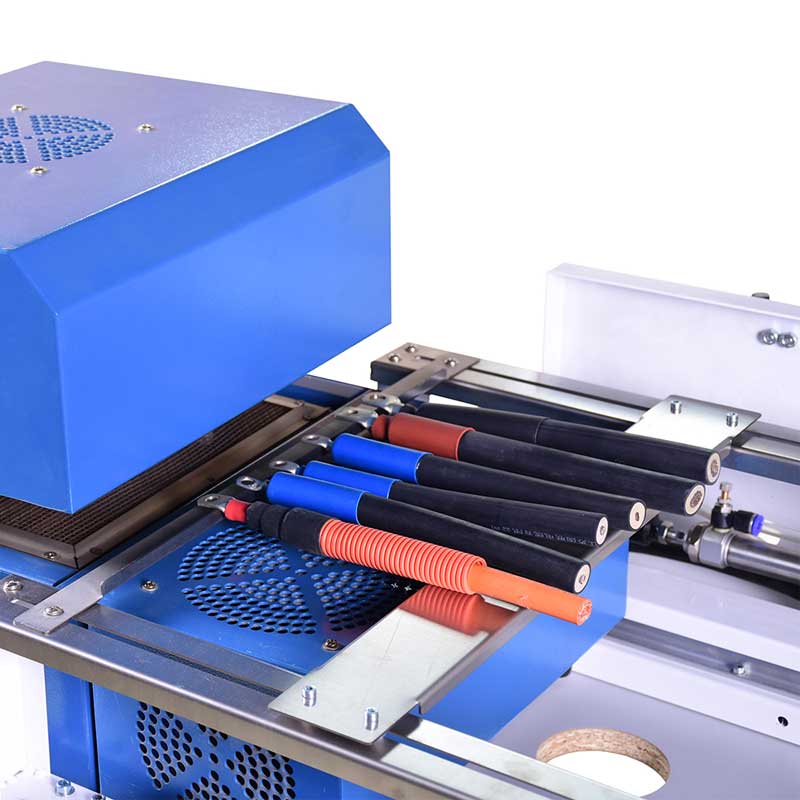

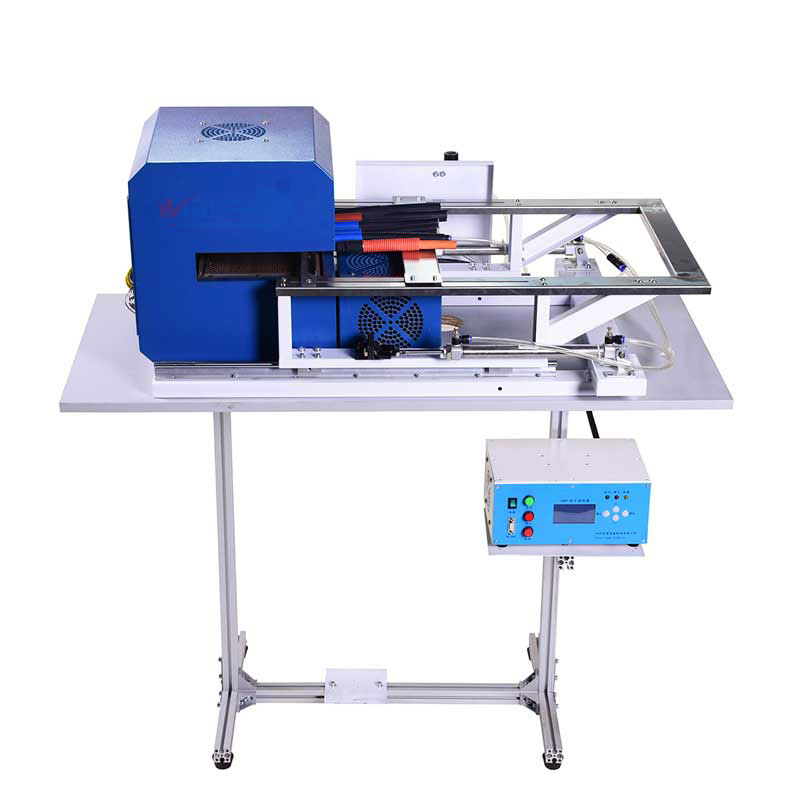

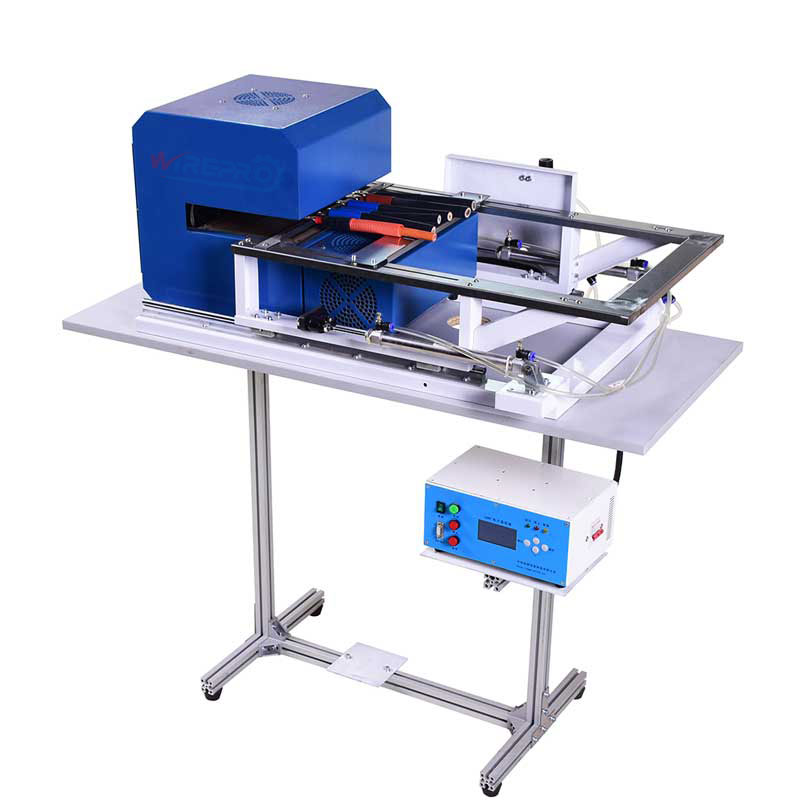

The RD-M30 is an automatic heat-shrinkable tube heating machine featuring an automatically moving bracket that enables the heat-shrinkable tube to be positioned and processed automatically. It is specifically suited for heating the heat shrinkable tube at one end of a wiring harness.
The shrinking process is fast and suitable for wire harnesses of any length. It can heat multiple tubes in one cycle and operate continuously for 24 hours without interruption.
Equipment Composition: Heating System + Control System + Wiring Harness Bracket System
Key Features:
Automatic Bracket Movement – The heating body moves automatically using a pneumatic method. When heating is required, it automatically moves to the wire harness bracket to heat the heat shrinkable tube.
Precise Working Temperature Control – Digital display of working status with free setting of working temperature and heating temperature. Settings can be stored and recalled from memory.
Adjustable Heating Time – Heating time can be adjusted according to production process requirements. Both heating time and stop time of the heat shrinkable tube can be freely set and stored in memory.
Heat Insulation Design – The double-layer heating zone shell is filled with thermal insulation material to isolate internal and external temperatures, saving energy and protecting the working environment.
Uniform Heating – Multi-angle heat reflection materials inside the chamber ensure the heat shrinkable tube is heated evenly from all sides.
| Model | RD-M30 |
| Recommend heating harness diameter | < 25mm |
| Heating length | < 160mm |
| Heating area width | < 120mm |
| Heating area (L*W) | 300*200mm |
| Heating quantity | 1-16 pcs (based on wire diameter) |
| Heating tube name | Infrared radiation tube (1800W) |
| Power supply | 220V |
| Power | < 1860W |
| Weight | 103kg |
| Dimension | 40*34*35cm |
Heat shrinkable tube heating at one end of wire harnesses
Multi-tube batch heating
Continuous 24-hour production environments
The RD-M30 is an automatic heat-shrinkable tube heating machine with an automatically moving bracket, suitable for heating the heat shrinkable tube of one end of the wiring harness with short shrinking time.
Recommended harness diameter: <25mm. Heating length: <160mm. Heating area width: <120mm. Heating area: 300*200mm. Heating quantity: 1-16 pcs. Infrared radiation tube: 1800W. Power: 220V, <1860W. Dimensions: 40*34*35cm, weight: 103kg.
Key features include automatic bracket movement via pneumatic method, digital display with settable and memory-stored working temperature, adjustable heating time, double-layer insulation design for energy efficiency, and multi-angle heat reflection for even heating.
The RD-M30 requires 220V power (<1860W) and has dimensions of 40*34*35cm, weighing 103kg. It is a compact benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
