TP-E10
| Availability: | |
|---|---|
| Quantity: | |
Description

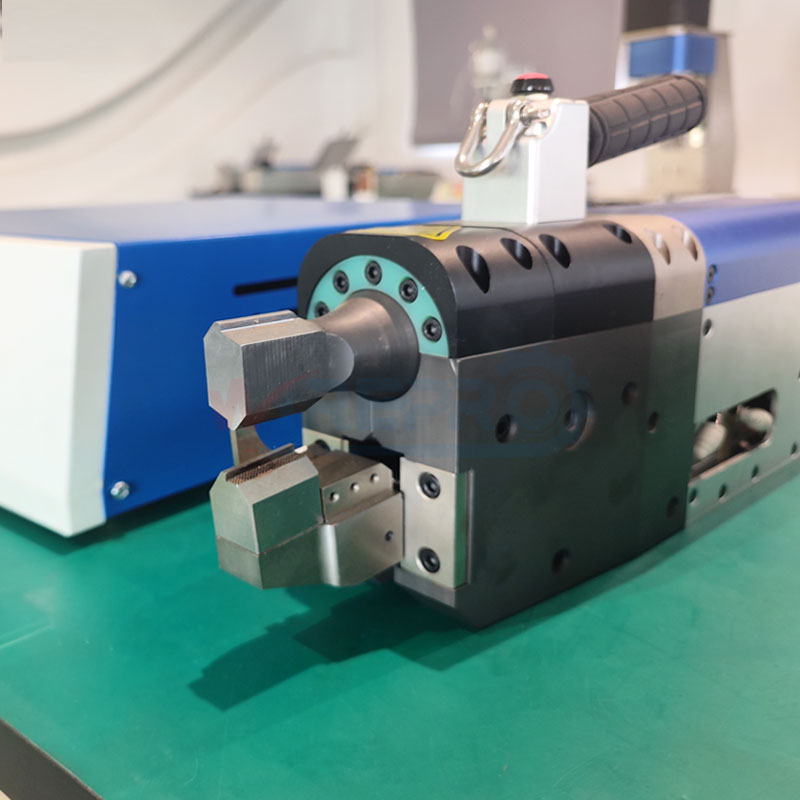

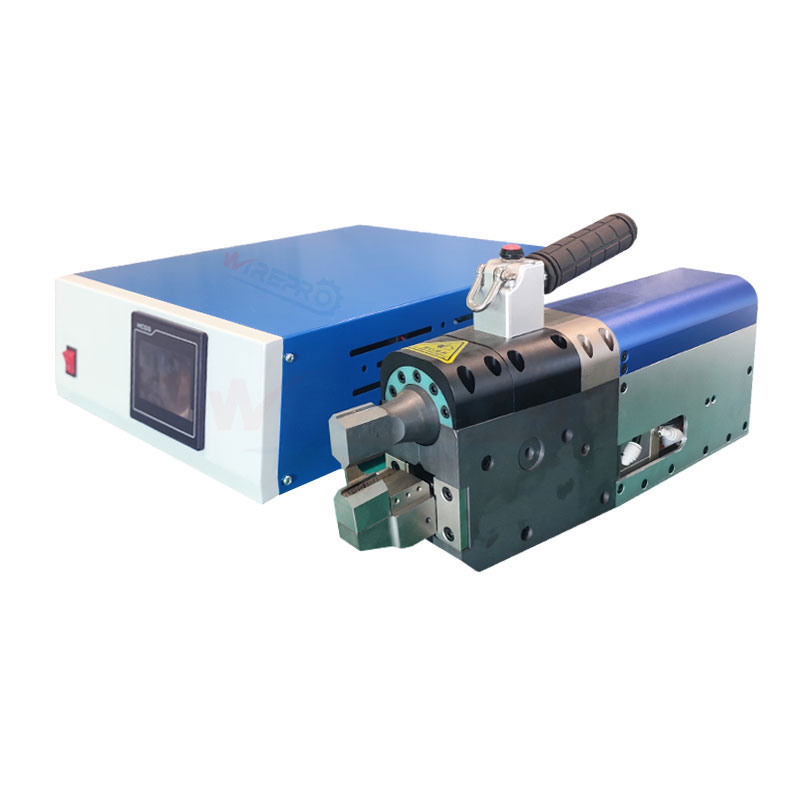

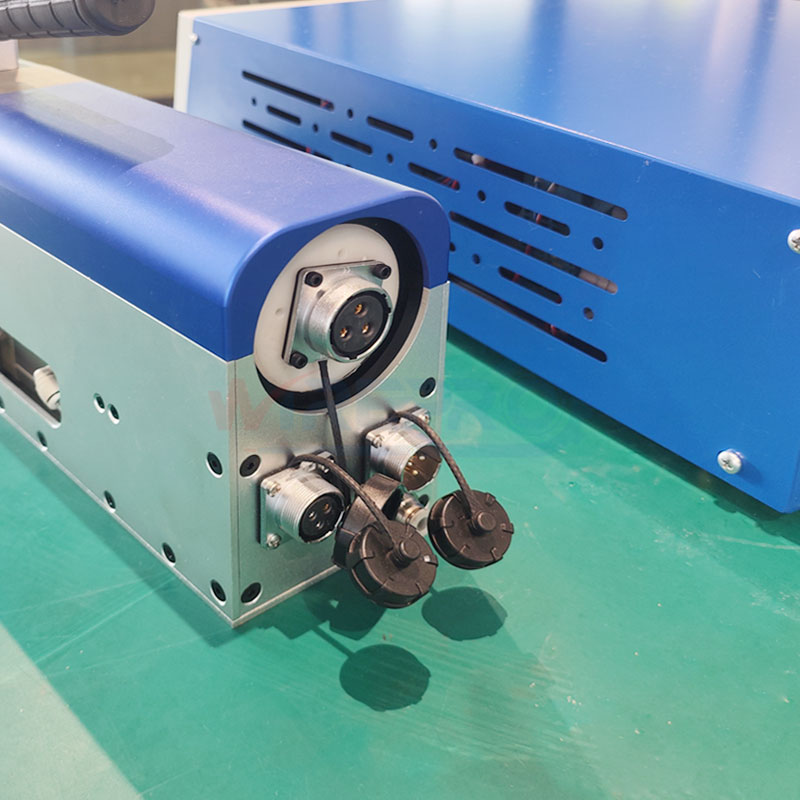

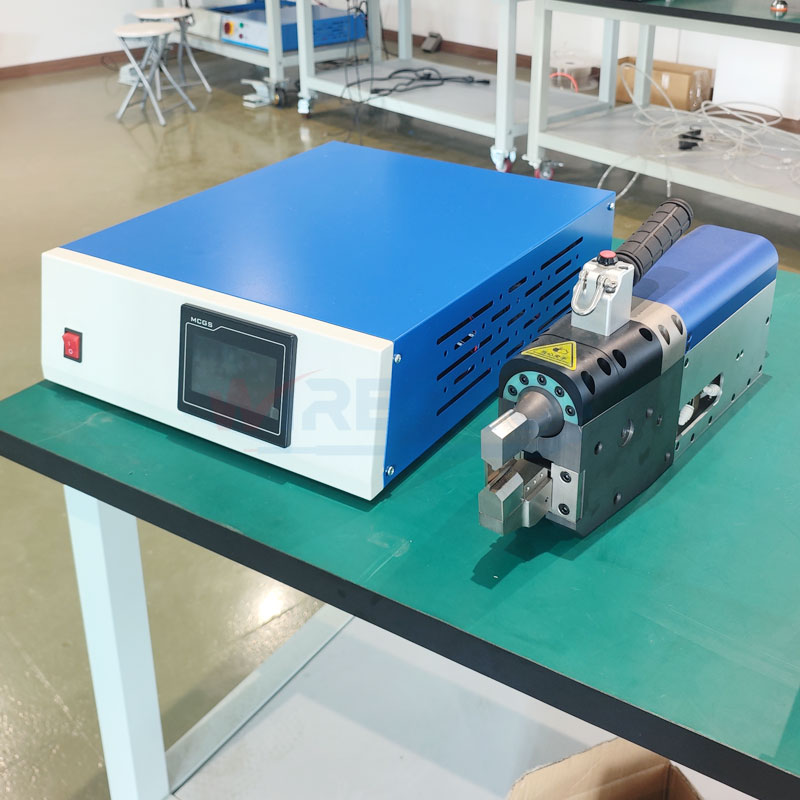

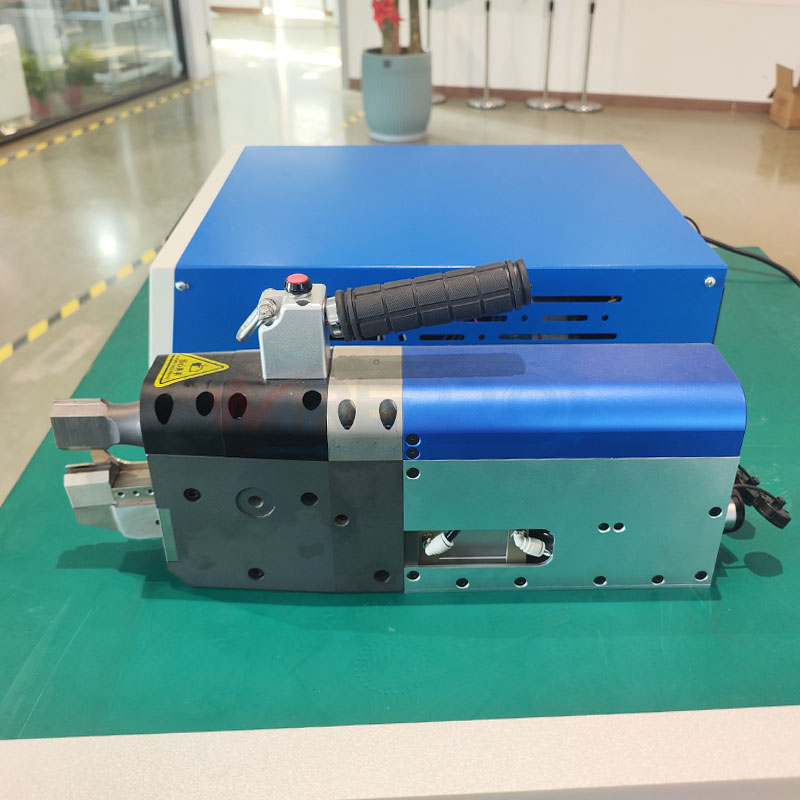

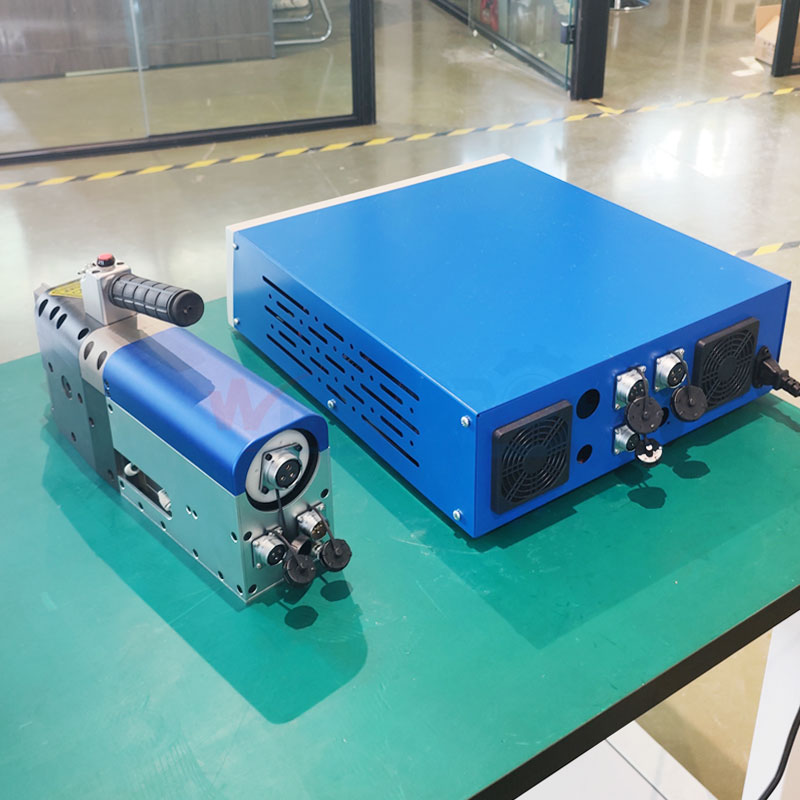

The TP-E10 ultrasonic tube sealer is a newly developed product designed for the airtight welding of copper tubes, which are essential for circulating refrigerant in refrigeration circuits. This product is widely used in industries such as refrigerators, air conditioners, and temperature control equipment.
The TP-E10 is engineered with strict standard deviation and high process capability, ensuring strong welding strength through a modular design combined with an advanced control system.
Key Features:
Automatic Defect Alarm – The machine includes an automatic alarm function for defective welding products, ensuring high automation integration and consistent welding quality.
Excellent Weld Stability – Provides stable and reliable welds for airtight sealing applications.
Compact Structure – Designed for welding in narrow areas, making it versatile and space-efficient.
Advanced Operating System – Includes multi-level password protection and hierarchical authorization for secure and controlled operation.
User-Friendly and Safe – Ultrasonic welding is easy to operate, with no open flames, smoke, or odors, making it safer for operators compared to traditional welding methods.
| Model | TP-E08 | TP-E10 |
| Function | Ultrasonic welding copper tube sealer | |
| Tube Diameter | 2-8 mm | 2-10 mm |
| Tube Thickness | Max 0.7 mm | Max 0.8 mm |
| Frequency | 20KHZ | |
| Power Supply | 220VAC,50Hz | |
| Power | 3000W | 4000W |
| Weight | 15kg + 15kgs | |
The ultrasonic tube sealing machine is widely used in refrigerators, air conditioners, temperature control equipment, automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments, and other related fields.
The TP-E10 is an ultrasonic tube sealer for airtight welding of copper tubes used in refrigeration circuits, widely applied in refrigerators, air conditioners, and temperature control equipment.
Tube diameter: 2-10mm. Tube thickness: max 0.8mm. Frequency: 20KHz. Power: 220VAC, 50Hz, 4000W. Weight: 15kg + 15kg accessories. For comparison, TP-E08 handles 2-8mm with 3000W power.
Key features include automatic defect alarm for consistent welding quality, excellent weld stability, compact structure for narrow areas, multi-level password protection, and user-friendly operation with no open flames, smoke, or odors.
The TP-E10 requires 220VAC, 50Hz power (4000W) and weighs 15kg (plus 15kg accessories). Specific dimensions are not provided on the page. Please contact Wirepro directly for detailed installation specifications.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
