Description

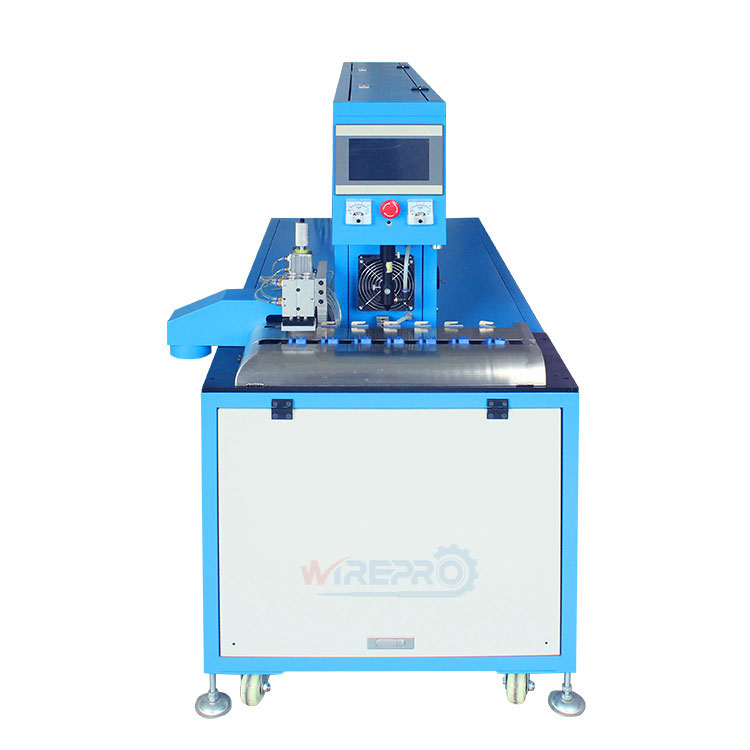

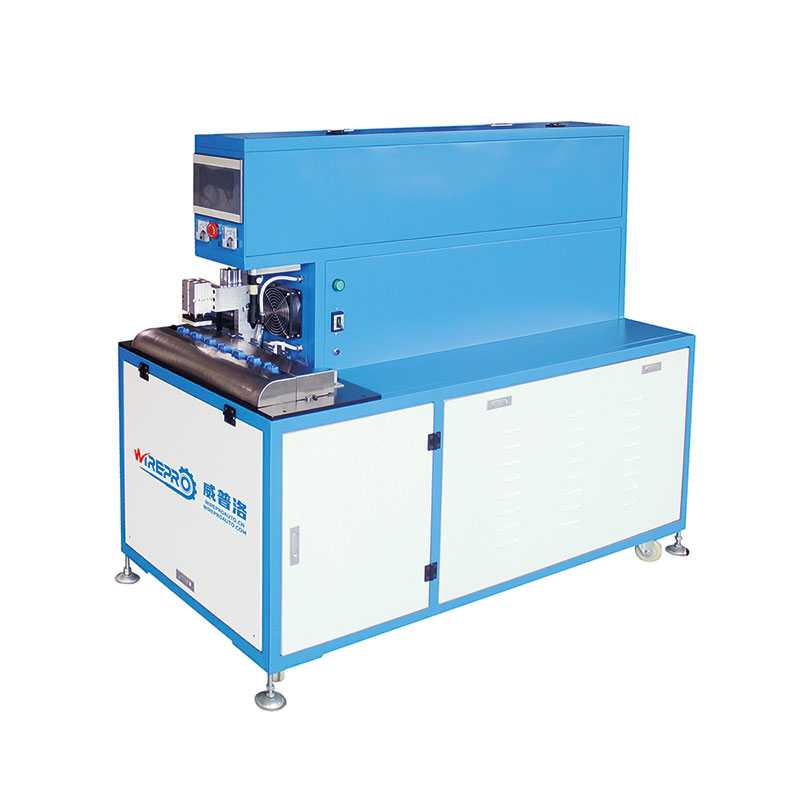

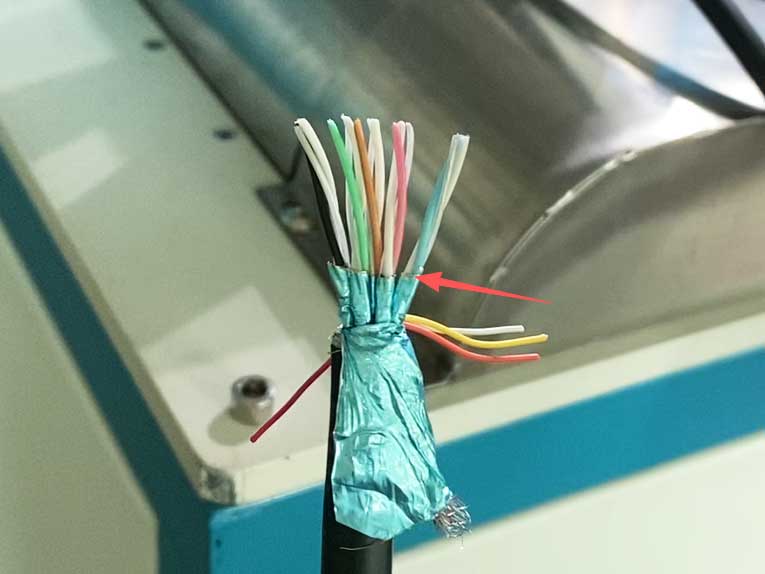

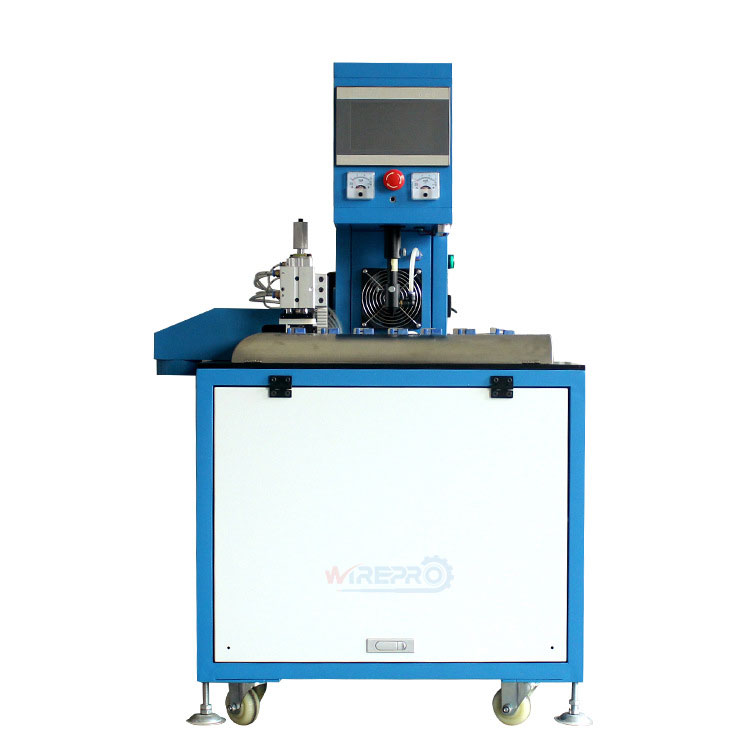

The SL-M10 is a conveyor-type laser stripping machine designed for aluminum foil shield removal and precision cable processing. It uses two 60 W CO₂ laser tubes with a 10.6 μm wavelength to remove insulation or shielding materials without mechanical blade contact, reducing the risk of conductor damage.

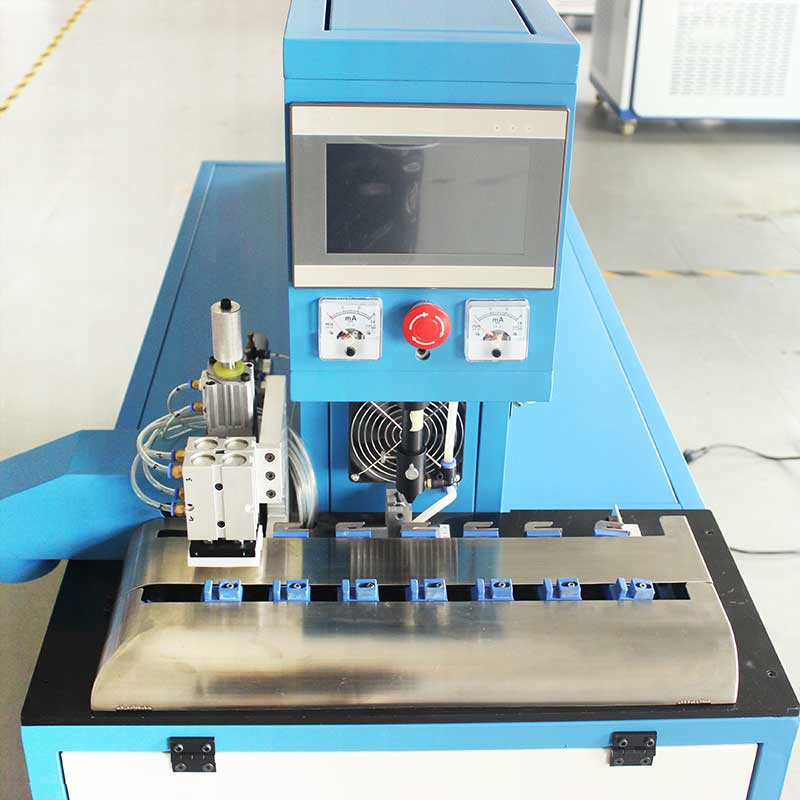

The chain conveyor system supports continuous processing and allows multiple wires to be stripped in one cycle. Stripping positions can be adjusted to match different cable structures and production requirements. A DSP motion controller and HMI provide parameter setting and process control, while the precision linear motion module supports stable movement, low noise, and repeatable positioning.
Key Features:
Dual CO₂ Laser System – Equipped with two 60 W CO₂ laser tubes for non-contact stripping of cable insulation and aluminum foil shielding.
Conveyor-Based Processing – The chain conveyor design supports continuous operation and allows multiple wires to be processed in one cycle.
Adjustable Stripping Position – The stripping position and processing dimensions can be adjusted to match different cable structures and production requirements.
DSP Motion Control – The DSP motion controller and HMI support parameter setting, process control, and daily operation.
Precision Linear Motion – The linear motion module provides stable movement, low noise, and repeatable positioning during laser processing.

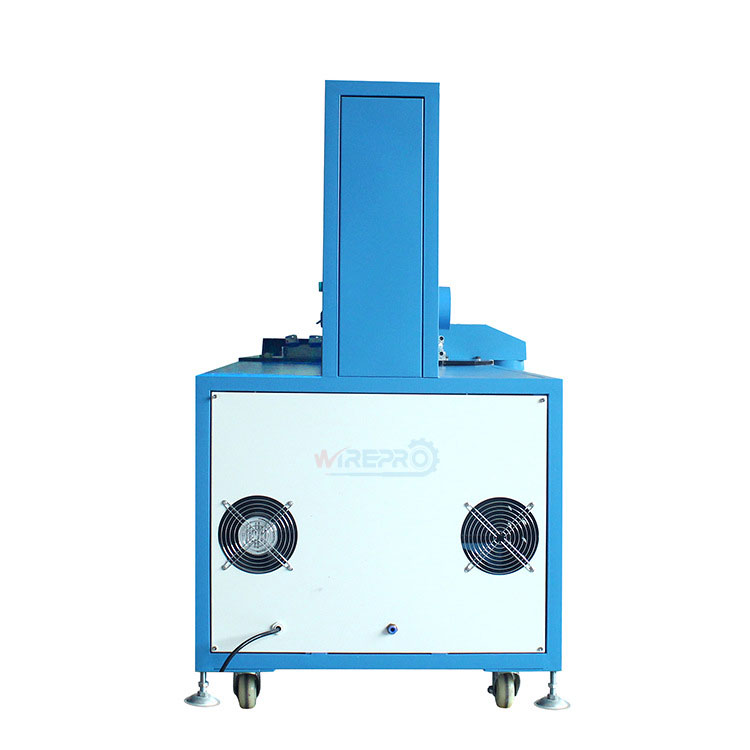

Water-Cooling System – The water-cooling design supports stable laser operation during continuous production.
