TU-SH2 / TU-SH3 / TU-SH4
| Availability: | |
|---|---|
| Quantity: | |
Description

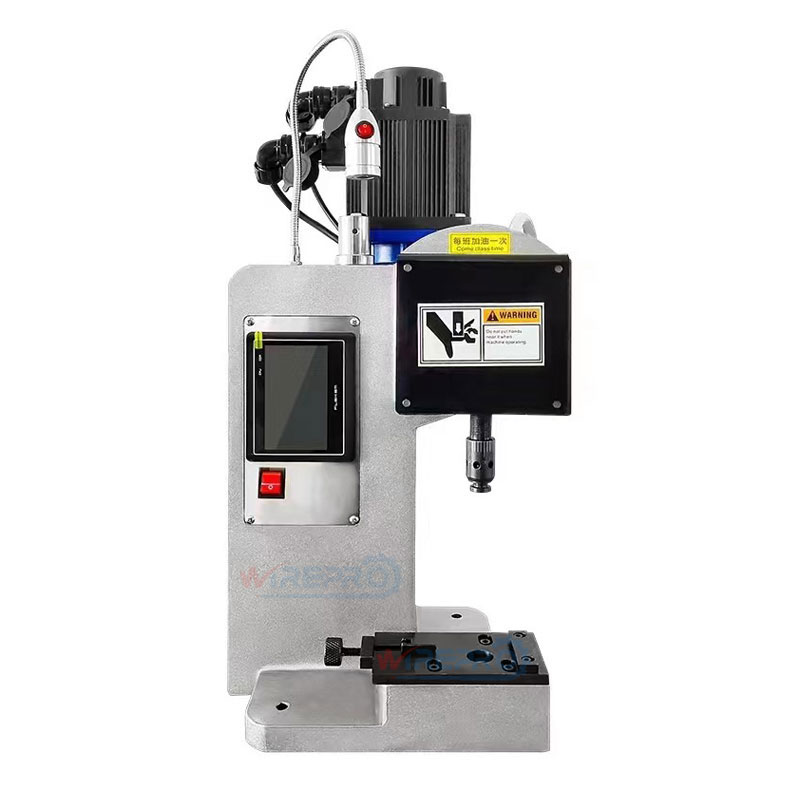

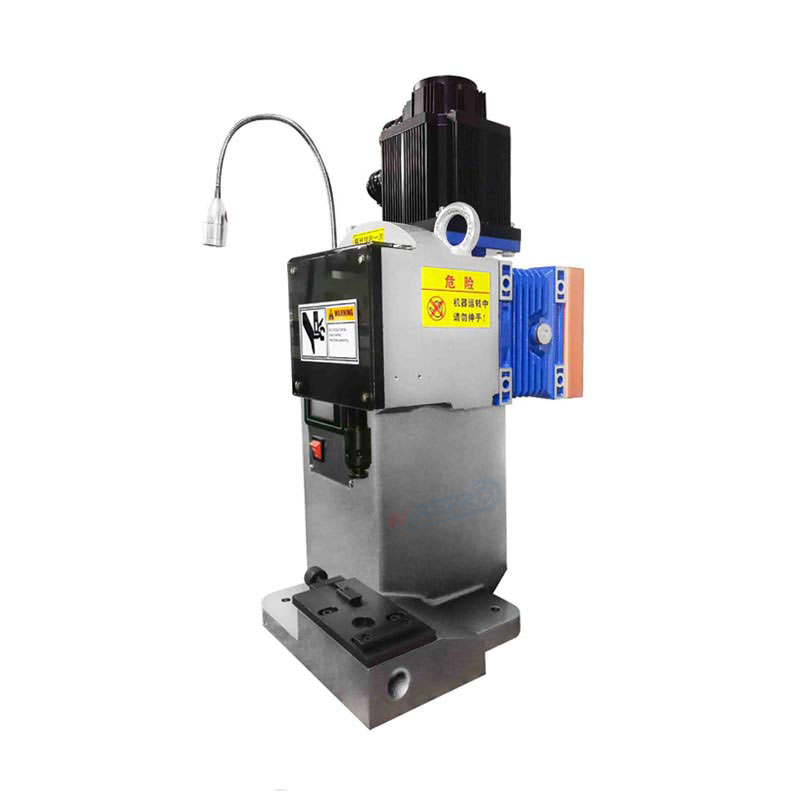

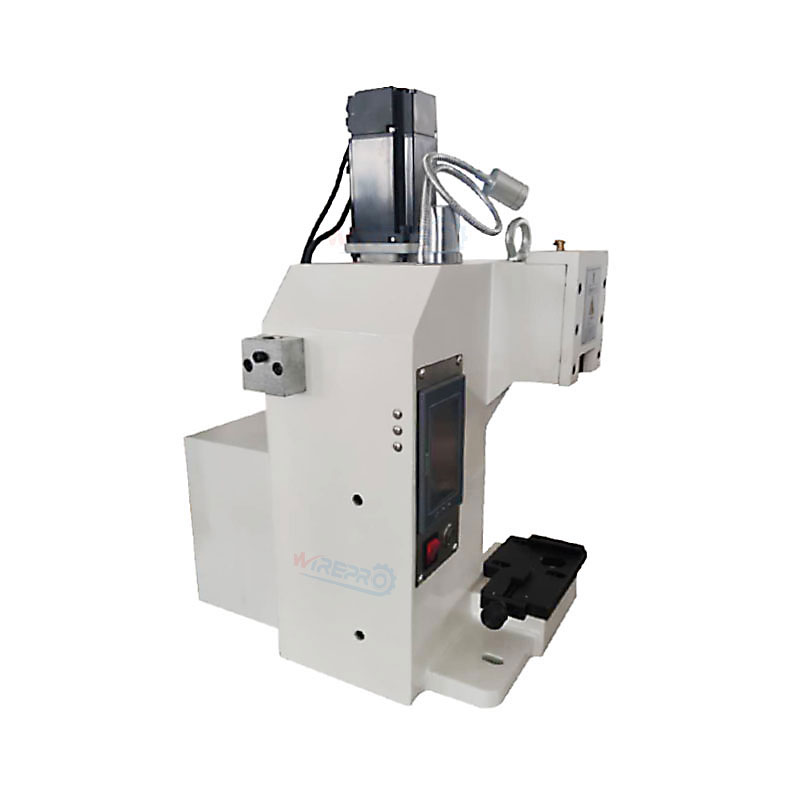

The TU-SH2, TU-SH3, and TU-SH4 are semi-automatic terminal crimping machines suitable for a wide range of terminal types, with very easy applicator changeover. Built with a cast iron frame and driven by a servomotor, this series delivers stable, precise, and repeatable crimping performance for industrial wire processing applications.
Key Features:

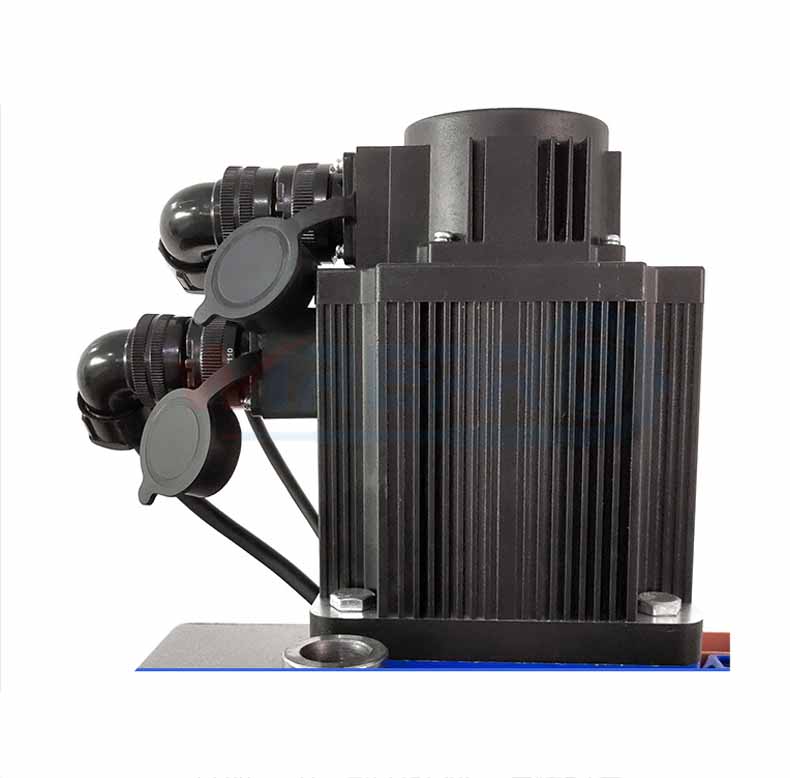

Servomotor Drive – Provides precise and responsive motion control for consistent crimping results.
Cast Iron Construction – Rigid cast iron frame minimizes vibration and ensures long-term mechanical stability.

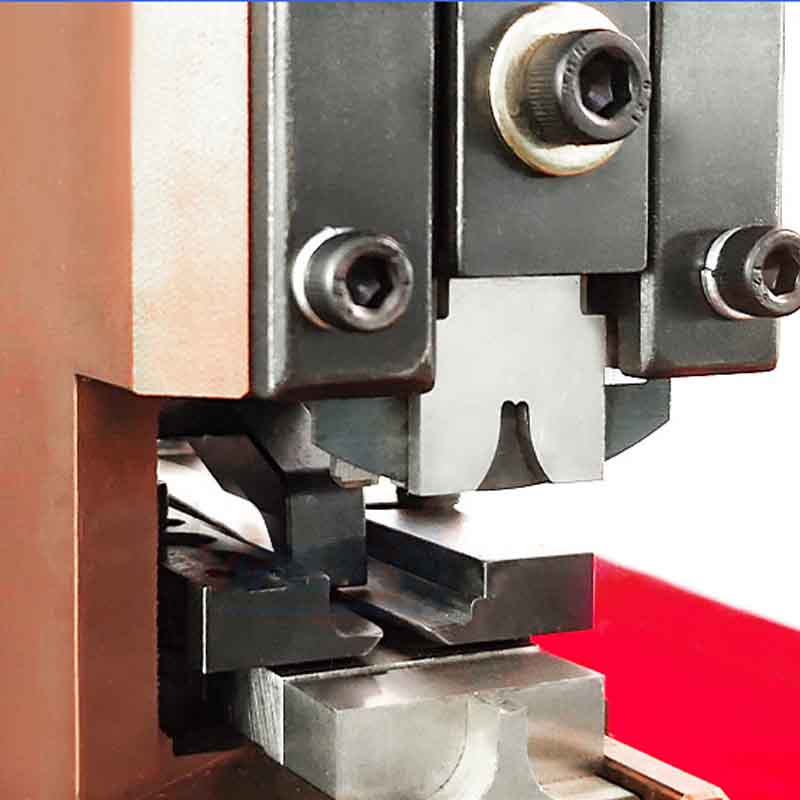

Easy Applicator Changeover – Designed for quick and convenient applicator replacement, reducing changeover time.
Wide Terminal Compatibility – Suitable for various terminal types used in industrial wire harness production.
Stable Crimping Performance – Delivers consistent crimp quality across continuous production runs.
| Model | TU-S02 | TU-S03 | TU-S04 | TU-S06 |
| Crimp Force | 2.0Ton | 3.0Ton | 4.0Ton | 6.0Ton |
| Stroke | 30mm (custom available) | |||
| Power Supply | 110/220VAC,50/60Hz | |||
| Power | 1000W | 1500W | 1500W | 2600W |
| Weight | 80kg | 85kg | 95kg | 150kgs |
| Dimensions | 25*28*69cm | 25*28*69cm | 25*28*69cm | / |
Wire stripping and ring terminal crimping
Industrial wire harness assembly
Various terminal crimping applications
The TU-SH2, TU-SH3, and TU-SH4 are semi-automatic servomotor-driven terminal crimping machines for various terminals, featuring easy applicator changes and cast iron construction for industrial wire processing.
TU-S02: 2.0T, 1000W, 80kg. TU-S03: 3.0T, 1500W, 85kg. TU-S04: 4.0T, 1500W, 95kg. TU-S06: 6.0T, 2600W, 150kg. All: 30mm stroke (custom), 110/220VAC, 50/60Hz. Dimensions for TU-S02/03/04: 25*28*69cm.
Key features include servomotor drive for precise control, cast iron construction for durability in industrial environments, easy applicator changes for different terminal types, and a range of crimping forces from 2.0T to 6.0T.
All models require 110/220VAC, 50/60Hz power. TU-S02/03/04 share dimensions of 25*28*69cm. TU-S06 dimensions are not provided on the page. Weights range from 80kg to 150kg. They require moderate benchtop or floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
