TP-E09 Metal Tube Endcapping Ultrasonic Welding Machine

  • TP-E09

Availability:
Quantity:
Inquire Add to Basket

Description

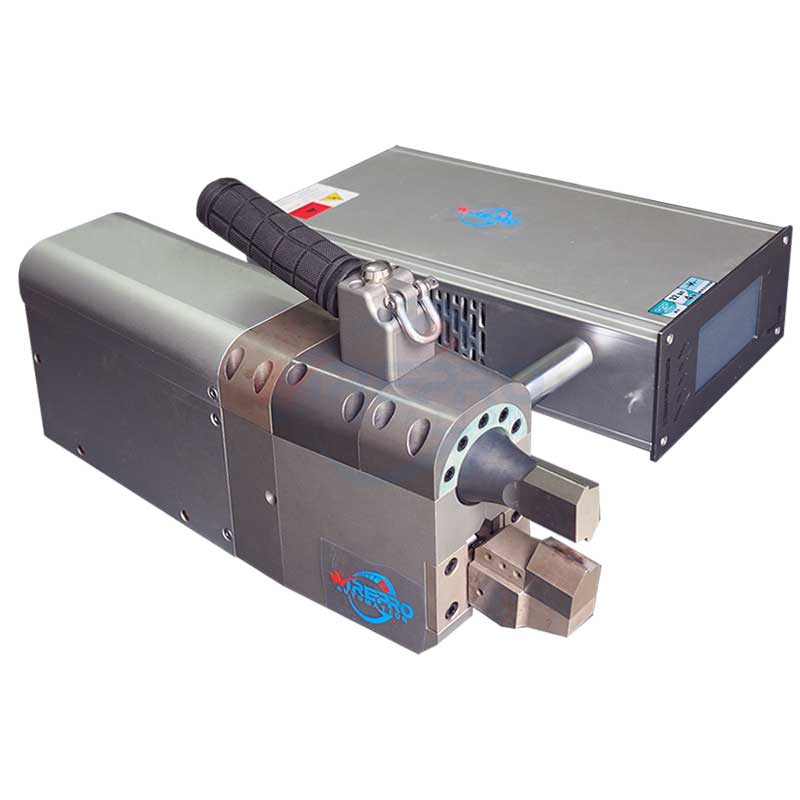

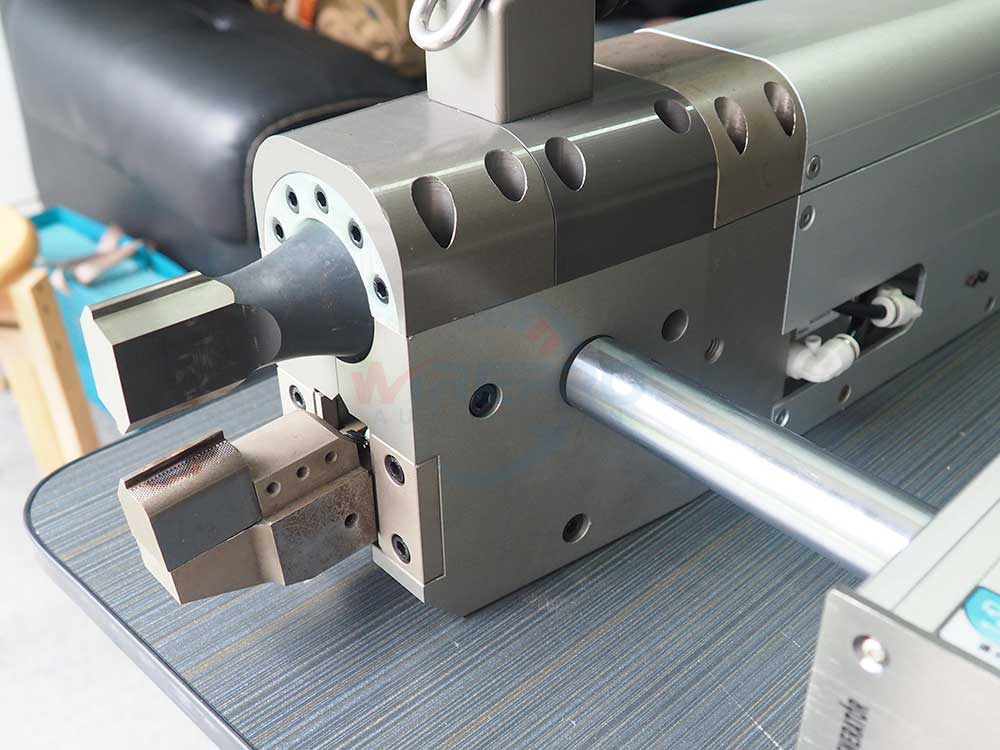

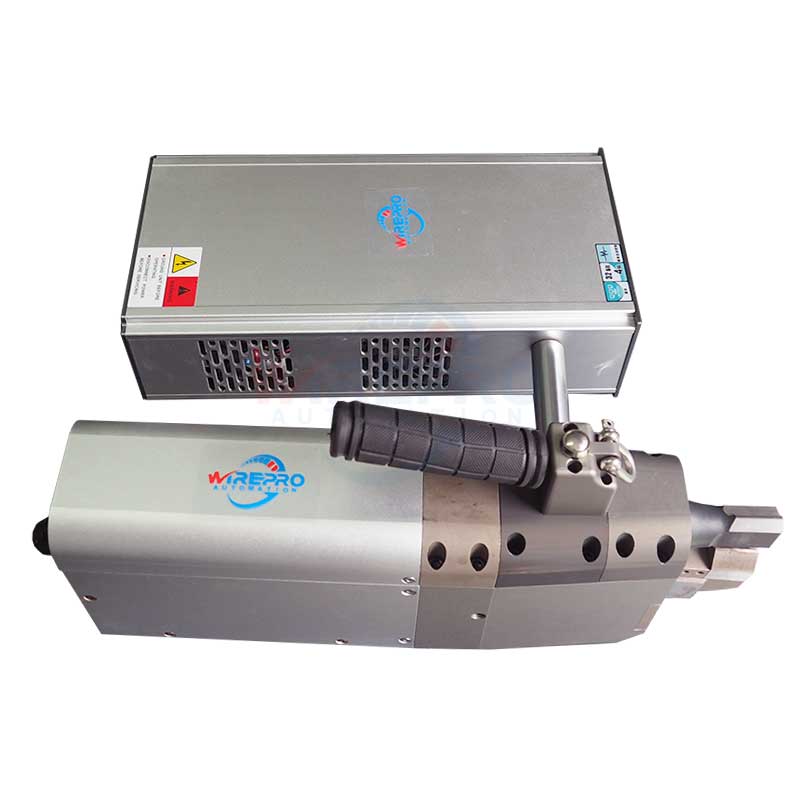

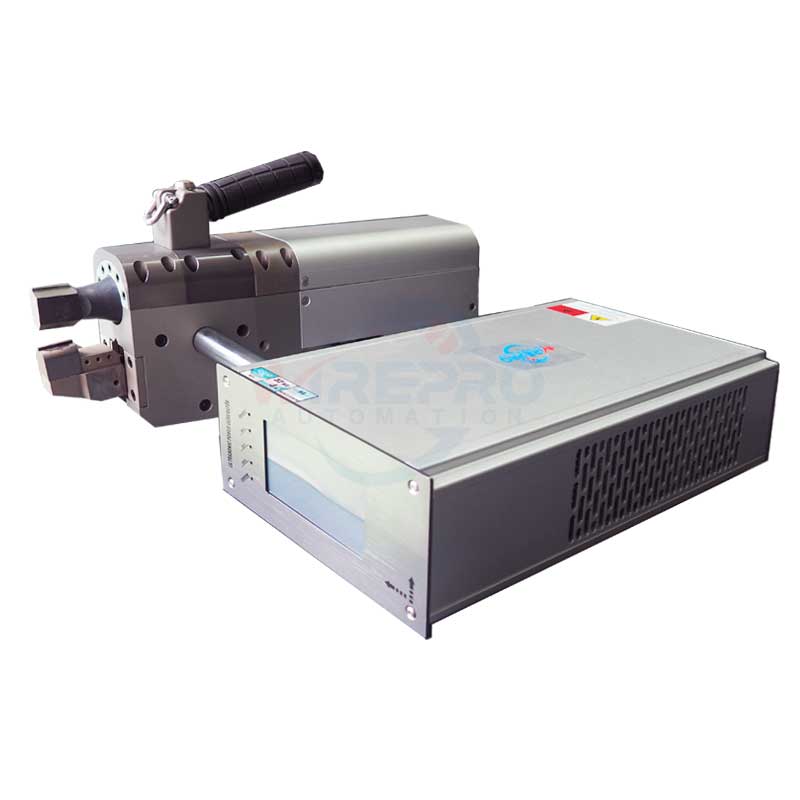

The TP-E09 is an ultrasonic welding machine designed for metal tube endcapping applications. Operating on the principle of ultrasound, the microprocessor automatically controls frequency tuning while simultaneously detecting current and phase frequency, ensuring stable and reliable welding performance.

The machine supports welding capacities up to 20 mm², making it suitable for a range of metal tube sealing requirements.

Key Features:

  1. Microprocessor Frequency Control – Automatically controls frequency tuning while detecting current and phase frequency for consistent welding quality.

  2. Metal Tube Endcapping – Specifically designed for sealing and capping the ends of metal tubes.

  3. Stable Ultrasonic Performance – Delivers reliable welding results based on proven ultrasonic technology.


ModelTP-C09
Welding capacityTube diameter range: 2-9mm (other size please check with WIREPRO)
Frequency20K

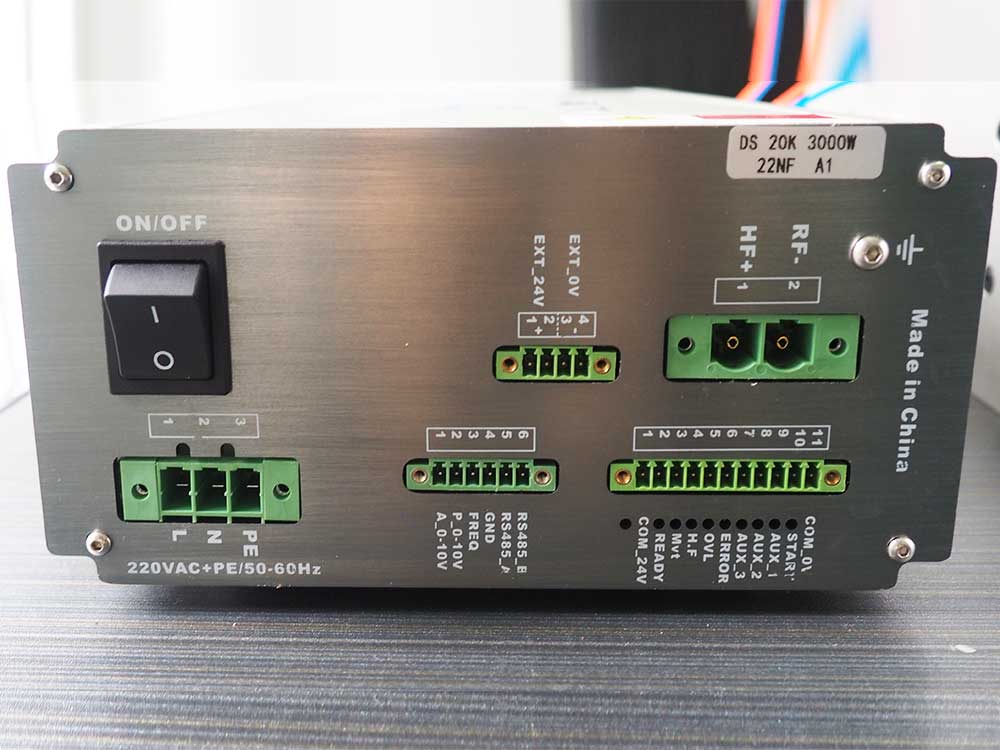

Power Supply110/220VAC, 50/60Hz
Power3000W
Weight30kg + 10kgs

The ultrasonic welding machine is widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments, and other related fields.

Frequently Asked Questions

What does the TP-E09 metal tube endcapping ultrasonic welding machine do and what is its primary use?

The TP-E09 is an ultrasonic welding machine for endcapping metal tubes with diameters from 2-9mm, using microprocessor-controlled frequency tuning for precise sealing in automotive, electronics, and communication industries.

What are the key specifications of the TP-E09?

Tube diameter range: 2-9mm (other sizes consult). Frequency: 20KHz. Power: 110/220VAC, 50/60Hz, 3000W. Weight: 30kg + 10kg accessories.

What are the unique features of the TP-E09 compared to other welding machines?

Key features include ultrasonic welding principle for precise endcapping, microprocessor automatic frequency tuning, simultaneous current and phase frequency detection, and application versatility across multiple industries.

What are the power and space requirements for installation?

The TP-E09 requires 110/220VAC, 50/60Hz power (3000W) and weighs 30kg (plus 10kg accessories). Specific dimensions are not provided on the page. Please contact Wirepro directly for detailed installation specifications.

What are the delivery, installation, and after-sales support terms?

Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
