PF-RS40 / PF-S40
| Availability: | |
|---|---|
| Quantity: | |
Description

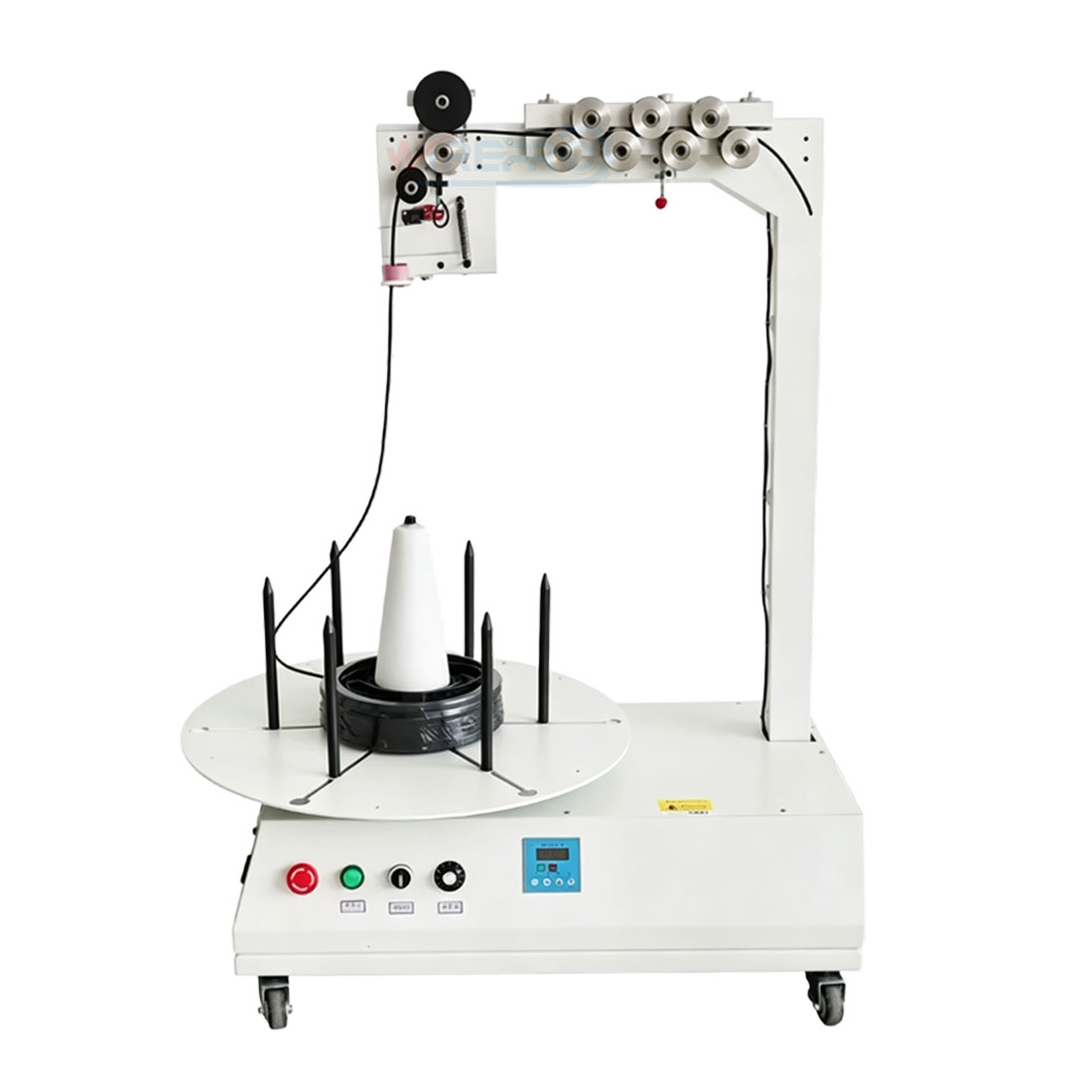

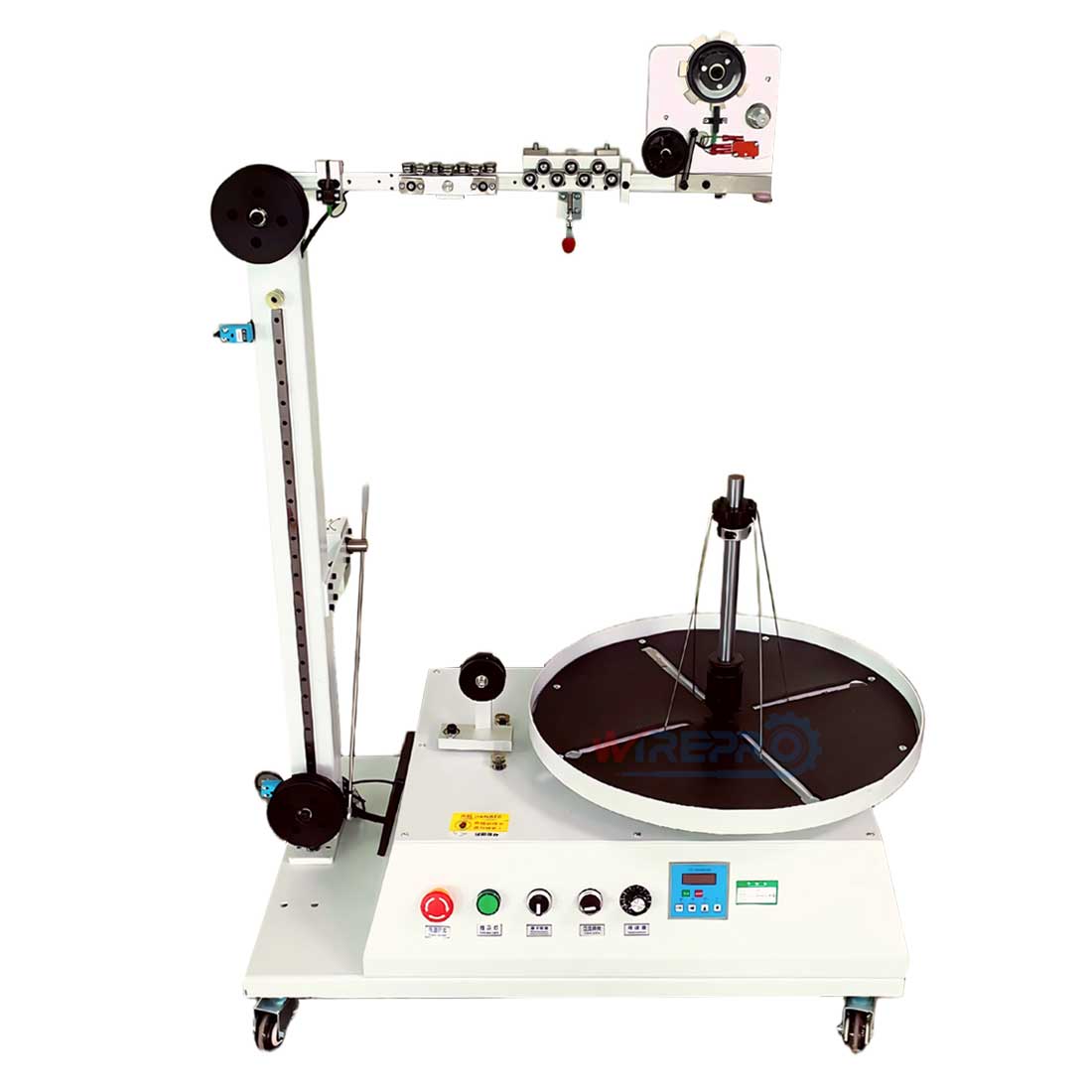

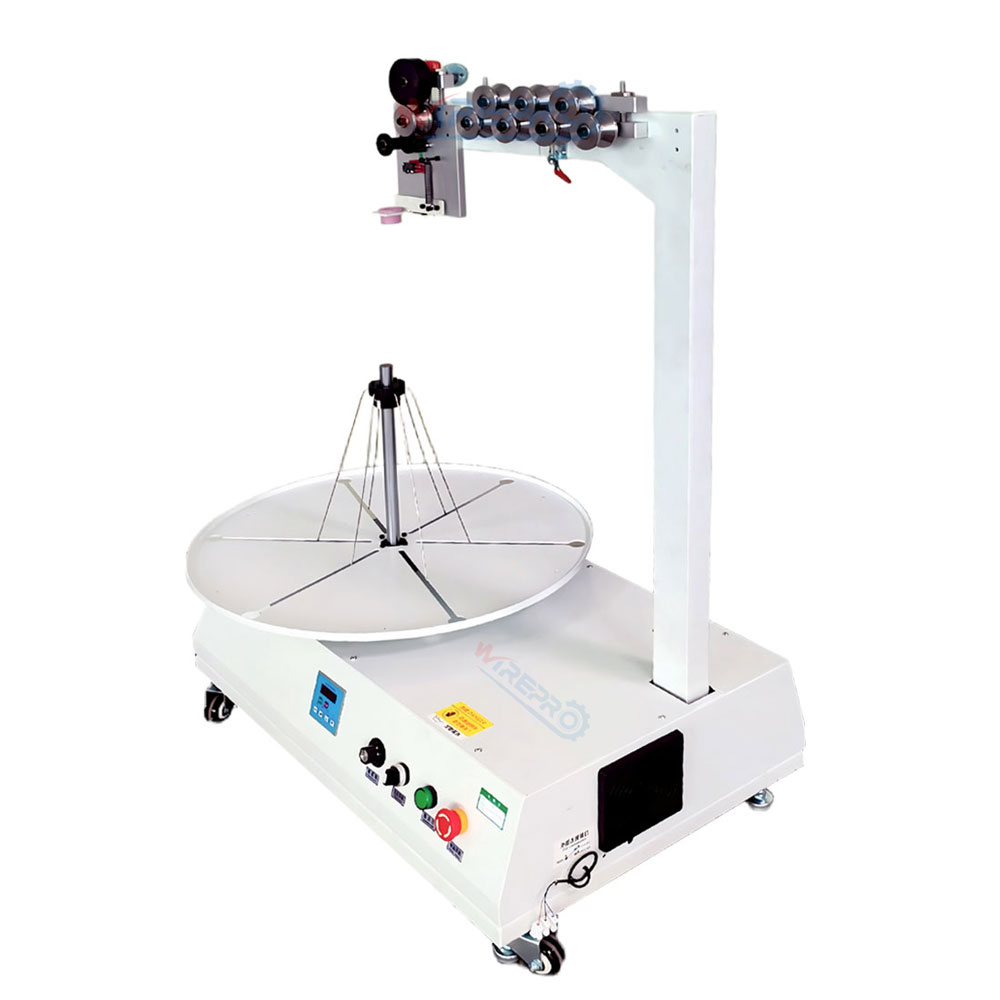

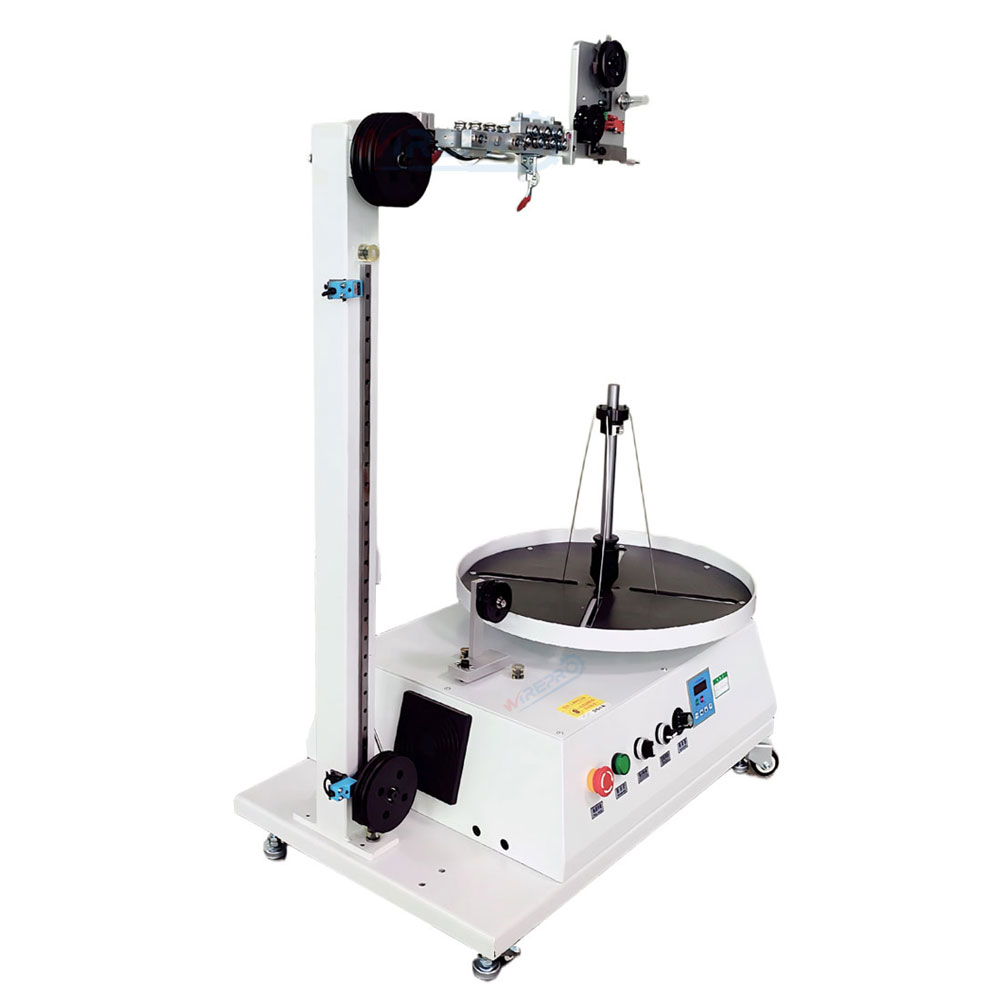

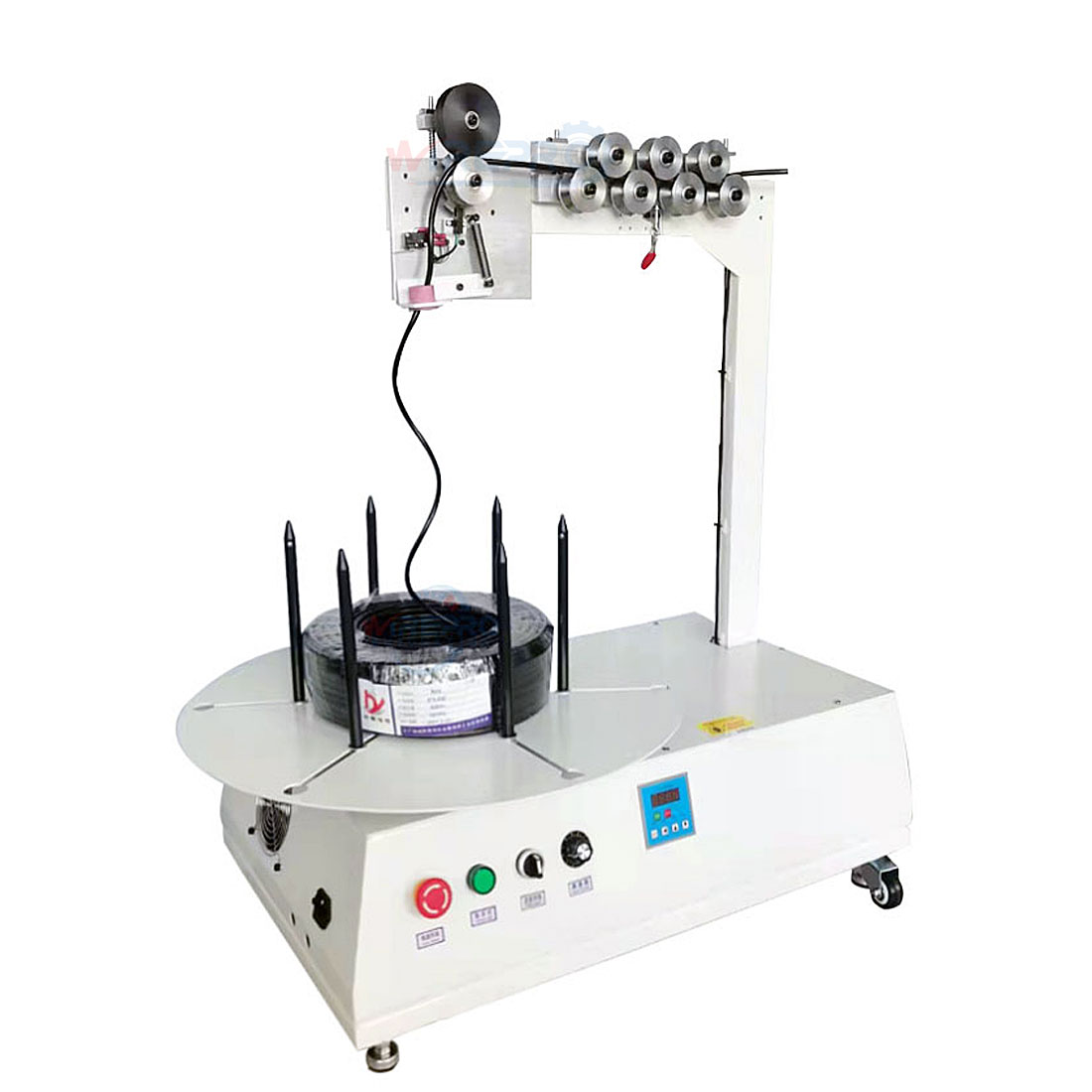

The PF-RS40 and PF-S40 are wire coiler prefeders engineered to accommodate a wide range of wire spool types, including normal wire, steel wire rope, electronic cable, ribbon cable, and twin wire. Featuring a vertical pay-off structure, these units can be integrated with automatic terminal crimping machines, automatic computer wire cutting machines, automatic tube cutting machines, and automatic wire winding & bundling machines.

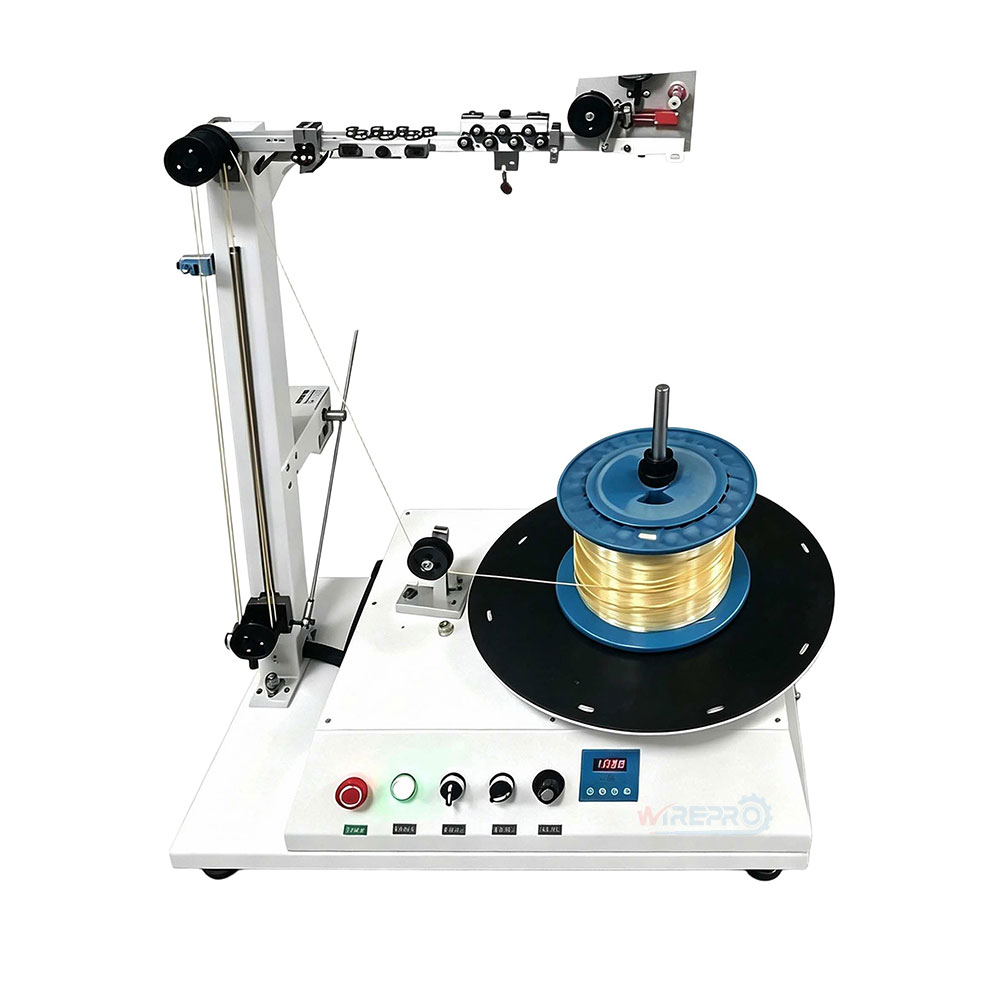

The equipment offers two operating modes: wire can be fed directly from the reel, suitable for various types of wire coils; alternatively, it can be fed through a convenient guide pulley on the reel, suitable for spools. The PF-S40 is designed for wire spools, while the PF-RS40 supports both wire coilers and wire spools.
Applicable wires include braided wire, steel wire rope, iron wire, electronic wire, ribbon cable, double parallel wire, and various other wire types.
Key Features:
Forward/Reverse Switching – Supports bidirectional operation and free wire feeding for flexible production setups.
Anti-Twist Top-Draw Design – Wire is smoothly drawn from the top of the spool, effectively preventing twisting and knotting during unwinding.
Intelligent Sensor Control – Equipped with a sensor that enables automatic induction speed change for intelligent wire prefeeding.
Adjustable Speed Control – A speed control button allows operators to set the maximum feeding speed according to the downstream machine's requirements, ensuring smooth synchronization.
Smooth Braking System – Variable frequency braking with a 0.1-second buffer stop delivers resistance-free and smooth braking performance.
Compact & Cost-Effective – Designed with cost-effectiveness and space efficiency in mind, offering convenient operation in a compact footprint.
Broad Wire Compatibility – Handles braided wire, steel wire rope, iron wire, electronic wire, ribbon cable, double parallel wire, and more.
| Model | PF-S40 | PF-RS40 |
| Suitable Materials | Wire coiler | Wire coiler or Wire Spool |
| Suitable Wire Dia | 5–15 mm (Stranded flexible wire) | 1–4 mm (Stranded flexible wire) |
| Max Load Weight | 40 KG | |
| Wire Roll OD | ≤ 550 mm (Customizable) | |
| Wire Roll Height | ≤ 250 mm | |
| Wire Roll ID | ≥ 115 mm (Internal shaft sleeve removable, then only need 35mm) | |
| Braking System | Variable frequency braking, 0.1 s buffer stop, resistance-free, smooth braking | |
| Sensing Device | Automatic induction speed change | |
| Voltage | AC 220V 50 Hz | |
| Rated Power | 750 W | |
| Dimensions | 920 × 610 × 1020 mm | |
| Weight | 50 KG | |
The PF-RS40 and PF-S40 are wire coiler prefeeders that provide tension-free feeding for automatic terminal crimping machines, wire cutting machines, tube cutting machines, and winding/bundling machines.
PF-S40: wire coiler only, 5-15mm stranded flexible wire. PF-RS40: wire coiler or spool, 1-4mm stranded flexible wire. Both: max load 40kg, spool OD ≤550mm, spool height ≤250mm, AC 220V, 750W, 920×610×1020mm, 50kg.
Key features include vertical pay-off structure preventing twisting and knotting, forward/reverse switching, automatic induction speed change with sensor, speed control button for synchronization, variable frequency braking with 0.1s buffer stop, and dual operating modes for reel or spool feeding.
Both models require AC 220V, 50Hz power (750W) and share dimensions of 920×610×1020mm, weighing 50kg. They require moderate floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
