PF-R40
| Availability: | |
|---|---|
| Quantity: | |

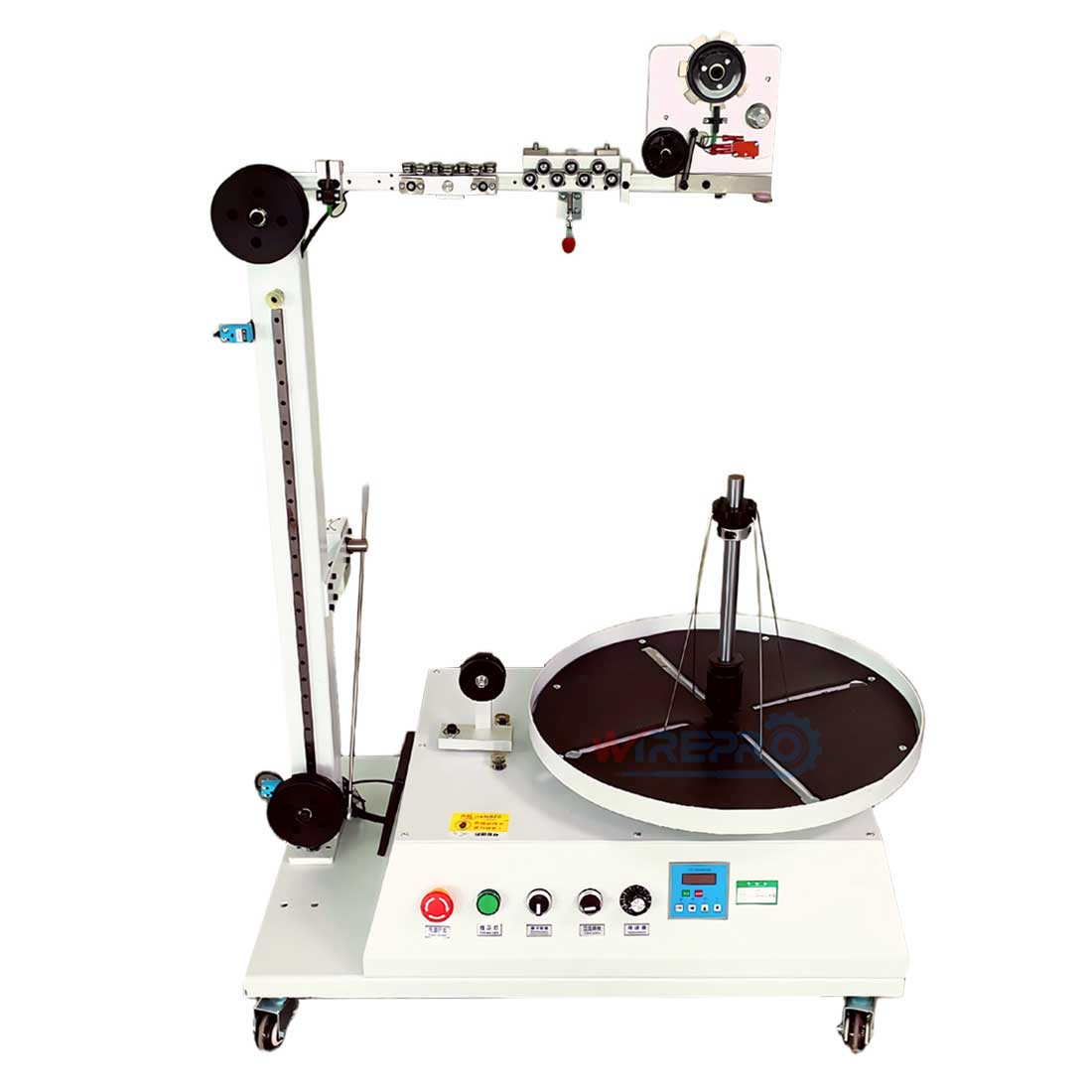

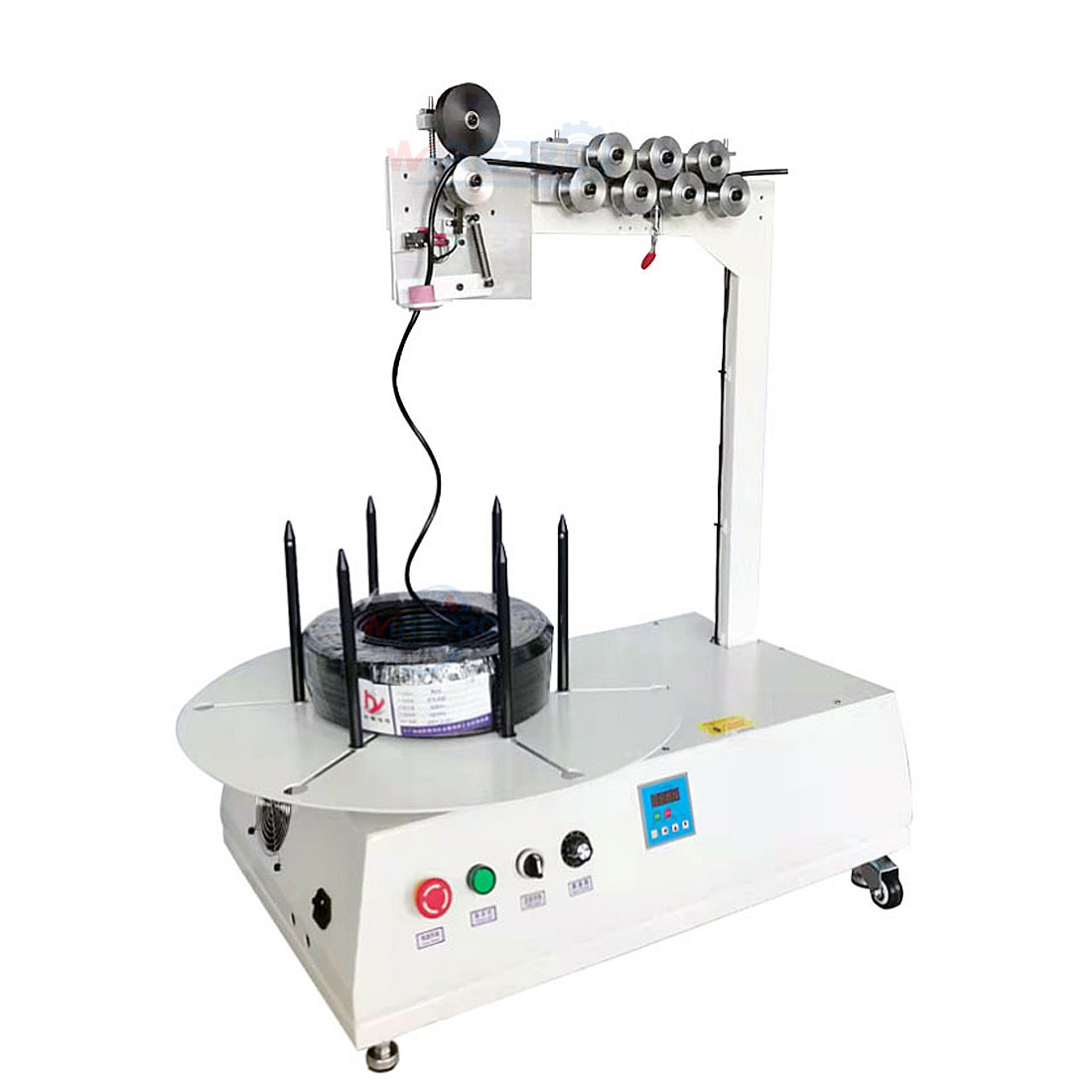

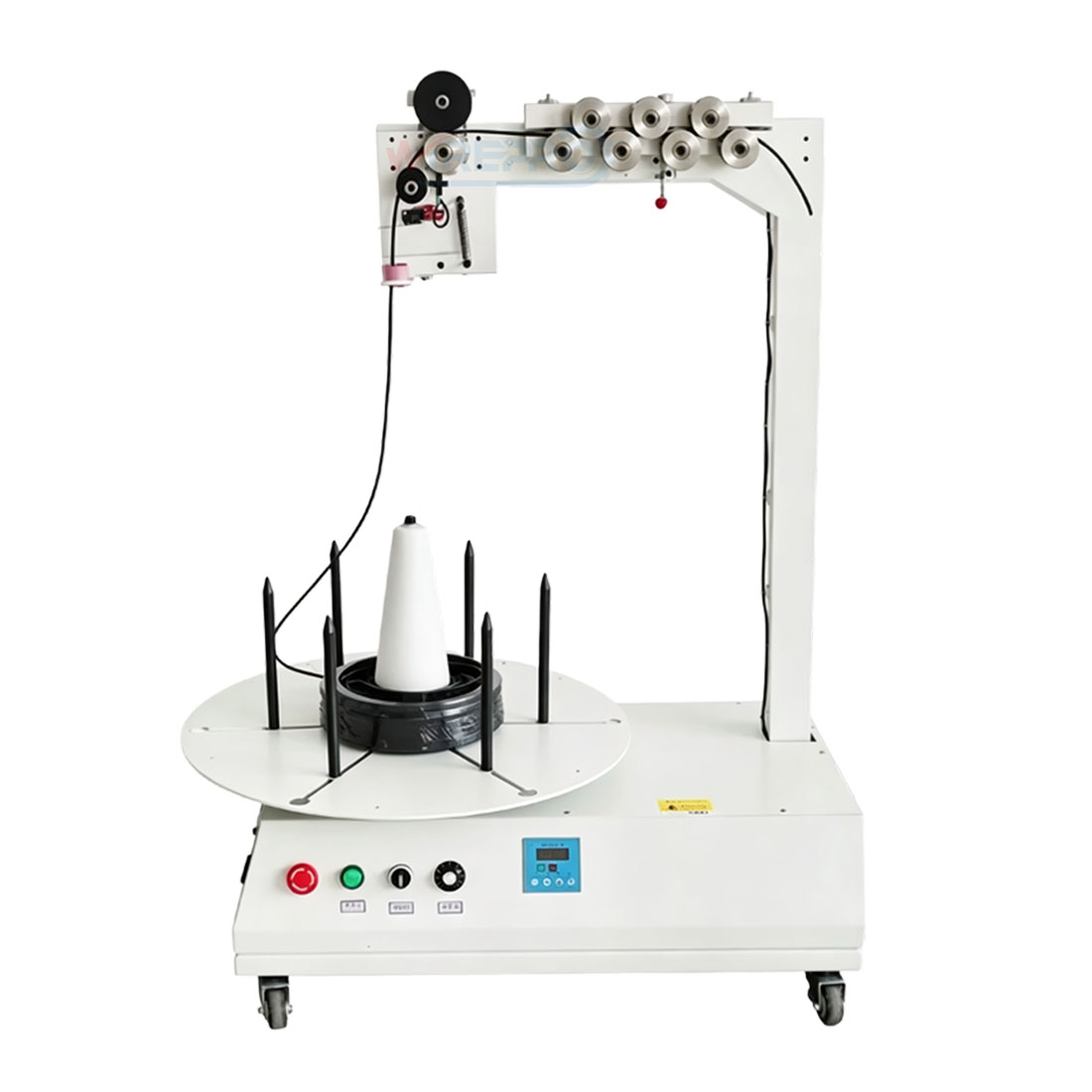

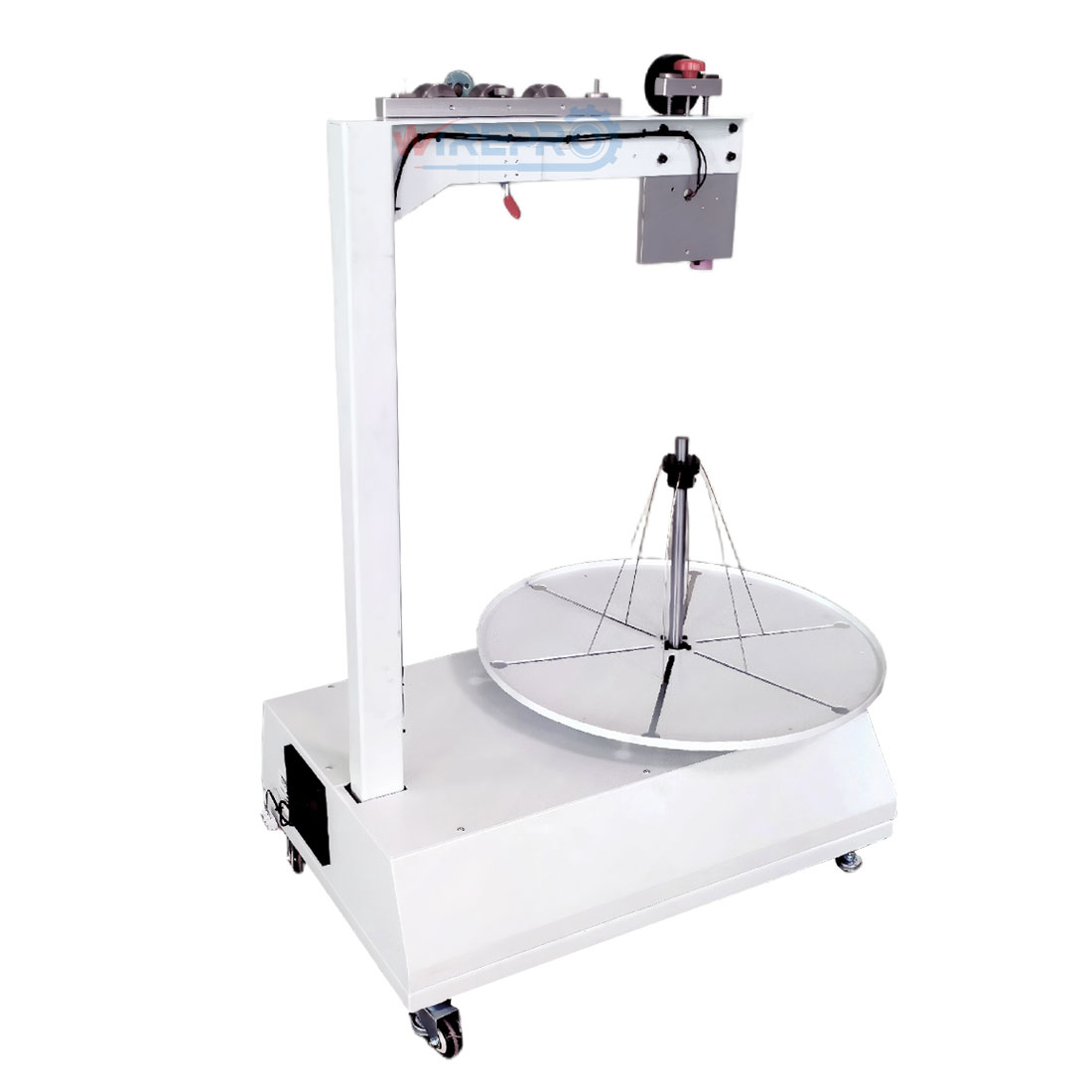

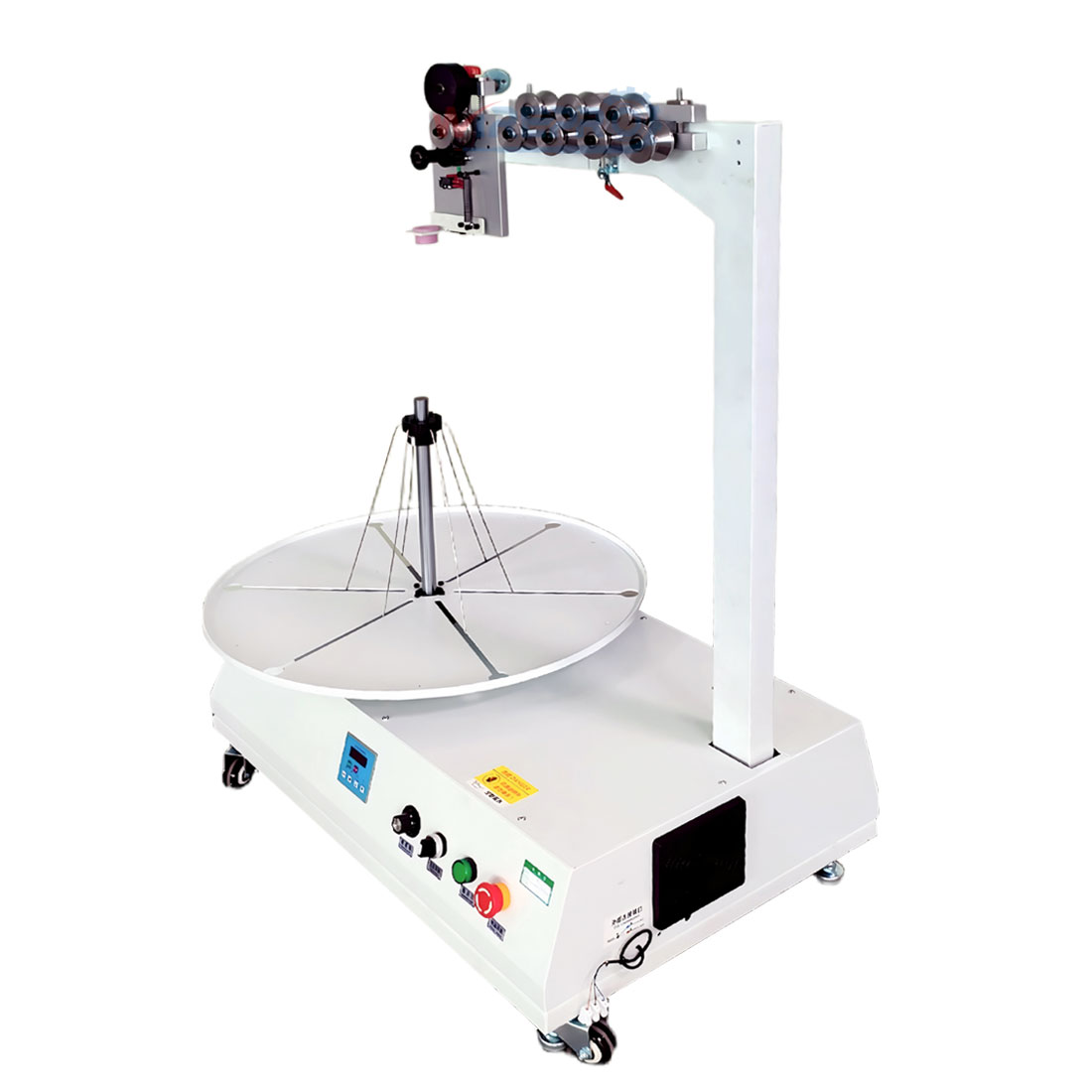

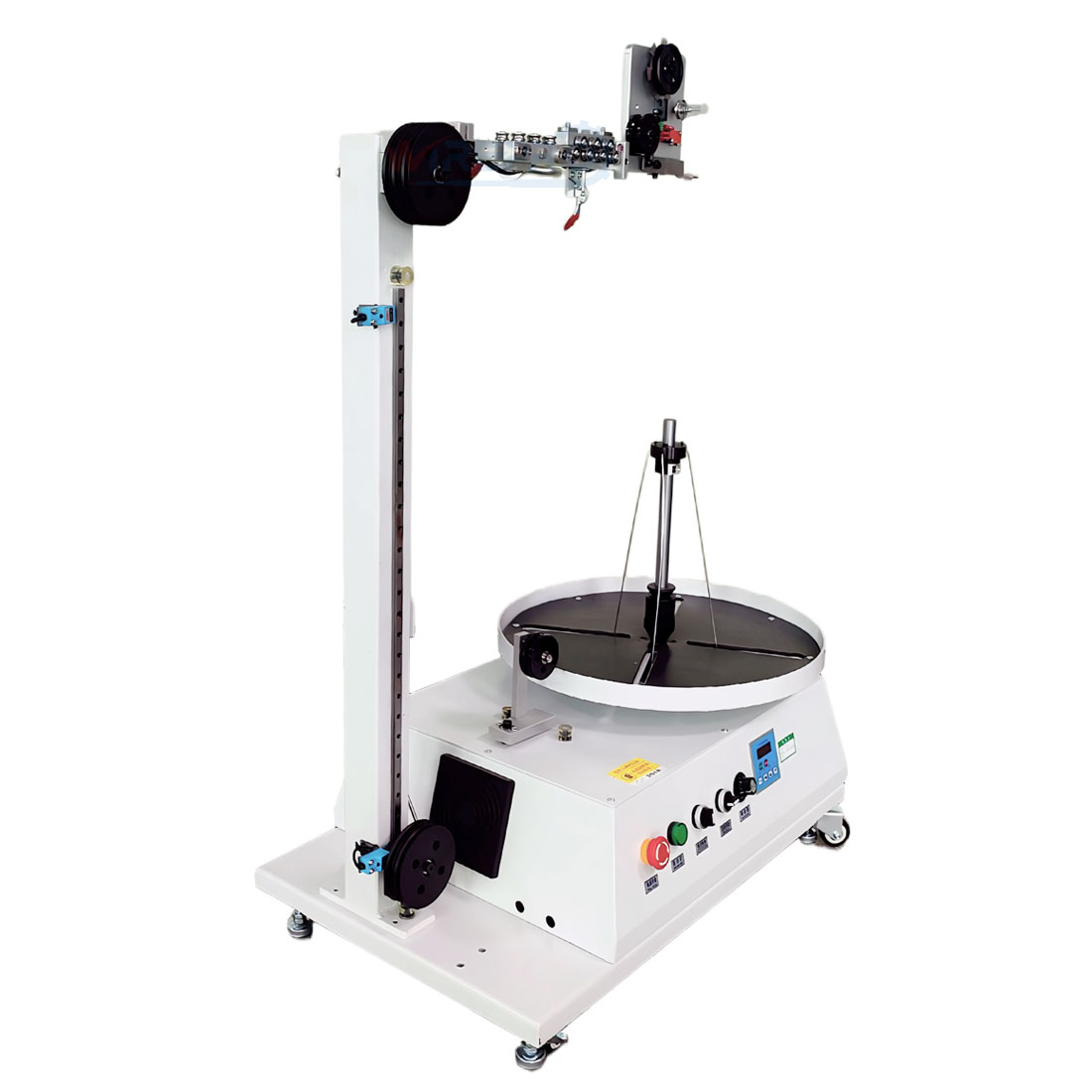

The PF-R40 PreFeeder is engineered to accommodate a broad spectrum of wire spool varieties, encompassing standard wires, steel wire ropes, electronic cables, flat ribbon cables, and twin-core wires. Adopting a vertical pay-off configuration, this unit can be seamlessly paired with automatic terminal crimping presses, computerized wire cutting machines, automatic tube cutting systems, and automated winding & bundling equipment.
This feeder supports bidirectional operation (forward/reverse) as well as manual free-wire feeding functionality.
Wire is drawn smoothly from the upper side of the spool, which effectively minimizes the risk of twisting or knotting during the de-reeling process.
Built with an integrated sensor, the system enables auto-sensing speed regulation, delivering intelligent pre-feeding performance.
A dedicated speed adjustment knob is furnished, permitting the operator to define the upper limit of feeding velocity in accordance with the requirements of downstream machinery, thus ensuring seamless synchronization.
With a strong emphasis on cost performance and floor-space savings, this compact wire feeder is designed for straightforward and user-friendly operation.
Model | PF-R40 |
Suitable Wire Dia | Standard: 5–15 mm; Thin wire version: 1–4 mm |
Max Load Weight | 40 KG |
Wire Roll OD | ≤ 550 mm (Customizable) |
Wire Roll Height | ≤ 250 mm |
Wire Roll ID | ≥ 115 mm (Internal shaft sleeve removable, then only need 35mm) |
Braking System | Variable frequency braking, 0.1 s buffer stop, resistance-free, smooth braking |
Sensing Device | Automatic induction speed change |
Voltage | AC 220V 50 Hz |
Rated Power | 750 W |
Dimensions | 920 × 610 × 1020 mm |
Weight | 50 KG |
Application
Small size wire roll feeding.
The PF-R40 PreFeeder is a cable bundle prefeeding equipment designed to accommodate standard wires, steel wire ropes, electronic cables, flat ribbon cables, and twin-core wires. It pairs with automatic crimping presses, wire cutting machines, tube cutting systems, and winding/bundling equipment.
It supports wire diameters of 5-15mm (thin wire version: 1-4mm) with a max load of 40kg. Spool OD ≤550mm (customizable), height ≤250mm, ID ≥115mm (internal sleeve removable, then 35mm).
Key features include vertical pay-off configuration for anti-twisting, bidirectional operation (forward/reverse), auto-sensing speed regulation with integrated sensor, variable frequency braking (0.1s buffer stop), and a compact footprint for space-saving.
The PF-R40 requires AC 220V, 50Hz power (750W) and has dimensions of 920*610*1020mm, weighing 50kg. It requires moderate floor space.
The dedicated speed adjustment knob allows operators to set the upper feeding velocity limit for synchronization with downstream machinery. The auto-sensing speed regulation ensures intelligent pre-feeding performance without manual intervention.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
