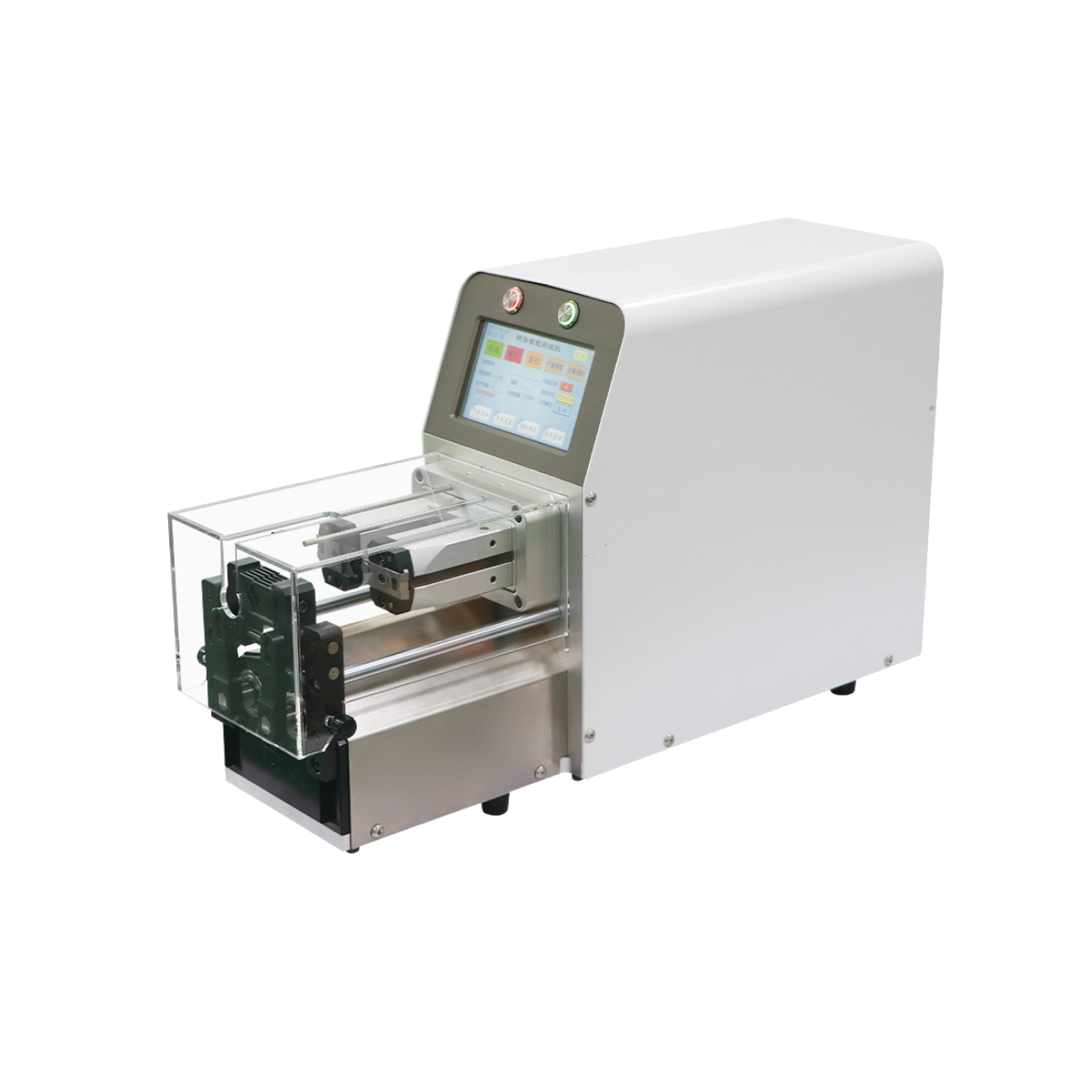

SP-E07 SP-E10
| Availability: | |
|---|---|
| Quantity: | |
Description
The SP-E07 and SP-E10 are compact semi-automatic wire stripping machines designed for processing single-core wires, sheathed cables, and parallel twin wires. Different wire types require specific blade sets to ensure optimal stripping performance. The machine supports stripping of up to 4 insulation layers, with each layer offering independent settings for blade cutting depth, blade retraction depth, stripping length, and pull-off length.
Features:
Clean & Precise Stripping – Produces smooth, neat strip cuts with accurate length control, ensuring no damage to the conductor.
Multi-Layer Stripping – Capable of removing up to 4 layers of insulation in a single cycle.
Parameter Storage – Stores up to 99 sets of processing parameters for quick recall and fast job changeovers.
High-Quality Blades – Equipped with blades made from imported tungsten steel or high-speed steel, delivering exceptional sharpness and long service life.
Easy Blade Replacement – Simple and convenient blade changeover design minimizes downtime.
Model | SP-E07 | SP-E10 |
Features | For different type of wire semi-auto stripping | |
Available Wire Dia | 0.5-7 mm | 1-10mm |
Max stripping layer | 4 layers | |
Stripping Length | Max 45mm | Max 60mm |
Setting Length Unit | 0.01 mm (0.001") | |
Blade Quantity | 2pcs | |
Power Supply | 220V/110V | |
Power | 300W | |
Weight | 14 kgs | 23kgs |
For small wire stripping
The SP-E07 and SP-E10 are compact semi-automatic wire stripping machines designed for processing single-core wires, sheathed cables, and parallel twin wires. Different wire types require specific blade sets for optimal performance.
SP-E07 handles 0.5-7mm diameter with max stripping length of 45mm. SP-E10 handles 1-10mm diameter with max stripping length of 60mm. Both support up to 4 insulation layers with 0.01mm setting precision.
Key features include multi-layer stripping up to 4 layers in a single cycle, independent settings for each layer (cutting depth, retraction depth, stripping length, pull-off length), storage of up to 99 parameter sets, and blades made from imported tungsten steel or high-speed steel.
Both models operate on 220V/110V power (300W). SP-E07 weighs 14kg; SP-E10 weighs 23kg. Specific dimensions are not provided on the page—they are compact benchtop units.
Different wire types require specific blade sets. The machine supports simple and convenient blade replacement to minimize downtime. Up to 99 sets of processing parameters can be stored for quick recall and fast job changeovers.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
