Description

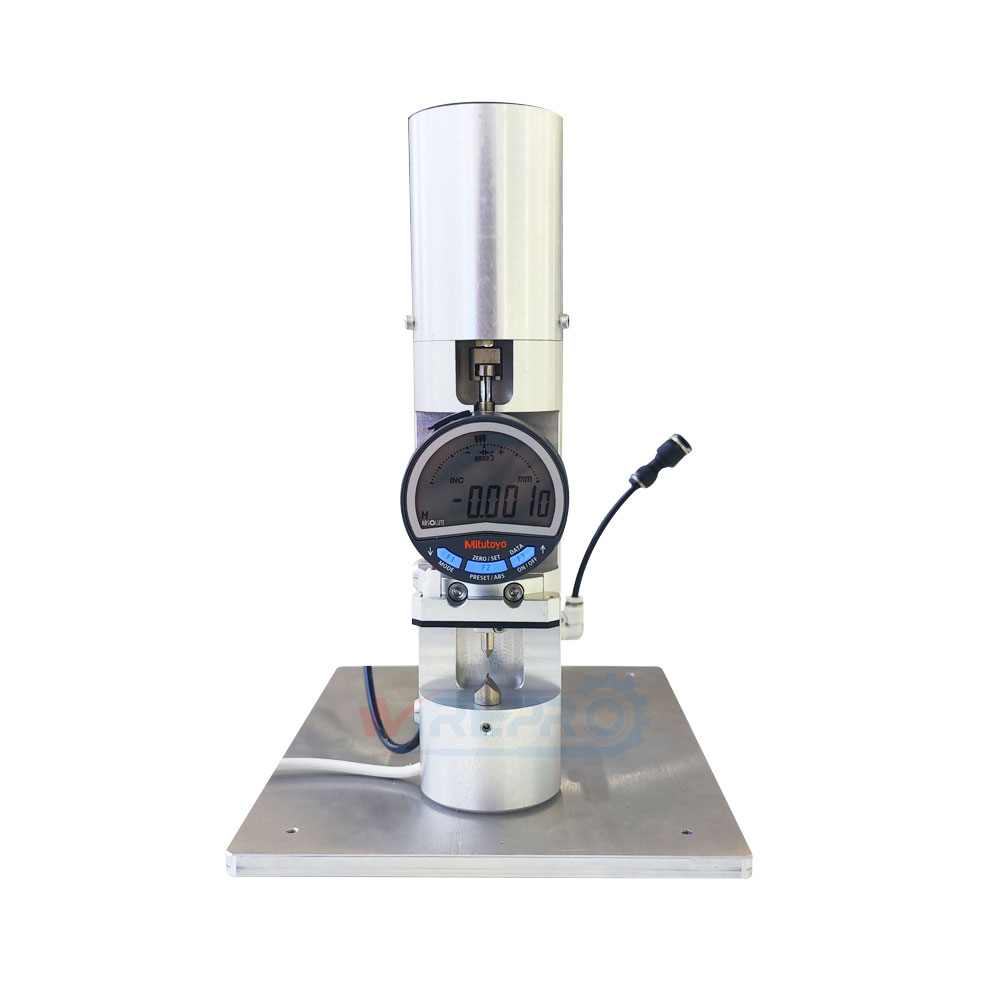

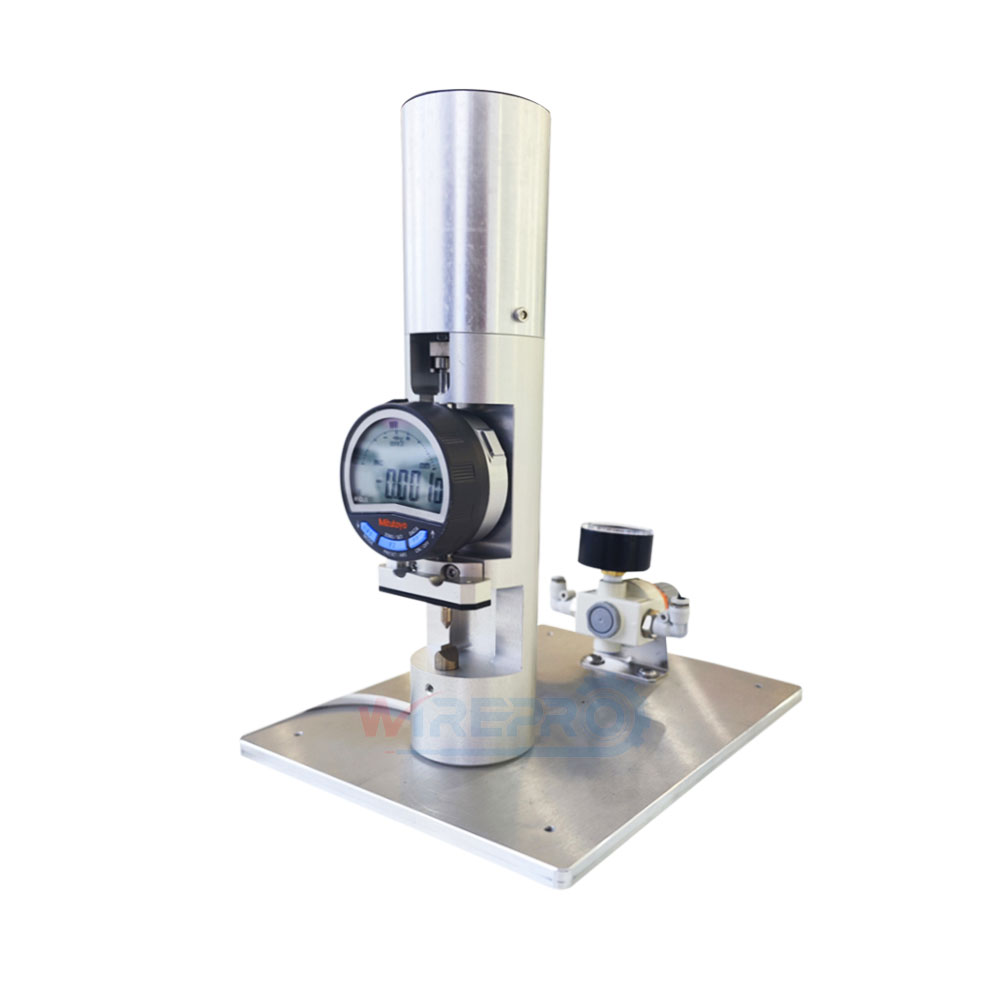

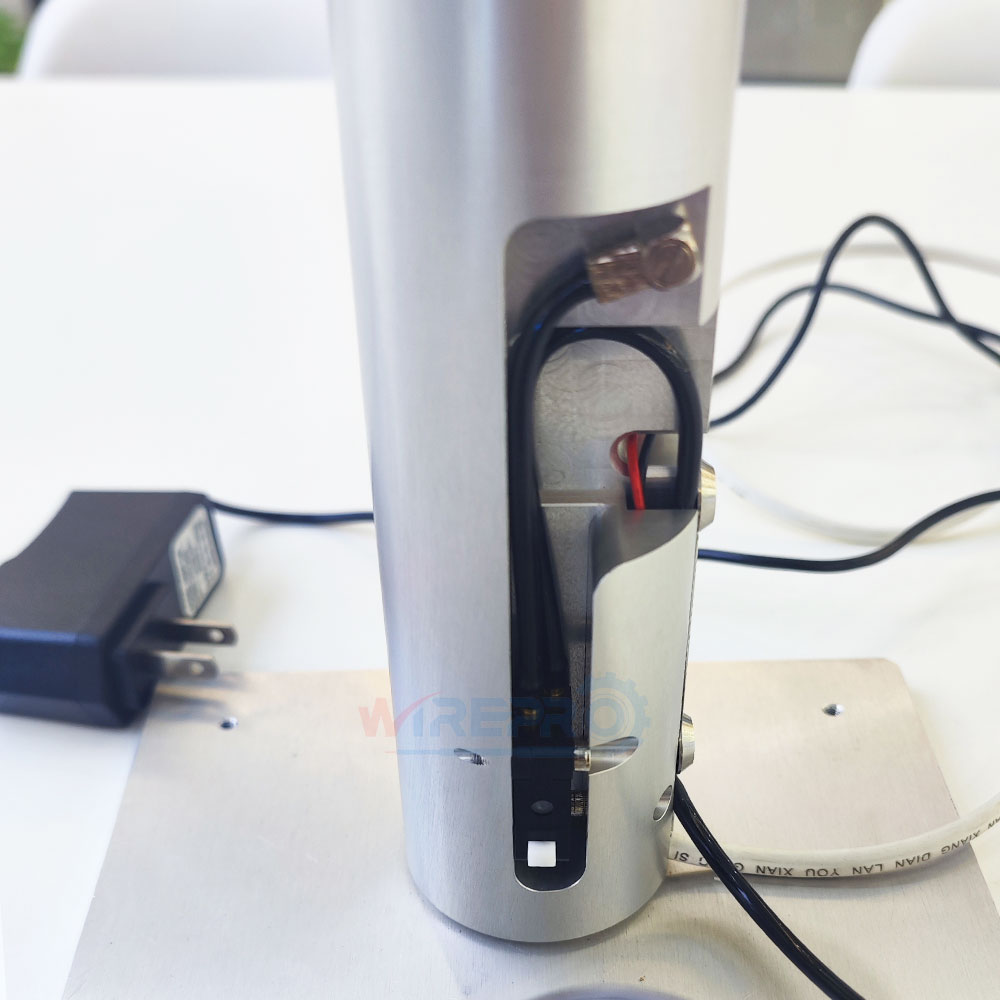

The HT-H02 Crimp-Height Gage is a compact, pneumatically-actuated instrument designed to measure the crimp height of wire terminals with minimal operator influence. It delivers fast, accurate, and repeatable measurement results, making it an ideal tool for quality control and process monitoring in wire harness manufacturing.
Key Capabilities:
Programmable high/low limits for automatic pass/fail decisions
RS output for direct integration into measurement networks and SPC software
Key Features:
Space-Saving Bench-Top Design – Compact footprint suitable for any inspection station or workbench.
Tool-Free Setup & Calibration – Simplifies operation and reduces changeover time.
IP42-Rated Enclosure – Protects against dust and dripping water for reliable performance in workshop environments.
One-Button Operation – Requires no special skills, making it easy for any operator to use.
Ultra-Low Power Consumption – Delivers extended service life with up to 7,000 hours of continuous runtime on a single SR44 button cell.
Mitutoyo ABS Sensor – Origin is retained even after power loss — no re-homing needed, ensuring uninterrupted workflow.
ABSOLUTE Electrostatic Capacitive Linear Encoder – Eliminates over-speed errors and boosts long-term reliability.
CE Compliant – Conforms to relevant CE directives on machine safety and electromagnetic compatibility.
| Model | HT-H02 |
| Measuring Range | 12.7mm |
| Resolution | 0.01mm |
| MPEE | 0.02mm |
| Measuring Force | Below 0.9N |

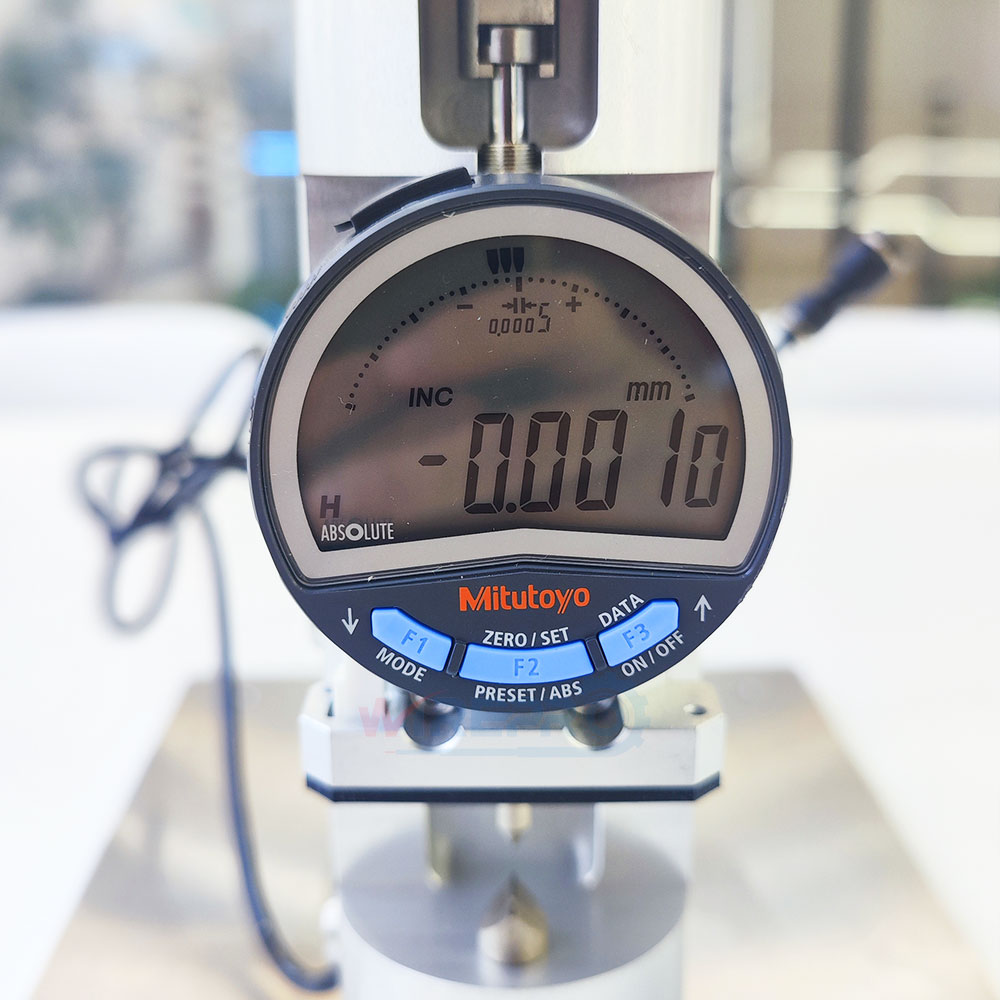

| Display | 6-digit LCD Display |
| Shaft Sleeve Diameter | 8mm (ISO/Is type) |
| Length Basis | ABSOLUTE electrostatic capacitive linear encoder |

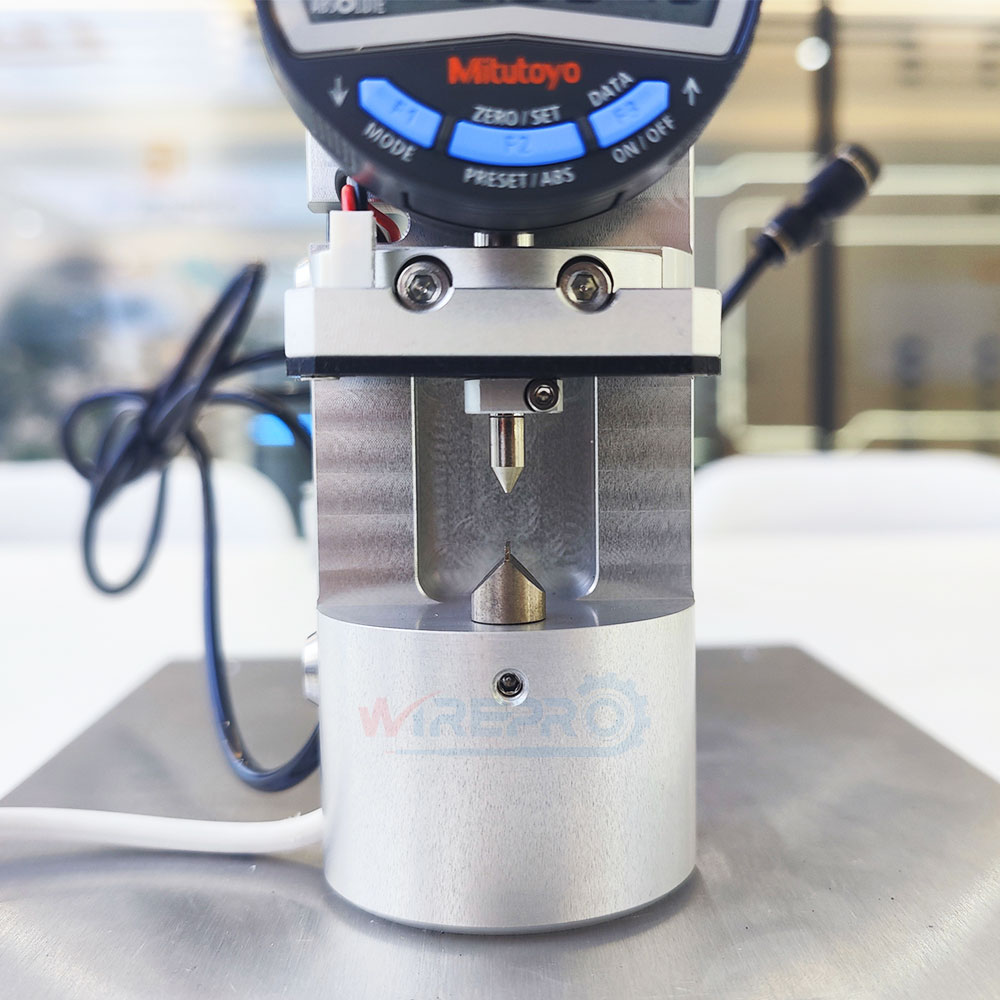

| Measuring Needle | Carbide ball with M2.5*0.45 thread (ISO/Is type) |
| Battery Specification | Button type silver oxide battery SR44 (x1pc) |

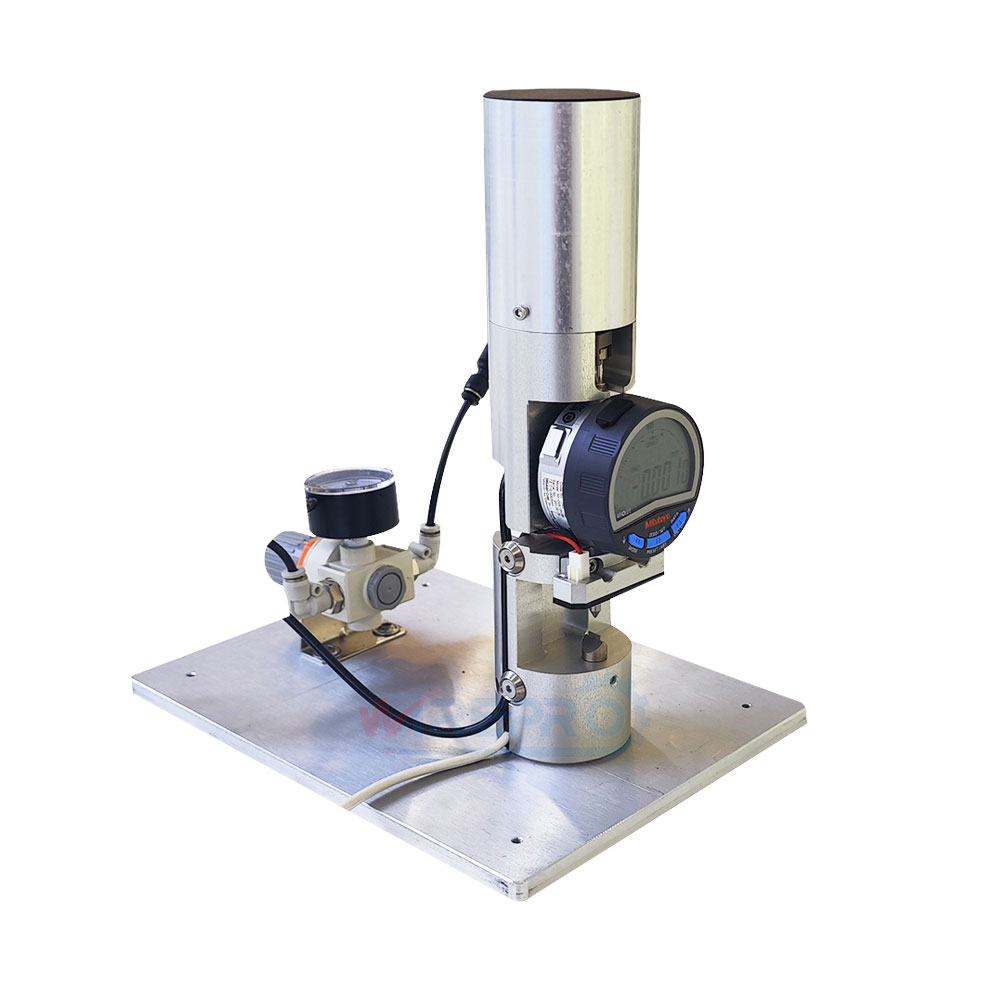

| Air Pressure | 0.4 ~ 0.6Mpa (Clean, dry and stable compressed air) |
| Battery Life | About 7000 hours |
| Dust/Water Protection Grade | IP42 |
| Work Mode | Pneumatic and digital display |
| Operation Temperature | 0~40°C |
| Weight | 10KG |
| Physical Dimension | 200x150x350mm |
The HT-H02 is a compact, pneumatically-actuated crimp-height gage that measures the crimp height of wire terminals with minimal operator influence, featuring programmable pass/fail limits and RS output for SPC integration.
Measuring range: 12.7mm. Resolution: 0.01mm. MPEE: 0.02mm. Measuring force: below 0.9N. Display: 6-digit LCD. Air pressure: 0.4-0.6MPa. Battery life: about 7000 hours (SR44). Protection: IP42. Weight: 10kg. Dimensions: 200x150x350mm.
Key features include Mitutoyo ABS sensor retaining origin after power loss, ABSOLUTE electrostatic capacitive linear encoder eliminating over-speed errors, programmable high/low limits, RS output for SPC software, tool-free setup, one-button operation, and IP42-rated enclosure.
The HT-H02 requires 0.4-0.6MPa clean, dry, and stable compressed air. Dimensions: 200x150x350mm, weight: 10kg. It is a compact benchtop unit designed for space-saving installation.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
