TU-SD4 TU-SD6
| Availability: | |
|---|---|
| Quantity: | |
Description

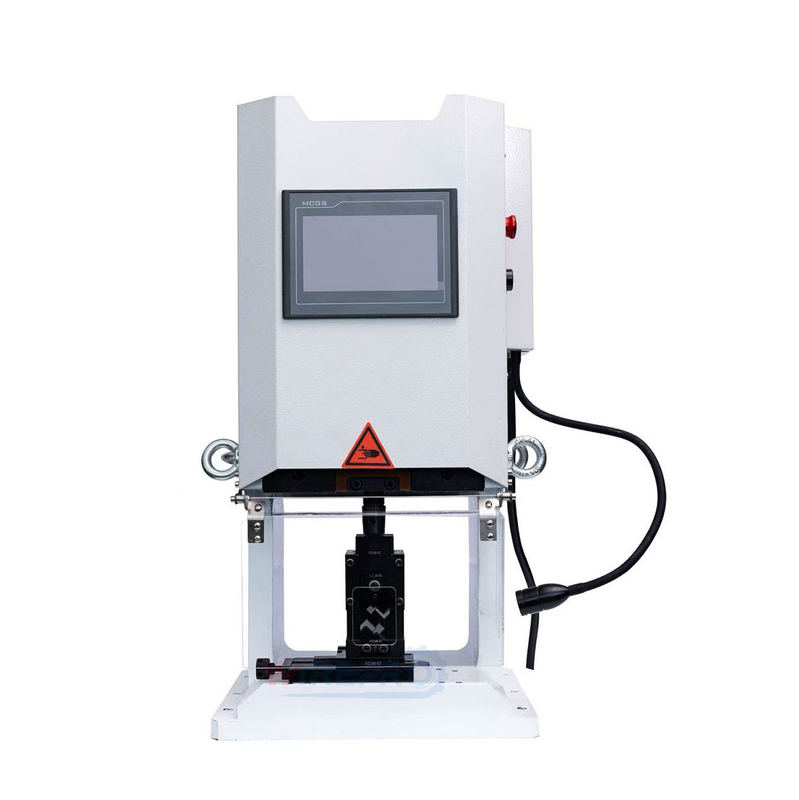

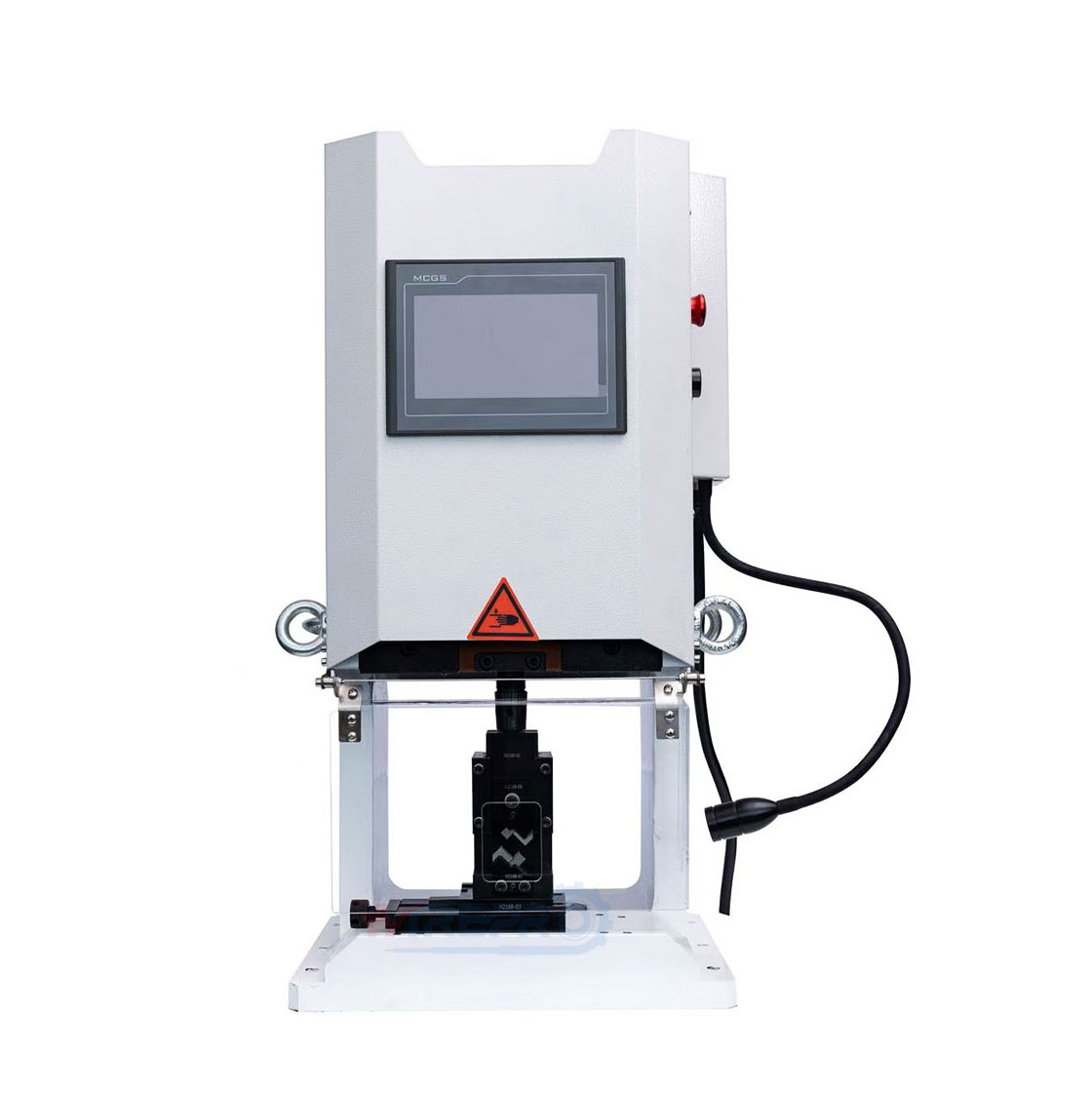

The TU-SD4 and TU-SD6 series represent a compact line of servo-driven terminal press machines, purpose-built for high-accuracy crimping applications on small-gauge single-core wires. Engineered with precision motion control at its core, this series delivers consistent, repeatable crimping quality essential for fine-wire terminal connections.
The system is driven by an AC servo motor coupled with a precision transmission mechanism, ensuring stable output force and accurate ram positioning throughout each crimping cycle. This level of control is particularly critical when processing delicate small-gauge conductors where even minor deviations can affect connection integrity.
Key Features:
High-Precision Servo Drive – Employs an advanced servo control system that delivers exceptional crimping accuracy, ensuring consistent terminal deformation across high-volume production runs.
Optimized for Small-Gauge Wires – Specifically configured for one-core small wires, providing the delicate force control required to avoid over-crimping or under-crimping on fine conductors.
Programmable Crimping Parameters – Allows operators to store and recall crimping height and force settings for different terminal types, facilitating rapid job changeovers.
Real-Time Force Monitoring – Built-in pressure sensing capability enables real-time monitoring of each crimp, ensuring quality consistency and immediate detection of anomalies.
User-Friendly Interface – Equipped with an intuitive control panel that simplifies parameter adjustment and provides clear operational feedback.
Compact Footprint – Space-saving design makes it ideal for benchtop installation in small workshops or integrated into automated assembly lines.
Reliable & Durable Construction – Built with industrial-grade components to withstand continuous operation in demanding production environments.
Technical Data
| Model | TU-SD4 | TU-SD6 | TU-SD8 | TU-SD10 |
| Pressure | 4 Ton | 6 Ton | 8 Ton | 10 Ton |
| Stroke | 30mm | 30mm | 30mm | 30mm |
| Standard Terminals | ≤ 6mm² | ≤ 10mm² | ≤ 25mm² | ≤ 35mm² |
| Special Terminals | Special terminals generally refer to those with unique shapes or thicker terminal walls. Compatibility assessment based on sample evaluation is required. | |||
Application
Wire stripping and ring terminal crimping
The TU-SD4 and TU-SD6 are compact servo-driven terminal press machines purpose-built for high-accuracy crimping on small-gauge single-core wires. They deliver consistent, repeatable crimping quality for fine-wire terminal connections.
TU-SD4: 4T, ≤6mm²; TU-SD6: 6T, ≤10mm²; TU-SD8: 8T, ≤25mm²; TU-SD10: 10T, ≤35mm². All feature 30mm stroke with AC servo drive and precision transmission.
Key features include AC servo drive with precision motion control, programmable crimping height and force settings, built-in real-time force monitoring for quality assurance, and a compact footprint ideal for benchtop installation.
Specific power and dimension details are not provided on the page. The machines feature a compact footprint for benchtop installation. Please contact Wirepro directly for detailed installation specifications.
Standard terminals up to 35mm² are supported. Special terminals with unique shapes or thicker walls require sample evaluation for compatibility assessment.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
