RD-MT2
| Availability: | |
|---|---|
| Quantity: | |
Description

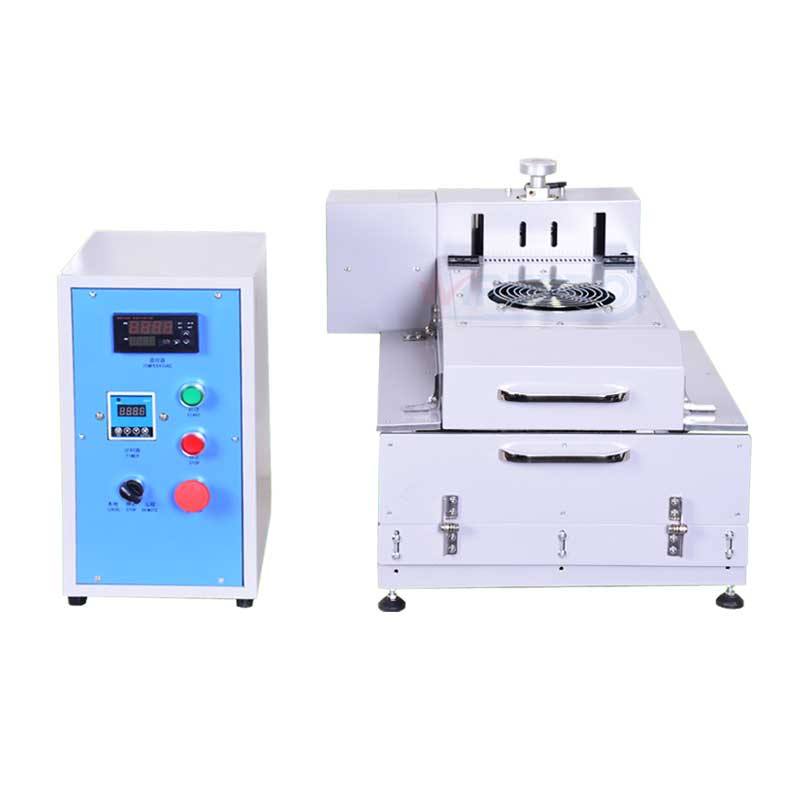

The RD-MT2 is a double-sided infrared heating machine designed for large-diameter heat-shrinkable tubing. Featuring a large heating area of L180mm × W260mm and temperatures up to 260°C, it is ideal for processing large wiring harnesses, long harnesses, and terminal wiring harnesses that require uniform and thorough heat distribution.
The machine utilizes 12 infrared radiation tubes for efficient heating and includes overheat/overload protection, power-off safety mechanisms, and an emergency stop switch. Three heating control modes are available: footswitch activation for hands-free operation, automatic cycling mode for continuous production, and temperature control mode for maintaining constant heat.
The RD-MT2 operates on 220V power and features a two-part compact design (47*55*39cm and 27*25*15cm) with a gross weight of 43.5kg. The double-layer heating zone shell minimizes energy consumption and protects the working environment from excessive heat, with a shutdown and blowing delay function that extends the heating core's lifespan.
Model | RD-MT2 |
Heating shrinkable tube diameter | < 100mm |
Heating Ares | L180mm * W 260mm |
Heating Temperature | < 260℃ |
Heating tube name | Infrared radiation tube |
Power supply | 220V |
Power | <300W*12 |
Weight | Gross 43.5kgs; Net 27.5kgs |
Dimension | Part1: 47*55*39cm Part2: 27*25*15cm |
Application
The RD-MT2 is a double-sided heating machine designed for large-diameter heat-shrinkable tubing with 360-degree infrared radiation heating for uniform heat distribution on large wiring harnesses and terminal wiring harnesses.
It supports heat shrink tubing diameters up to 100mm with a heating area of L180mm × W260mm and heating temperature up to 260°C. It uses 12 infrared radiation tubes powered by 220V.
Key features include 360-degree infrared radiation for uniform heating, versatile operation for end-positioned and mid-positioned tubing, three heating control modes (footswitch, automatic cycling, temperature control), and safety features including overheat/overload protection.
The RD-MT2 requires 220V power with 12 infrared tubes (<300W each). Dimensions: Part1 47*55*39cm, Part2 27*25*15cm. Gross weight: 43.5kg, net weight: 27.5kg.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
