RD-E30
| Availability: | |
|---|---|
| Quantity: | |

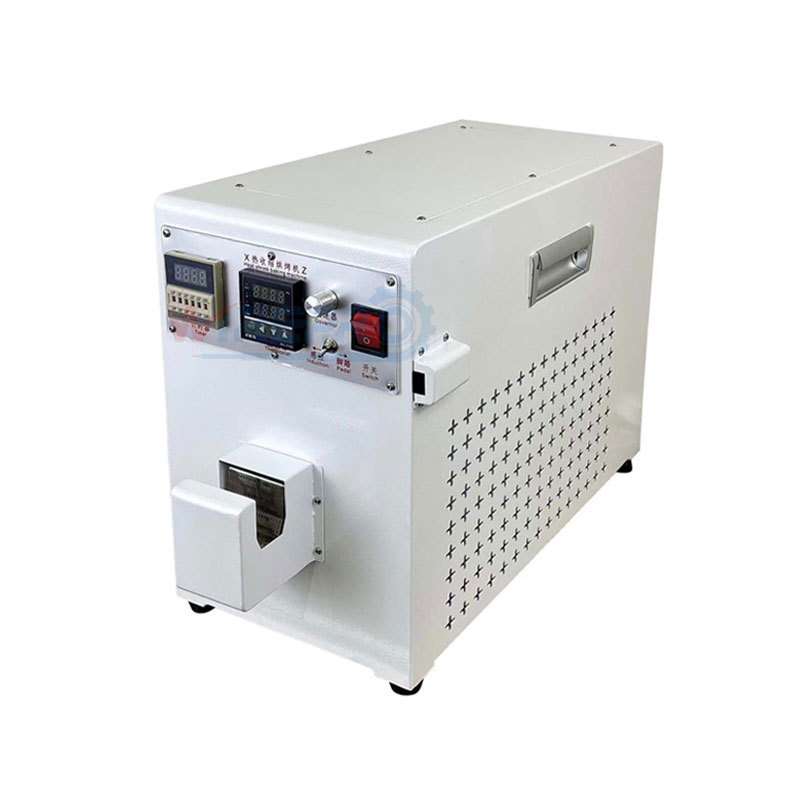

RD-E30/RD-E40 Electric Wiring Harness Heat Shrink Tube Heater
The RD-E30 and RD-E40 are compact, portable machines designed to heat shrink tubes efficiently using hot air. These models are ideal for various applications, including electronic wire computer connectors, plug wires, audio wires, terminal connection wires, Teflon wires, isolation wires, and new energy wire casings.
Key Features:
1. No Air Source Required: Operates with just a power supply, making it easy to move and install.
2. Consistent Temperature: Maintains a steady temperature during operation, ensuring no temperature drops when air is blown.
3. Adjustable Heat Shrink Time: The heat shrink time can be customized to match specific requirements.
4. Interchangeable Air Nozzles: Allows for easy replacement of air nozzles to suit different tasks.
5. Flexible Control Options: Offers optional infrared sensor or foot control for enhanced convenience and flexibility.
6. Versatile Applications: Designed for factories with diverse products and smaller production quantities, making it a perfect choice for various industrial needs.
Model | RD-E30 | RD-E40 |
Recommend heating tube diameter | < 30mm | < 40mm |
Heating length | < 60mm | < 80mm |
Heating Temperature | 0-450 ℃ | 0-450 ℃ |
Adjustable parameter | Infrared radiation tube (2000W) | Infrared radiation tube (2000W) |
Power supply | 220V | 220V |
Power | 2000W | 3000W |
Dimension | 45*22*38cm | 45*22*38cm |
Application
The RD-E30 and RD-E40 are compact, portable hot air heating machines for heat shrinking tubes, ideal for electronic wire connectors, plug wires, audio wires, Teflon wires, and new energy wire casings.
RD-E30:<30mm diameter, <60mm heating length. RD-E40: <40mm diameter, <80mm heating length. Both operate at 0-450°C temperature range with adjustable heat shrink time.
Key features include no air source required (operates with just power supply), consistent temperature maintenance during operation, interchangeable air nozzles for different tasks, and optional infrared sensor or foot control for flexible operation.
RD-E30: 220V, 2000W. RD-E40: 220V, 3000W. Both share dimensions of 45*22*38cm, making them compact benchtop units.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
