RC-A02
| Availability: | |
|---|---|
| Quantity: | |

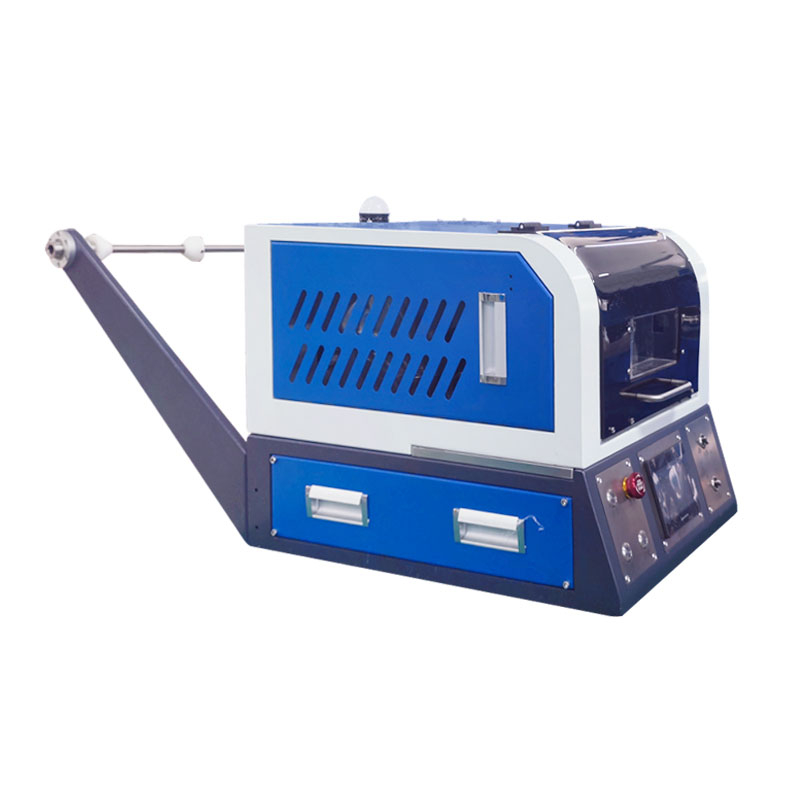

The RC-A02 is a compact, desk-type machine designed for the automatic feeding, cutting, loading, and heating of heat shrink tubes.
Applicable Wire Types:
This machine is compatible with a wide range of wires, including machine board terminals, 187/250 terminals, ground ring/U-shaped terminals, new energy wires, and multi-core wires.
Key Features:
1. Precision Control: Equipped with a vertical turntable and stepper motor for enhanced accuracy and smooth operation.
2. Smart Operation: Managed via a PLC and touch screen interface, offering user-friendly controls and fault display for easy troubleshooting.
3. Efficient Adjustments: Limit adjustment components include positioning guides to streamline fine-tuning and quick replacement of specifications.
Model | RC-A02 |
Available Tube Diameter | Custom a range from 1-12mm |
Available Tube Length | Custom a range 5-60 mm |
Tube Length Tolerance | ± 0.3 mm |
Tube Positioning Tolerance | ± 0.2 mm |
Production Rate | 700-1200 pcs/hour |
Yield | 99% |
Compressed Air Supply | 0.5 – 0.6 Mpa |
Power | 220/110V |
Power Supply | 1900W |
Dimensions | 70*80*120cm |
Weight | about 150kg |
Application
The RC-A02 is a compact desk-type machine for automatic feeding, cutting, loading, and heating of heat shrink tubes, compatible with machine board terminals, 187/250 terminals, ground ring/U-shaped terminals, and multi-core wires.
It supports tube diameters from 1-12mm (custom) and lengths from 5-60mm (custom). Tube length tolerance: ±0.3mm, positioning tolerance: ±0.2mm.
The machine processes 700-1200 pieces per hour with 99% yield. It features PLC and touch screen control, vertical turntable with stepper motor for precision, and fault display for easy troubleshooting.
RC-A02 is a compact desk-type unit with larger tube capacity (1-12mm diameter, 5-60mm length). It features a vertical turntable and stepper motor for precision, and positioning guides for quick specification changeovers.
The RC-A02 requires 220/110V power (1900W) and 0.5-0.6MPa compressed air. Dimensions: 70*80*120cm, weight: about 150kg. It is a benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
