TU-P02
| Availability: | |
|---|---|
| Quantity: | |
Description

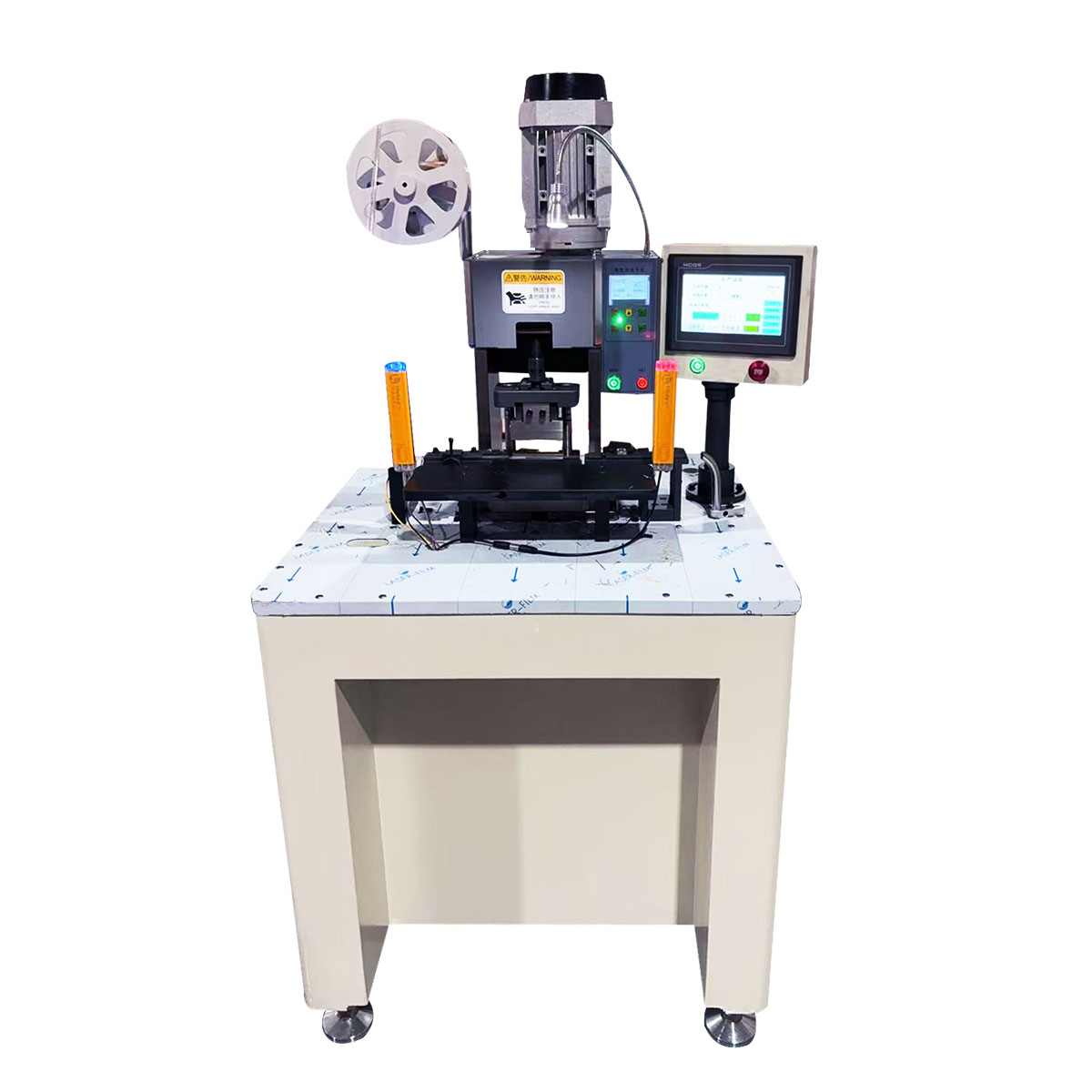

The TU-P02 is a terminal crimping machine specifically designed for membrane switch, FFC, and FPC flat flexible cable piercing-type terminal crimping. It supports optional functions including take-out robotic arm, wire twisting unit, middle stripping device (window stripping), and production management system (standalone or multi-machine networking). External equipment integration includes inkjet printer, laser marking machine, wire prefeeder, wire stacker, and wire coiler.
Wire stripping and ring terminal crimping
| Option | Description |
| Take-out Robotic Arm | Automatically picks up and unloads finished wires for continuous unmanned operation; works with collection trays or conveyors. Requires a table on the equipment for installation. |
| Wire Twisting Unit | Twists and compacts copper strands after stripping to prevent stray or reversed strands, facilitating terminal insertion and crimping while improving first-pass yield. Effective for small-gauge wires (≤ 3 mm² cross-section); does not produce noticeable twisting effect on stiffer copper strands. |
| Middle Stripping Device (Window Stripping) | Creates a T-shaped slit on the wire for middle (window) stripping at any position — can be located at the middle or at both ends of the wire. Available in electric and pneumatic versions. |
| Production Management System | Two modes: standalone management (output statistics and job management on a single machine) and multi-machine networking (centralized order dispatching and capacity allocation across multiple machines). |
| Equipment | Function | Key Notes | Product Link |
| Inkjet Printer | Synchronized online printing of serial numbers, characters, and barcodes on the wire surface. | Clear, high-contrast print quality; requires regular consumables (ink and solvent). | View Product |
| Laser Marking Machine | Synchronized online laser marking on the wire surface — no ink required. | No consumables, maintenance-free; marking color depends on wire insulation material and varies accordingly. | View Products |
| Wire Prefeeder | Automatic wire payoff with constant tension, preventing pulling damage from heavy spools and ensuring stripping accuracy. | Compatible with spools of various weights; smooth and steady feeding. | View Products |
| Wire Stacker | Automatically stacks finished wires neatly for easy collection, bundling, and packaging. | Supports extended unattended operation; stacking and collection are fully automatic. Requires a table on the equipment for installation. | View Products |
| Wire Coiler | Automatically coils finished wires into loops for easy bundling and packaging. | Requires an operator nearby to remove finished coils promptly. Requires a table on the equipment for installation. | View Product |
The TU-P02 is a terminal crimping machine specifically designed for membrane switch, FFC, and FPC flat flexible cable piercing-type terminal crimping in electronic assembly applications.
Specific power, dimensions, weight, and capacity details are not provided on the page. Please contact Wirepro directly for detailed technical specifications based on your application requirements.
Optional functions include take-out robotic arm for automatic unloading, wire twisting unit for small-gauge wires (≤3mm²), middle stripping device for window stripping, and production management system (standalone or multi-machine networking).
External equipment includes inkjet printer and laser marking machine for wire marking, wire prefeeder for constant tension feeding, wire stacker for automatic stacking, and wire coiler for automatic coiling.
The machine is specifically designed for FFC, FPC, and membrane switch flat flexible cables. The middle stripping device allows window stripping at any position, and the production management system supports quick changeovers with stored parameters.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
