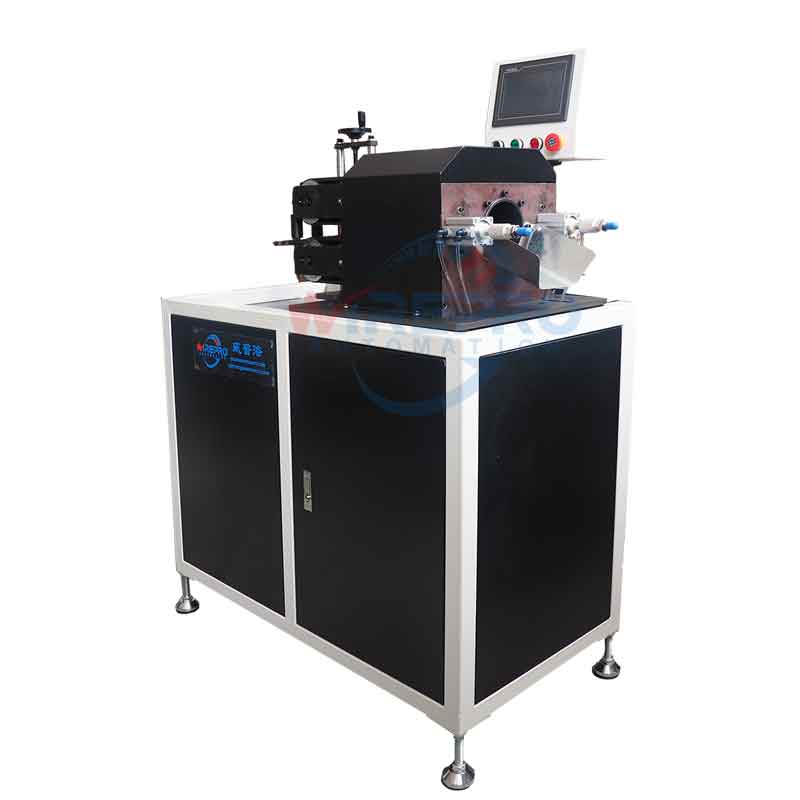

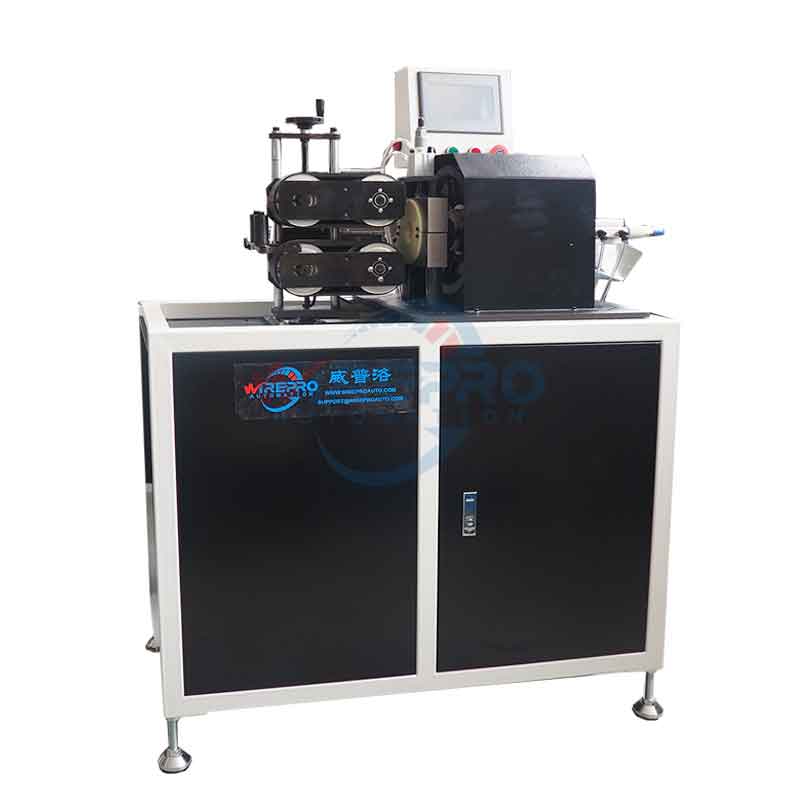

CP-50S / CP-100S
| Availability: | |
|---|---|
| Quantity: | |
Description
The CP-50S, CP-100S, and custom CP-125S are automatic plastic pipe and tube cutting machines suitable for PC, PE, PVC, PP, ABS, PS, PET, and other plastic pipes. The CP-50S processes tubes up to 50 mm OD, the CP-100S handles tubes up to 100 mm OD, and the custom CP-125S accommodates tubes up to 125 mm OD.
This series adopts a rotary cold-knife cutting system for chipless cutting. The flat, smooth cut surface helps prevent indentation, scratches, tube deformation, and secondary cleaning caused by cutting chips. Belt feeding supports stable individual pipe cutting.

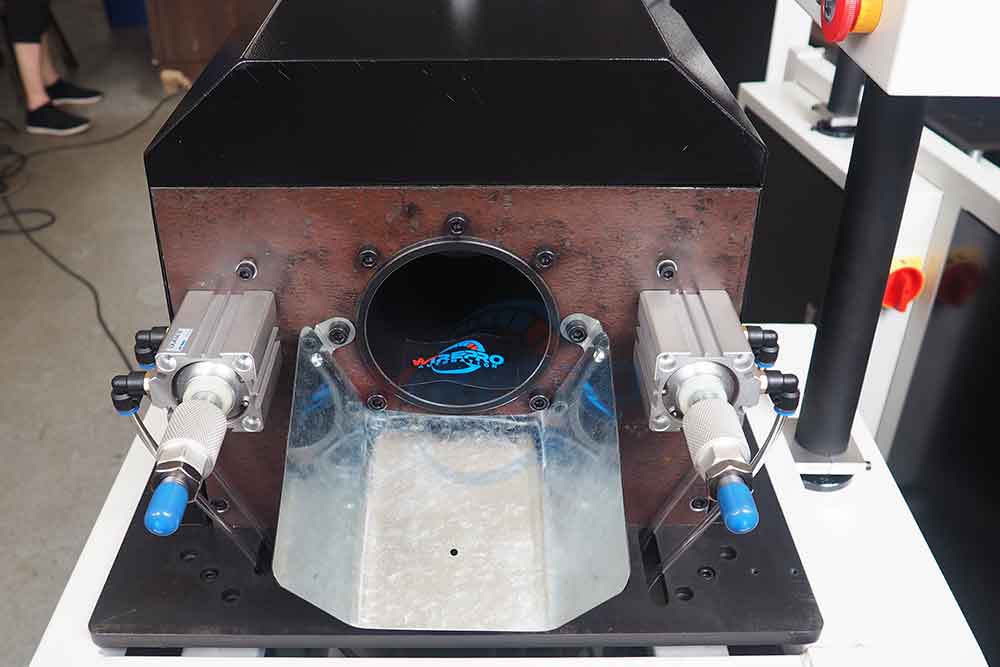

Different tube diameters require interchangeable fixtures. The fixture secures the tube during cutting and prevents movement, ensuring a stable cutting position and consistent cut quality.
Key Features:
Chipless Rotary Cutting – The rotary cold-knife system produces a flat, smooth cut without chips, indentation, scratches, or deformation.
Interchangeable Tube Fixtures – Fixtures are changed according to tube diameter, securing the pipe during cutting and preventing movement.
Three Diameter Options – CP-50S for tubes up to 50 mm OD, CP-100S for tubes up to 100 mm OD, and custom CP-125S for tubes up to 125 mm OD.

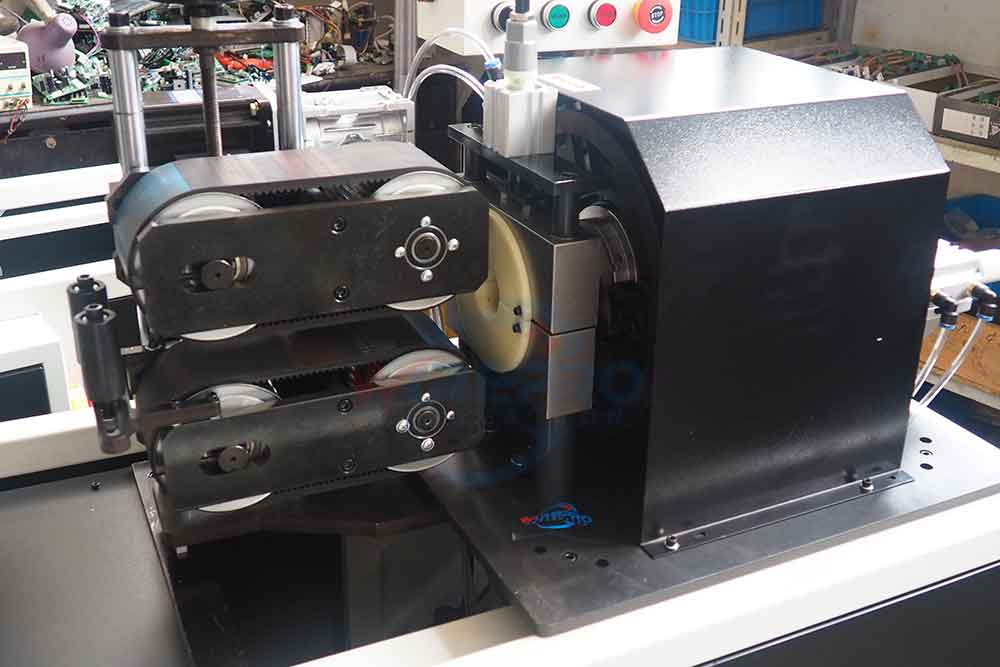

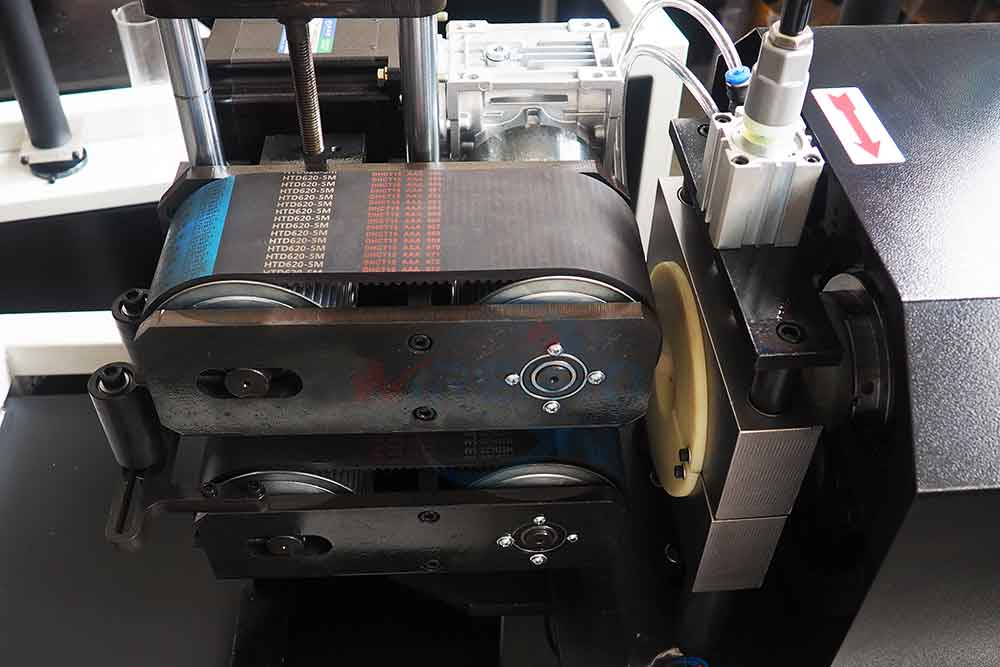

Belt Feeding System – Supports stable feeding and individual cutting of plastic pipes and tubes.

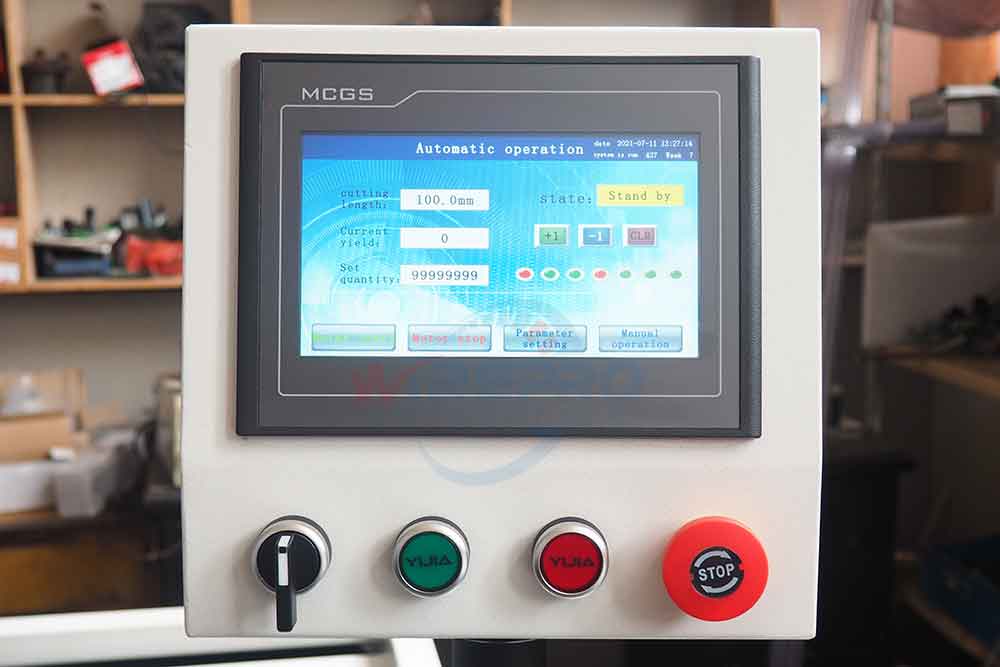

LCD Control Interface – Provides clear parameter display and convenient access to production information, reducing setting errors.
Optional Ball Screw Structure – Available for applications requiring more precise cutting length control.
Optional Fully Enclosed Housing – Improves operator safety and provides a cleaner machine appearance.
| Model | CP-50S | CP-100S | CP-125S |
| Available Tube Diameter | Max 50 mm | Max 100 mm | Max 125 mm |
| Application | Generally just cutting tube | ||
| Available Tube Thickness | 0.5 – 6 mm (others please check with us) | ||
| Cutting Length | 3 – 10000 mm or more long | ||
| Knife | Cold knife, rotor cutter | ||
| Power Supply | 220/110 V, 50/60 Hz | ||
| Power | 450 W | ||
| Speed | Automatic speed adjustment | ||
| Dimensions | 130 × 80 × 11 cm | ||
| Weight | 60 kgs | ||
The CP-50S, CP-100S, and CP-125S are automatic plastic pipe and tube cutting machines for PC, PE, PVC, PP, ABS, PS, and PET tubes. They provide chipless rotary cutting for tubes up to 50mm, 100mm, and 125mm OD respectively.
Available tube diameter: CP-50S max 50mm, CP-100S max 100mm, CP-125S max 125mm. Tube thickness: 0.5-6mm. Cutting length: 3-10000mm or more. Knife: cold knife/rotor cutter. Power: 220/110V, 450W. Dimensions: 130*80*11cm, weight: 60kg.
Key features include chipless rotary cutting for flat smooth cuts without indentation or deformation, interchangeable tube fixtures for different diameters, belt feeding for stable individual cutting, LCD control interface, and optional ball screw structure for precise cutting length control.
The machines require 220/110V, 50/60Hz power (450W) and have dimensions of 130*80*11cm, weighing 60kg. They require dedicated floor space and are designed for standalone tube cutting with belt feeding.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
