RD-MT3 Infrared Heat Shrink Machine with Moving Upper Heating Module

  • RD-MT3

Availability:
Quantity:
Inquire Add to Basket

Description

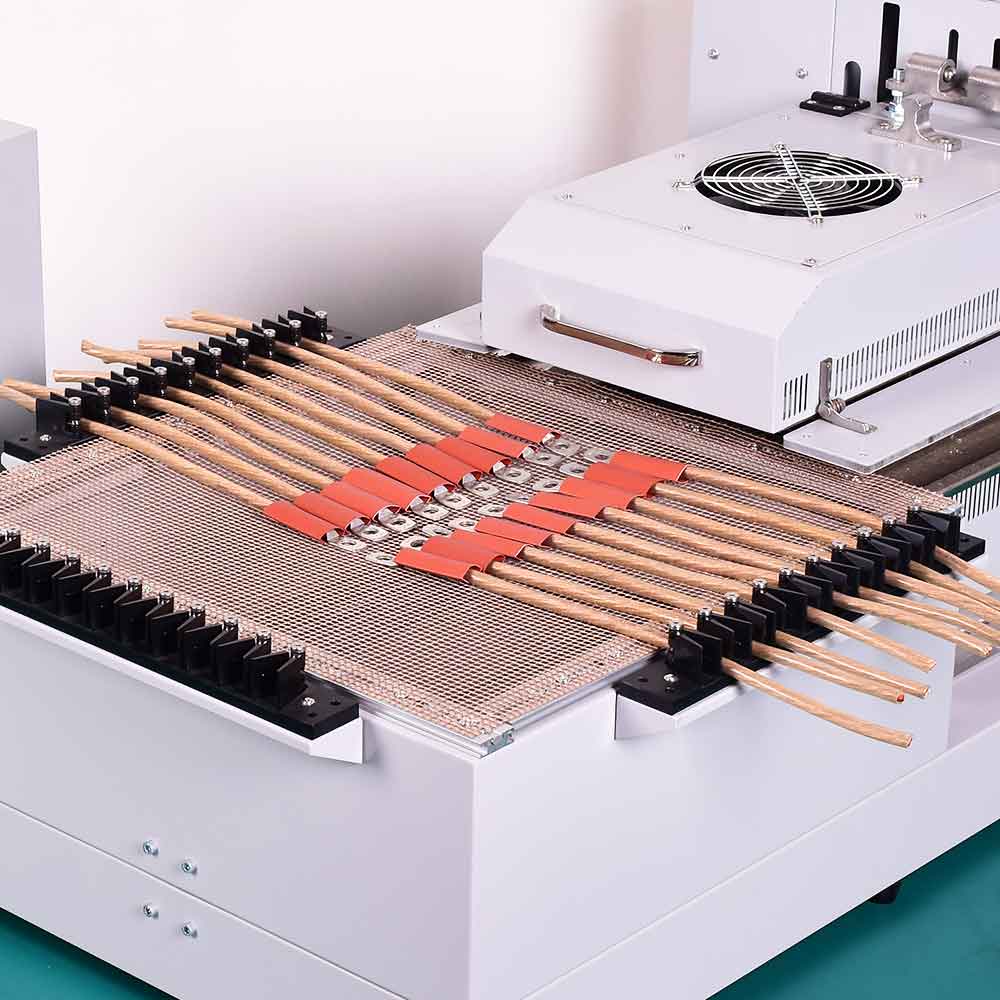

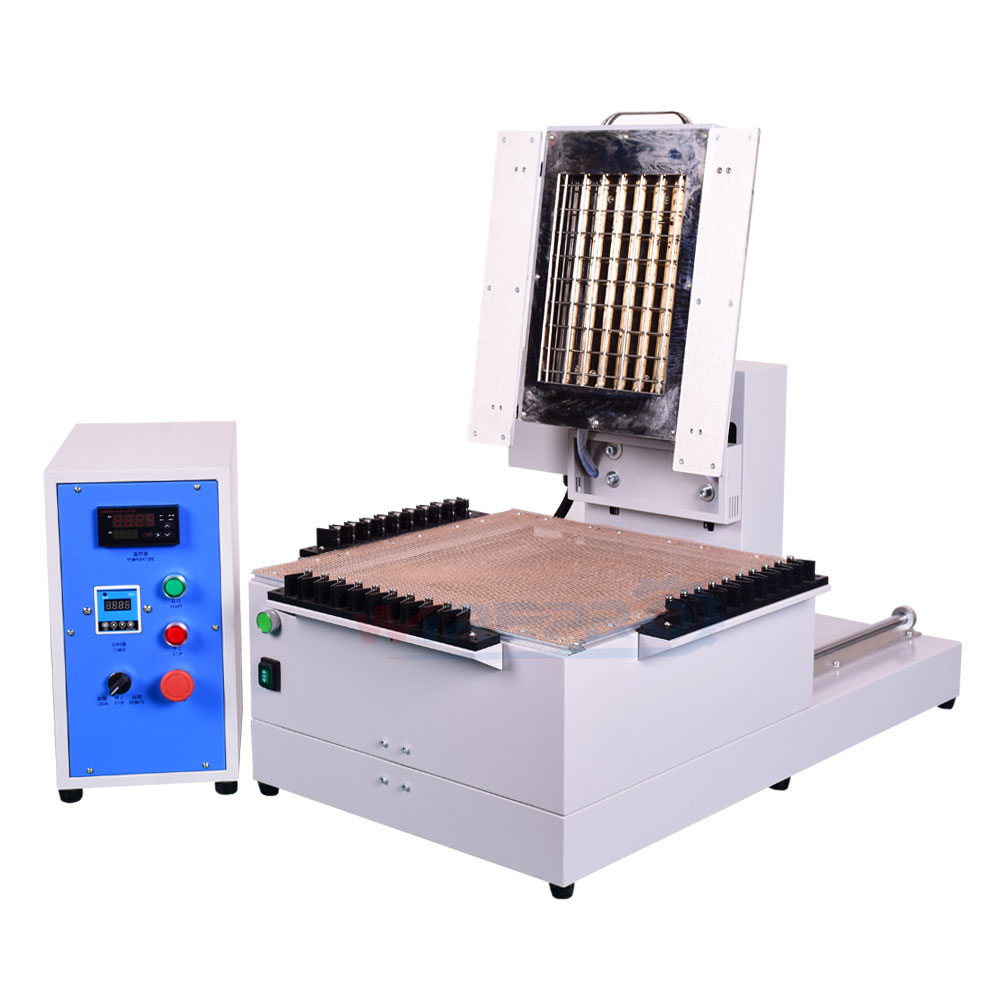

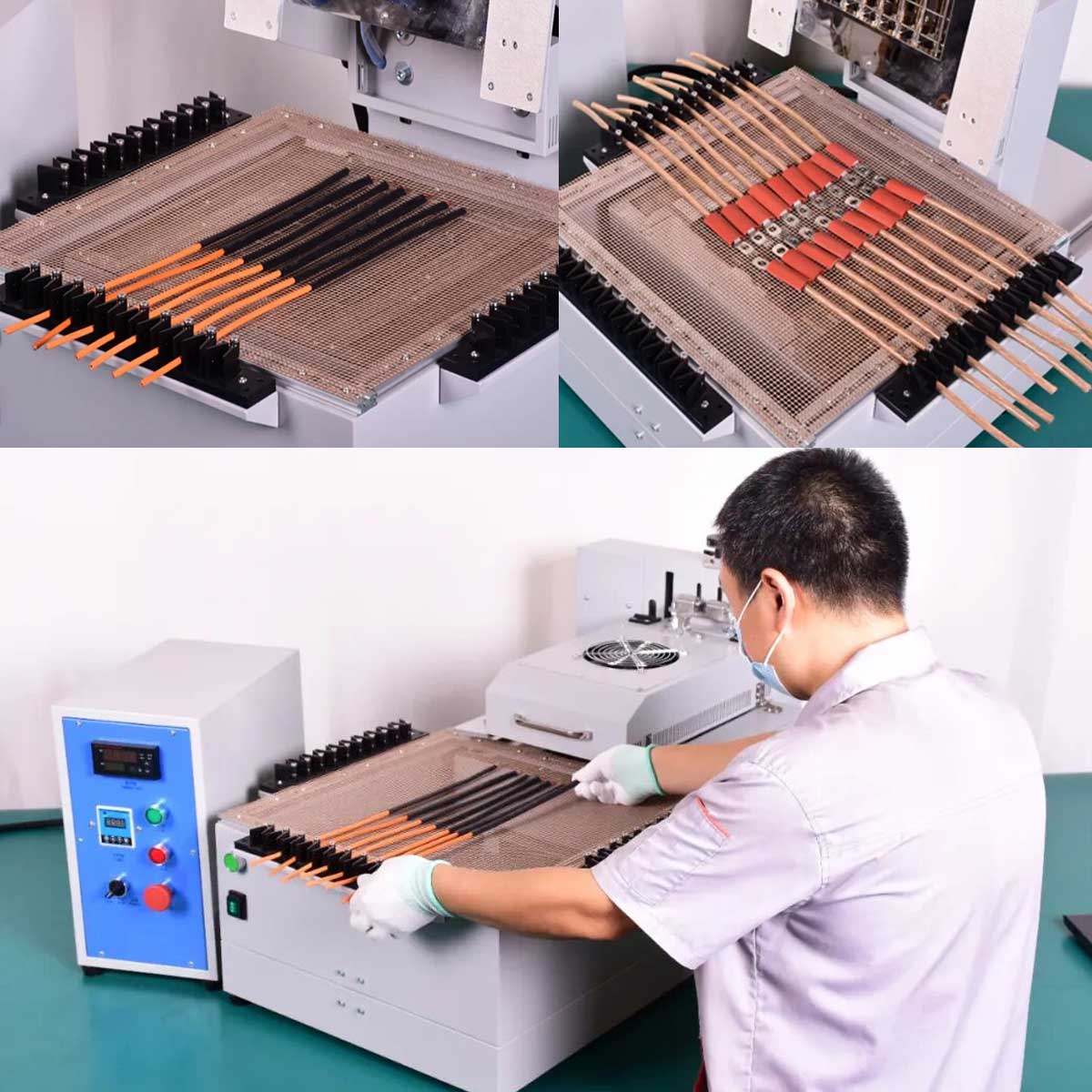

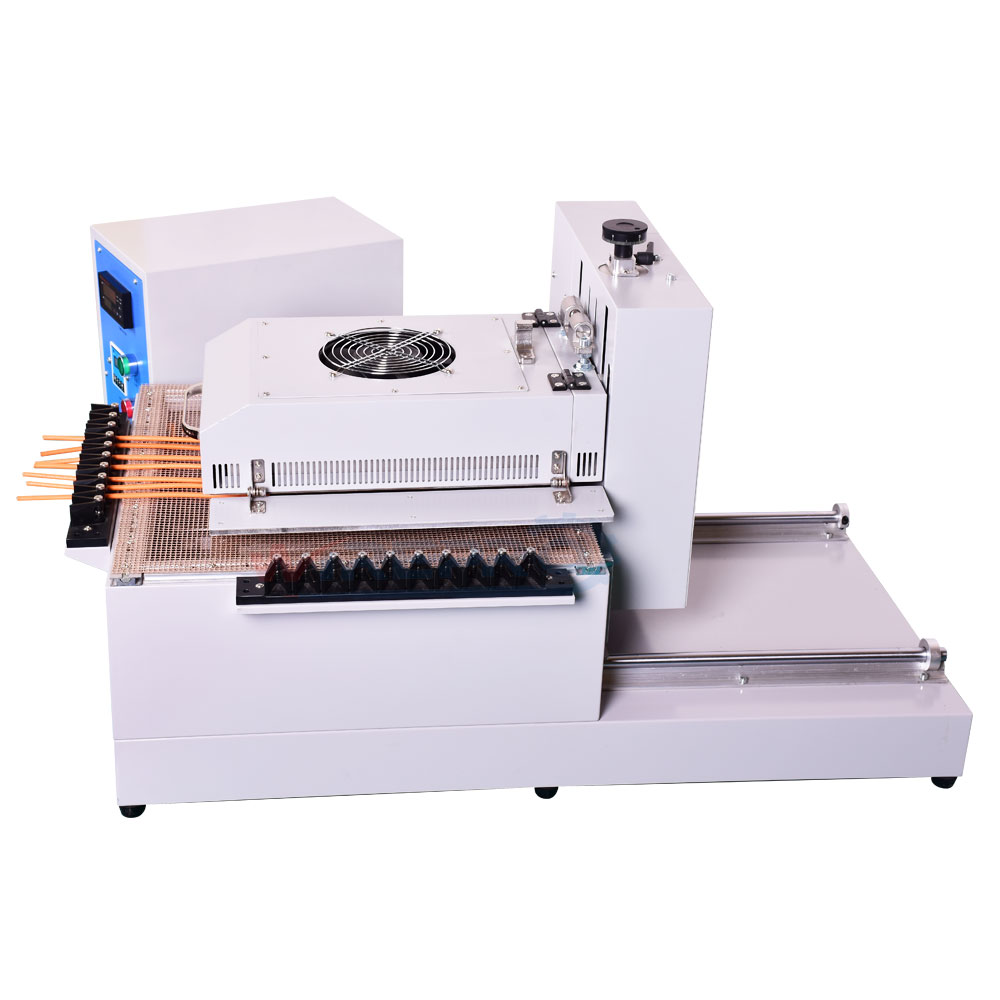

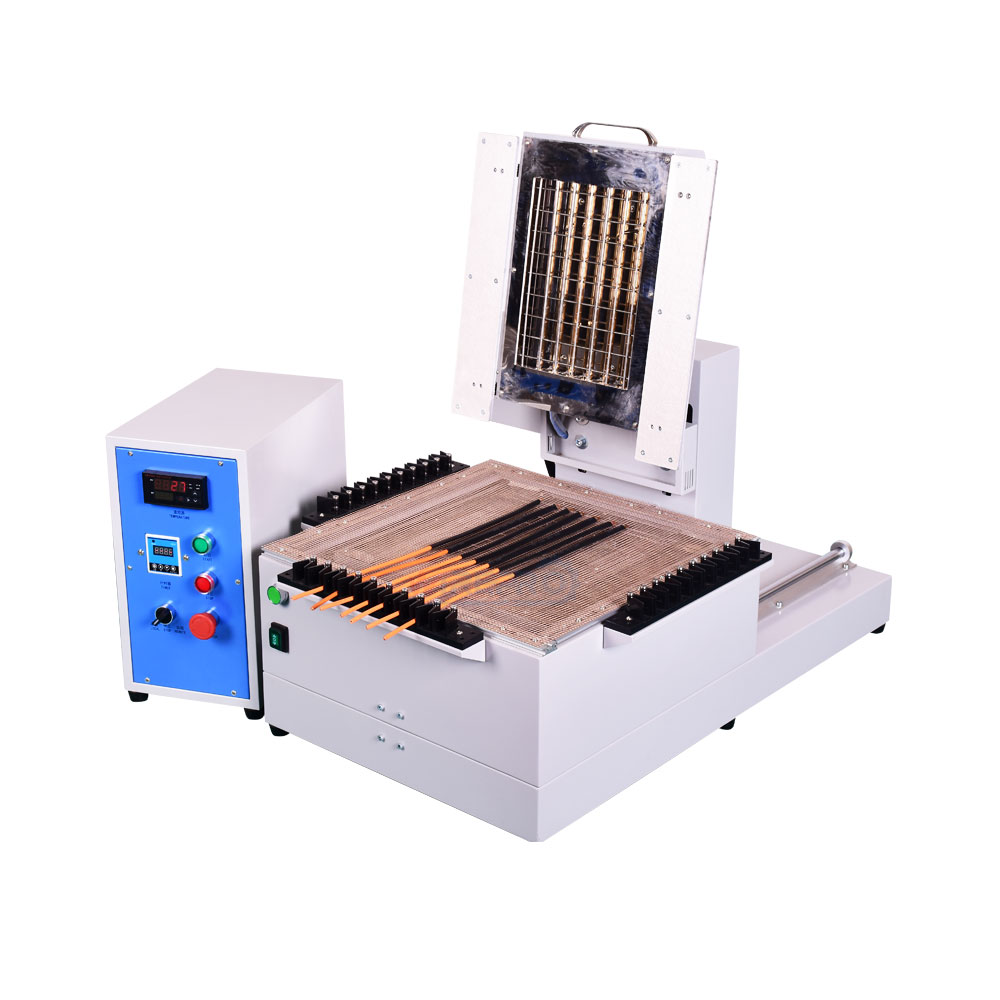

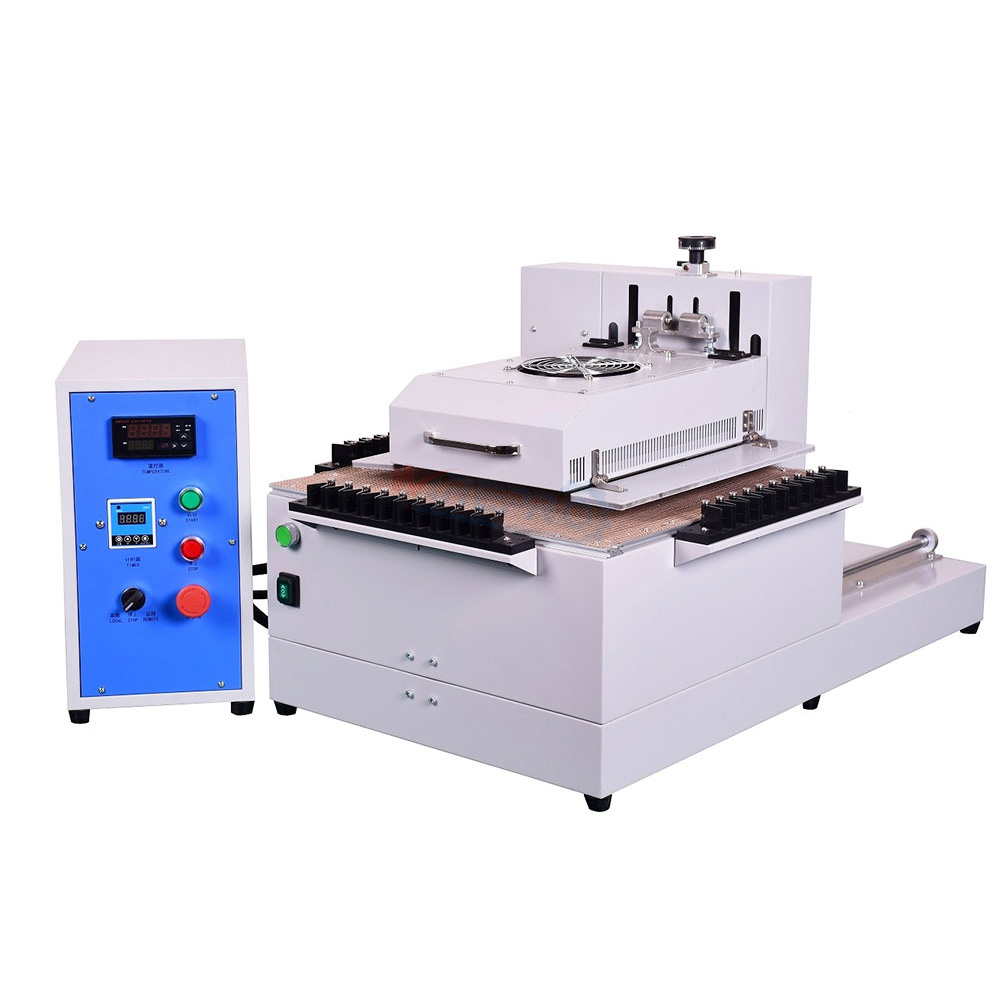

The RD-MT3 is an infrared heat shrink machine featuring a moving upper heating module. The product is placed on the material platform; upon pressing the start button, the heater automatically moves into position above the product. After heating is completed, it automatically returns to its original position. Heating time and dwell time can be freely adjusted according to actual requirements.

This machine is specifically designed for heat shrinking tubing in wire harness processing operations. Operating time, working duration, and heating zone width can all be adjusted to suit different production process requirements. The system supports continuous 24-hour operation without interruption.

ModelRD-MT3
Heating shrinkable tube diameter< 40mm
Heating AreaL180mm * W 260mm
Heating Temperature< 260°C
Heating tube nameInfrared radiation tube
Power supply220V
Power<300W*12
Moving PartMove stock 350mm; speed 0~100mm/s adjustable
WeightGross 62kgs

Frequently Asked Questions

What does the RD-MT3 infrared heat shrink machine do and what is its primary use?

The RD-MT3 is an infrared heat shrink machine featuring a moving upper heating module, specifically designed for heat shrinking tubing in wire harness processing operations. It supports continuous 24-hour operation.

What are the key specifications of the RD-MT3?

It supports heat shrink tubing diameters up to 40mm with a heating area of L180mm × W260mm. It operates at temperatures up to 260°C using 12 infrared radiation tubes, powered by 220V.

What are the unique features of the RD-MT3 compared to other heat shrink machines?

Key features include a moving upper heating module that automatically positions above the product, adjustable heating time and dwell time, and continuous 24-hour operation capability. The moving part has adjustable speed (0-100mm/s).

What are the power and space requirements for installation?

The RD-MT3 operates on 220V power with 12 infrared tubes (each under 300W). Dimensions are not provided on the page. Gross weight is 62kg.

How does the RD-MT3 handle different tubing sizes and changeovers?

The machine supports tubing diameters up to 40mm. Operating time, working duration, and heating zone width can all be adjusted to suit different production process requirements. Heating time and dwell time are freely adjustable.

What are the delivery, installation, and after-sales support terms?

Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.

Related Products

TU-SH2 / TU-SH3 / TU-SH4 Servomotor Cast Iron Industrial Wire Terminal Crimping Machine
TU-SH2 / TU-SH3 / TU-SH4 Servomotor Cast Iron Industrial Wire Terminal Crimping Machine

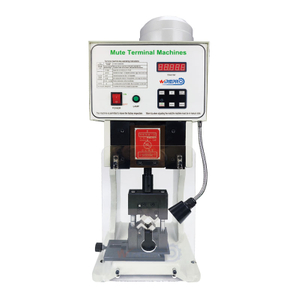

TU-N03 / TU-N04 3T / 4T Custom Applicator Benchtop Wire Crimping Machine
TU-N03 / TU-N04 3T / 4T Custom Applicator Benchtop Wire Crimping Machine

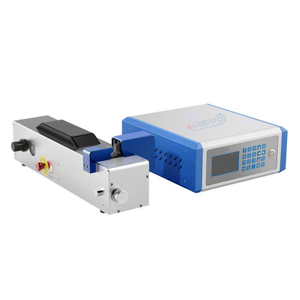

TP-W10 Small Wire Ultrasonic Welder Machine
TP-W10 Small Wire Ultrasonic Welder Machine

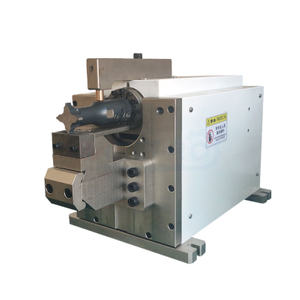

TP-T18 Wire and Metal Terminal Ultrasonic Welder
TP-T18 Wire and Metal Terminal Ultrasonic Welder

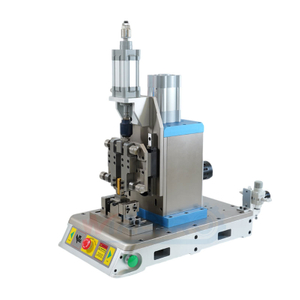

TP-T28 / TP-T50 Wire and Metal Terminal Ultrasonic Welding Machine
TP-T28 / TP-T50 Wire and Metal Terminal Ultrasonic Welding Machine

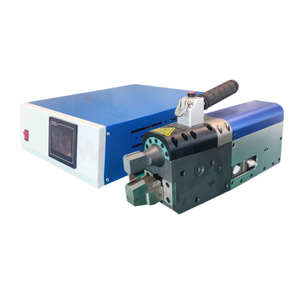

TP-E10 Metal Tube Sealing Machine – Ultrasonic Tube Sealers
TP-E10 Metal Tube Sealing Machine – Ultrasonic Tube Sealers

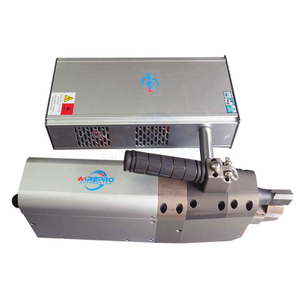

TP-E09 Metal Tube Endcapping Ultrasonic Welding Machine
TP-E09 Metal Tube Endcapping Ultrasonic Welding Machine

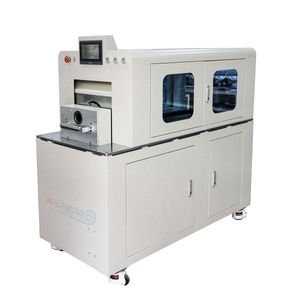

SP-R100 Rotating Knife Big Cable Long-Length Stripping Machine
SP-R100 Rotating Knife Big Cable Long-Length Stripping Machine

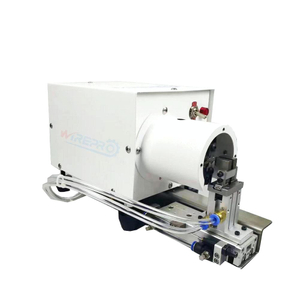

SP-T05 Small Semi-Automatic Stranded Wire Stripping and Twisting Machine
SP-T05 Small Semi-Automatic Stranded Wire Stripping and Twisting Machine

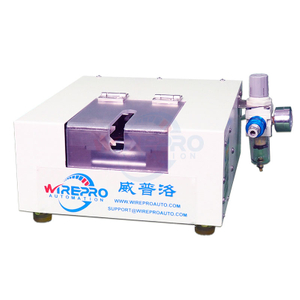

SP-3035 2.5–35mm² No-Blade-Change Pneumatic Cable Wire Stripping Machine
SP-3035 2.5–35mm² No-Blade-Change Pneumatic Cable Wire Stripping Machine

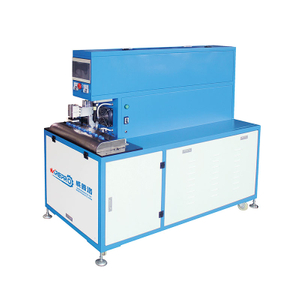

SL-M10 Laser Stripping Machine for Cable Aluminum Foil Shield
SL-M10 Laser Stripping Machine for Cable Aluminum Foil Shield

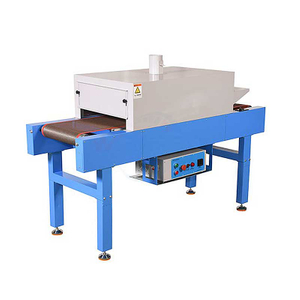

RS-40AM All-Wiring Shrinkable Tube Single-Side Heating Machine
RS-40AM All-Wiring Shrinkable Tube Single-Side Heating Machine

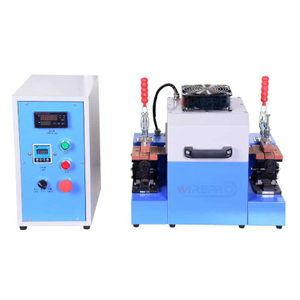

RD-RM12 360-Degree Circular Heat-Shrinkable Tube Heating Machine
RD-RM12 360-Degree Circular Heat-Shrinkable Tube Heating Machine

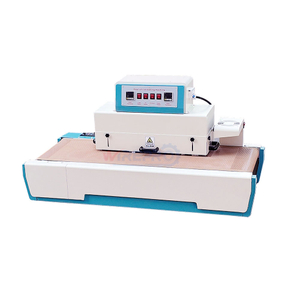

RD-P18 Open-Type Tabletop Heat Shrink Tunnel with Teflon Mesh Conveyor
RD-P18 Open-Type Tabletop Heat Shrink Tunnel with Teflon Mesh Conveyor

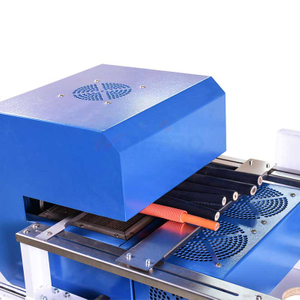

RD-M30 Automatically Moving Bracket Heat Shrinkable Casing Heating Machine
RD-M30 Automatically Moving Bracket Heat Shrinkable Casing Heating Machine

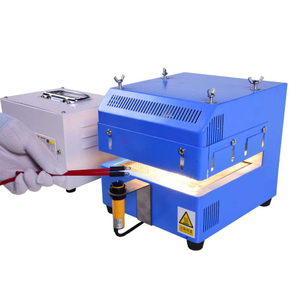

RD-L150 Double-Sided Heating Small Oven – Shrinkable Tube Heating Machine
RD-L150 Double-Sided Heating Small Oven – Shrinkable Tube Heating Machine

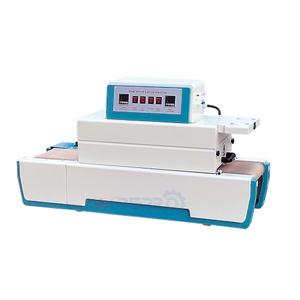

RD-A24 Desktop Enclosed Heat Shrink Tunnel Oven
RD-A24 Desktop Enclosed Heat Shrink Tunnel Oven

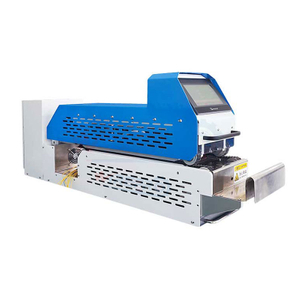

RD-H06 Heat Shrink Tubing Conveyor Oven – Sleeves Belt Heater
RD-H06 Heat Shrink Tubing Conveyor Oven – Sleeves Belt Heater

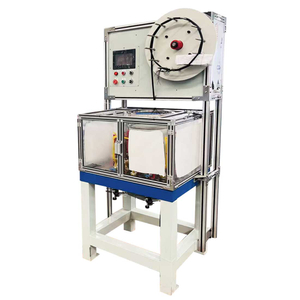

PT-CB16 / B24 / B32 / B48 With Coiler – Automotive Cable Wire Harness Braiding Machine
PT-CB16 / B24 / B32 / B48 With Coiler – Automotive Cable Wire Harness Braiding Machine

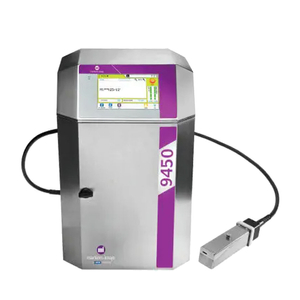

PM-9018 / PM-9450 Wire Marking System – Integrated with World-Renowned Inkjet Printers
