PK-C45 PK-C55
| Availability: | |
|---|---|
| Quantity: | |
Description

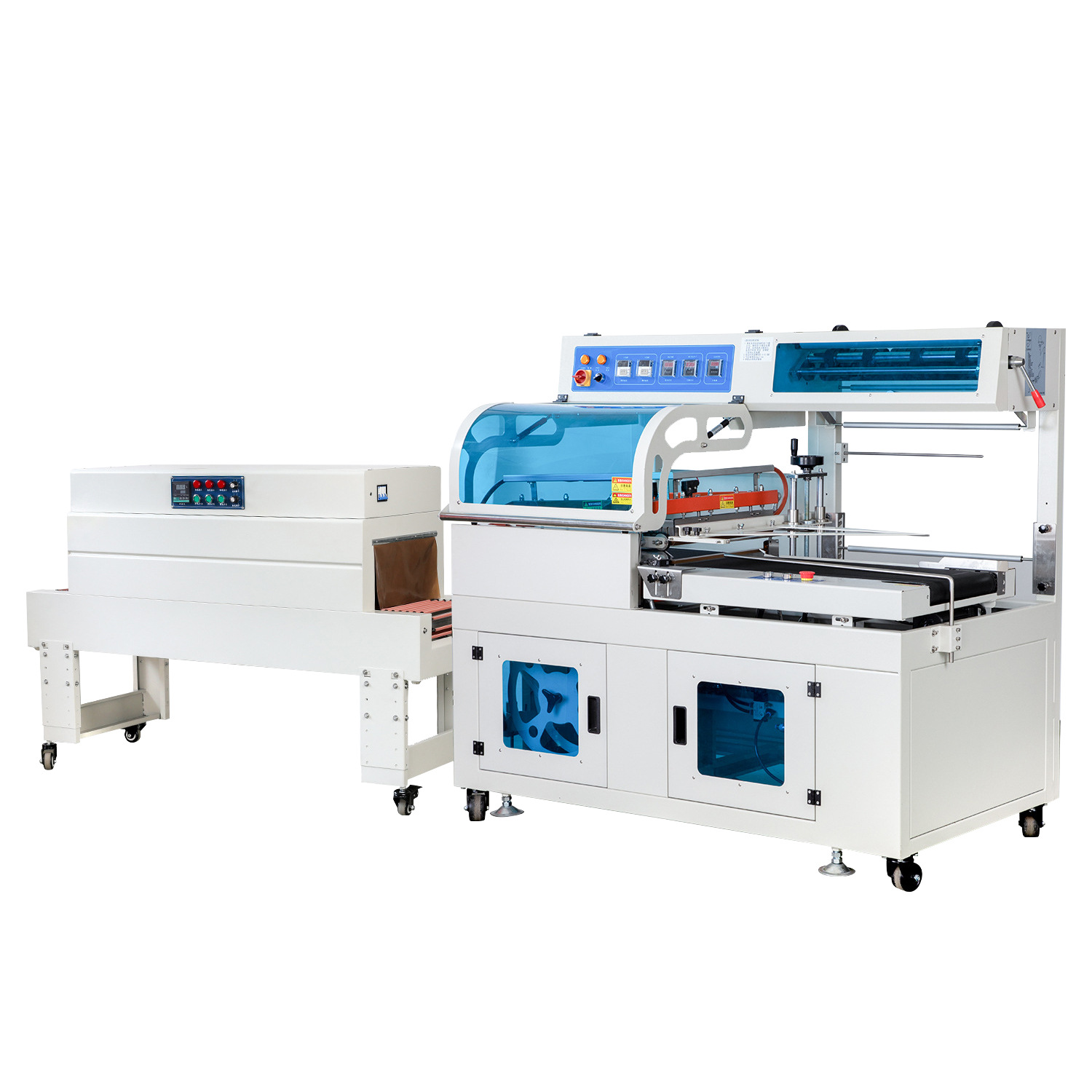

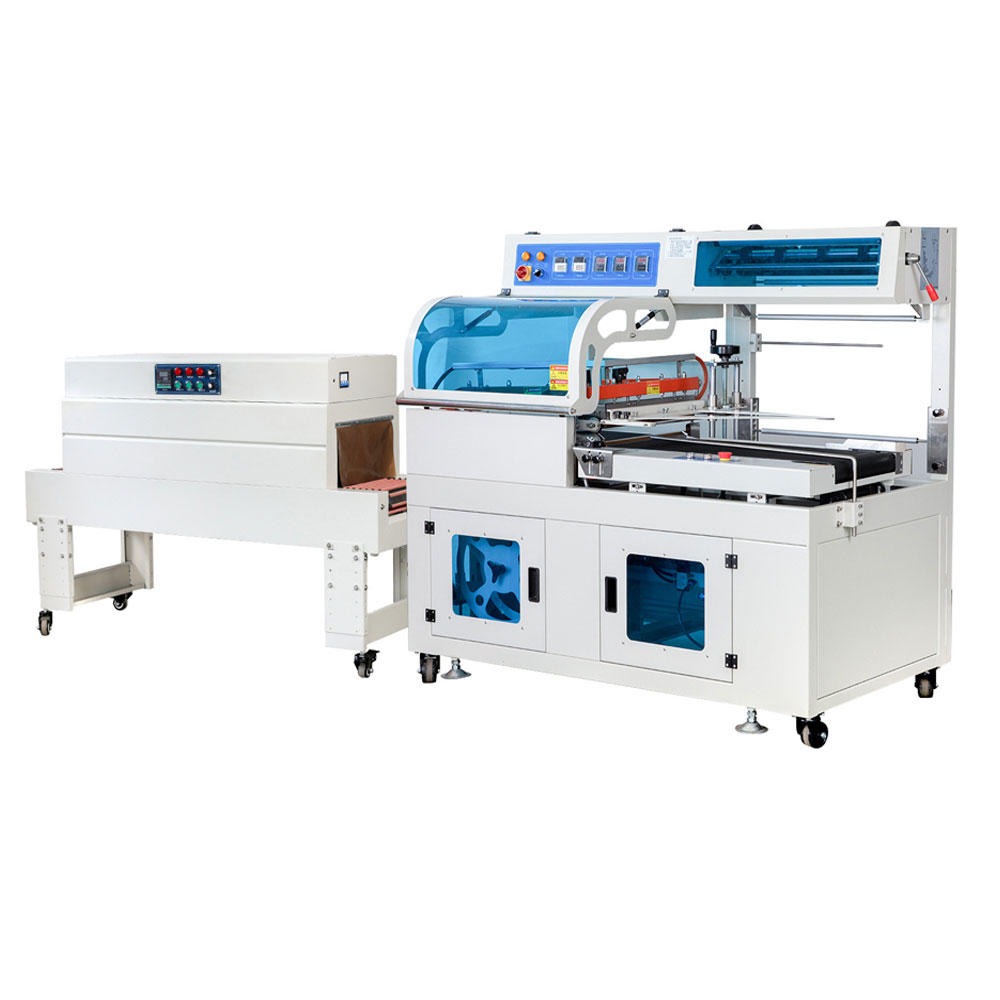

The PK-C45 and PK-C55 are integrated sealing and heat shrink packaging units that combine "L-shaped sealing and cutting" with "heat shrinking" into a single, streamlined machine. After the film is cut and sealed by the sealing knife, the product directly enters the shrink tunnel. Under high-temperature hot air circulation, the film conforms tightly to the product surface, forming a moisture-proof, dust-proof, tamper-evident, and aesthetically pleasing "second skin" protective layer.
Machine Features:

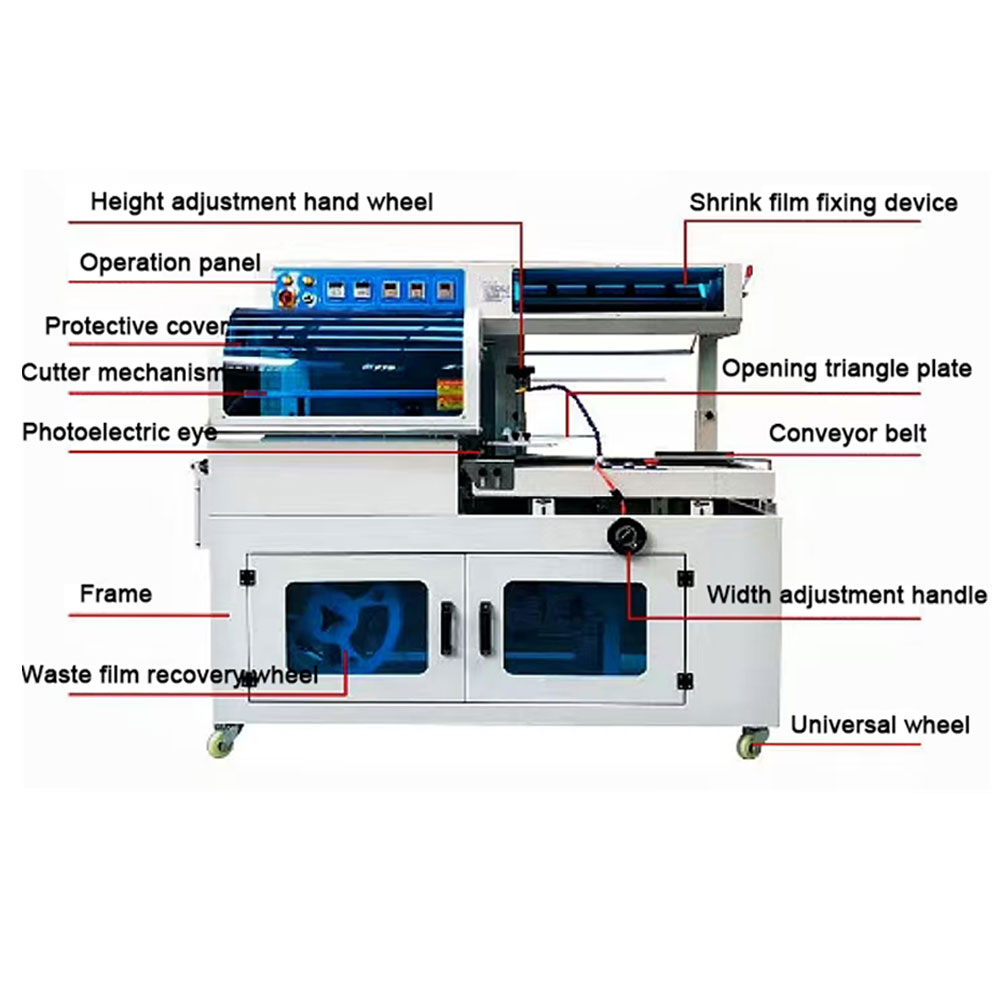

Advanced Sealing Knife – Features American DuPont Teflon coating, offering anti-stick and high-temperature resistance. Seals are firm with no smoking or pollution. The sealing frame is constructed from high-quality alloy steel, ensuring no deformation over time.
Sensors & Detection – Equipped with a sound and light alarm system. Sensors are mainly from leading brands, including Omron components. The photoelectric eye automatically controls the cutting action, and imported detection photoelectric sensors ensure thin and small packages are not missed.
Automatic Cutter Protection – Sensitive and precise cutter with built-in automatic protection function to prevent accidental cutting of products.
High-Speed Operation – Belt-driven automatic feeding system capable of packaging up to 30 packages per minute.
Emergency & Manual Controls – Features a manual emergency stop panel, manual film feeding adjustment, and sealing/cutting switches. Pressing the emergency stop switch immediately halts machine operation.
Adjustable Air Blowing Nozzle – Air nozzle angle can be adjusted to prevent corner wrinkles and ensure smooth shrinking.
Height & Width Adjustments – Table height can be adjusted via a knob to accommodate different item sizes. Width adjustment is operated by a push handle for quick changeover.
| Product model | PK-C45 | PK-C55 |
| Product Name | Film cutting and cover machine | |
| Max Height | < 150mm (can custom) | |
| Max Packing Size (L + H) | < 500mm | < 600mm |
| Max Packing Size (W + H) | < 400mm | < 500mm |
| Sealing knife size (L*W) | 550 * 450 | |
| Packaging speed | 15-30BAGS/MIN | |
| Power supply | 220/50-60HZ | |
| Air source | 0.5-0.7 Mpa | |
| Power | 1.35KW | 1.5KW |
| Machine size | 1650X800X1450MM | |
| Total machine weight | 300KG | 350KG |
| Applicable shrink film | POF.PE | |
Wire roll, small wire spool winding
| Option | Description |
| Take-out Robotic Arm | Automatically picks up and unloads finished wires for continuous unmanned operation; works with collection trays or conveyors. Requires a table on the equipment for installation. |
| Wire Twisting Unit | Twists and compacts copper strands after stripping to prevent stray or reversed strands, facilitating terminal insertion and crimping while improving first-pass yield. Effective for small-gauge wires (≤ 3 mm² cross-section); does not produce noticeable twisting effect on stiffer copper strands. |
| Middle Stripping Device (Window Stripping) | Creates a T-shaped slit on the wire for middle (window) stripping at any position — can be located at the middle or at both ends of the wire. Available in electric and pneumatic versions. |
| Production Management System | Two modes: standalone management (output statistics and job management on a single machine) and multi-machine networking (centralized order dispatching and capacity allocation across multiple machines). |
| Equipment | Function | Key Notes | Product Link |
| Inkjet Printer | Synchronized online printing of serial numbers, characters, and barcodes on the wire surface. | Clear, high-contrast print quality; requires regular consumables (ink and solvent). | View Product |
| Laser Marking Machine | Synchronized online laser marking on the wire surface — no ink required. | No consumables, maintenance-free; marking color depends on wire insulation material and varies accordingly. | View Products |
| Wire Prefeeder | Automatic wire payoff with constant tension, preventing pulling damage from heavy spools and ensuring stripping accuracy. | Compatible with spools of various weights; smooth and steady feeding. | View Products |
| Wire Stacker | Automatically stacks finished wires neatly for easy collection, bundling, and packaging. | Supports extended unattended operation; stacking and collection are fully automatic. Requires a table on the equipment for installation. | View Products |
| Wire Coiler | Automatically coils finished wires into loops for easy bundling and packaging. | Requires an operator nearby to remove finished coils promptly. Requires a table on the equipment for installation. | View Product |
The PK-C45 and PK-C55 are integrated sealing and heat shrink packaging units that combine L-shaped sealing and cutting with heat shrinking into a single streamlined machine. They are used for packaging wire rolls, small spools, and various products requiring moisture-proof, dust-proof protection.
PK-C45: max packing size (L+H) <500mm, (W+H) <400mm, 1.35KW, 300kg. PK-C55: (L+H) <600mm, (W+H) <500mm, 1.5KW, 350kg. Both: max height <150mm, speed 15-30 bags/min, 220V/50-60Hz.
Key features include American DuPont Teflon-coated sealing knives for anti-stick and high-temperature resistance, Omron sensors with sound/light alarm, photoelectric eye automatic cutting control, automatic cutter protection, and adjustable air blowing nozzle to prevent corner wrinkles.
The machines support POF and PE shrink films. Table height is adjustable via knob, and width adjustment is operated by a push handle for quick changeover. Max height is <150mm (custom available).
Both models require 220V/50-60Hz power and 5-7 MPa air source. Machine size: 1650*800*1450mm. Weights: PK-C45 300kg, PK-C55 350kg. They require dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
