HB-T35/HB-T45/HB-T60
| Availability: | |
|---|---|
| Quantity: | |
Description

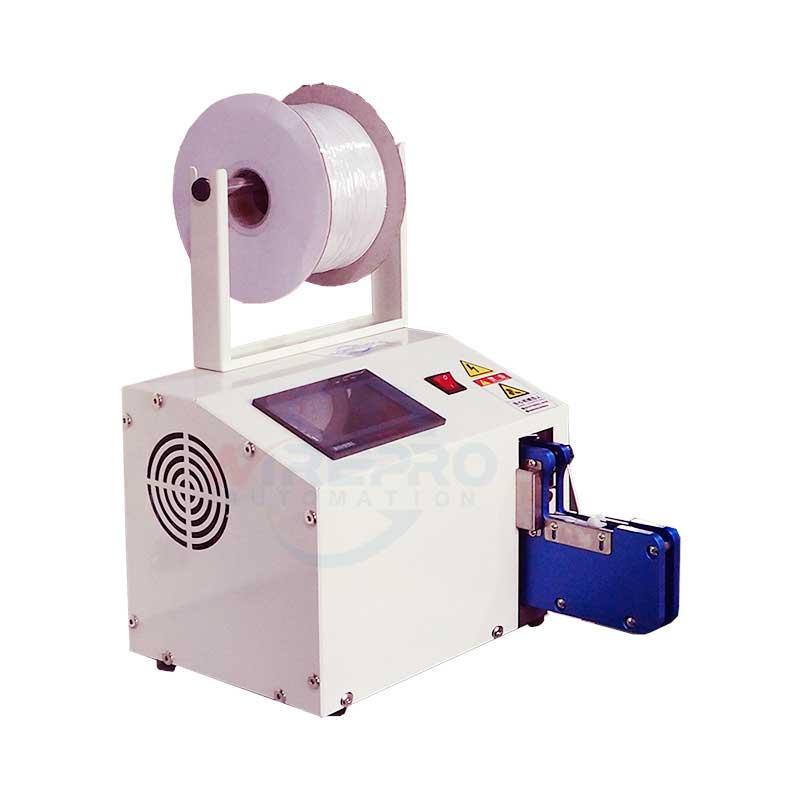

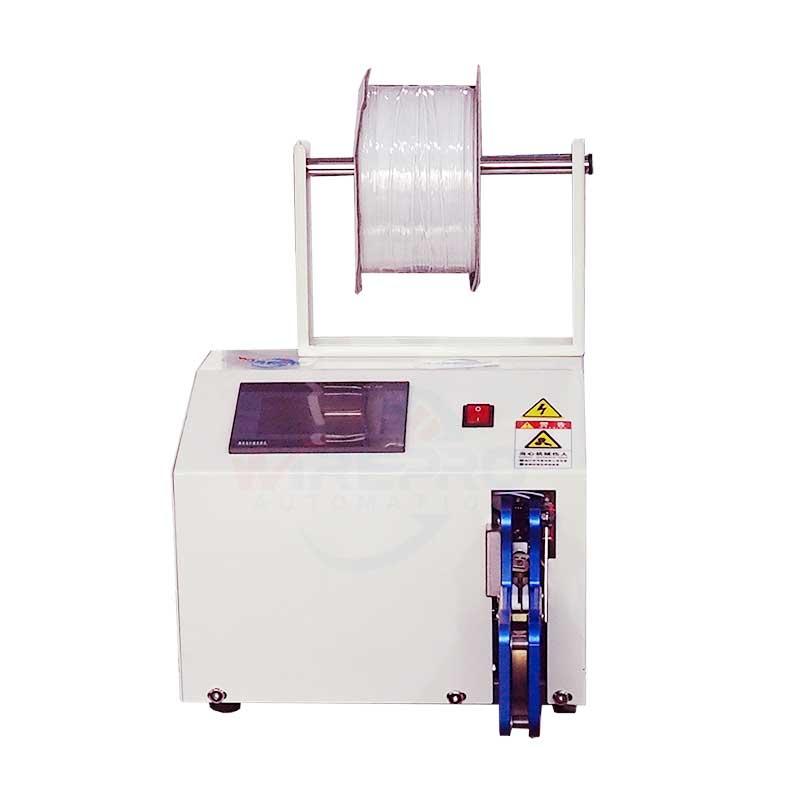

The HB-T40 is an electric wire tying machine capable of winding wires into both round and figure-8 shapes, while automatically cutting the cable tie and twisting it to secure the bundle. It is widely used for bundling AC/DC power cords, USB data cables, video cables, HDMI cables, and other types of transmission wires.
Key Features:

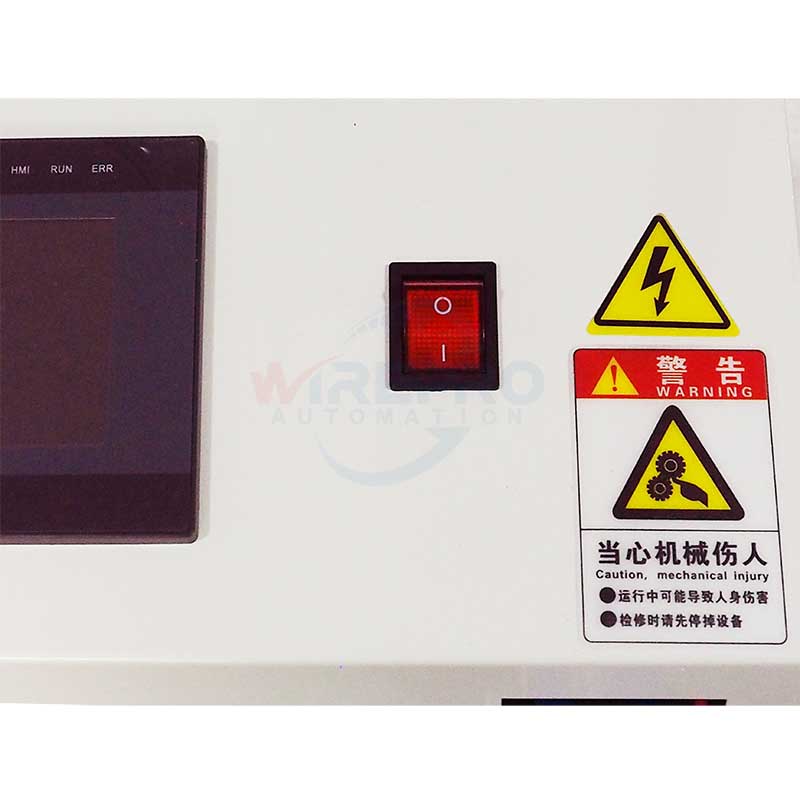

Precise Electronic Control – Equipped with stepper motors and a PLC touch screen for accurate cable tie length control.
Adjustable Winding Parameters – Both winding speed and winding cycle can be adjusted to suit different wire types and bundling requirements.
Improved Efficiency – Significantly boosts working efficiency compared with manual tying operations.
Cost-Effective & Reliable – Reasonable price with good build quality, and simple enough for anyone to operate.
Dual Coil Shape Output – Supports both round and 8-shape coil winding, offering flexibility for different packaging preferences.
| Model | HB-T35 | HB-T45 | HB-T60 |
| Bundling Diameter | Φ5-35mm | Φ20-45mm | Φ25-60mm |
| Cable Tie Length | 60-140mm | 110-200mm | 130-260mm |
| Number of Bindings | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good |
| Cable Tie | Plastic or rubber-coated iron core wire | ||
| Power Supply | 110/220VAC, 50/60Hz | ||
| Power | 60W | ||
| Dimensions | 32*45*50cm | ||
| Weight | 32kg | 33kg | |
Typical Applications:
AC/DC power cord bundling
USB data cable tying
Video and HDMI cable bundling
Wire roll and small wire spool winding
Other transmission wire finishing
The HB-T40 is an electric wire roller tying machine that winds wires into round or figure-8 shapes and automatically cuts and twists cable ties for bundling AC/DC power cords, USB data cables, video cables, and HDMI cables.
HB-T35: bundling Φ5-35mm, tie length 60-140mm. HB-T45: bundling Φ20-45mm, tie length 110-200mm. HB-T60: bundling Φ25-60mm, tie length 130-260mm. All: 60W power, 32*45*50cm, weights 32-33kg.
Key features include step motors with PLC touch screen for cable tie length control, adjustable winding speed and cycle, improved efficiency compared to manual operation, and reasonable price with easy operation.
All models operate on 110/220VAC, 50/60Hz power (60W) and share dimensions of 32*45*50cm. Weights range from 32kg to 33kg. They are benchtop units.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
