TU-S08
| Availability: | |
|---|---|
| Quantity: | |

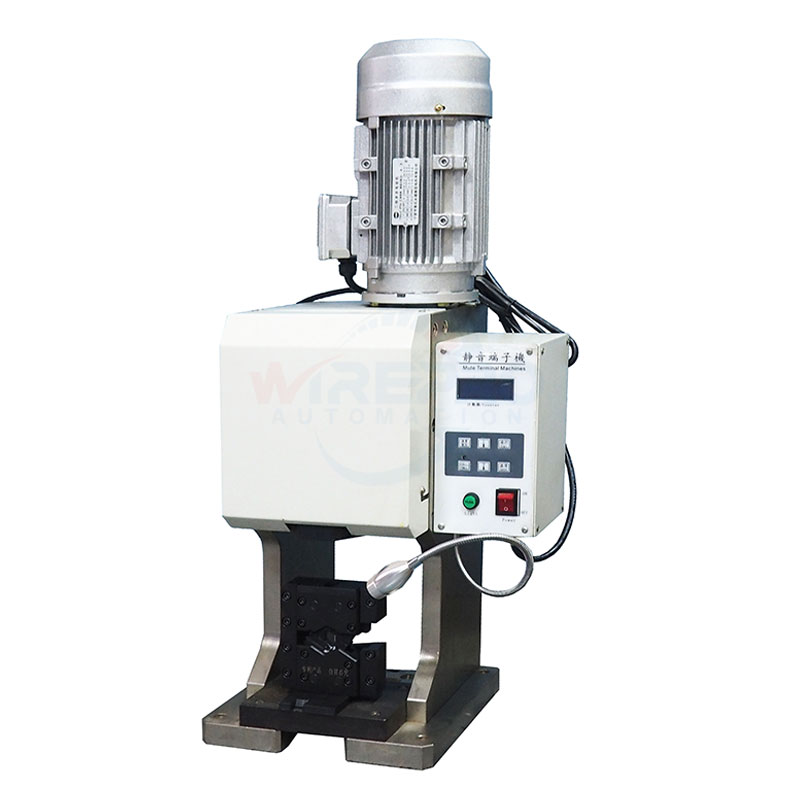

This advanced crimping machine is specifically designed for large square battery tubular connectors and cable lugs ranging from 1-35mm². Featuring an innovative adaptive applicator system, it automatically adjusts knife edge size for different terminals without requiring applicator changes, supporting hexagonal, quadrilateral, and M-shape crimping configurations.
Key Features:
1. High-Performance Control System: Industrial-grade control chip paired with precision servo drive ensures stable operation
2. Smart PLC Technology: Instantly adapts crimping range for various terminal types
3. Universal Applicator: Handles 1-35mm² terminals without tool changes
4. Multi-Profile Crimping: Supports hexagonal, quadrilateral, and M-shape crimps
5. Adjustable Positioning: Accommodates different square wire specifications
6. Compact Design: Space-efficient structure with low-noise operation
Ideal for battery manufacturing and electrical applications, this machine combines versatility with precision crimping performance in a robust, user-friendly package.
This advanced crimping machine is specifically designed for large square battery tubular connectors and cable lugs ranging from 1-35mm². Featuring an innovative adaptive applicator system, it automatically adjusts knife edge size for different terminals without requiring applicator changes, supporting hexagonal, quadrilateral, and M-shape crimping configurations.
Key Features:
1. High-Performance Control System: Industrial-grade control chip paired with precision servo drive ensures stable operation
2. Smart PLC Technology: Instantly adapts crimping range for various terminal types
3. Universal Applicator: Handles 1-35mm² terminals without tool changes
4. Multi-Profile Crimping: Supports hexagonal, quadrilateral, and M-shape crimps
5. Adjustable Positioning: Accommodates different square wire specifications
6. Compact Design: Space-efficient structure with low-noise operation
Ideal for battery manufacturing and electrical applications, this machine combines versatility with precision crimping performance in a robust, user-friendly package.
| Model | TU-S08 |
| Cable range | Max about 35mm², based on terminal |
| Crimping Force | 8T |
| Stroke | 30mm |
| Crimping Tolerance | ±0.03mm |
| Speed | 10-30 pcs/min |
| Driving Mode | Ball Screw |
| Control System | Motion Control Board + Touch Screen Control |
| Reducer | Planet Reducer |
| Adaptive Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold |
| Power Source | 220V 50-60Hz |
| Motor Power | 1.5KW Servo Motor |
| Machine Size | 66*50*82cm |
| Machine Weight | 95kgs |
| Model | TU-S08 |
| Cable range | Max about 35mm², based on terminal |
| Crimping Force | 8T |
| Stroke | 30mm |
| Crimping Tolerance | ±0.03mm |
| Speed | 10-30 pcs/min |
| Driving Mode | Ball Screw |
| Control System | Motion Control Board + Touch Screen Control |
| Reducer | Planet Reducer |
| Adaptive Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold |
| Power Source | 220V 50-60Hz |
| Motor Power | 1.5KW Servo Motor |
| Machine Size | 66*50*82cm |
| Machine Weight | 95kgs |
Application
Cable lug terminal crimping samples
Application
Cable lug terminal crimping samples
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
