TU-S20
| Availability: | |
|---|---|
| Quantity: | |
This series of semi-automatic terminal crimping machines offers versatile performance for processing various terminal types, including computer terminals, DC/AC terminals, single-grain terminals, and joint terminals. Featuring quick applicator changeover, the machines adapt effortlessly to different production requirements.
Key Features:
1. Integrated Frequency Converter: Delivers high-speed operation with reduced noise levels
2. Customizable Crimping Dies: Precision-engineered to match specific terminal specifications
3. Adjustable Production Speed: Flexible rate control for optimal throughput
4. Dual Operation Modes: Seamless switching between manual and automatic operation
5. Production Monitoring: LED counter displays real-time crimping quantity
Designed to accommodate various wire sizes and terminal thicknesses, each machine configuration offers appropriate crimping force for specific application needs.
| Model | TU-S15 | TU-S20 |
| Cable range | Min about 2.5mm²，Max 75mm² | Min about 2.5mm²，Max 120mm² |
| Crimping Force | 15T | 20T |
| Stroke | 35mm | 35mm |
| Crimping Tolerance | ±0.03mm | ±0.03mm |
| Speed | 10-30 pcs/min | 10-30 pcs/min |
| Driving Mode | Ball Screw | Ball Screw |
| Control System | Motion Control Board + Touch Screen Control | Motion Control Board + Touch Screen Control |
| Reducer | Planet Reducer | Planet Reducer |
| Adaptive Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold |
| Power Source | 220V 50-60Hz | 220V 50-60Hz |
| Motor Power | 2KW Servo Motor | 2KW Servo Motor |
| Machine Size | 74*74*150cm | 74*74*150cm |
| Machine Weight | 130kgs | 150kgs |
Application
Cable lug terminal crimping samples

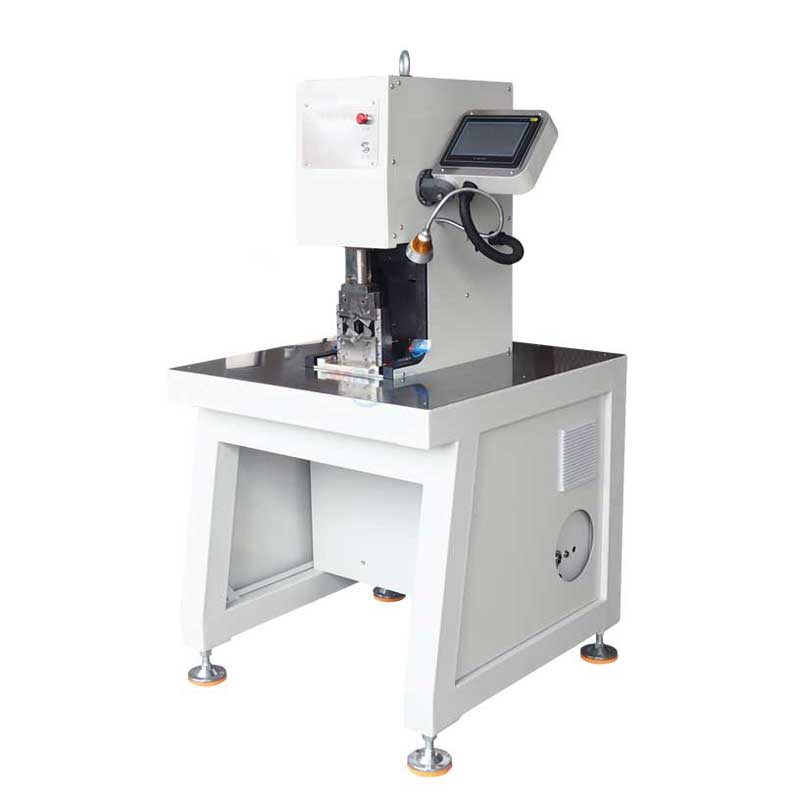

The TU-S20 is a heavy-duty semi-automatic servo crimping machine designed for cable lugs and terminals up to 120mm². It is used for processing various terminal types including computer, DC/AC, single-grain, and joint terminals.
It supports cable ranges from approximately 2.5mm² to 120mm² with 20-ton crimping force and 35mm stroke. It achieves ±0.03mm crimping tolerance and supports hexagonal, quadrilateral, and M-shape crimping configurations.
The machine operates at 10-30 pieces per minute with adjustable production speed. It features a motion control board with touch screen control, dual manual/automatic operation modes, and an LED counter for real-time production monitoring.
Key features include quick applicator changeover for different terminals, integrated frequency converter for reduced noise, adjustable production speed, and a hexagon mold system that requires no mold exchange for different terminal sizes.
The TU-S20 requires 220V, 50-60Hz power with a 2KW servo motor. It has dimensions of 74*74*150cm and weighs 150kg, requiring dedicated floor space for installation.
The machine features quick applicator changeover for different terminal types. It uses a hexagon mold system that requires no mold exchange for different sizes, and supports M-type, OPT, and quadrangle molds. Custom crimping dies are available for specific terminal specifications.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
