TP-FW3
| Availability: | |
|---|---|
| Quantity: | |

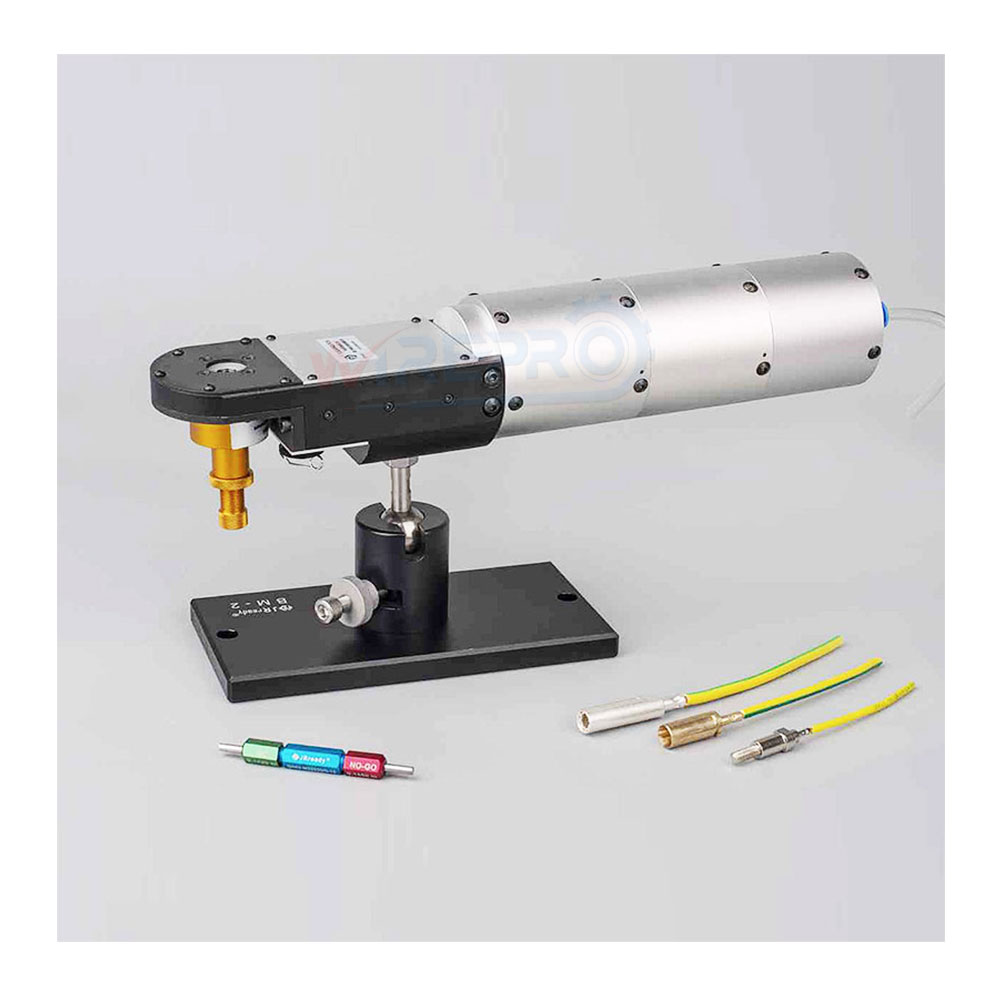

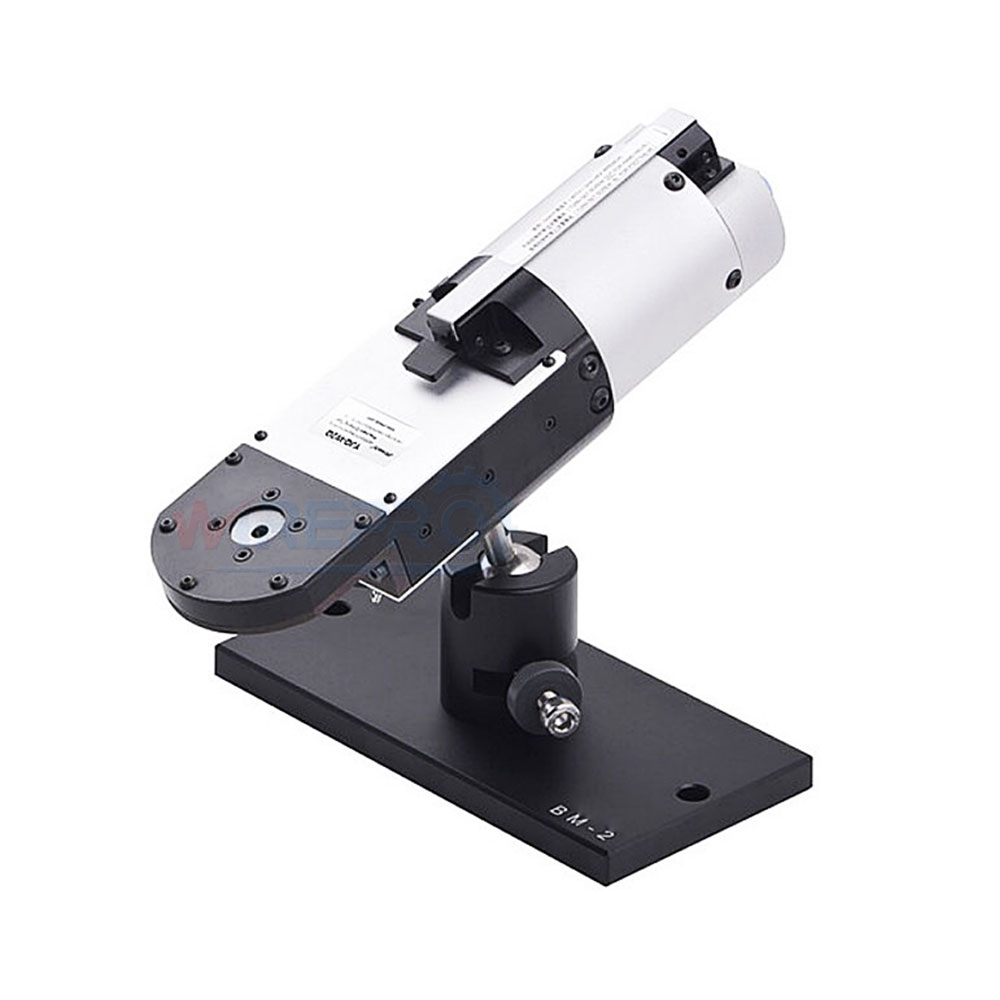

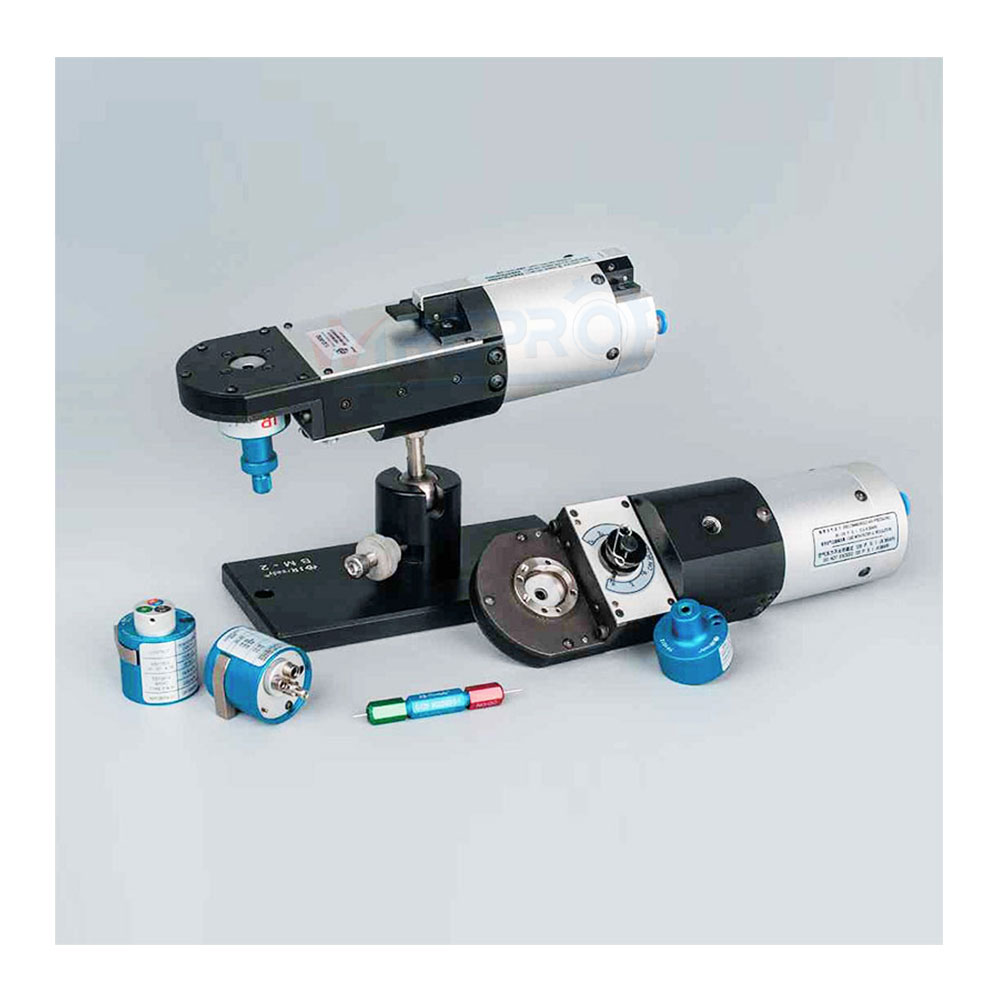

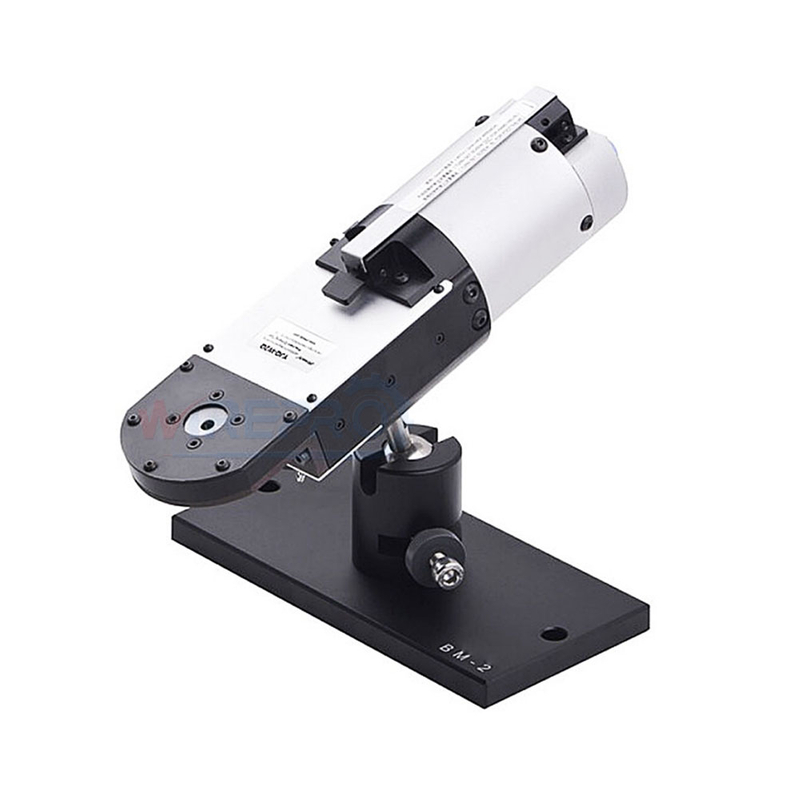

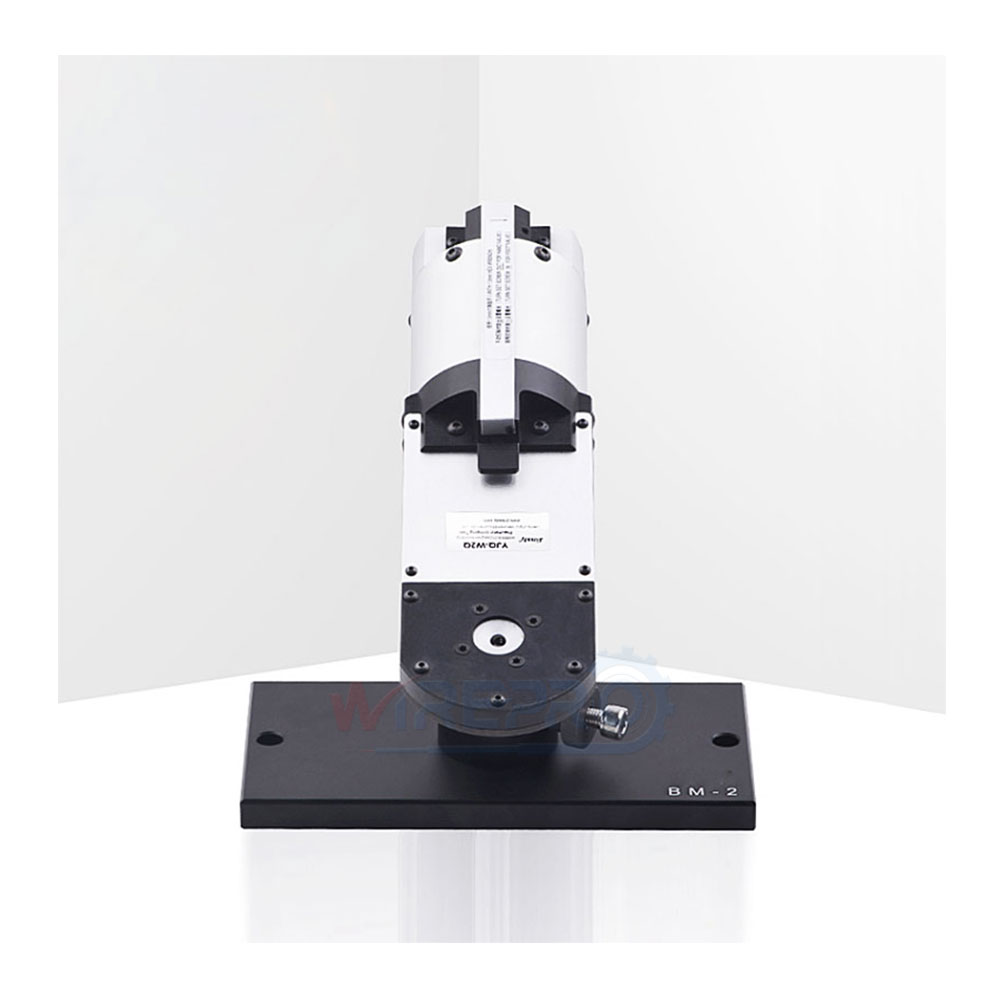

This machine is designed for crimping copper lugs (including DT, DTG, SC, JGK, JGY, JG, JM, C45, GT-1, and GTY-1 types), suitable for contacts up to 35 mm².
Key Specifications:
1. High-Efficiency Crimping: Achieves fast crimping and one-time shaping, delivering pull force 1.3 times stronger than standard 6-sided crimps
2. Versatile Compatibility: Works effectively with rotary contacts
3. Precision Adjustment: Features continuously adjustable crimp depth with minimum 0.1mm increments
4. Consistent Quality: Equipped with distance locking devices to ensure uniform crimping results

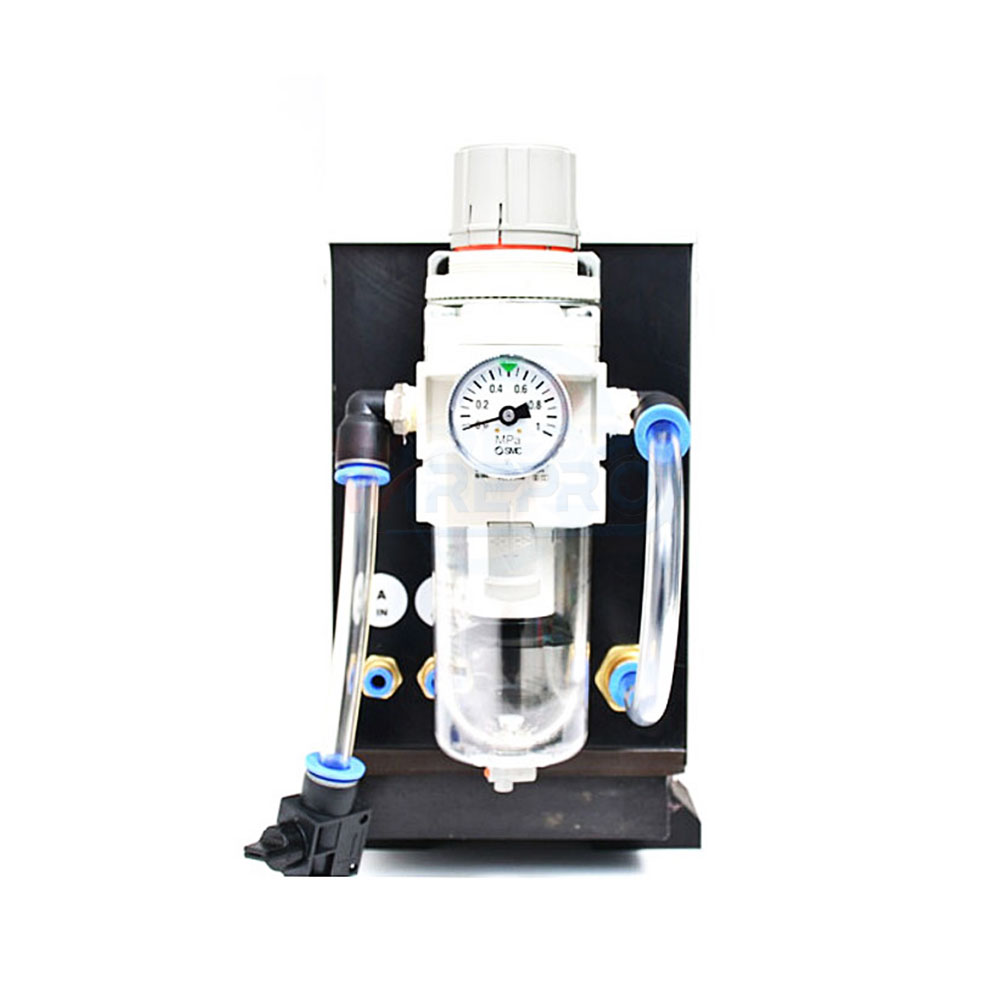

5. Pneumatic Operation: Generates full crimping force from compressed air - safe, reliable, and energy-efficient
6. Easy Calibration: Simplified gauge adjustment for quick setup
7. Compact Design: Space-saving size ideal for production line integration
The machine combines robust performance with operational efficiency, making it an optimal solution for various electrical crimping applications.
Model | TP-FW3 | TP-FW4 |
Features | For middle-size wire | For middle-size wire |
Available Wire | 0.8-8mm² | 2.075-13.3mm² |
Available Wire | AWG 8-18 | AWG 6-14 |
Opening Dia | 8.3mm | 9.2mm |
Indentation Length | 2.88mm | 2.88mm |
Application
The TP-FW3 and TP-FW4 are four-indent terminal crimping machines designed for medium-size wires. They are used for crimping copper lugs and terminals in electrical applications requiring precise, consistent four-indent crimping.
TP-FW3 handles 0.8-8mm² (AWG 8-18) with 8.3mm opening and 2.88mm indentation length. TP-FW4 handles 2.075-13.3mm² (AWG 6-14) with 9.2mm opening and 2.88mm indentation length.
Key features include four-indent crimping for superior pull force, pneumatic operation for safe and energy-efficient performance, continuously adjustable crimp depth (0.1mm increments), distance locking for consistent quality, and compact design.
Specific air pressure and dimension details are not provided on the page. Both models feature a compact, space-saving design for production line integration. Please contact Wirepro directly for detailed specifications.

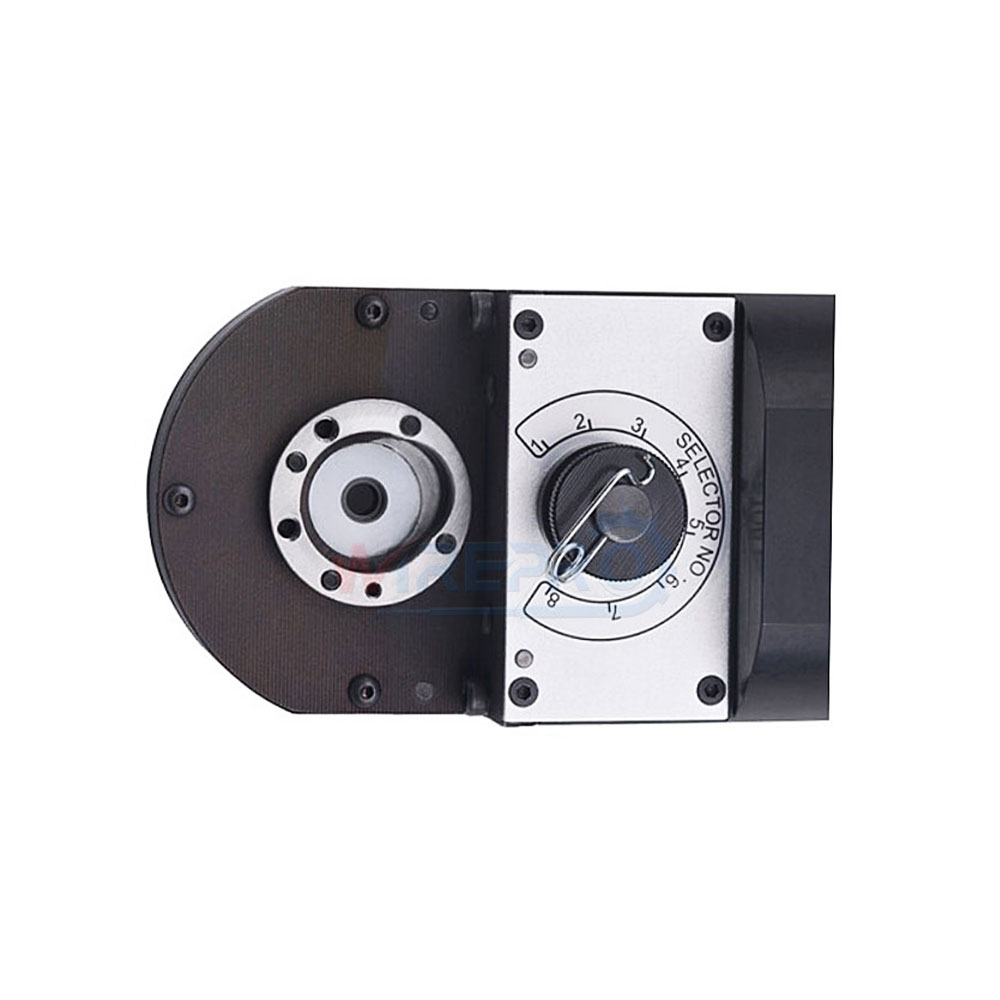

Crimp depth is continuously adjustable with 0.1mm increments, and simplified gauge adjustment enables quick setup for different terminals. Distance locking devices ensure uniform crimping results across changeovers.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
