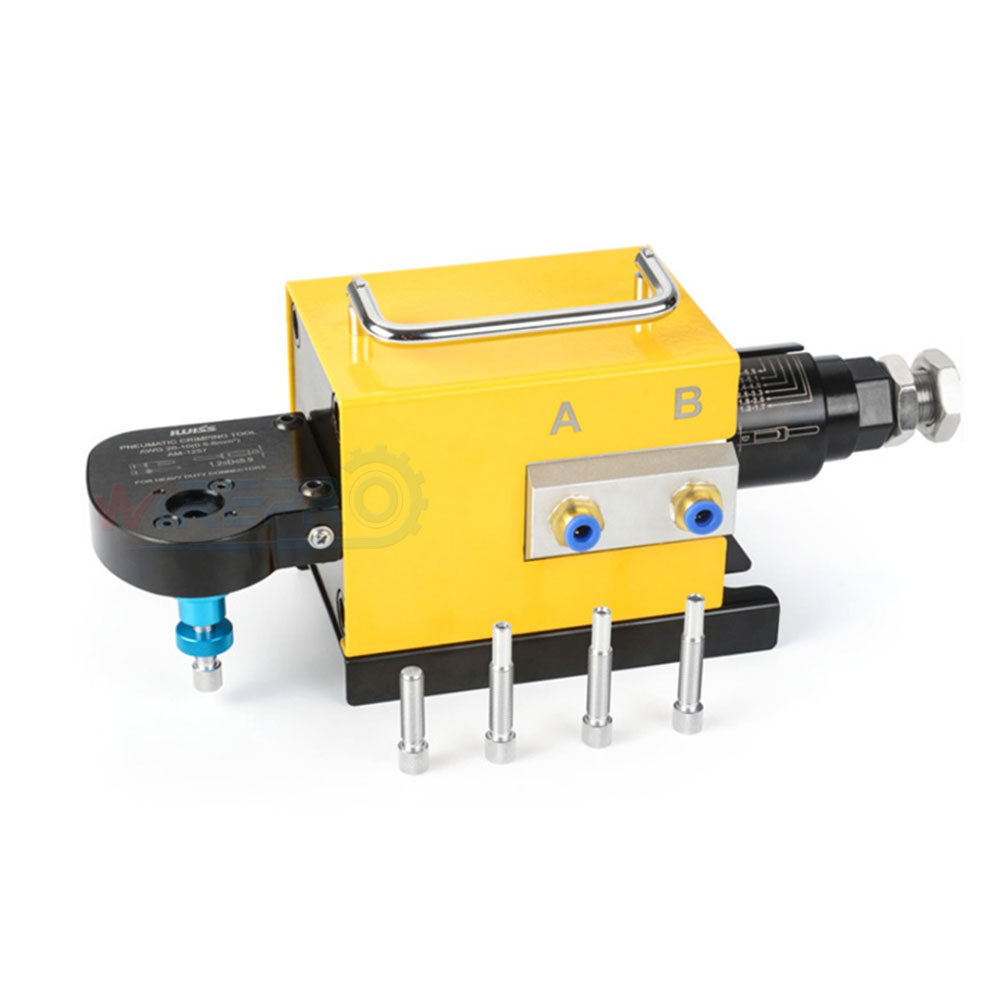

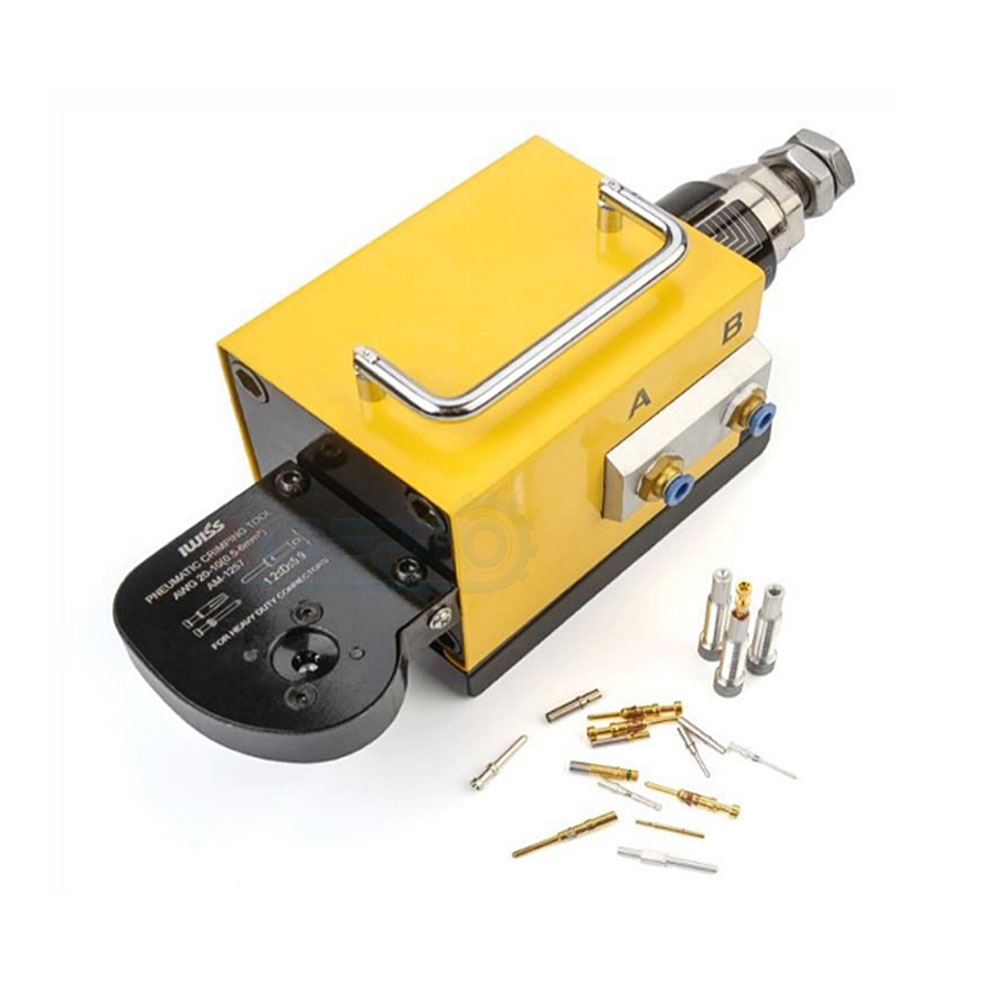

TP-C10 Pneumatic Coaxial Cable And Wire Terminal Crimping Machine

  • TP-C10

Availability:
Quantity:
Inquire Add to Basket

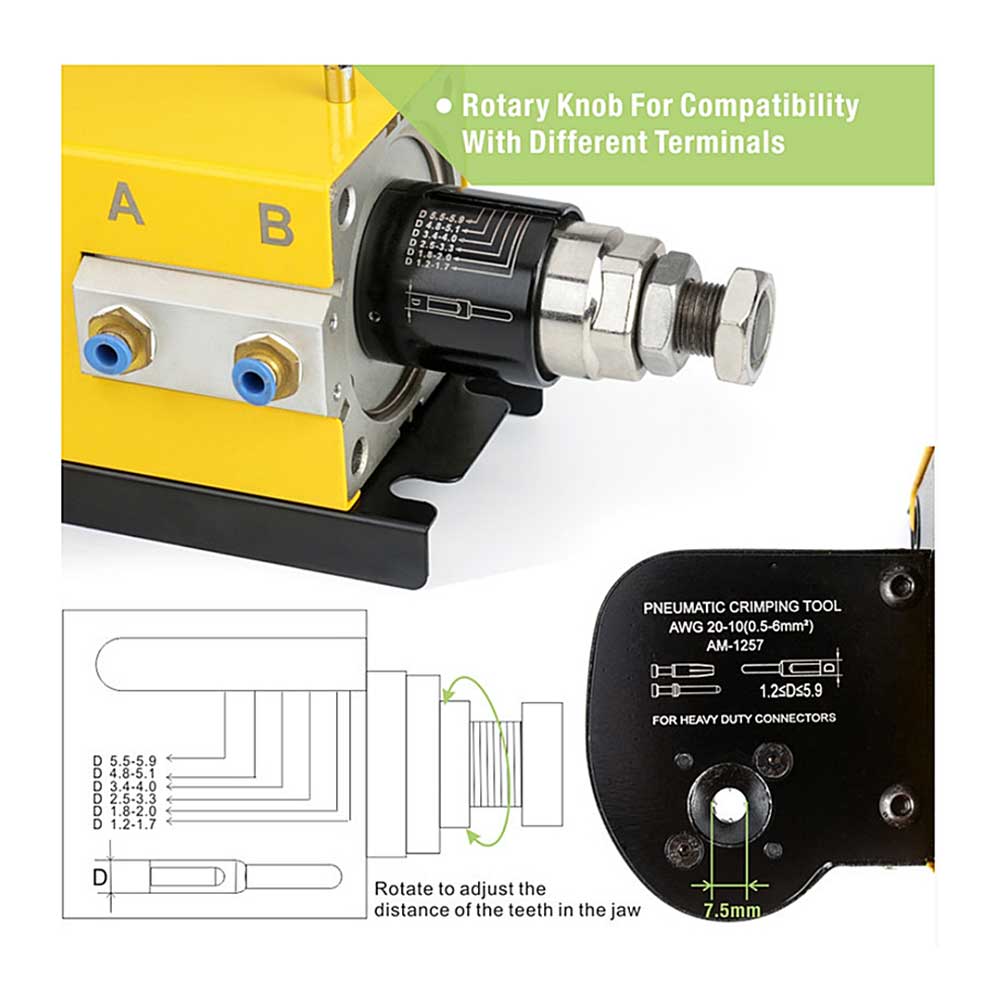

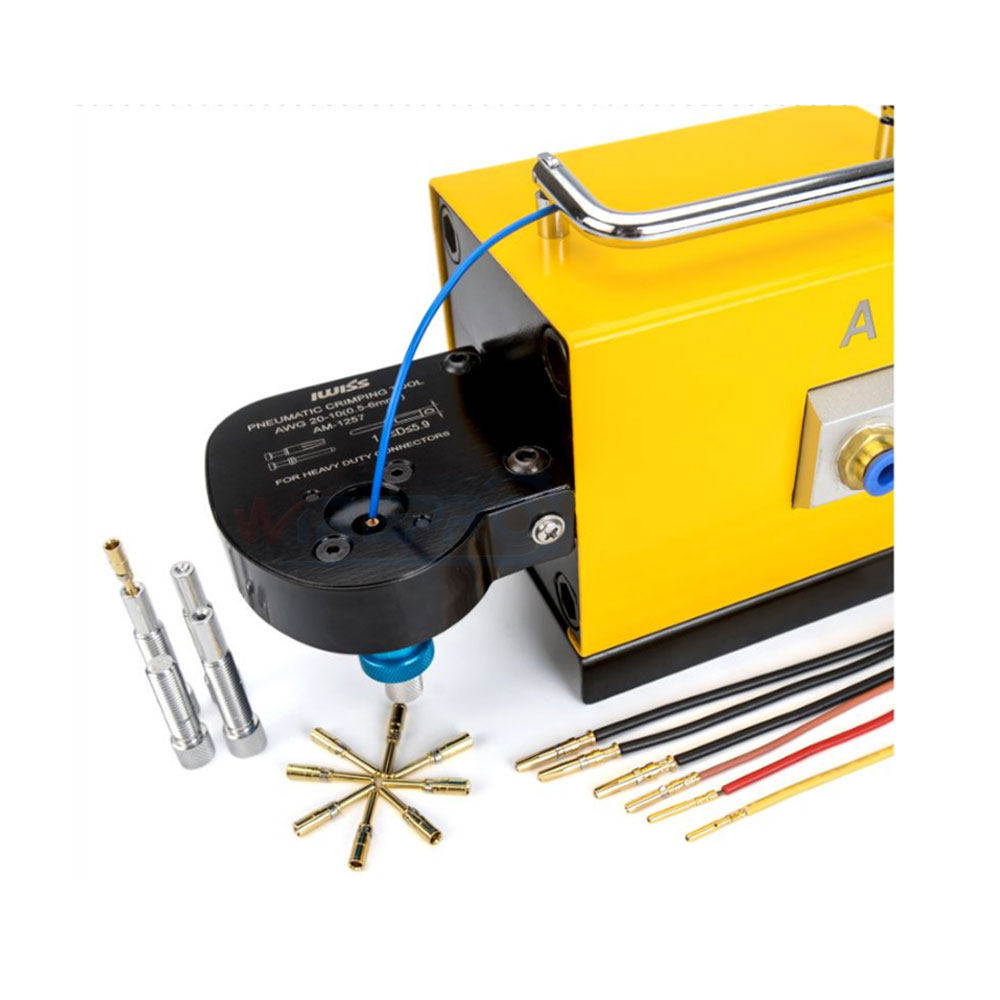

This machine is designed for four-core pinpoint crimping, specifically for cold press connections of coaxial cables and terminals in electrical connectors. It features a multi-function locator that can be adjusted to different depths to accommodate pins of varying lengths.

Specifications:

1. Crimping Type: Four-point coaxial crimping

2. Crimping Range: Dia 1.2-5.7 mm (AWG 20-AWG 10)

3. Terminal Material: Alloy material

4. Operation Mode: Pneumatic

The pneumatic aviation terminal crimper ensures precise and reliable crimping performance for aviation and electrical applications.


Model

TP-C10

Conductor   Cross-Section

0.5-6sqmm / 0.03-0.52sqmm /

Wire Size

AWG 20   -10 /  AWG 32 – 20 /  AWG 10 – 6

Dimensions

120*80*110cm

Weight

125kgs


Application

Coaxial cable crimping


Frequently Asked Questions

What does the TP-C10 pneumatic coaxial cable and wire terminal crimping machine do and what is its primary use?

The TP-C10 is a pneumatic coaxial cable and wire terminal crimping machine designed for four-core pinpoint crimping. It is used for cold press connections of coaxial cables and terminals in electrical connectors for aviation and electrical applications.

What crimping ranges and wire sizes can the TP-C10 handle?

It supports crimping ranges of 1.2-5.7mm diameter (AWG 20-AWG 10). It also accommodates conductor cross-sections of 0.5-6sqmm and AWG 32-20 / AWG 10-6 for different applications.

What are the unique features of the TP-C10 compared to other crimpers?

Key features include four-core pinpoint crimping specifically for coaxial cables, a multi-function locator adjustable to different depths for pins of varying lengths, and pneumatic operation for precise and reliable crimping performance.

What are the space and weight requirements for installation?

The TP-C10 has dimensions of 120*80*110cm and weighs 125kg. Specific air pressure and power requirements are not detailed on the page—please contact Wirepro directly for specifications.

How does the TP-C10 handle different pin lengths and changeovers?

The multi-function locator can be adjusted to different depths to accommodate pins of varying lengths. The machine is designed for coaxial cable crimping and supports custom size options upon request.

What are the delivery, installation, and after-sales support terms?

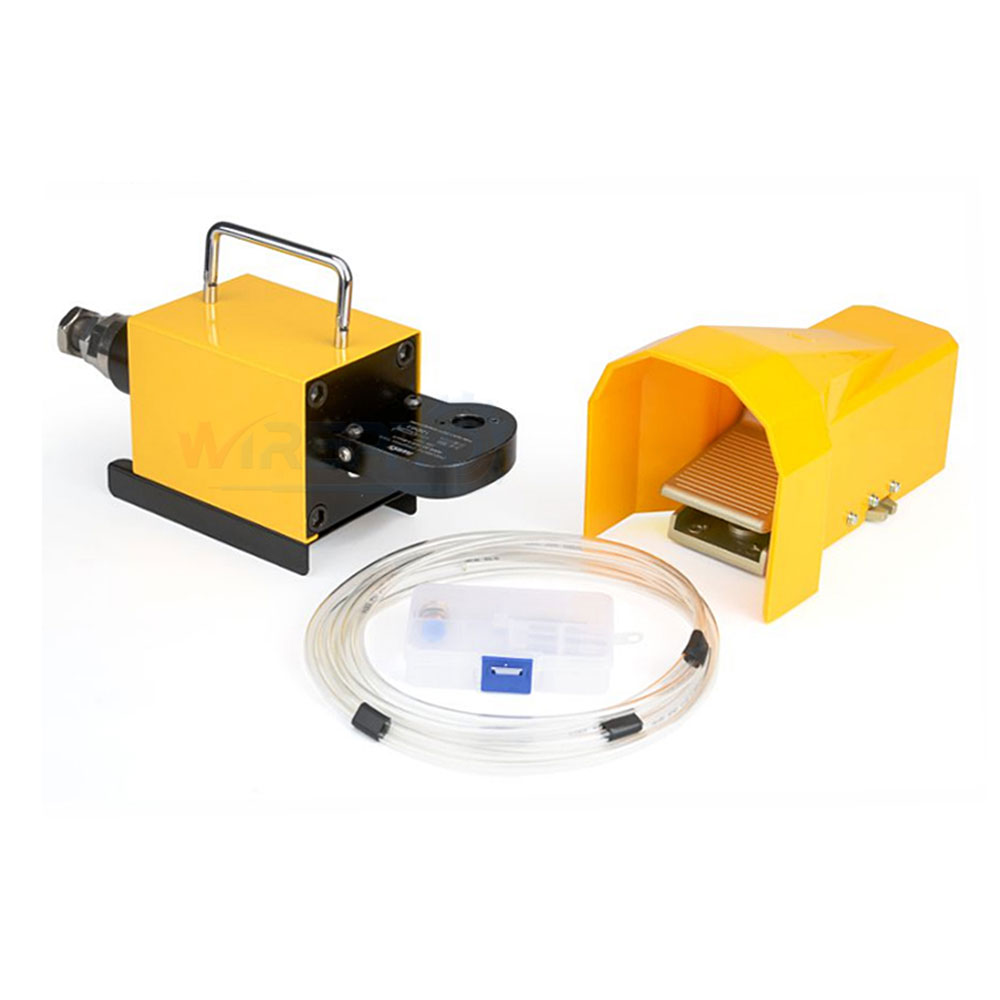

Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
