TP-S04
| Availability: | |
|---|---|
| Quantity: | |

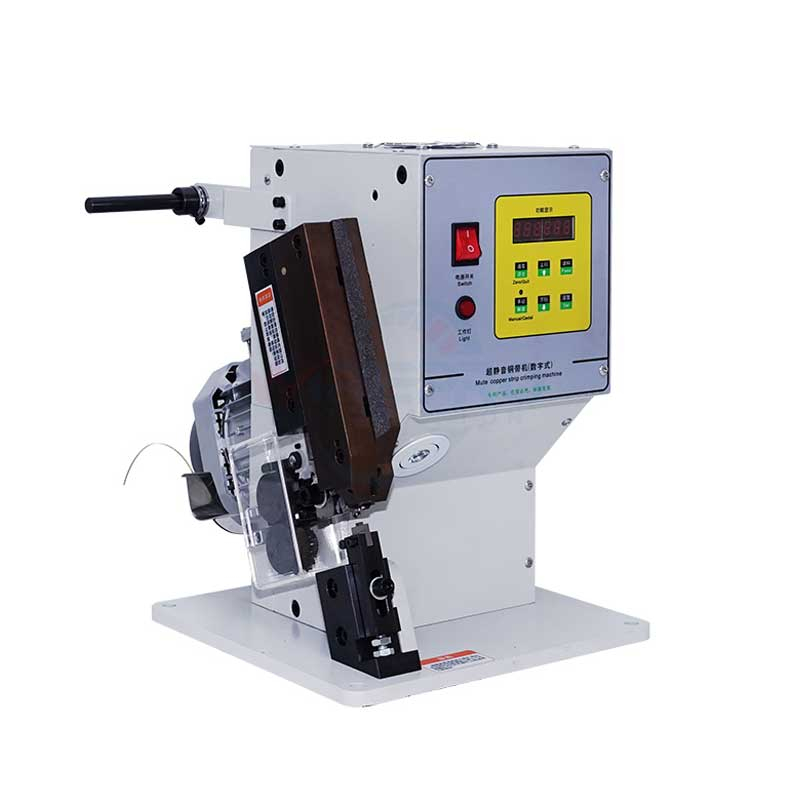

This wire splicing machine utilizes copper strips as a replacement for traditional welding methods, providing a highly efficient and reliable wire connection solution. With its advanced design and specialized continuous copper strip terminal, cutting and splicing are seamlessly completed in a single step.
Machine Features:
1. Enhanced Crimping Stability: Features a three-axle through-type spindle mounting method with front and back support, ensuring concentric alignment without gaps for firmer crimping force.
2. Precision Feeding System: Driven by a stepping motor for digitized length control, providing simple, fast adjustments and stable feeding performance.
3. Durable and Robust Build: Enlarged diameters of the main axle and eccentric shaft deliver greater strength and durability, enhancing long-term performance.
4. Optimized Structural Design: The machine head is enclosed within an optimized box structure, offering superior bearing strength compared to traditional four-screw-mounted designs.
5. Ergonomic Operating Height: The operating height is optimized to reduce fatigue, aligning with the natural fist height for comfortable and efficient operation.
6. High-Strength Copper Connections: The copper belt undergoes a special grain treatment, ensuring exceptional durability and strong endurance after riveting.
Model | TP-S04 |
Stroke | 23mm |
Crimping force | 4T |
Maximum Copper Strip Width | 12 MM |
Maximum Crimping Width | 12 MM |
Maximum pulling force | 500N |
Power | 1500 W |
Power supply | 220V/50HZ |
Weight | 100kg |
Dimension | 40*60*65cm |
Application
The connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high-temperature heating elements, and the connection between the thermosensitive elements.
The TP-S04 is a 4T wire cable harness copper belt splicing machine designed for wire splicing using copper strips as an alternative to traditional welding. It is used for connections such as xenon lamps, slide switches, and heating elements.
It delivers 4 tons crimping force with 23mm stroke. Supports copper strip width up to 12mm and max crimping width of 12mm with max pulling force of 500N. Operates on 220V/50Hz power (1500W).
Key features include three-axle through-type spindle mounting for enhanced crimping stability, stepping motor feeding with digitized length control, optimized box structure for superior bearing strength, and ergonomic operating height to reduce operator fatigue.
The TP-S04 operates on 220V/50Hz power (1500W) and has dimensions of 40*60*65cm, weighing 100kg. It is a benchtop unit requiring moderate workspace.
The stepping motor driven feeding system provides digitized length control for simple and fast adjustments. The machine supports copper strip widths up to 12mm with one-step cutting and splicing operation.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
