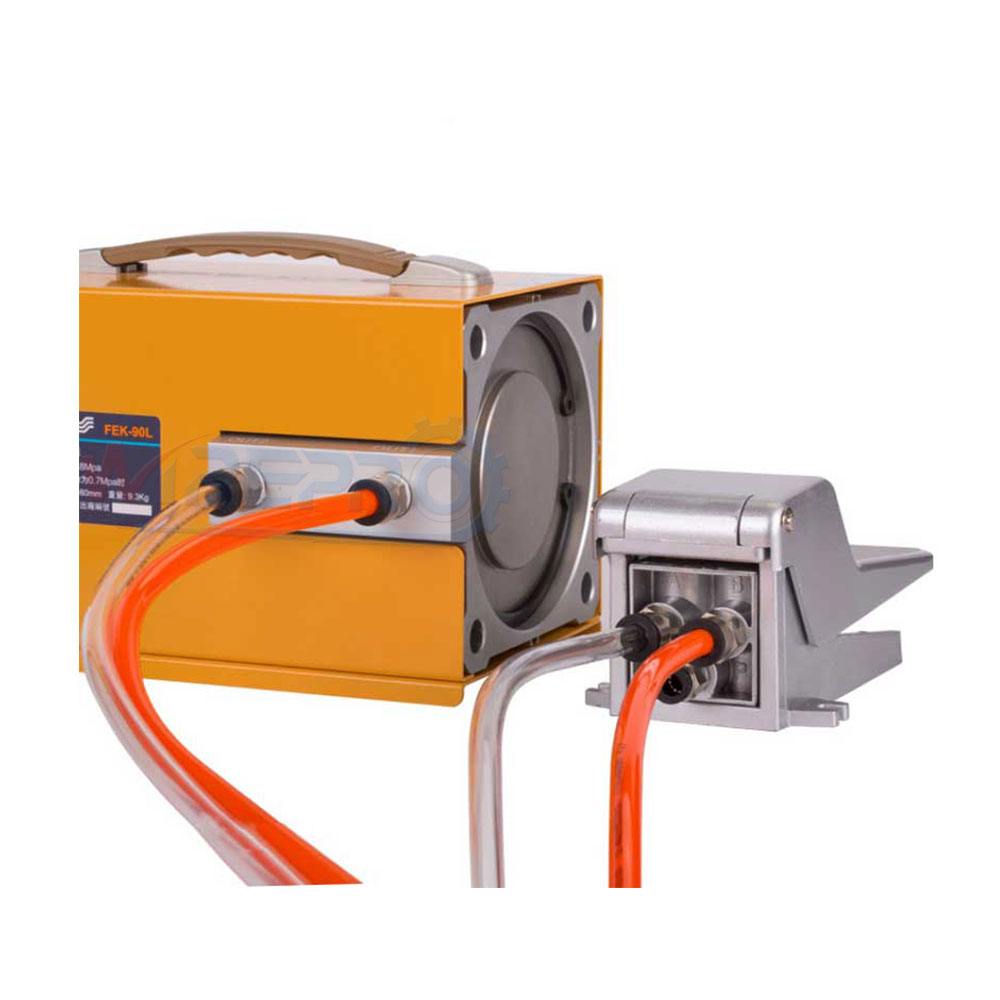

TP-90L
| Availability: | |
|---|---|
| Quantity: | |
The crimping dies are versatile and can be interchanged to accommodate various types of terminals. You can choose between front-feed or side-feed crimping dies based on your specific requirements.
1. Efficient Dual-Action Cylinder: Equipped with a dual-action standard cylinder, the machine ensures fast, powerful, and high-quality crimping performance. It operates effortlessly via a footswitch.
2. Wide Terminal Compatibility: Designed to handle a variety of terminal types, making it ideal for diverse crimping tasks.
3. Interchangeable Die Sets: The die sets are fully compatible with our manual crimping tools, offering flexibility for different applications.
4. Comprehensive Die Set Options: We provide a wide range of die sets tailored to meet your crimping needs.
5. Compact and Reliable Design: Lightweight, durable, and highly efficient, ensuring stable performance over time.
6. Included Accessories: The package comes complete with one die set, one-foot air valve, and two air pipes for easy setup and use.
Model | TP-90L | TP-300L |
Crimping range | 6-90mm2 | 6-300mm2 |
Crimping Force | 6T | 9T |
Crimping range | 6-90 mm2 | 6-300 mm2 |
Crimping Type | Hexagonal crimping, spot crimping and M shape crimping | |
Accessories | Series Crimping Dies, PU Tube, Foot Control Switch | |
Air Pressure | 0.7-0.95 Mpa | 0.7-0.95 Mpa |
Dimension | 33X15X16 cm | 40x20x21 cm |
Weight | 9.5kgs | 22 kgs |
Application
Wire stripping and ring terminal crimping
The TP-90L and TP-300L are small-size pneumatic big terminal crimping machines for heavy-duty applications. They deliver 6 tons and 9 tons of crimping force respectively, supporting terminals up to 90mm² and 300mm².
TP-90L handles 6-90mm² terminals with 6 tons force; TP-300L handles 6-300mm² with 9 tons force. Both support hexagonal, spot, and M-shape crimping configurations.
Key features include a dual-action cylinder for fast, powerful crimping, interchangeable die sets compatible with manual crimping tools, front-feed or side-feed die options, and compact, lightweight construction.
Both require 0.7-0.95 MPa air pressure. TP-90L: 33*15*16cm, 9.5kg; TP-300L: 40*20*21cm, 22kg. Both include one die set, foot air valve, and two air pipes.
The die sets are fully interchangeable and compatible with manual crimping tools. You can choose front-feed or side-feed dies based on requirements. A wide range of die sets is available for different terminal types.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
