TP-F64
| Availability: | |
|---|---|
| Quantity: | |
This machine is specifically designed for crimping IDC products. Once the product is inserted, it is automatically pressed, and the cylinder resets upon completion, ensuring a smooth and efficient workflow.
Key Features:
1. High Efficiency and Quality: Replaces traditional hand pliers, providing faster pressing speeds, stable quality, and simple operation.
2. Easy to Operate: User-friendly design that is straightforward and quick to learn.
3. Impressive Output: Capable of completing 300–600 press cycles per hour, depending on the product type.
4. Durable Bakelite Base: Offers high precision, wear resistance, and easy handling for consistent results.
5. Low Energy Consumption: Features minimal gas usage, a low failure rate, and easy maintenance, ensuring cost-effective operation.
6. Robust and Rust-Resistant: The machine body is constructed from high-quality steel for durability, with a plated exterior that is both aesthetically pleasing and rust-proof.
Model | TP-F64 | TP-F96 |
Crimp Pin | 4-64 pin | 4-96 pin |
Function | Terminal automatic feeding and terminal crimping | |
Air connection | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
Weight | 14 kg | 17 kg |

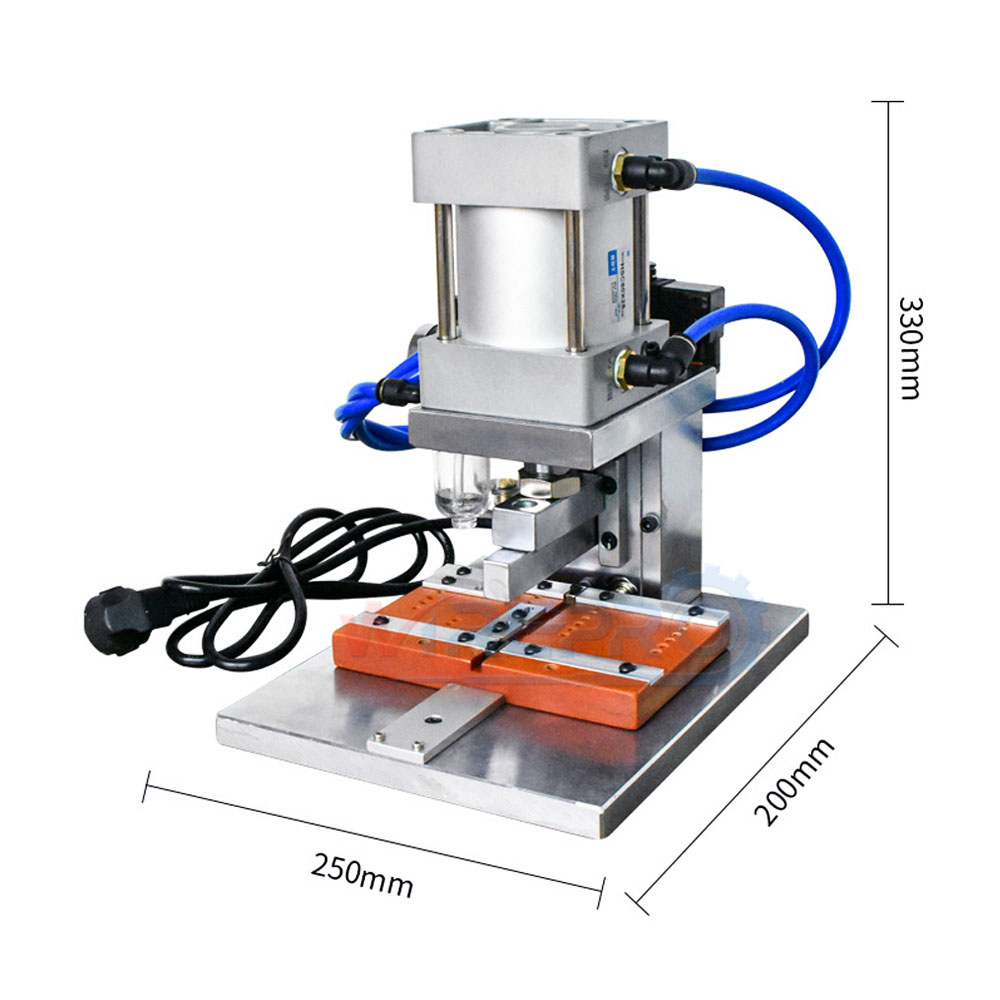

Dimensions | 25*20*33 cm | 25*20*33 cm |
Application
IDC ribbon cable connector pressing for electronic assembly.
The TP-F64 is a multi-pin ribbon cable connector pressing machine specifically designed for IDC (Insulation Displacement Connector) products. It is used for pressing ribbon cable connectors in electronic assembly applications.
It supports 4-64 pin configurations. For comparison, the TP-F96 model supports 4-96 pins. Both require 0.6-0.8 MPa air connection and operate on 110/220VAC, 50/60Hz power.
The machine can complete 300–600 press cycles per hour, depending on the product type. It features automatic pressing with cylinder reset for smooth and efficient workflow.
Key features include automatic pressing with cylinder reset, high efficiency replacing traditional hand pliers, durable bakelite base for precision and wear resistance, low energy consumption, and robust steel construction with rust-proof plating.
The TP-F64 requires 0.6-0.8 MPa air connection and 110/220VAC, 50/60Hz power. It has dimensions of 25*20*33cm and weighs 14kg, making it a compact benchtop unit.
The machine is designed for specific pin count ranges (TP-F64: 4-64 pins; TP-F96: 4-96 pins). For different pin configurations within the supported range, the bakelite base provides consistent precision and wear resistance for reliable results.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
