TU-SP2 TU-SP3 TU-SP4 TU-SP6 TU-SP8
| Availability: | |
|---|---|
| Quantity: | |
Description

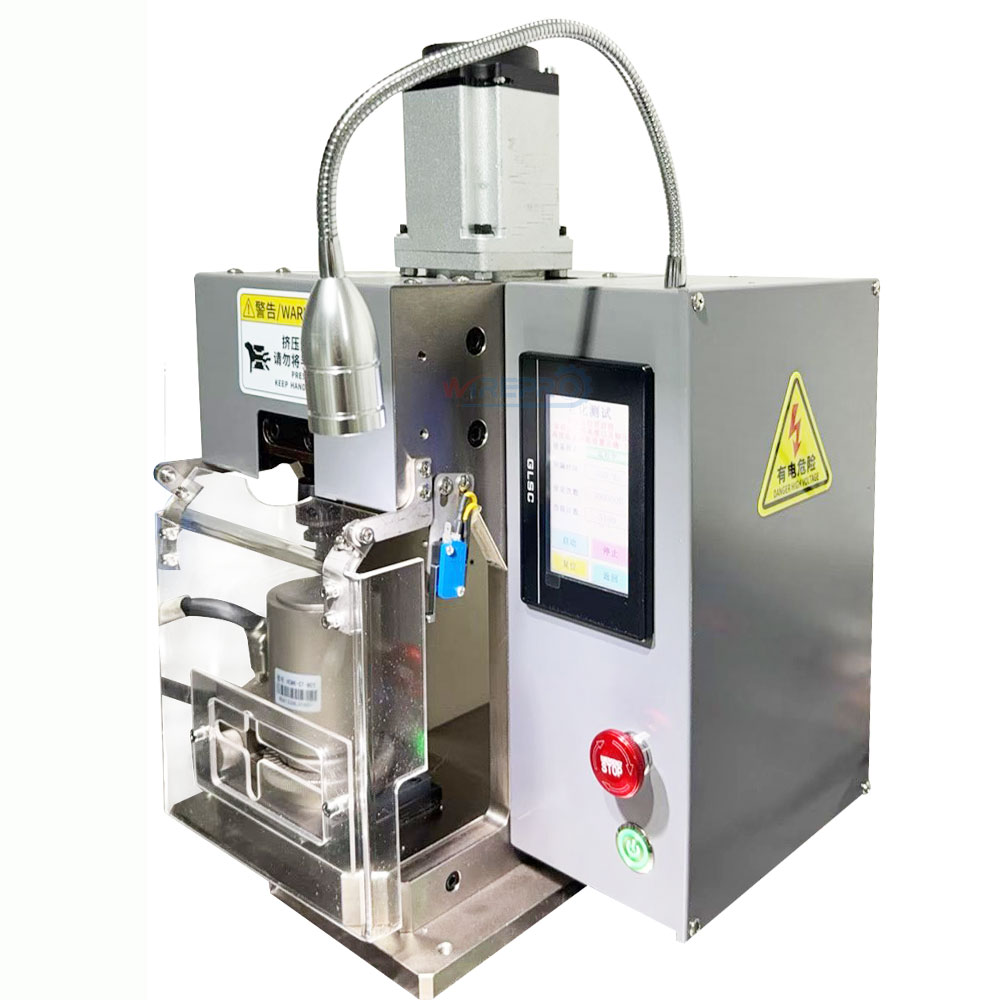

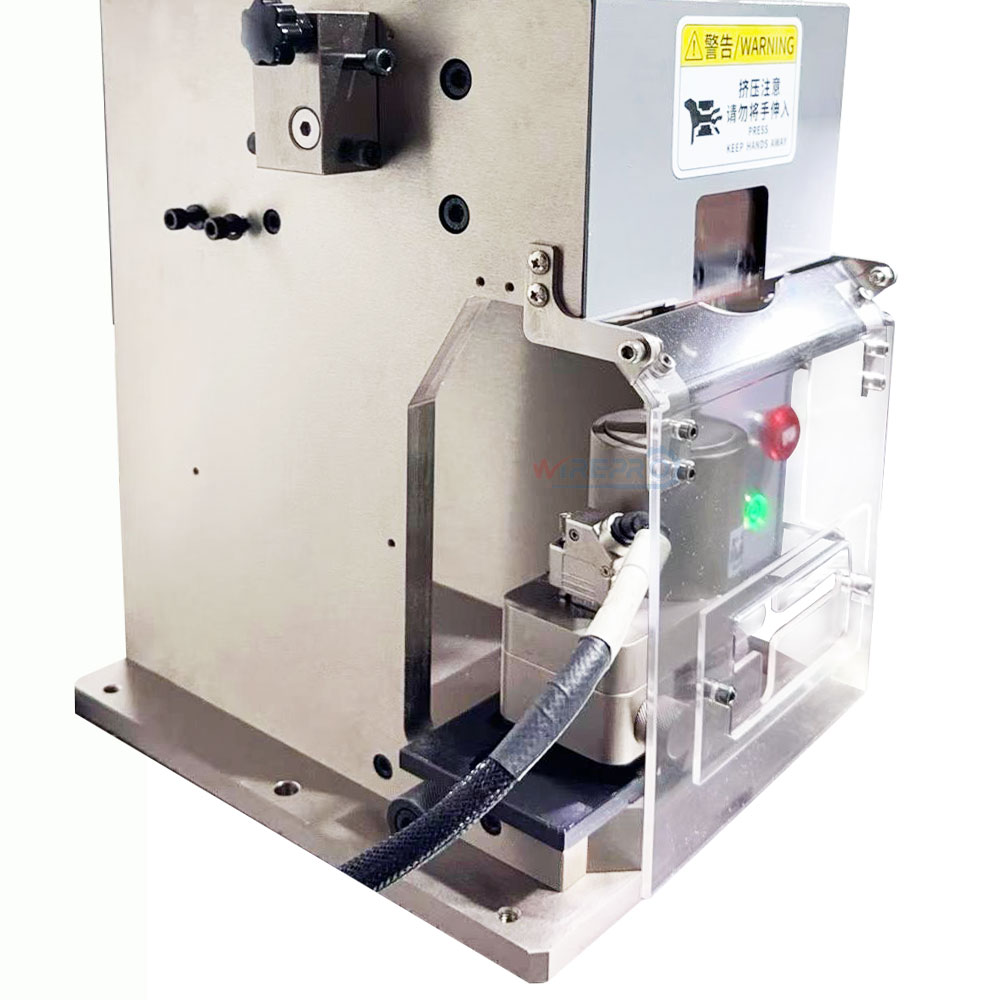

Building on the proven reliability of our standard series, the TU-SP2 represents a new-generation upgrade that integrates a high-performance servo motor with an intuitive touchscreen interface — delivering superior control, flexibility, and operational ease. Engineered for wire-processing professionals who demand both precision and productivity, this model combines ultra-tight crimp-height tolerances with smart digital management, all within a compact, air-free footprint.
Precision & Process Stability
The servo drive system provides closed-loop position and speed control, ensuring exceptionally smooth and repeatable ram movement. Crimp height tolerance is verified at ≤ ±0.02mm — a benchmark that guarantees consistent joint quality even during continuous high-volume production. The digital servo architecture eliminates mechanical drift and reduces backlash well beyond the capability of conventional geared motors.
Intelligent Touchscreen Operation

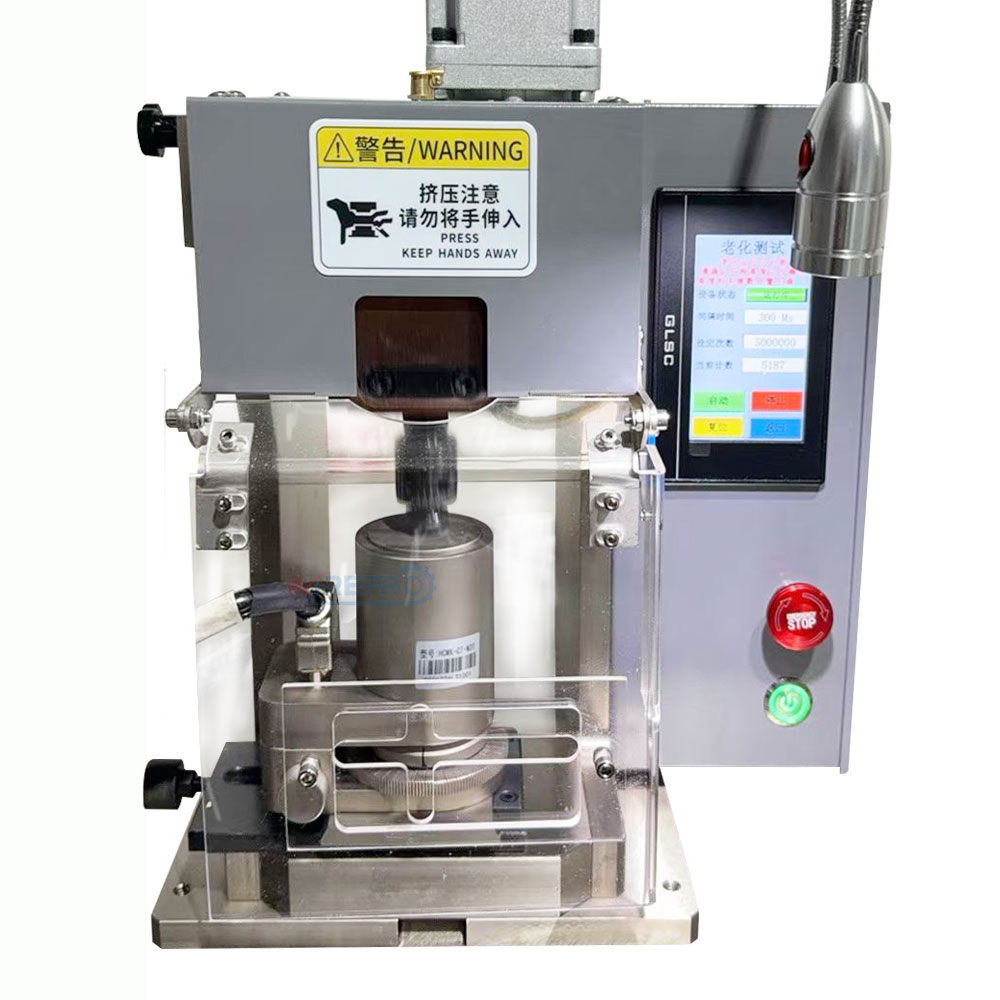

The large color touchscreen HMI transforms how operators interact with the machine:
Intuitive parameter setting and storage
Real-time crimping status display
Quick recipe recall for different terminal types
Alarm diagnostics with clear on-screen guidance
Energy Efficiency & Low Noise
The servo motor operates only when needed, consuming significantly less power than conventional induction motors. It also runs with remarkably low noise levels, creating a quieter and more comfortable working environment — a true green manufacturing solution.
Air-Free, Plug-and-Play Installation
Fully electrically driven — no compressed air supply required. This simplifies installation, lowers operating costs, and allows the machine to be placed anywhere on the production floor with minimal infrastructure.
Wide Applicator Compatibility
Supports OTP applicators (horizontal / vertical / single-pellet) as well as 4-side and 6-side no-changeover die holders for fast switching between different terminal sizes.
| Equipment Model | TU-SP2 | TU-SP3 | TU-SP6 | TU-SP8 |
| Maximum Crimping Force | 2.0T | 4.0T | 6.0T | 8.0T |
| Crimping Wire Range | 0.1-4.0mm² | 0.1-16mm² | 0.1-25mm² | 0.1-32mm² |
| Stroke | 30mm (custom 40mm) | |||
| Required Compressed Air | Not need | |||
| Rated Voltage | 220V/50Hz/60Hz | |||
| Capacity | 1 s/stroke | 1.4 s/stroke | 2s/stroke | 2s/stroke |
| Motor Power | 750W | 1500W | 2300W | 2300W |
| Dimensions | 30*30*49cm | 30*40*62cm | 40*41*75cm | 40*41*75cm |
| Product Weight | 64Kg | 90Kg | 140Kg | 140Kg |
Application
Wire stripping and ring terminal crimping

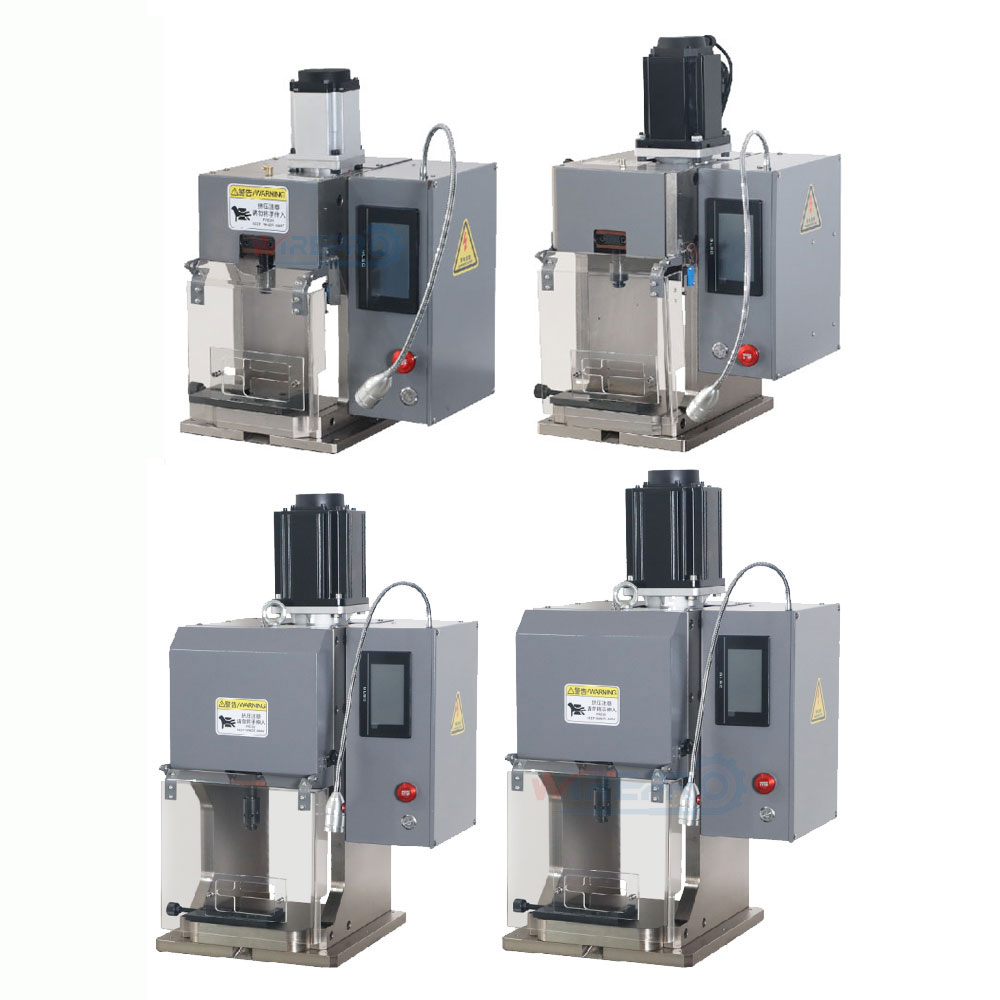

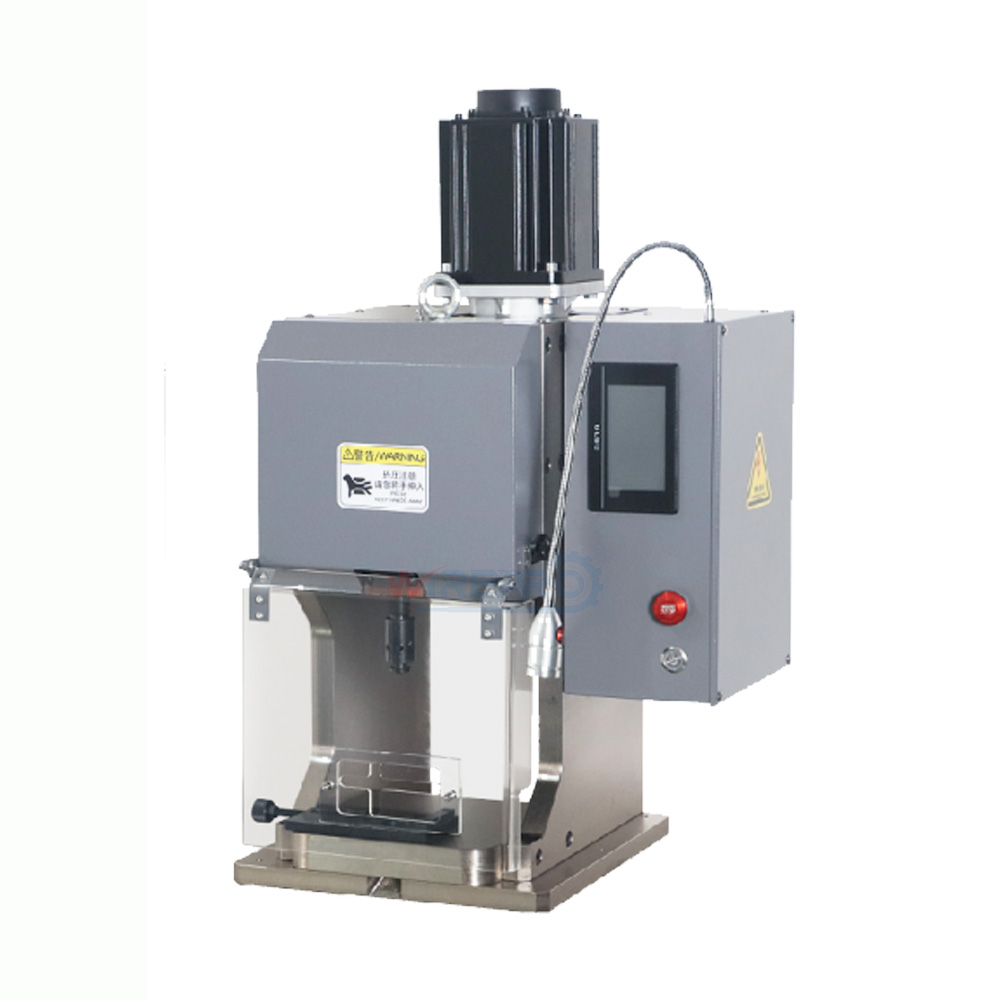

The TU-SP series (2T-8T) are high-precision servo touchscreen terminal crimping machines for wire processing. They achieve ≤±0.02mm crimp height tolerance with closed-loop servo drive for consistent quality in high-volume production.
TU-SP2: 2T, 0.1-4mm²; TU-SP3: 4T, 0.1-16mm²; TU-SP6: 6T, 0.1-25mm²; TU-SP8: 8T, 0.1-32mm². All feature 30mm stroke (custom 40mm) and operate on 220V/50-60Hz.
Key features include servo drive with closed-loop position/speed control, large color touchscreen HMI with recipe storage and alarm diagnostics, low noise and energy-efficient operation, and air-free electric drive for plug-and-play installation.
All models operate on 220V/50-60Hz with no compressed air required. Dimensions: TU-SP2 30*30*49cm (64kg), TU-SP3 30*40*62cm (90kg), TU-SP6/P8 40*41*75cm (140kg).
The machine supports OTP applicators (horizontal, vertical, single-pellet), as well as 4-side and 6-side no-changeover die holders for fast switching between terminal sizes.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
