TU-S30
| Availability: | |
|---|---|
| Quantity: | |

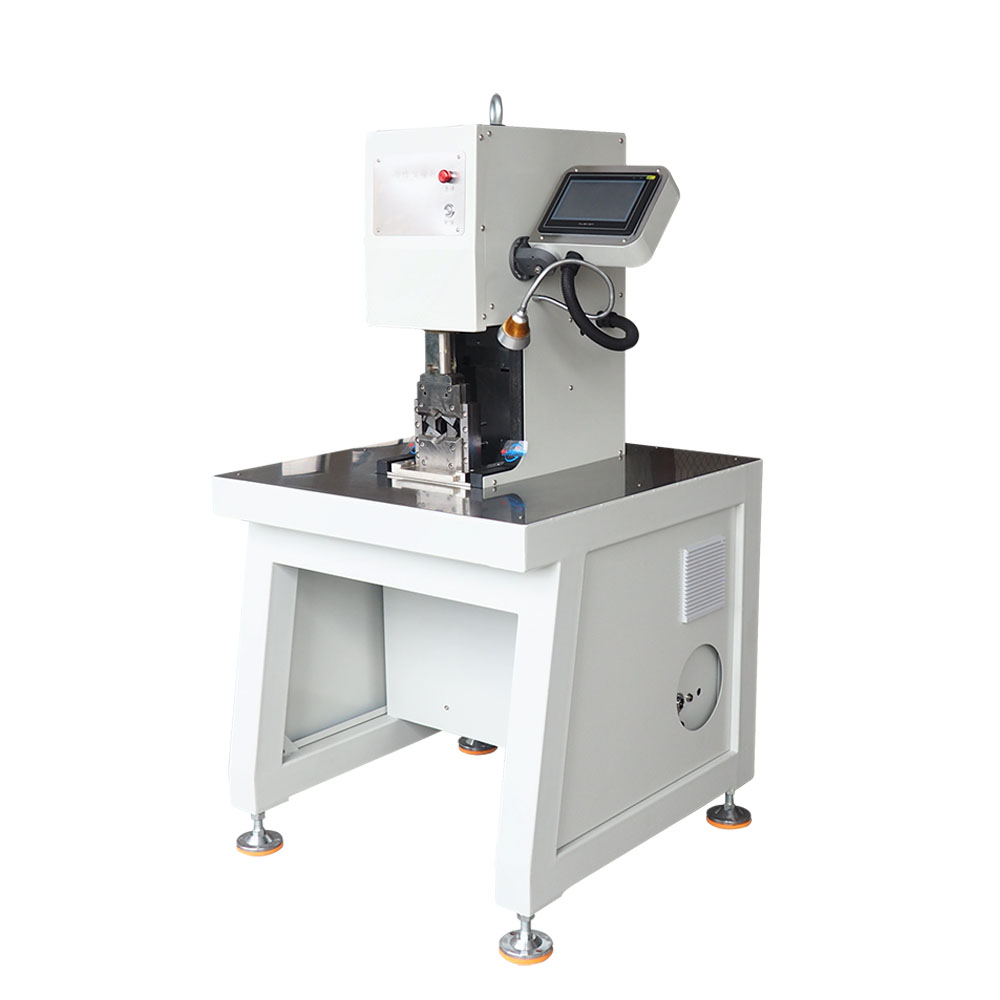

This series of servo crimping machines specializes in processing large square wire terminals, utilizing an AC servo motor and high-precision ball screw mechanism to deliver exceptional crimping force with precise pressure assembly and displacement detection capabilities. Ideal for both standard and non-standard large square tubular terminal applications.
Key Features:
1. Premium Motion System: Industrial-grade control chip paired with high-precision servo drive ensures vibration-free operation
2. Smart PLC Control: Instantly adapts crimping parameters for different terminal specifications
3. Universal Applicator: Processes various terminal sizes without tool changes
4. Multi-Profile Crimping: Supports hexagonal, quadrilateral, and M-shaped crimp configurations
5. Adjustable Positioning: Accommodates different square wire dimensions
6. Flexible Configuration: Available in both space-saving desk-mounted and heavy-duty floor-standing models
| Model | TU-S20 | TU-S30 |
| Cable range | Min about 2.5mm²,Max 120mm² | Min about 2.5mm²,Max 240mm² |
| Crimping Force | 20T | 30T |
| Stroke | 35mm | 55mm |
| Crimping Tolerance | ±0.03mm | ±0.03mm |
| Speed | 10-30 pcs/min | 10-30 pcs/min |
| Driving Mode | Ball Screw | Ball Screw |
| Control System | Motion Control Board + Touch Screen Control | Motion Control Board + Touch Screen Control |
| Reducer | Planet Reducer | Planet Reducer |
| Adaptive Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold |
| Power Source | 220V 50-60Hz | 220V 50-60Hz |
| Motor Power | 2KW Servo Motor | 4.5KW Servo Motor |
| Machine Size | 74*74*150cm | 74*74*150cm |
| Machine Weight | 450kgs | 500kgs |
Application
Cable lug terminal crimping samples
The TU-S30 is a servo crimping machine for processing large square wire terminals up to 240mm². It is used for standard and non-standard large square tubular terminal applications in electrical manufacturing.
It supports cable ranges from approximately 2.5mm² to 240mm² with 30 tons crimping force and 55mm stroke. It achieves ±0.03mm crimping tolerance and operates at 10-30 pieces per minute.
Its key differentiators include 30T crimping force with 240mm² capacity, AC servo motor with high-precision ball screw mechanism, universal applicator for various terminal sizes without tool changes, and support for hexagonal, quadrilateral, and M-shape crimping profiles.
The TU-S30 requires 220V, 50-60Hz power with a 4.5KW servo motor. It has dimensions of 74*74*150cm and weighs 500kg, requiring dedicated floor space for installation.
The universal applicator processes various terminal sizes without tool changes. Smart PLC control instantly adapts crimping parameters for different terminal specifications. It also features adjustable positioning for different square wire dimensions.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
