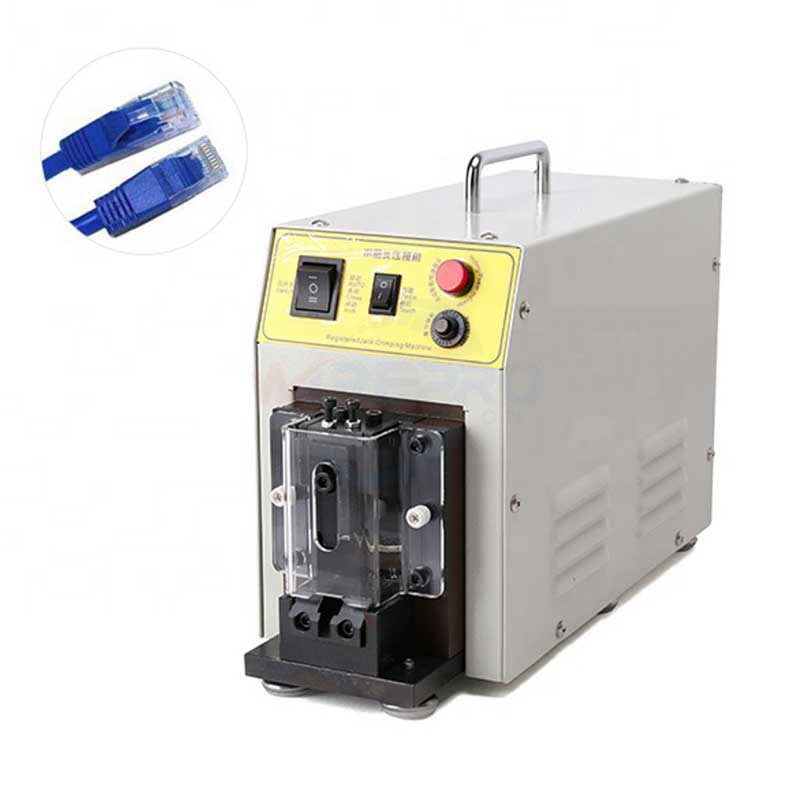

Description: The TC-E10 Ethernet Cable Crimping Machine is designed for crimping RJ45 and RJ11 connectors, supporting 2P, 4P, 6P, 8P, and 10P configurations.
For UK-type connectors, different applicators are required.
Features:
1. Applicators are easily interchangeable for quick setup.
2. The reducer’s output shaft features a reinforced steel design, ensuring stable and durable crimping.
3. Independent adjustment of the internal and external blade crimp depths for ease of use.
4. Equipped with delay control to prevent continuous crimping, protecting the products from damage.
5. Transparent cover over the crimping area for enhanced safety.
6. New sheet metal construction with a built-in radiator fan, combining practicality with an attractive design.
Model | TC-E10 |
Applicable range | 2P, 4P, 6P, 8P, 10P (change different applicator) |
Crimping force | 0.2T |
Stroke | 25mm |
Power supply | 220V / 110V |
Power | 120W |
Weight | 15kg |
Dimension | 42 x 22 x 33 cm |
Application
Crimping RJ45/RJ11 connectors for network and telephone cable assembly.
The TC-E10 is an Ethernet cable connector press machine designed for crimping RJ45 and RJ11 connectors. It supports 2P, 4P, 6P, 8P, and 10P configurations for network and telephone cable assembly.
It supports 2P, 4P, 6P, 8P, and 10P configurations for RJ45/RJ11 connectors. Different applicators are required for UK-type connectors. It delivers 0.2 tons crimping force with 25mm stroke.
Key features include easily interchangeable applicators, independent adjustment of internal and external blade crimp depths, delay control to prevent continuous crimping, transparent safety cover, and reinforced steel output shaft for durability.
The TC-E10 operates on 220V/110V power (120W) and has dimensions of 42*22*33cm, weighing 15kg. It is a compact benchtop unit suitable for small workspaces.
Applicators are easily interchangeable for quick setup. The machine features independent adjustment of internal and external blade crimp depths for ease of use. Different applicators are required for UK-type connectors.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
